Toyota Land Cruiser Prado

2024-01 → present · chassis GDJ25#,TJA250,TRJ250 · catalogue 781290 · Europe

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

27 part groups · 2 illustrations

Illustrations

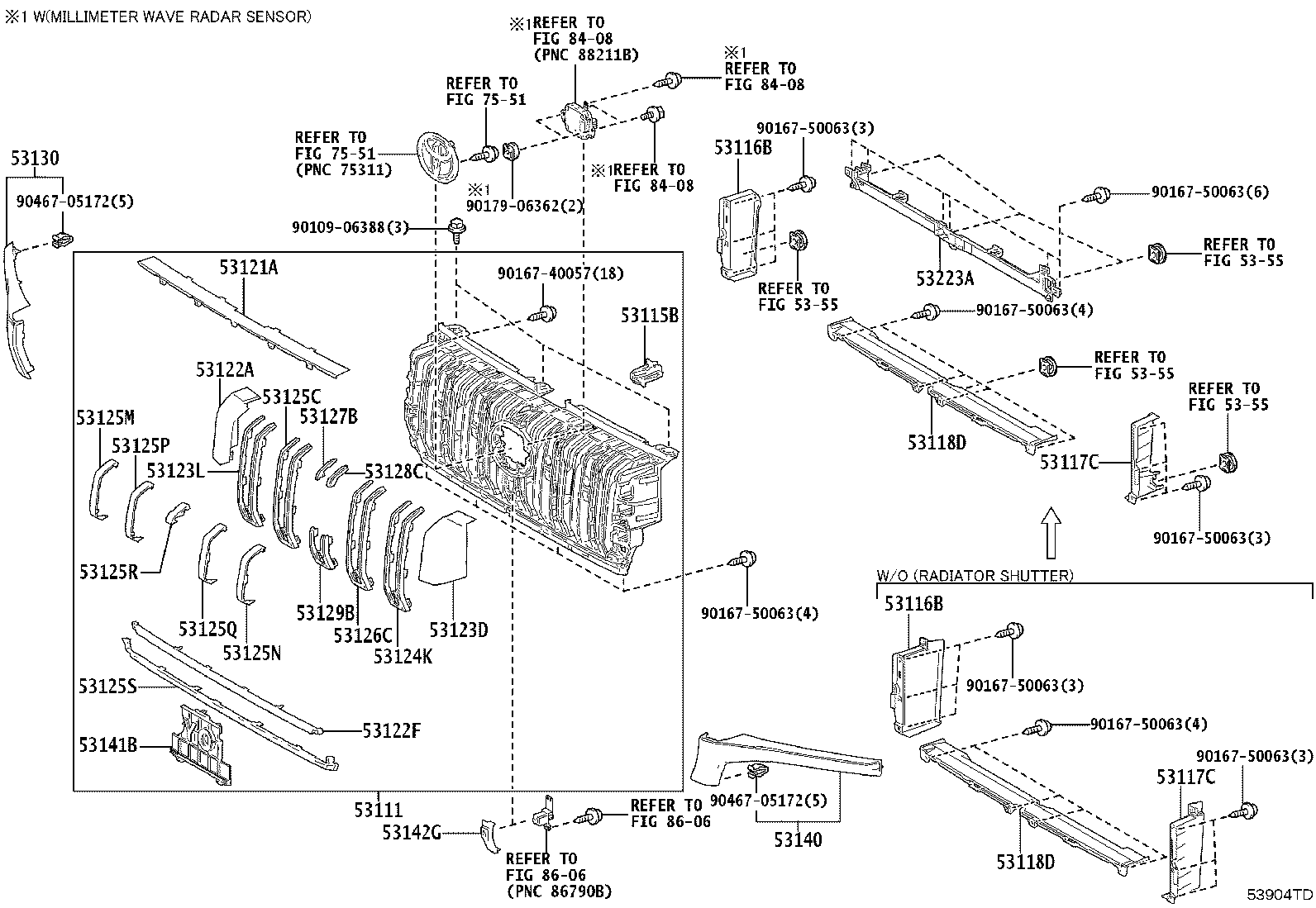

Figure 53904SC 53904SC 2024-01 → — Figure 53904TD 53904TD 2024-04 → —

Part groups

PNCDescription
53111 Grille, Radiator
53115B Bracket, Radiator Grille
53116B Bracket, Radiator Grille, NO.2
53117C Retainer, Radiator Grille, NO.1
53118D Retainer, Radiator Grille, NO.2
53121A Moulding, Radiator Grille
53122A Moulding, Radiator Grille, Lower
53122F Moulding, Radiator Grille, NO.2
53123D Moulding, Radiator Grille, Lower
53123L Moulding, Radiator Grille, NO.3
53124K Moulding, Radiator Grille, NO.4
53125C Moulding, Radiator Grille, NO.5
53125M Moulding, Radiator Grille, NO.10
53125N Moulding, Radiator Grille, NO.11
53125P Moulding, Radiator Grille, NO.12
53125Q Moulding, Radiator Grille, NO.13
53125R Moulding, Radiator Grille, NO.14
53125S Moulding, Radiator Grille, NO.15
53126C Moulding, Radiator Grille, NO.6
53127B Moulding, Radiator Grille, NO.7
53128C Moulding, Radiator Grille, NO.8
53129B Moulding, Radiator Grille, NO.9
53130 Ornament Assy, Headlamp, RH
53140 Ornament Assy, Headlamp, LH
53141B Garnish, Radiator Grille, NO.1
53142G Garnish, Radiator Grille, NO.2
53223A Bracket, Radiator Grille Mounting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
