Toyota Land Cruiser Prado
2024-01 → present · chassis GDJ25#,TJA250,TRJ250 · catalogue 781290 · Europe
Supported model
Data version 2024-07
Hood & Front Fender
30 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53153E | Guide, Front Side Air |
| 53154E | Guide, Front Side Air, NO.2 |
| 53301 | Hood Sub-assy |
| 53341B | Insulator, Hood |
| 53341C | Clip(FOR HOOD INSULATOR) |
| 53378E | Seal, Hood Air Intake Duct, RH |
| 53379 | Seal, Hood Air Intake Duct, LH |
| 53383C | Seal, Hood TO Cowl Top |
| 53395A | Seal, Hood TO Front End Panel, NO.1 |
| 53396A | Seal, Hood TO Front End Panel, NO.2 |
| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |

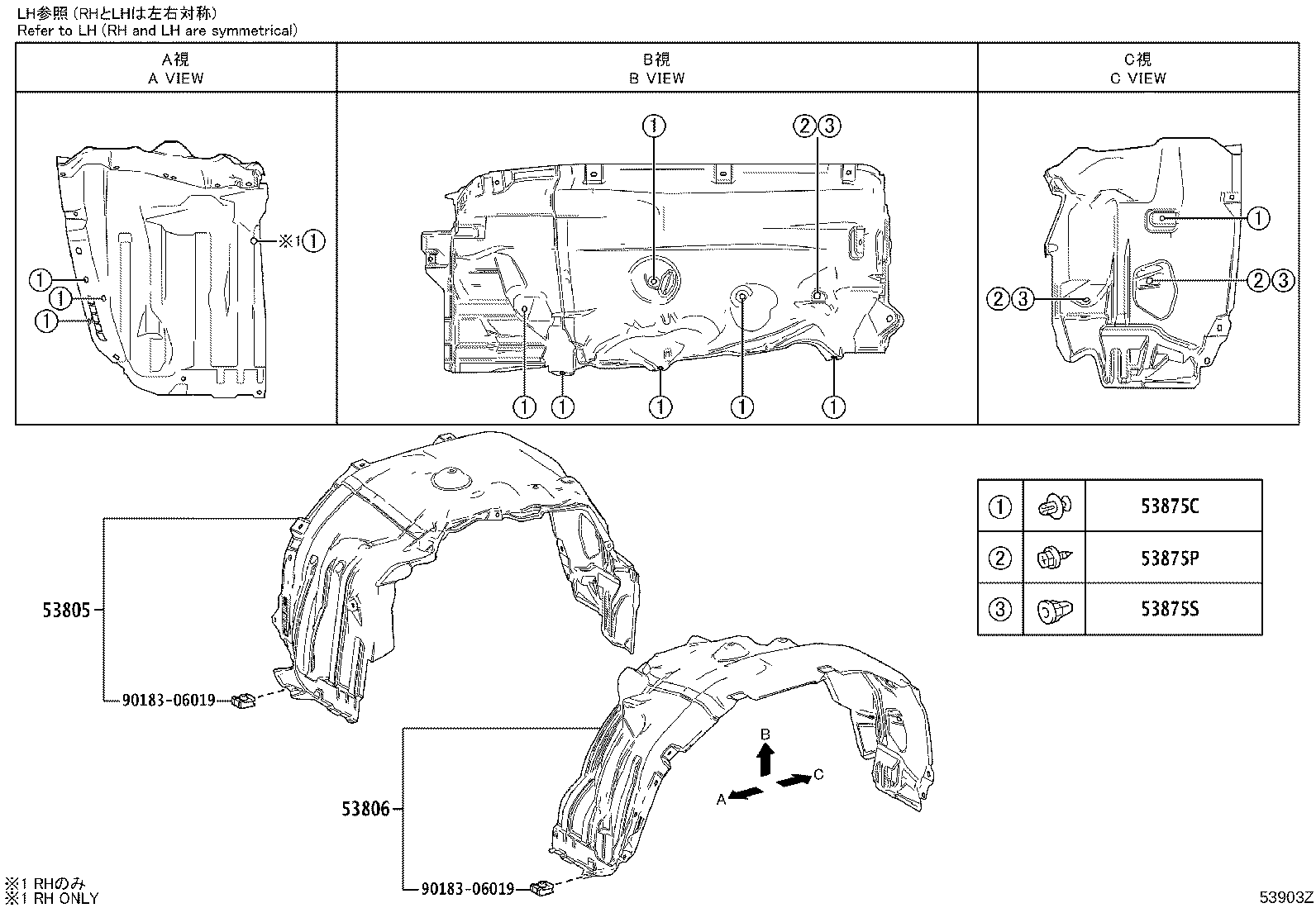

| 53805 | Shield Sub-assy, Front Fender Splash, RH |
| 53806 | Shield Sub-assy, Front Fender Splash, LH |
| 53807D | Reinforcement Sub-assy, Front Fender, Top RH |
| 53808D | Reinforcement Sub-assy, Front Fender, Top LH |
| 53827K | Protector, Front Fender Side Panel, RH |
| 53828J | Protector, Front Fender Side Panel, LH |
| 53833A | Panel, Front Fender Side, Lower RH |
| 53834 | Panel, Front Fender Side, Lower LH |
| 53837A | Bracket, Front Side Panel, NO.2 |
| 53838C | Bracket, Front Side Panel, NO.2 LH |
| 53857B | Retainer, Front Wheel Opening Extension, RH |
| 53858B | Retainer, Front Wheel Opening Extension, LH |
| 53866A | Clip(FOR FRONT FENDER TO COWL SIDE SEAL) |
| 53875C | Clip, Front Fender Liner |
| 53875D | Clip, Front Fender Liner, NO.2 |
| 53875P | Screw, NO.1 |
| 53875S | Grommet, NO.1 |
| 65487 | Clip, Corner Protector |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
