Toyota Land Cruiser Prado
2024-01 → present · chassis GDJ25#,TJA250,TRJ250 · catalogue 781290 · Europe
Supported model
Data version 2024-07

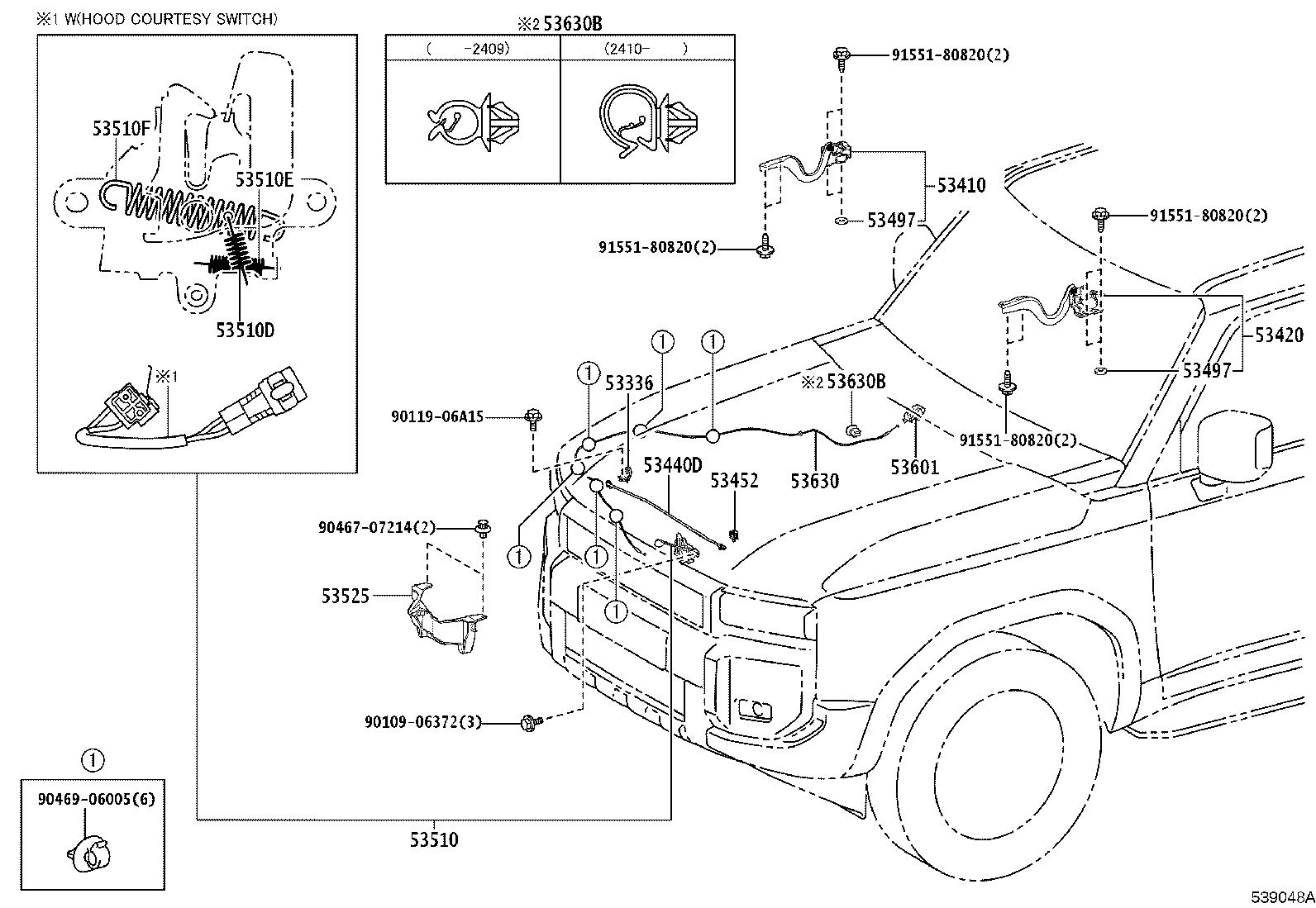

Hood Lock & Hinge
14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53336 | Bracket, Hood Stay, RH |
| 53410 | Hinge Assy, Hood, RH |
| 53420 | Hinge Assy, Hood, LH |
| 53440D | Support Assy, Hood |
| 53452 | Holder, Hood Stay |
| 53497 | Pad, Hood Hinge, NO.1 |
| 53510 | Lock Assy, Hood |
| 53510D | Spring, Tension(FOR HOOD LOCK) |
| 53510E | Spring, Tension(FOR HOOD LOCK) |
| 53510F | Spring, Tension(FOR HOOD LOCK) |
| 53525 | Protector, Hood Lock Release Lever |
| 53601 | Lever Sub-assy, Hood Lock Control |
| 53630 | Cable Assy, Hood Lock Control |
| 53630B | Clamp(FOR HOOD LOCK CONTROL CABLE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
