Toyota Land Cruiser Prado

2024-01 → present · chassis GDJ25#,TJA250,TRJ250 · catalogue 781290 · Europe

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

19 part groups · 2 illustrations

Illustrations

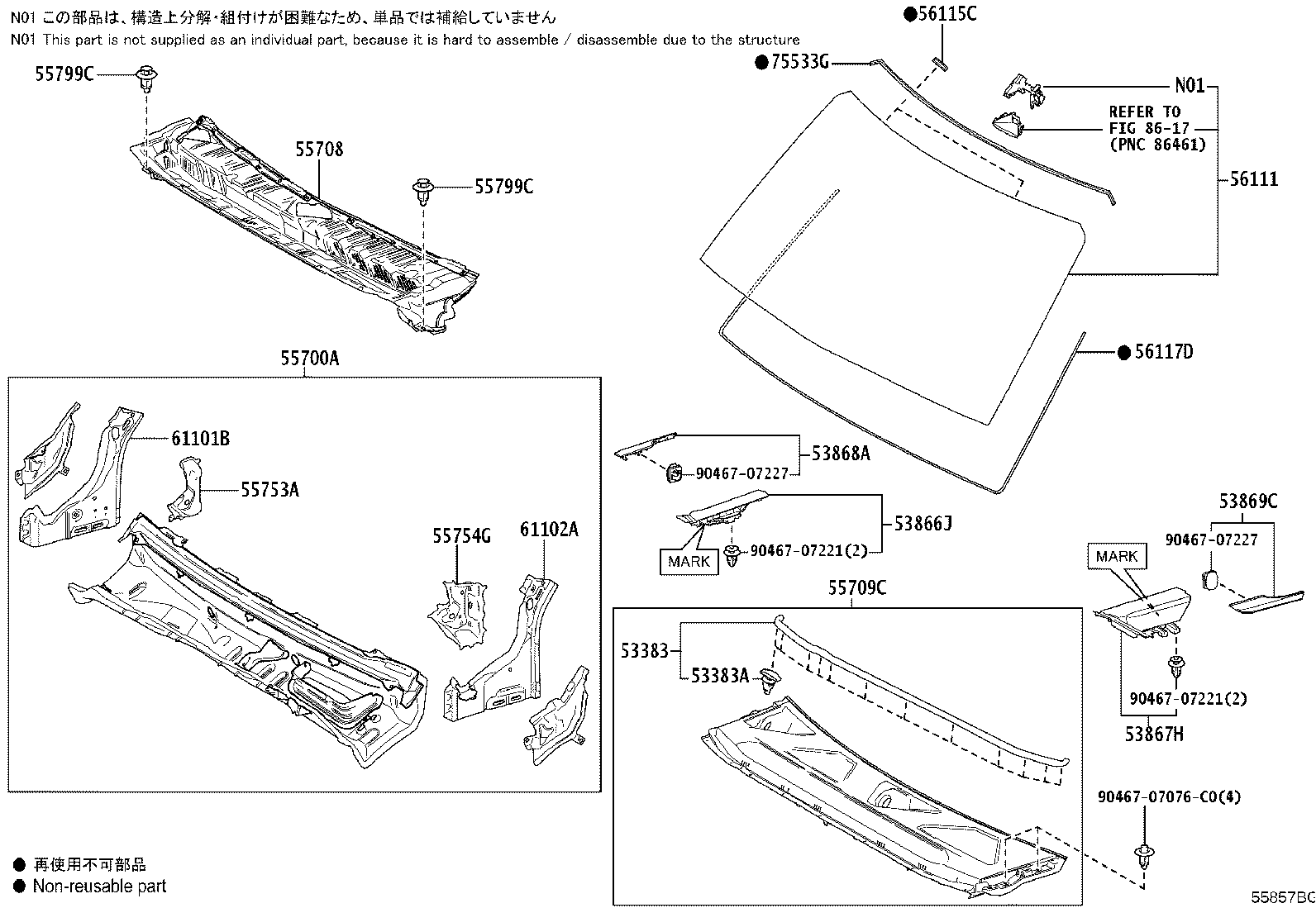

Figure 55857AE 55857AE 2024-01 → — Figure 55857BG 55857BG 2024-01 → —

Part groups

PNCDescription
53383 Seal, Hood TO Cowl Top
53383A Clip(FOR HOOD TO COWL TOP SEAL)
53866J Seal, Front Fender TO Cowl Side, RH
53867H Seal, Front Fender TO Cowl Side, LH
53868A Seal, Front Fender TO Cowl Side, NO.2 RH
53869C Seal, Front Fender TO Cowl Side, NO.2 LH
55700A Panel Assy, Cowl Top
55708 Louver Sub-assy, Cowl Top Ventilator
55709C Cover Sub-assy, Cowl Side Ventilator, LH
55753A Bracket, Instrument Panel TO Cowl
55754G Bracket, Instrument Panel TO Cowl, NO.2
55799C Clip, Cowl Top Ventilator Louver
56111 Glass, Windshield
56115C Stopper, Windshield Glass
56117D Dam, Windshield Glass Adhesive
61101B Panel Sub-assy, Cowl Side, RH
61102A Panel Sub-assy, Cowl Side, LH
67398A Guide(FOR WINDOW DEFOGGER WIRE)
75533G Moulding, Windshield, Outside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
