Toyota Land Cruiser Prado
2024-01 → present · chassis GDJ25#,TJA250,TRJ250 · catalogue 781290 · Europe
Supported model
Data version 2024-07
Front Floor Panel & Front Floor Member
28 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|

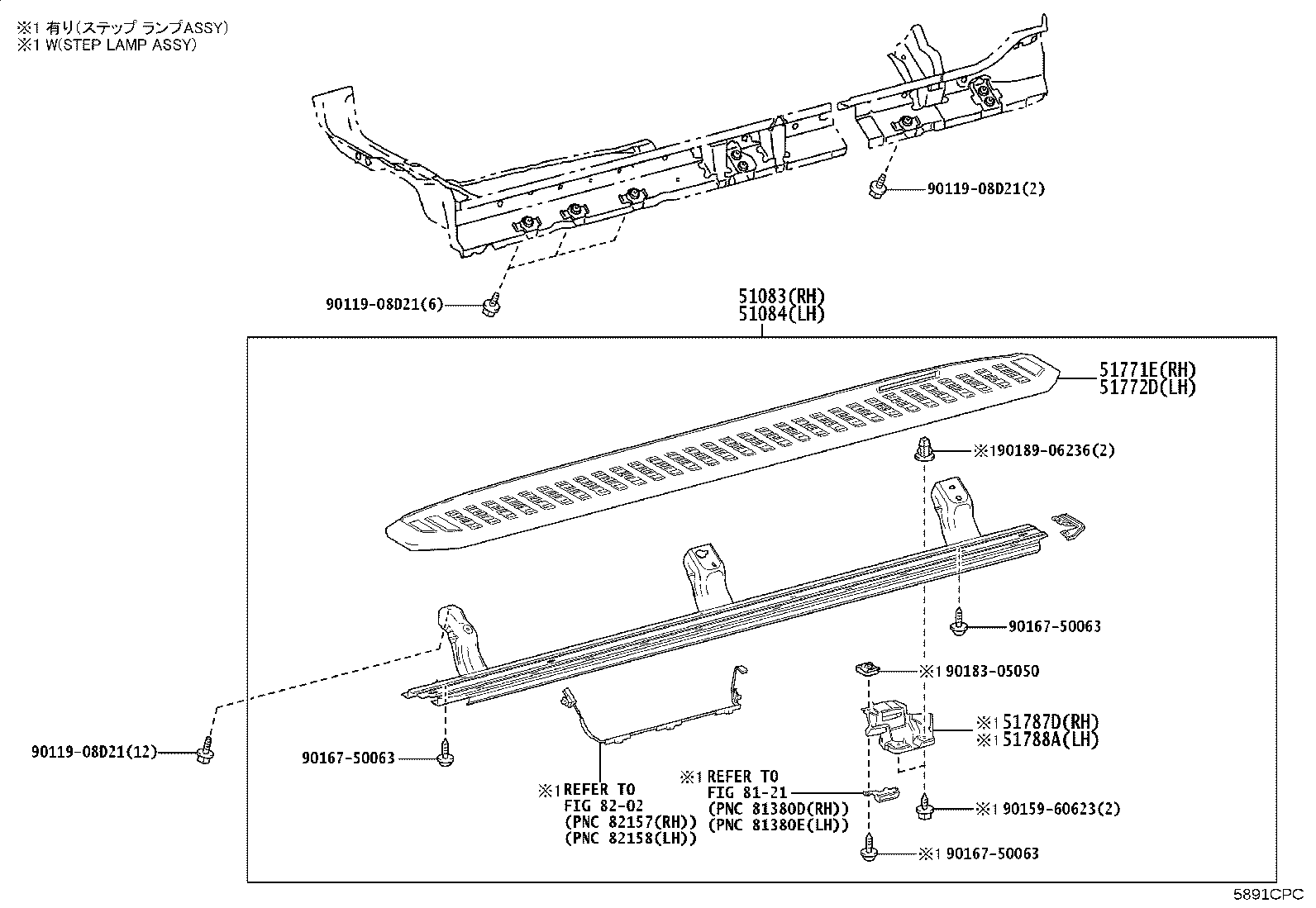

| 51083 | Step Sub-assy, RH |
| 51084 | Step Sub-assy, LH |
| 51771E | Plate, Step, RH |
| 51772D | Plate, Step, LH |
| 51787D | Reinforcement, Step Cover, RH |
| 51788A | Reinforcement, Step Cover, LH |
| 52025C | Extension Sub-assy, Front Bumper, NO.2 RH |
| 52026C | Extension Sub-assy, Front Bumper, NO.2 LH |
| 57013B | Member Sub-assy, Floor, Front RH |
| 57014 | Member Sub-assy, Floor, Front LH |
| 57051 | Member Sub-assy, Front Floor Cross, RH |
| 57052 | Member Sub-assy, Front Floor Cross, LH |
| 57053 | Reinforcement Sub-assy, Front Floor Crossmember, RH |
| 57054A | Reinforcement Sub-assy, Front Floor Crossmember, LH |
| 57057 | Reinforcement Sub-assy, Crossmember Floor, NO.7 RH |
| 57058 | Reinforcement Sub-assy, Crossmember Floor, NO.7 LH |
| 57415A | Rail Sub-assy, Floor Side, Rear RH |
| 57416A | Rail Sub-assy, Floor Side, Rear LH |
| 57501C | Brace Sub-assy, Front Floor, Center |
| 58102A | Reinforcement Sub-assy, Front Floor |
| 58111C | Pan, Front Floor |
| 58117A | Reinforcement, Front Floor Side, RH |
| 58118E | Bracket, Jack Set |
| 58123A | Support, Shift & Select Lever |
| 58171 | Reinforcement, Parking Brake Base |
| 58173E | Bracket, Wiring Harness, NO.3 |
| 58179C | Bracket, Clamp Floor |
| 61693F | Bracket, Front Floor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
