Toyota Land Cruiser Prado

2024-01 → present · chassis GDJ25#,TJA250,TRJ250 · catalogue 781290 · Europe

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

17 part groups · 3 illustrations

Illustrations

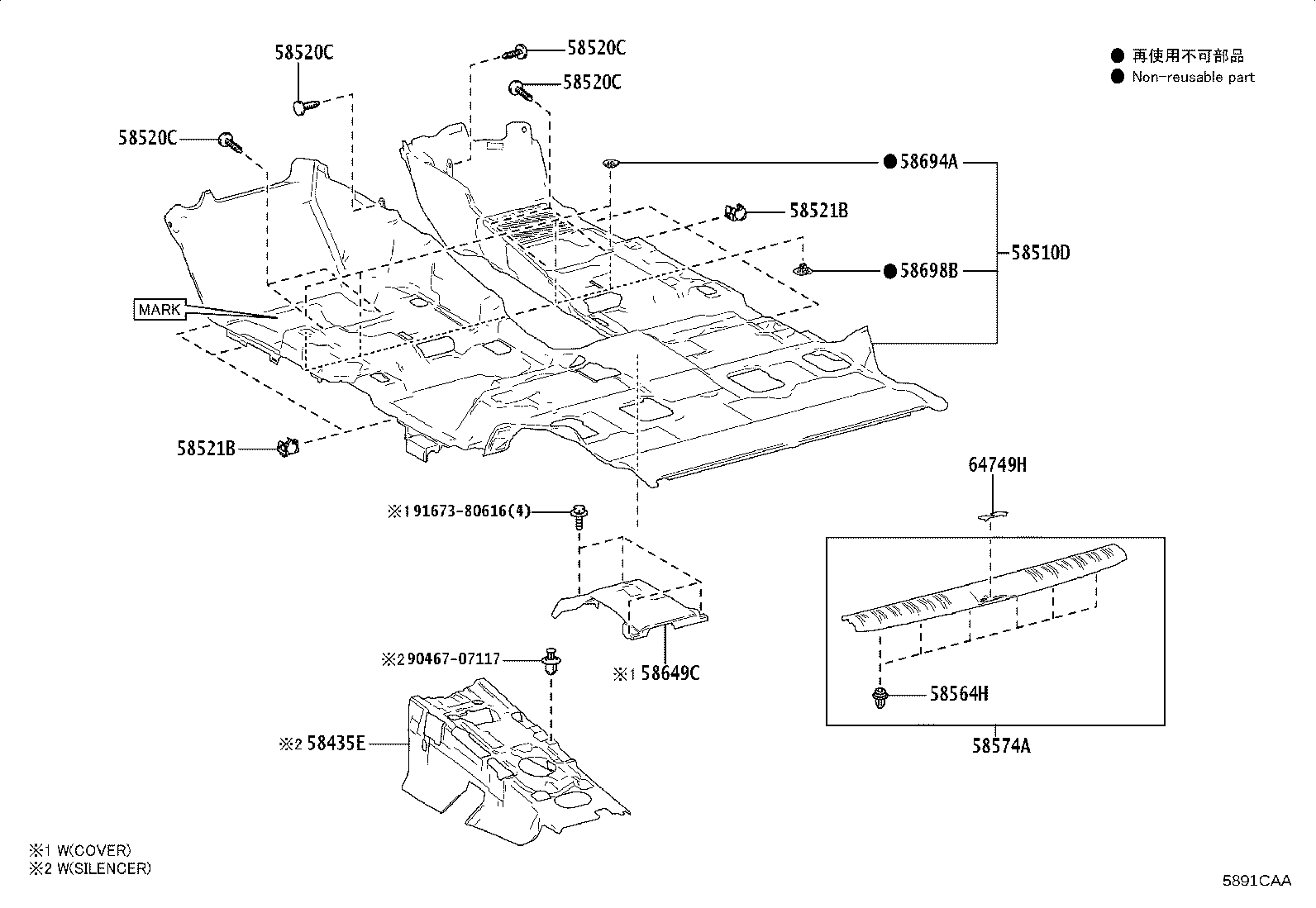

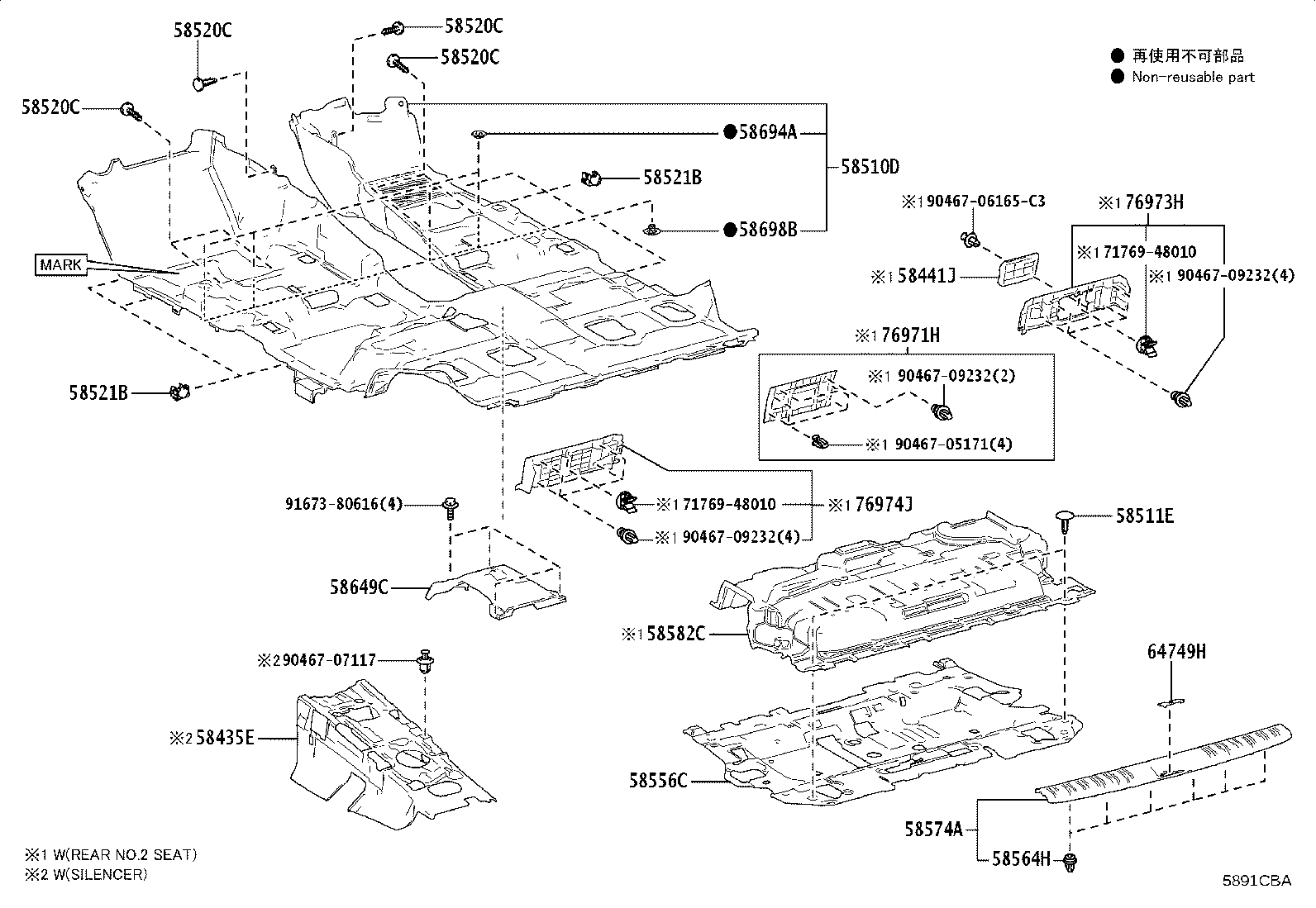

Figure 5891CCA 5891CCA 2024-01 → — Figure 5891CAA 5891CAA 2024-01 → — Figure 5891CBA 5891CBA 2024-08 → —

Part groups

PNCDescription
58435E Silencer, Front Floor, Center
58441J Cover, Battery Service Hole
58510D Carpet Assy, Floor, Front
58511E Clip(FOR FRONT FLOOR MAT)
58520C Clip(FOR FRONT FLOOR CARPET)
58521B Hook, Floor Carpet
58556C Silencer, Rear Floor
58564H Clip(FOR REAR FLOOR CARPET)
58574A Plate, Rear Floor Mat Support, Rear
58582C Mat, Rear Floor, Rear
58649C Cover, Mat Set Plate
58694A Plate, Mat Set, Upper
58698B Plate, Mat Set, Lower
64749H Cover, Back Door Striker
76971H Cover, Rear Under
76973H Cover, Rear Under Side, RH
76974J Cover, Rear Under Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
