Toyota Land Cruiser Prado

2024-01 → present · chassis GDJ25#,TJA250,TRJ250 · catalogue 781290 · Europe

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

20 part groups · 2 illustrations

Illustrations

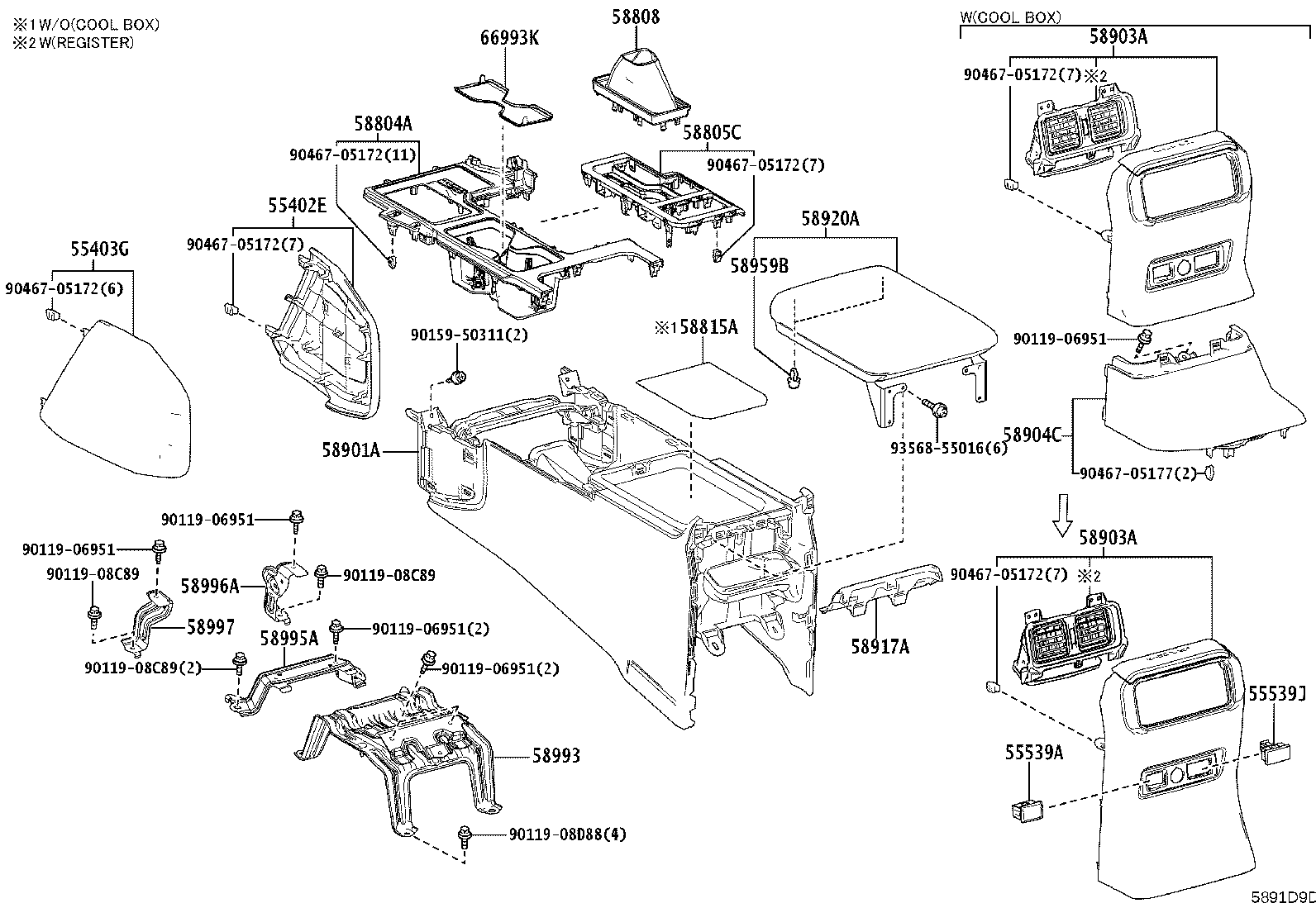

Figure 5891D8D 5891D8D 2024-01 → — Figure 5891D9D 5891D9D 2024-01 → —

Part groups

PNCDescription
55402E Pad Sub-assy, Instrument Panel, Lower NO.1
55403G Pad Sub-assy, Instrument Panel, Lower NO.2
55539A Cover, Spare Switch Hole
55539J Cover, Spare Switch Hole
58804A Panel Sub-assy, Console, Upper
58805C Panel Sub-assy, Console, Upper Rear
58808 Cover Sub-assy, Shifting Hole
58815A Carpet, Console Box
58901A Box Sub-assy, Console, Rear
58903A Panel Sub-assy, Console Rear End
58904C Panel Sub-assy, Console Rear End, NO.2
58916A Insert, Console Box, Rear
58917A Cover, Console Box, Rear
58920A Armrest Assy, Rear Console
58959B Cushion, Console Compartment Door
58993 Bracket, Console Box Mounting, Rear
58995A Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
58997 Bracket, Console Box Mounting, NO.3
66993K Tray, Cup Holder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
