Toyota Land Cruiser Prado

2024-01 → present · chassis GDJ25#,TJA250,TRJ250 · catalogue 781290 · Europe

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

20 part groups · 3 illustrations

Illustrations

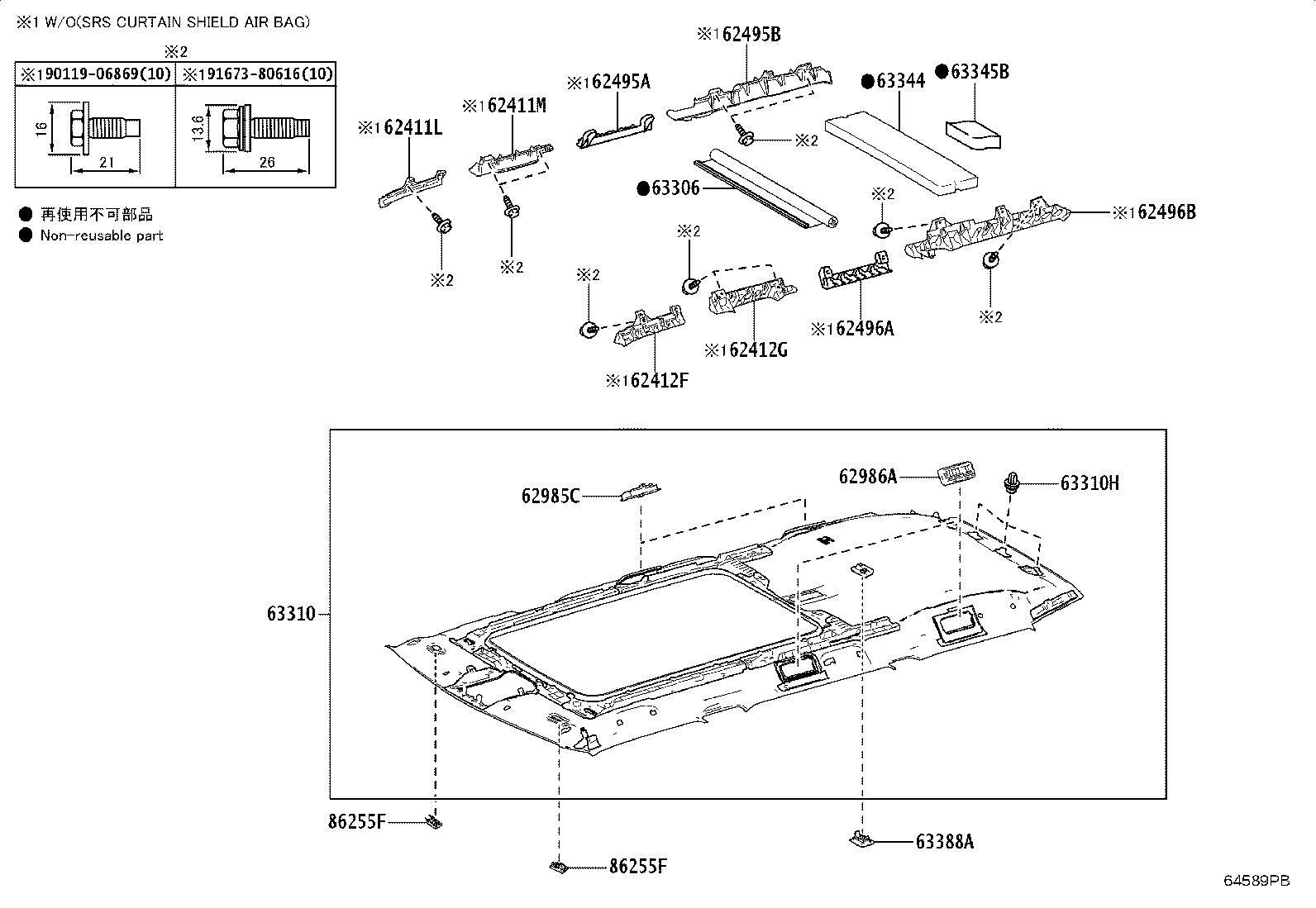

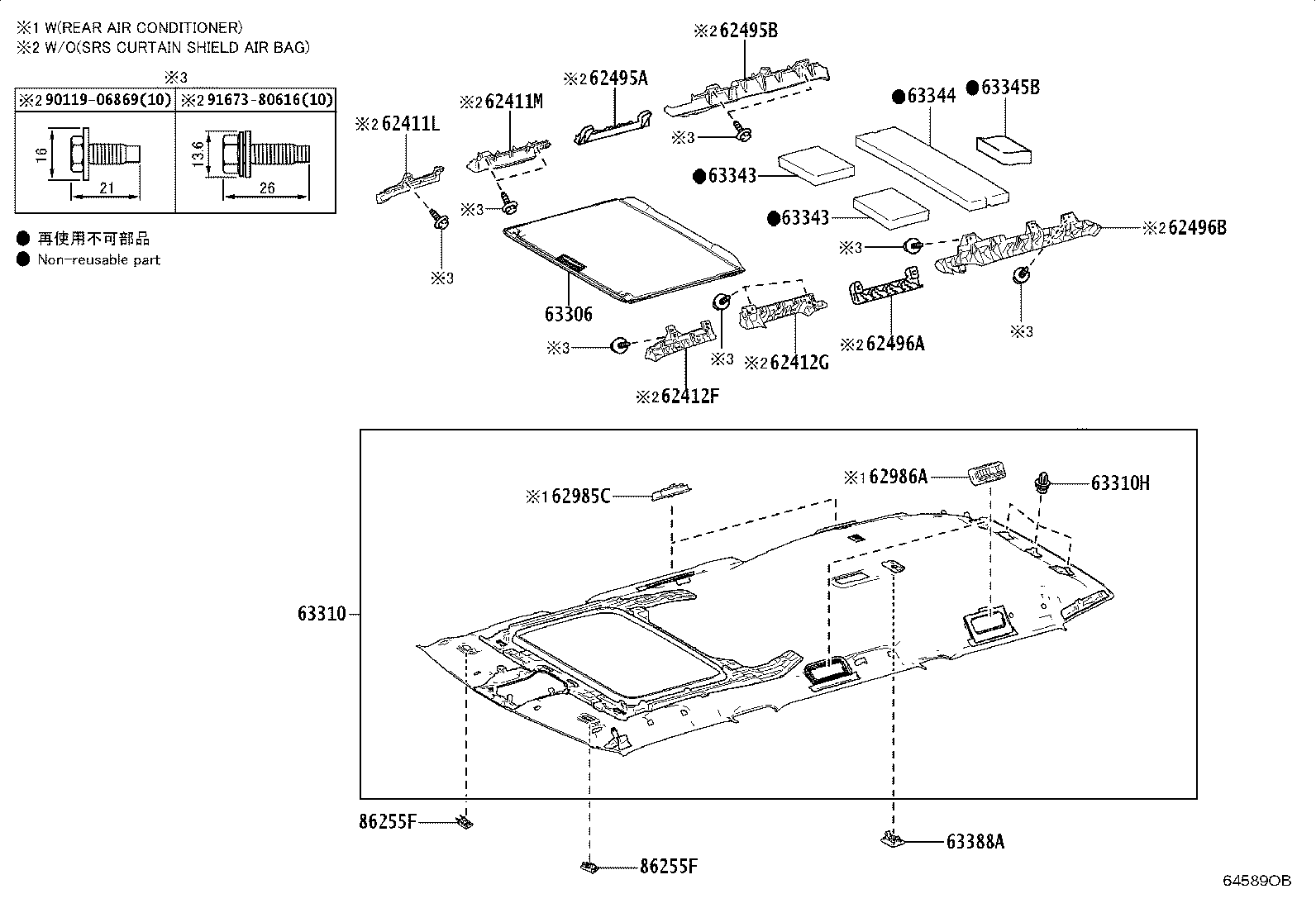

Figure 64589NB 64589NB 2024-01 → — Figure 64589OB 64589OB 2024-01 → — Figure 64589PB 64589PB 2024-01 → —

Part groups

PNCDescription
62411L Spacer, Center Pillar, RH NO.1
62411M Spacer, Center Pillar, RH NO.2
62412F Spacer, Center Pillar, LH NO.1
62412G Spacer, Center Pillar, LH NO.2
62495A Spacer, Roof Side Inner Garnish, RH NO.1
62495B Spacer, Roof Side Inner Garnish, RH NO.2
62496A Spacer, Roof Side Inner Garnish, LH NO.1
62496B Spacer, Roof Side Inner Garnish, LH NO.2
62985C Register, Roof Side Air Outlet, RH
62986A Register, Roof Side Air Outlet, LH
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310H Clip(FOR ROOF HEADLINING)
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63344 Pad, Roof Silencer, NO.4
63345B Pad, Roof Silencer, Center
63388A Cover, Roof Headlining Holder
86255F Case, Microphone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
