Toyota Land Cruiser Prado

2024-01 → present · chassis GDJ25#,TJA250,TRJ250 · catalogue 781290 · Europe

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

10 part groups · 3 illustrations

Illustrations

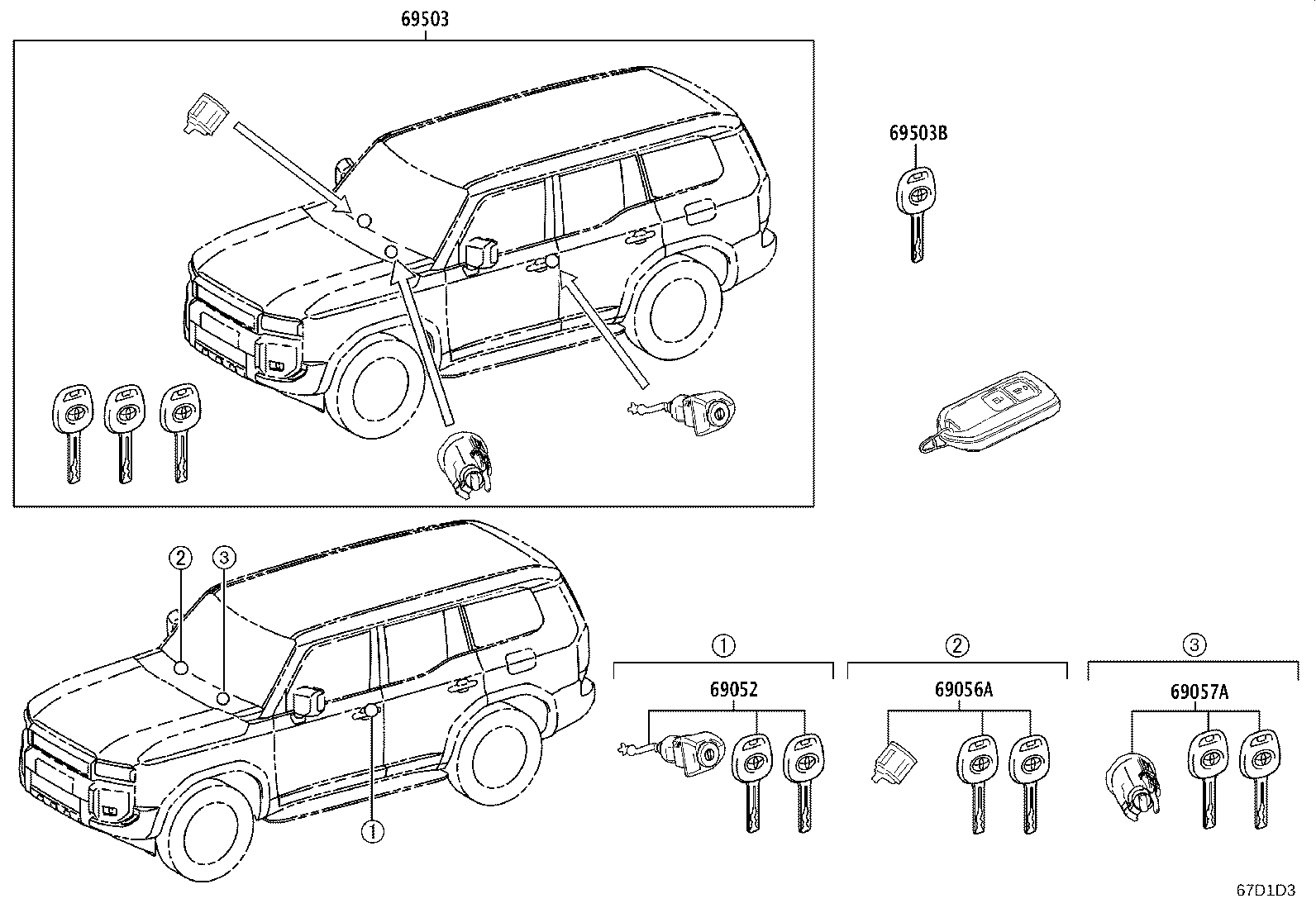

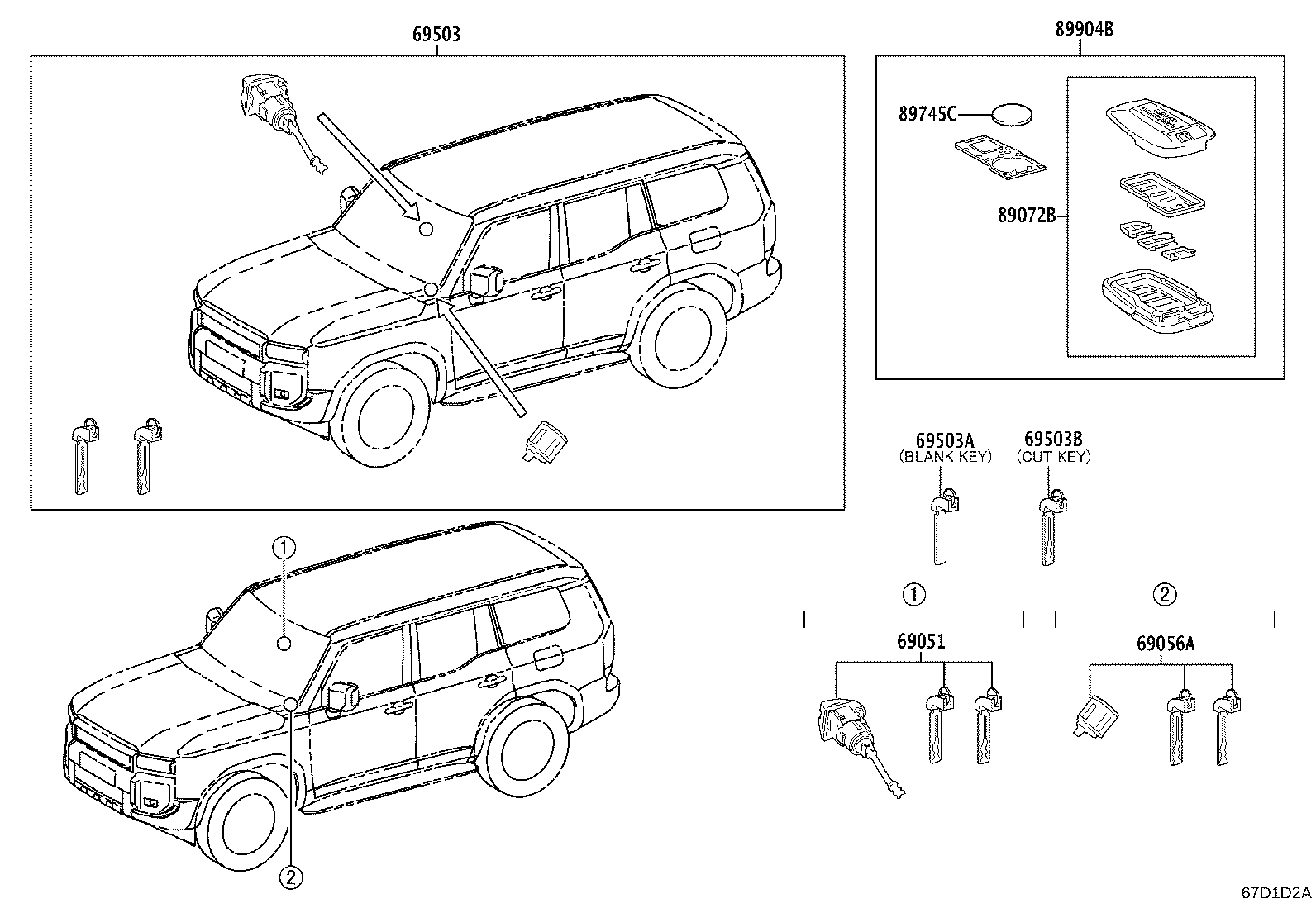

Figure 67D1CXA 67D1CXA 2024-01 → — Figure 67D1D2A 67D1D2A 2024-01 → — Figure 67D1D3 67D1D3 2024-01 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69056A Cylinder & Key Set, Glove Compartment Lock
69057A Cylinder & Key Set, Ignition Switch Lock
69503 Cylinder Set, Lock
69503A Key, Blank
69503B Key, Cut
89072B Housing Set, Door Control Transmitter (FOR SMART KEY)
89745C Battery, Transmitter
89904B Transmitter Sub-assy, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
