Toyota Land Cruiser Prado

2024-01 → present · chassis GDJ25#,TJA250,TRJ250 · catalogue 781290 · Europe

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery Carrier

5 part groups · 3 illustrations

Illustrations

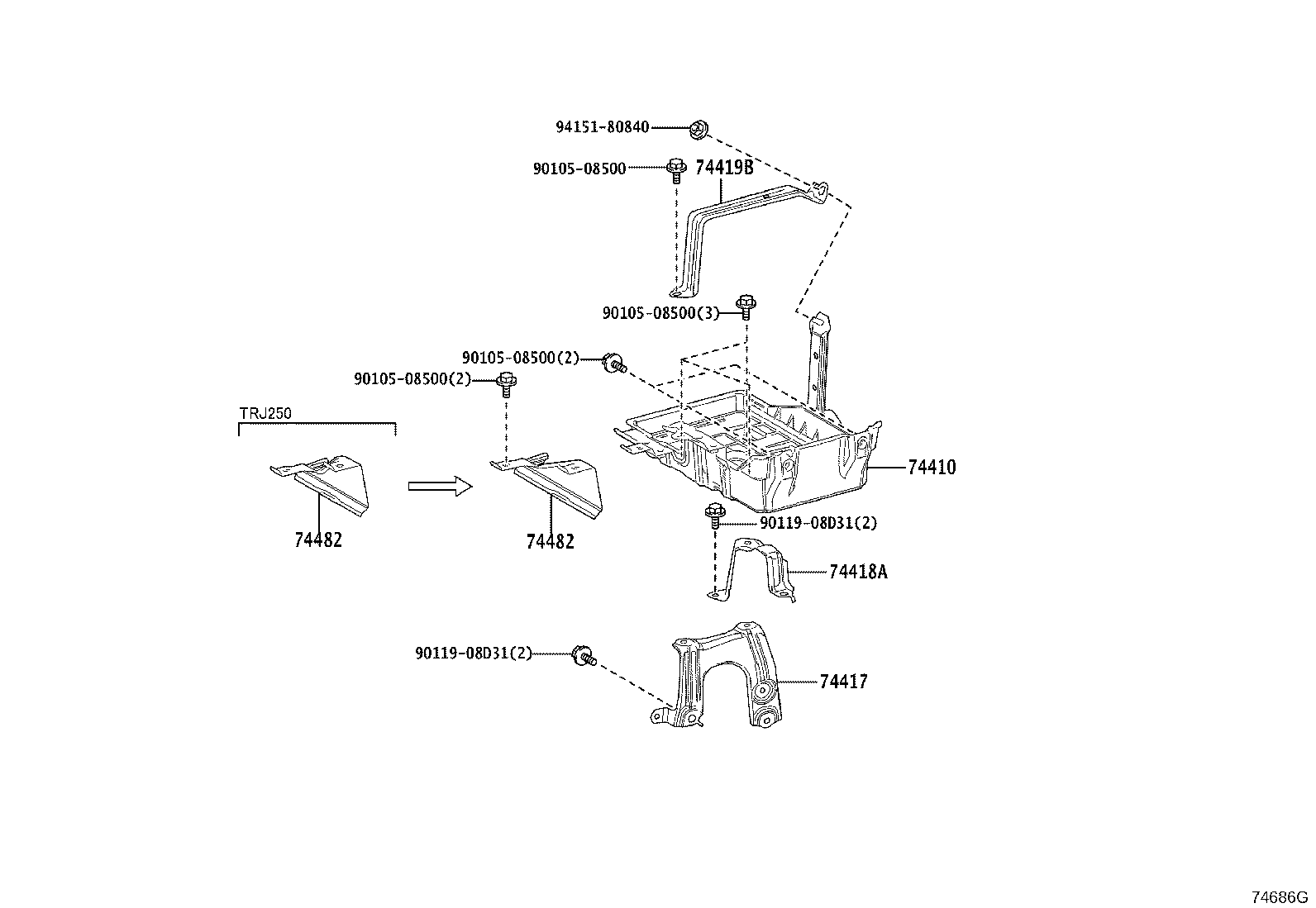

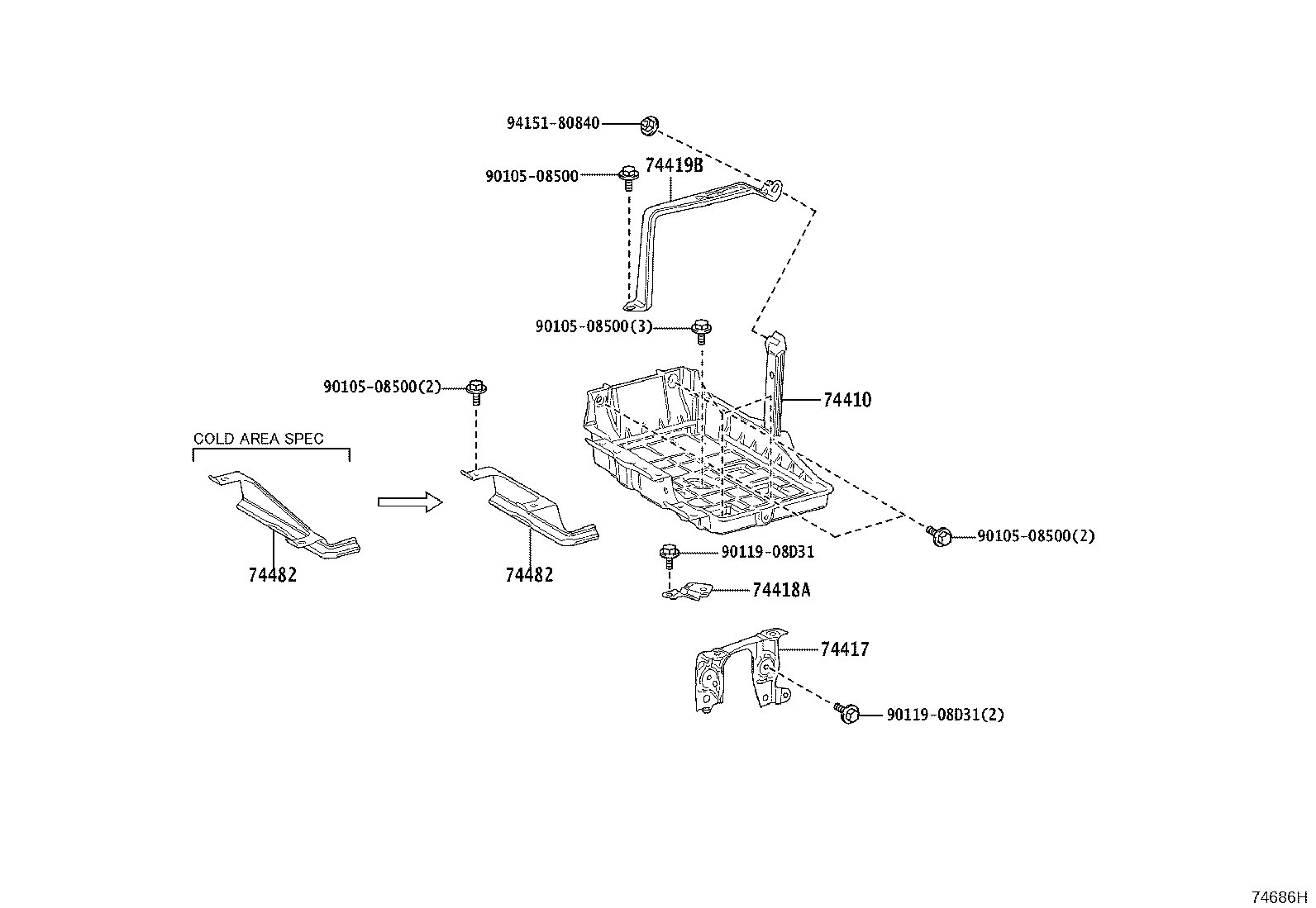

Figure 746874 746874 2024-01 → — Figure 74686G 74686G 2024-01 → — Figure 74686H 74686H 2024-01 → —

Part groups

PNCDescription
74410 Carrier Assy, Battery
74417 Bracket, Battery Carrier
74418A Bracket, Battery Carrier, NO.4
74419B Bracket, Battery Carrier, NO.2
74482 Clamp, Battery, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
