Toyota Land Cruiser Prado

2024-01 → present · chassis GDJ25#,TJA250,TRJ250 · catalogue 781290 · Europe

Supported model Data version 2024-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Moulding

76 part groups · 3 illustrations

Illustrations

7547AUB 2024-01 → —

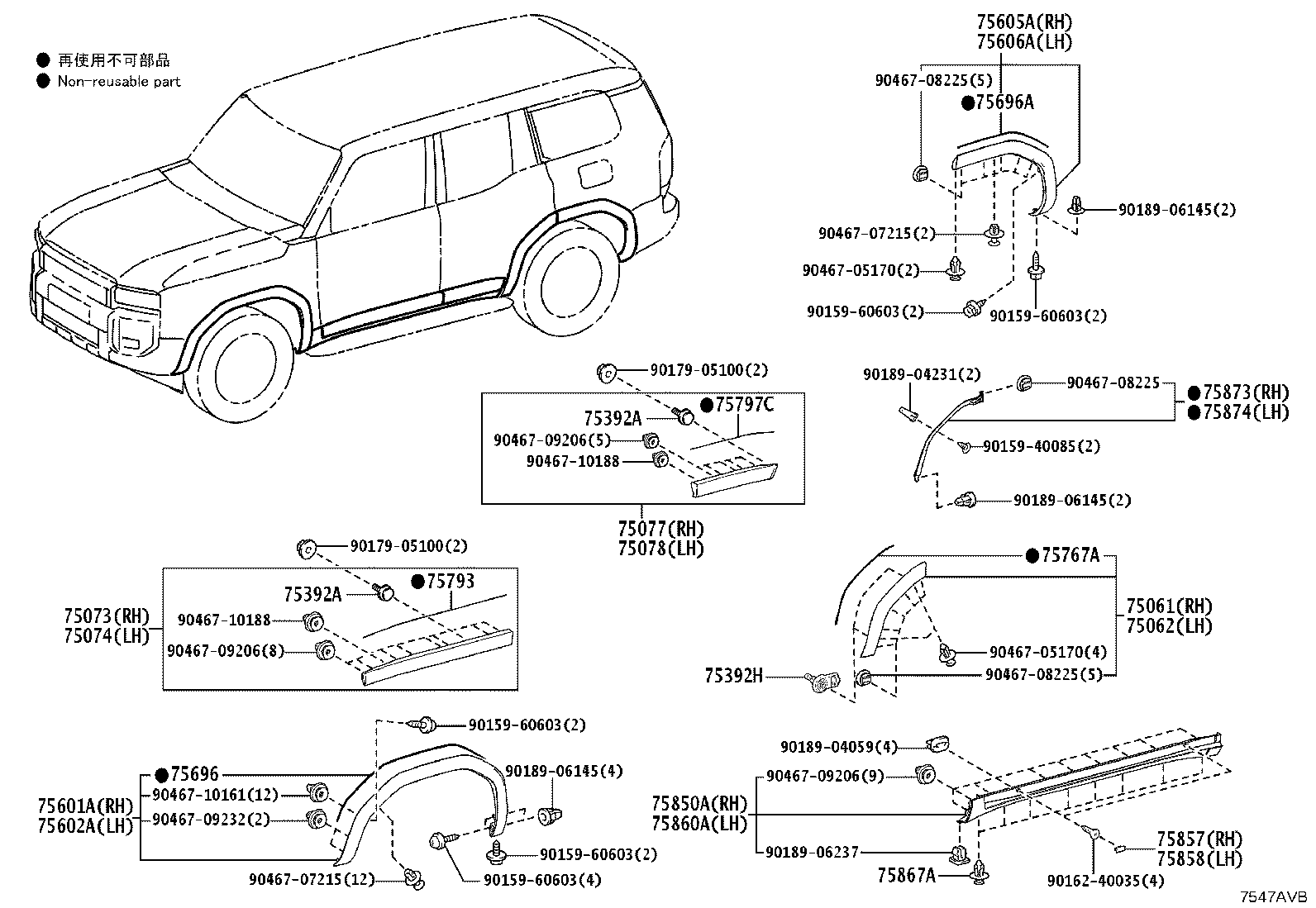

7547AVB 2024-01 → —

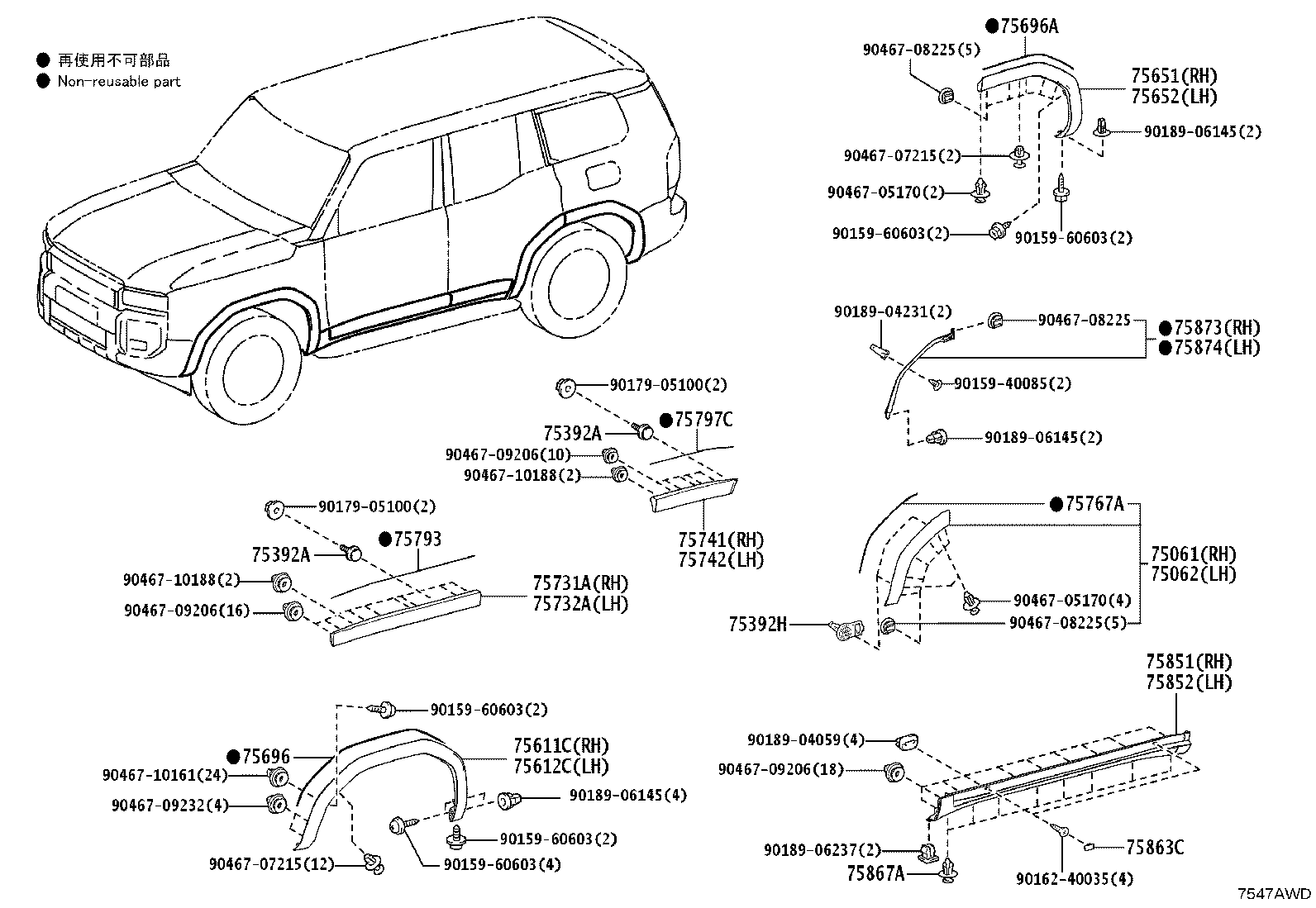

7547AWD 2024-04 → —

Part groups

PNC	Description
60117	Cover Sub-assy, Front Pillar, Upr RH
60118	Cover Sub-assy, Front Pillar, Upr LH
61991B	Protector, Front Pillar Cover, RH
61992	Protector, Front Pillar Cover, LH
62791G	Moulding, Quarter Window, Upper RH
62792V	Moulding, Quarter Window, Upper LH
67495C	Cover, Front Door Front Lower Frame, Upper RH
67496C	Cover, Front Door Front Lower Frame, Upper LH
75061	Moulding Set, Outside
75062	Moulding Set, Outside, LH
75073	Moulding Sub-assy, Front Door, Outside Lower RH
75074	Moulding Sub-assy, Front Door, Outside Lower LH
75075A	Clip(FOR REAR DOOR OUTSIDE MOULDING)
75077	Moulding Sub-assy, Rear Door Outside Lower RH
75078	Moulding Sub-assy, Rear Door Outside Lower LH
75392A	Retainer, Outside Moulding, NO.1
75392H	Retainer, Outside Moulding
75535F	Moulding, Windshield, Outside Lower RH
75536B	Moulding, Windshield, Outside Lower LH
75545B	Clip, Windshield Outside Moulding, NO.1
75547B	Clip, Windshield Outside Moulding, NO.3
75548A	Fastener, Windshield Outside Moulding, NO.1
75551	Moulding, Roof Drip Side Finish, RH
75552	Moulding, Roof Drip Side Finish, LH
75553A	Moulding, Roof Drip Side Finish, Rear RH
75554A	Moulding, Roof Drip Side Finish, Rear LH
75555D	Moulding, Roof Drip Side Finish, Center RH
75556C	Moulding, Roof Drip Side Finish, Center LH
75557C	Moulding, Roof Drip Side Finish, Center NO.2 RH
75558C	Moulding, Roof Drip Side Finish, Center NO.2 LH
75561	Clip, Roof Drip Side Finish Moulding, NO.1
75596	Cover, Roof Drip Side Finish Moulding Joint, RH
75597	Cover, Roof Drip Side Finish Moulding Joint, LH
75601A	Moulding Sub-assy, Front Fender, RH
75602A	Moulding Sub-assy, Front Fender, LH
75605A	Moulding Sub-assy, Quarter Outside, RH
75606A	Moulding Sub-assy, Quarter Outside, LH
75611C	Moulding, Front Fender, Outside RH
75612C	Moulding, Front Fender, Outside LH
75651	Moulding, Quarter, Outside RH
75652	Moulding, Quarter, Outside LH
75696	Pad, Body Outside Moulding, NO.1
75696A	Pad, Body Outside Moulding
75698A	Pad, Body Outside Moulding, NO.3
75711B	Moulding, Front Door Belt, RH
75712B	Moulding, Front Door Belt, LH
75721A	Moulding, Rear Door Belt, RH
75722A	Moulding, Rear Door Belt, LH
75731A	Moulding, Front Door, Outside RH
75732A	Moulding, Front Door, Outside LH
75741	Moulding, Rear Door, Outside RH
75742	Moulding, Rear Door, Outside LH
75755A	Moulding, Front Door Window Frame, RH(CENTER PILLAR SIDE)
75756D	Moulding, Front Door Window Frame, LH(CENTER PILLAR SIDE)
75761B	Moulding, Rear Door Window Frame, RH(CENTER PILLAR SIDE)
75762B	Moulding, Rear Door Window Frame, LH(CENTER PILLAR SIDE)
75767A	Pad, Rear Door Moulding, NO.1
75770	Moulding Assy, Hood, Front
75774E	Spacer, Hood Moulding
75777E	Pad, Hood Front Moulding
75781	Moulding, Quarter Window, Lower RH
75781A	Clip, Quarter Window Moulding
75782	Moulding, Quarter Window, Lower LH
75792	Clip, Door Window Frame Moulding
75793	Pad, Front Door Outside Moulding, Upper
75797C	Pad, Rear Door Outside Moulding, Upper
75850A	Moulding Assy, Body Rocker Panel, RH
75851	Moulding, Rocker Panel, RH
75852	Moulding, Rocker Panel, LH
75857	Cover, Rocker Panel Moulding, RH
75858	Cover, Rocker Panel Moulding, LH
75860A	Moulding Assy, Body Rocker Panel, LH
75863C	Protector, Rocker Panel Moulding, NO.3
75867A	Clip, Rocker Panel Moulding
75873	Moulding, Quarter Panel Wheel Opening, RH
75874	Moulding, Quarter Panel Wheel Opening, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
