Toyota Land Cruiser Prado

2024-01 → present · chassis GDJ25#,TJA250,TRJ250 · catalogue 781290 · Europe

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

35 part groups · 3 illustrations

Illustrations

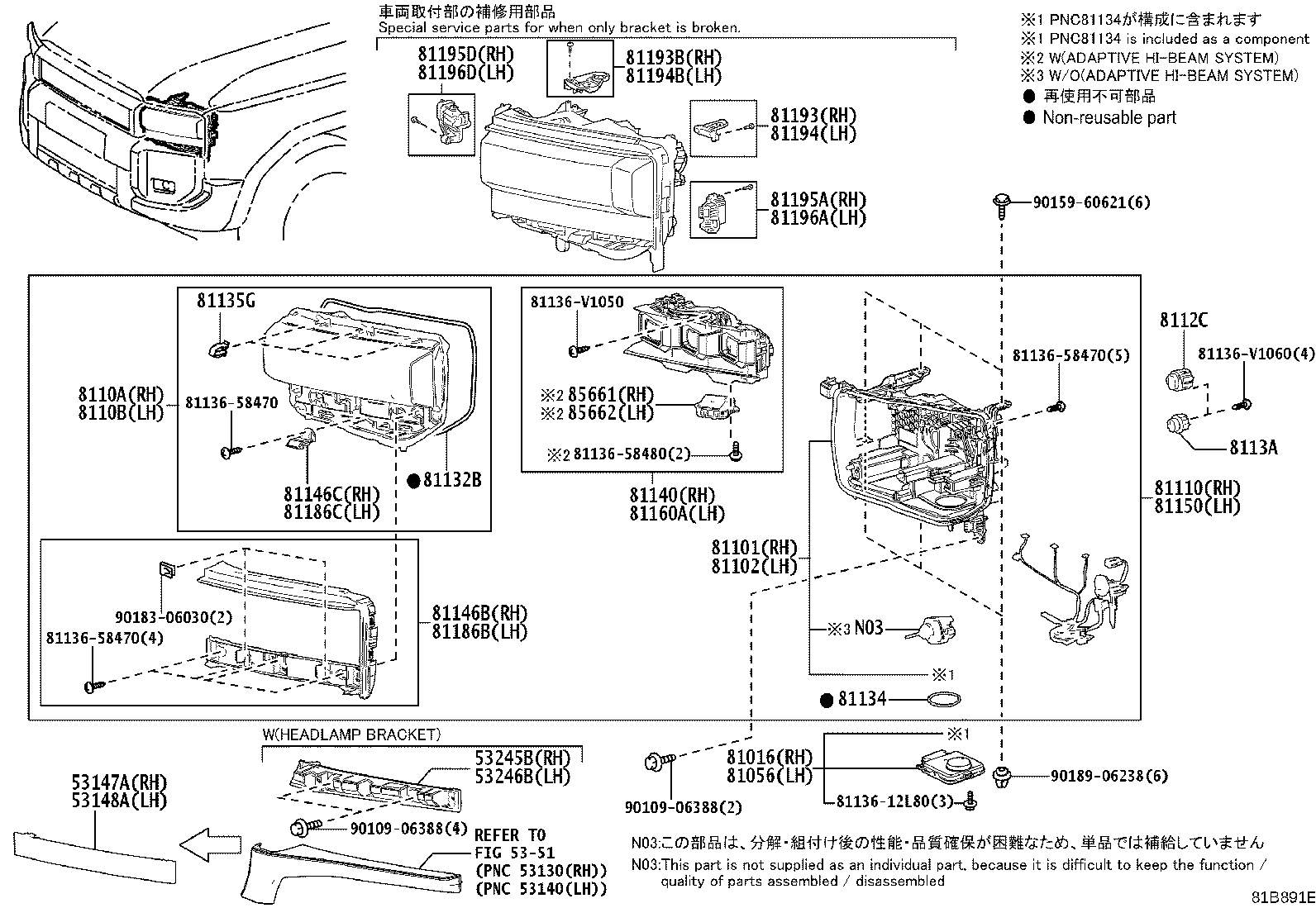

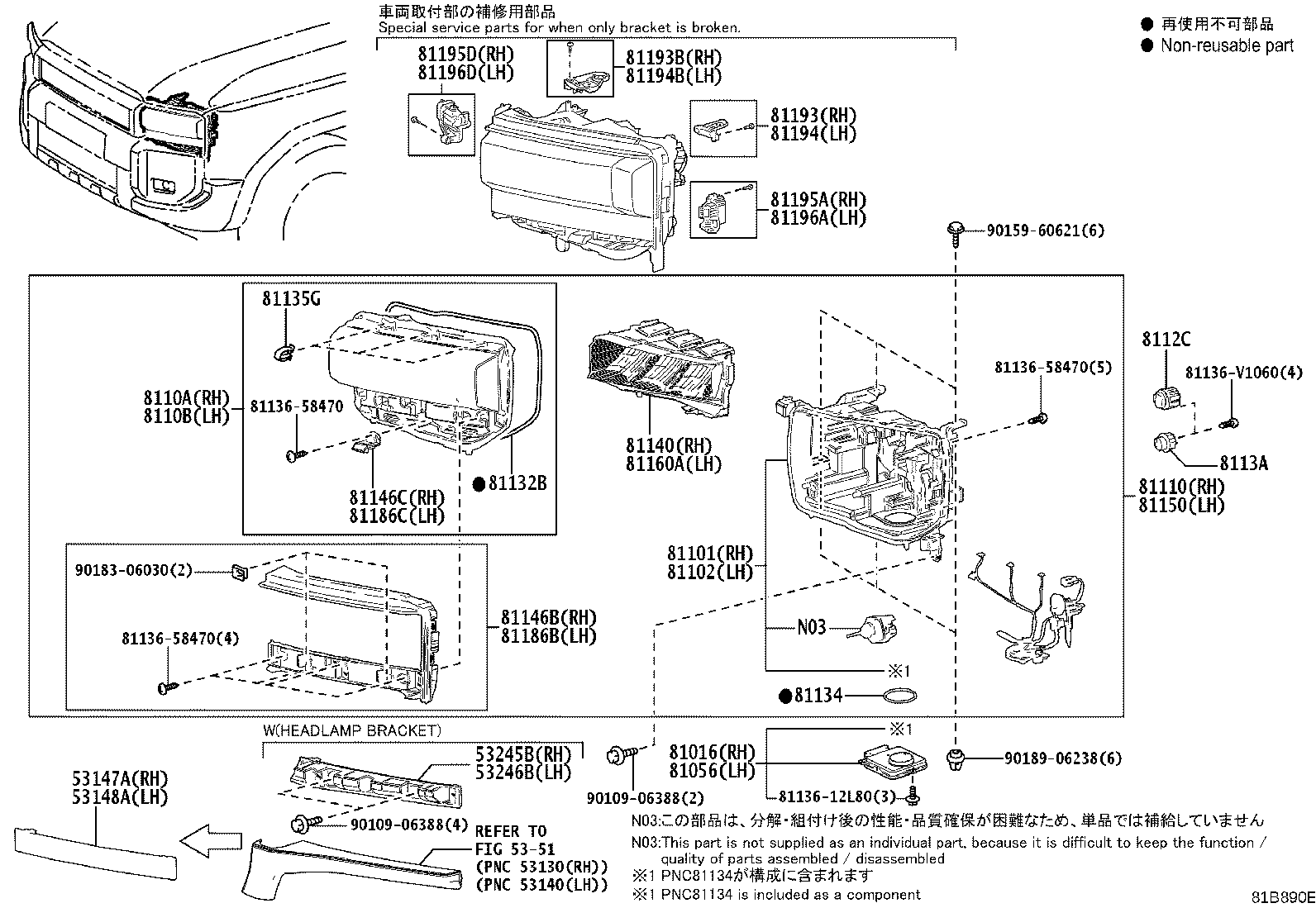

Figure 81B88ZE 81B88ZE 2024-01 → — Figure 81B890E 81B890E 2024-01 → — Figure 81B891E 81B891E 2024-01 → —

Part groups

PNCDescription
53147A Garnish, Headlamp Ornament, RH
53148A Garnish, Headlamp Ornament, LH
53245B Bracket, Headlamp, RH
53246B Bracket, Headlamp, LH
81016 Computer Sub-assy, Headlamp, RH NO.1
81056 Computer Sub-assy, Headlamp, LH NO.1
81101 Housing Sub-assy, Headlamp, RH
81102 Housing Sub-assy, Headlamp, LH
8110A Lens Sub-assy, Headlamp, RH
8110B Lens Sub-assy, Headlamp, LH
81110 Headlamp Assy, RH
8112A Unit, Headlamp Clearance Led, NO.1 RH
8112C Socket, Headlamp Clearance Led
81132B Gasket, Headlamp Lens
81134 Gasket, Headlamp
81135G Clip
8113A Led, Headlamp Front Turn Signal
81140 Unit Assy, Headlamp Led, RH
81146B Fitting, Headlamp, NO.1 RH
81146C Fitting, Headlamp, NO.2 RH
81150 Headlamp Assy, LH
81160A Unit Assy, Headlamp Led, LH
8116A Unit, Headlamp Clearance Led, NO.1 LH
81186B Fitting, Headlamp, NO.1 LH
81186C Fitting, Headlamp, NO.2 LH
81193 Retainer, Headlamp Protector, Upper RH
81193B Retainer, Headlamp Protector, Upper RH NO.2
81194 Retainer, Headlamp Protector, Upper LH
81194B Retainer, Headlamp Protector, Upper LH NO.2
81195A Retainer, Headlamp Protector, Lower RH
81195D Retainer, Headlamp Protector, Lower RH NO.2
81196A Retainer, Headlamp Protector, Lower LH
81196D Retainer, Headlamp Protector, Lower LH NO.2
85661 Motor, Headlamp Leveling, RH
85662 Motor, Headlamp Leveling, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
