Toyota Land Cruiser Prado

2024-01 → present · chassis GDJ25#,TJA250,TRJ250 · catalogue 781290 · Europe

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

167 part groups · 27 illustrations

Illustrations

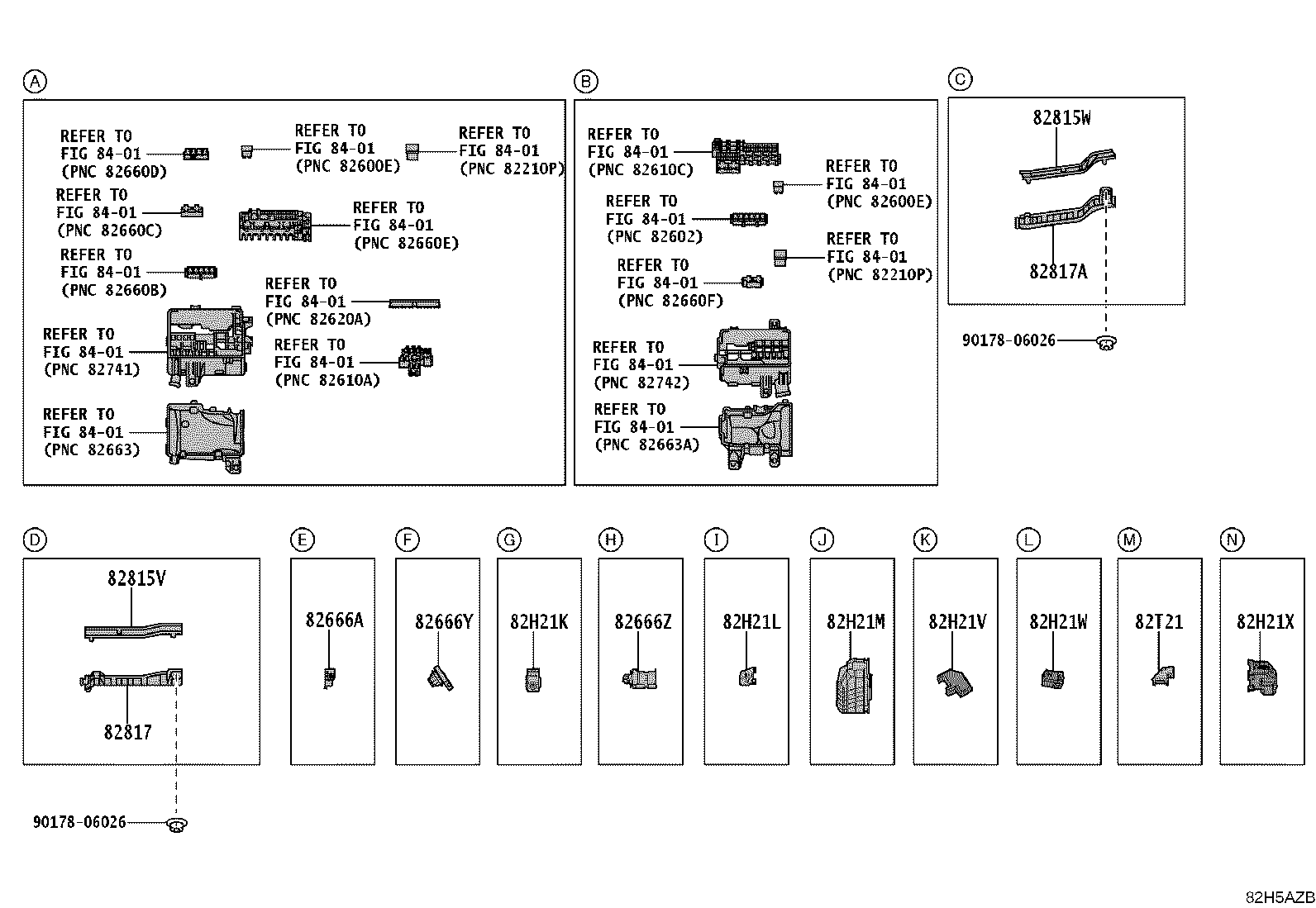

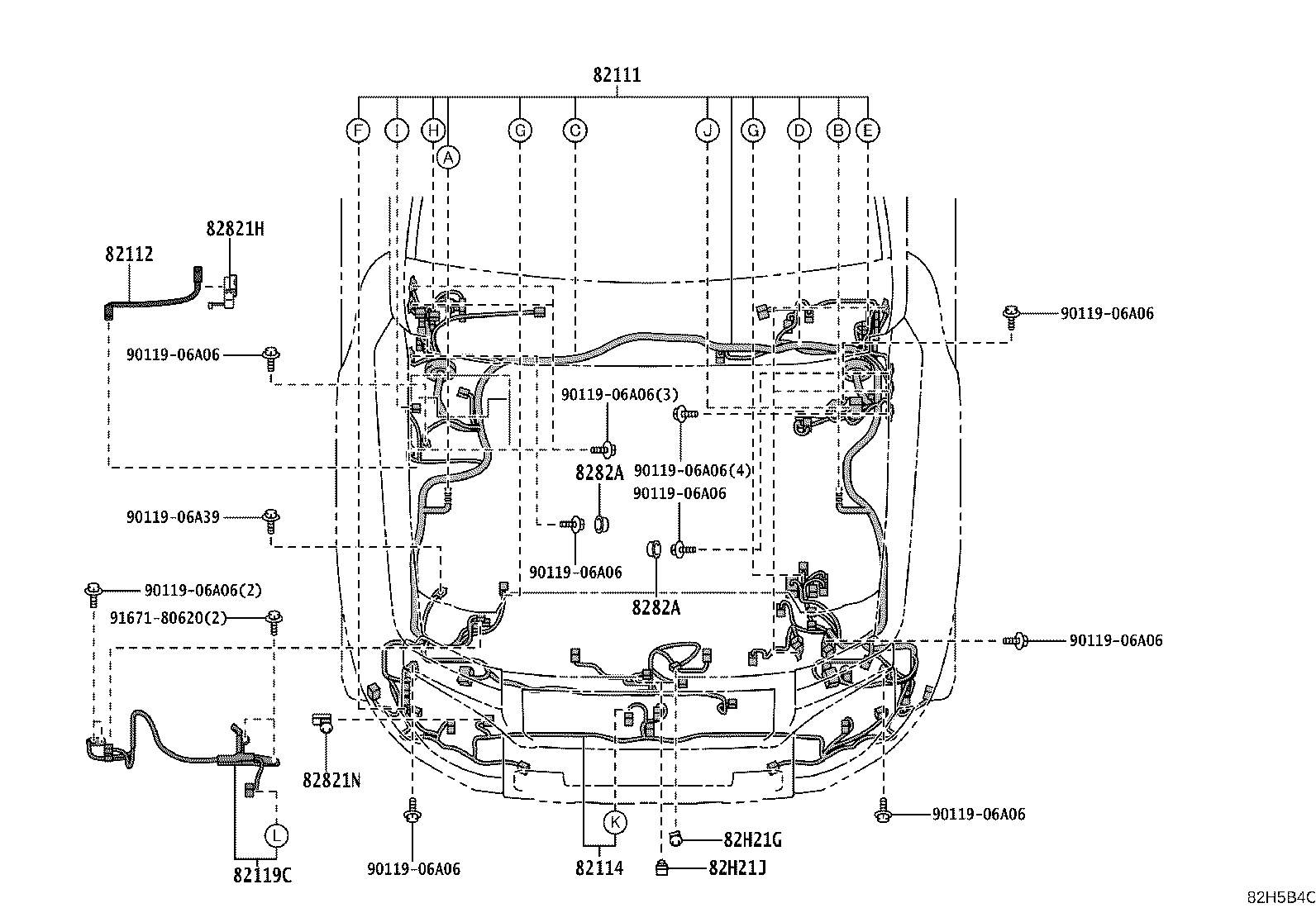

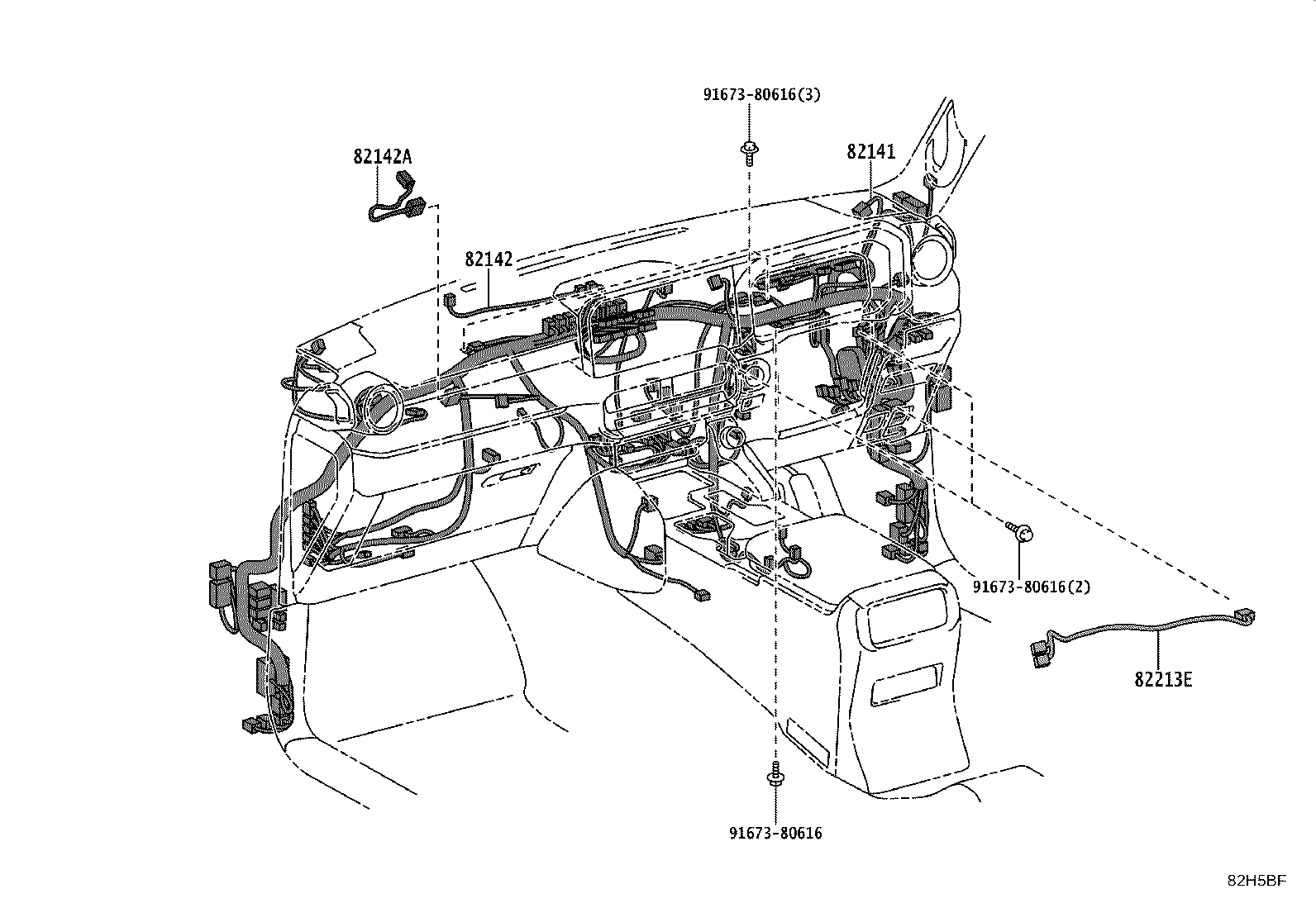

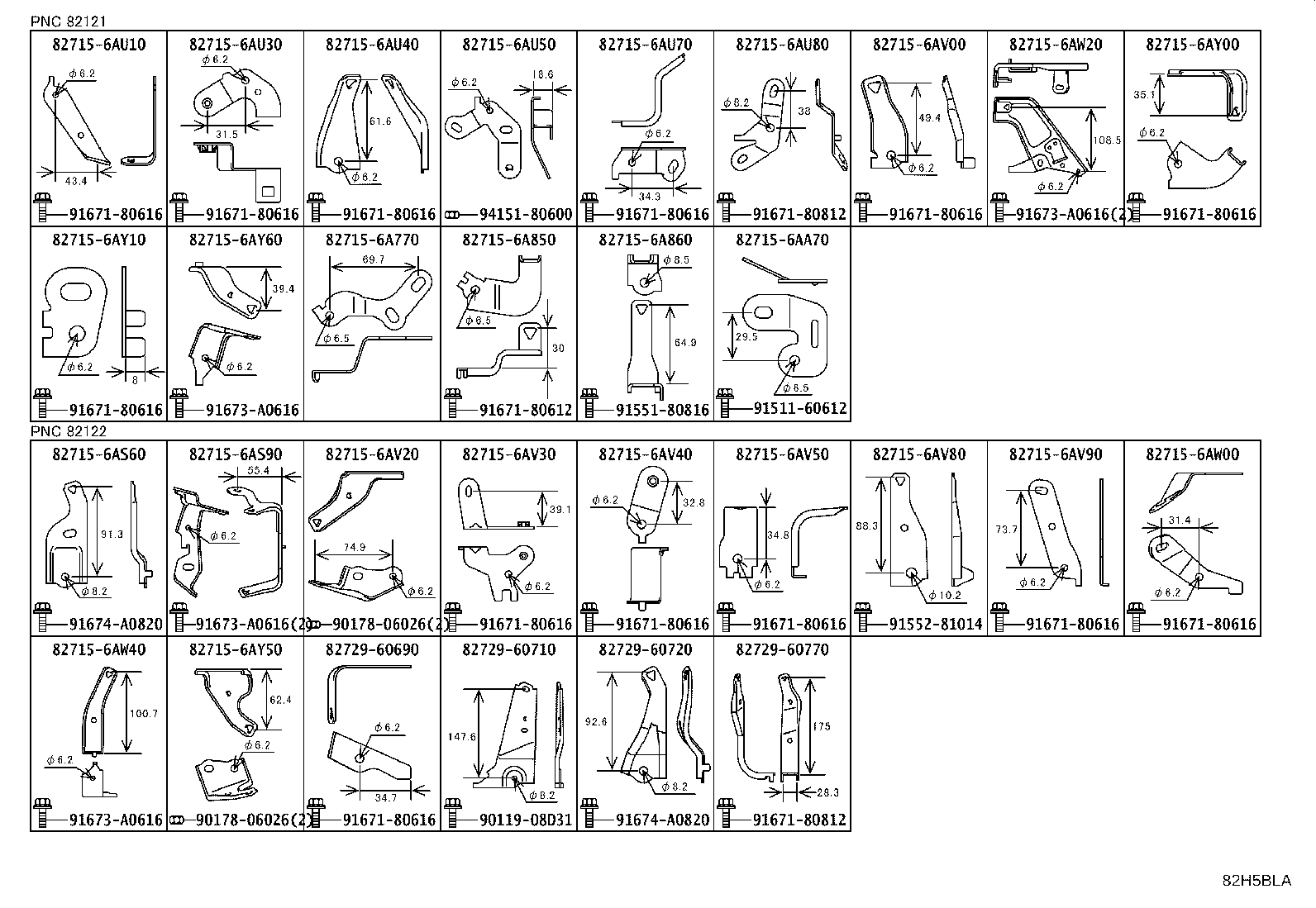

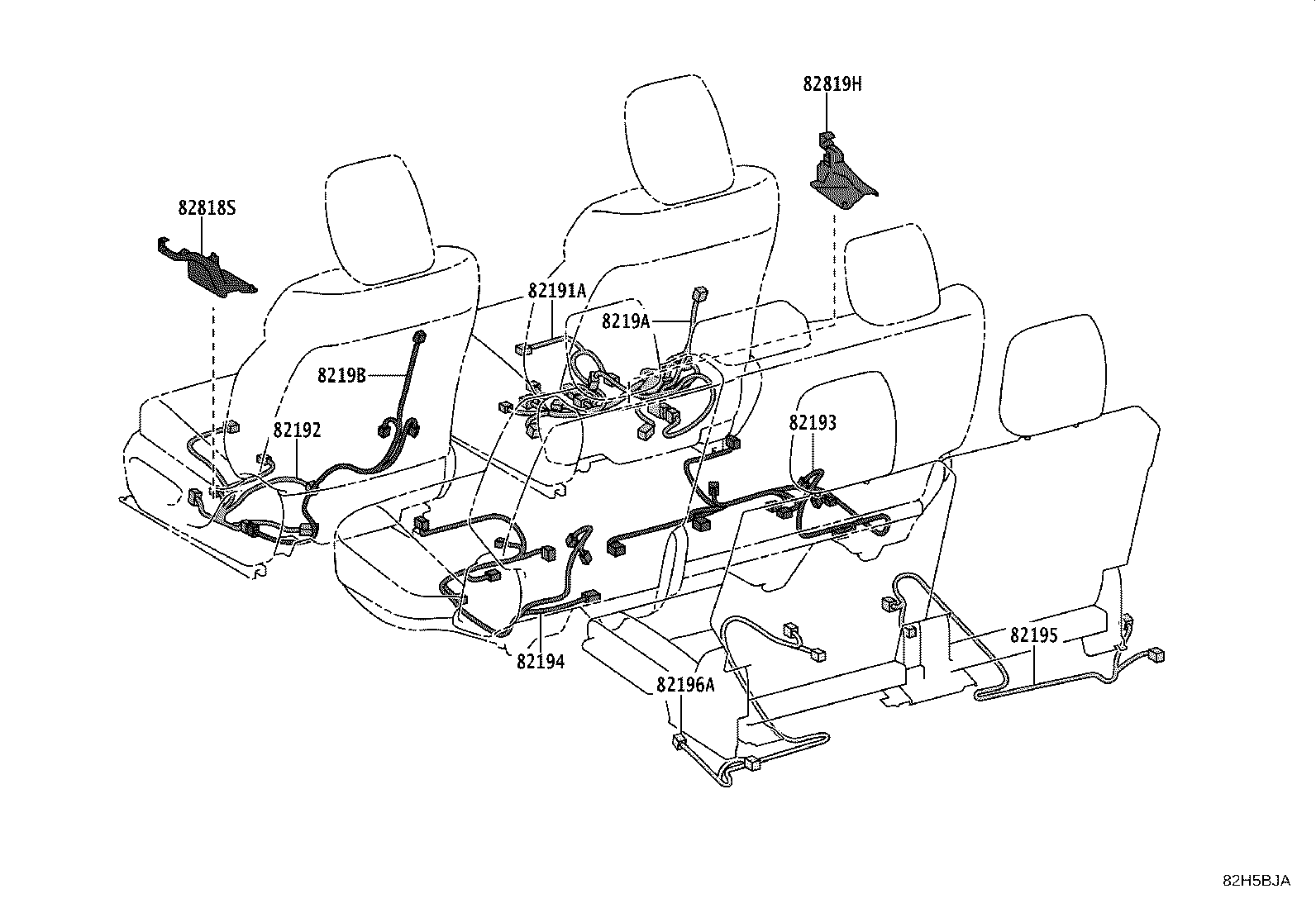

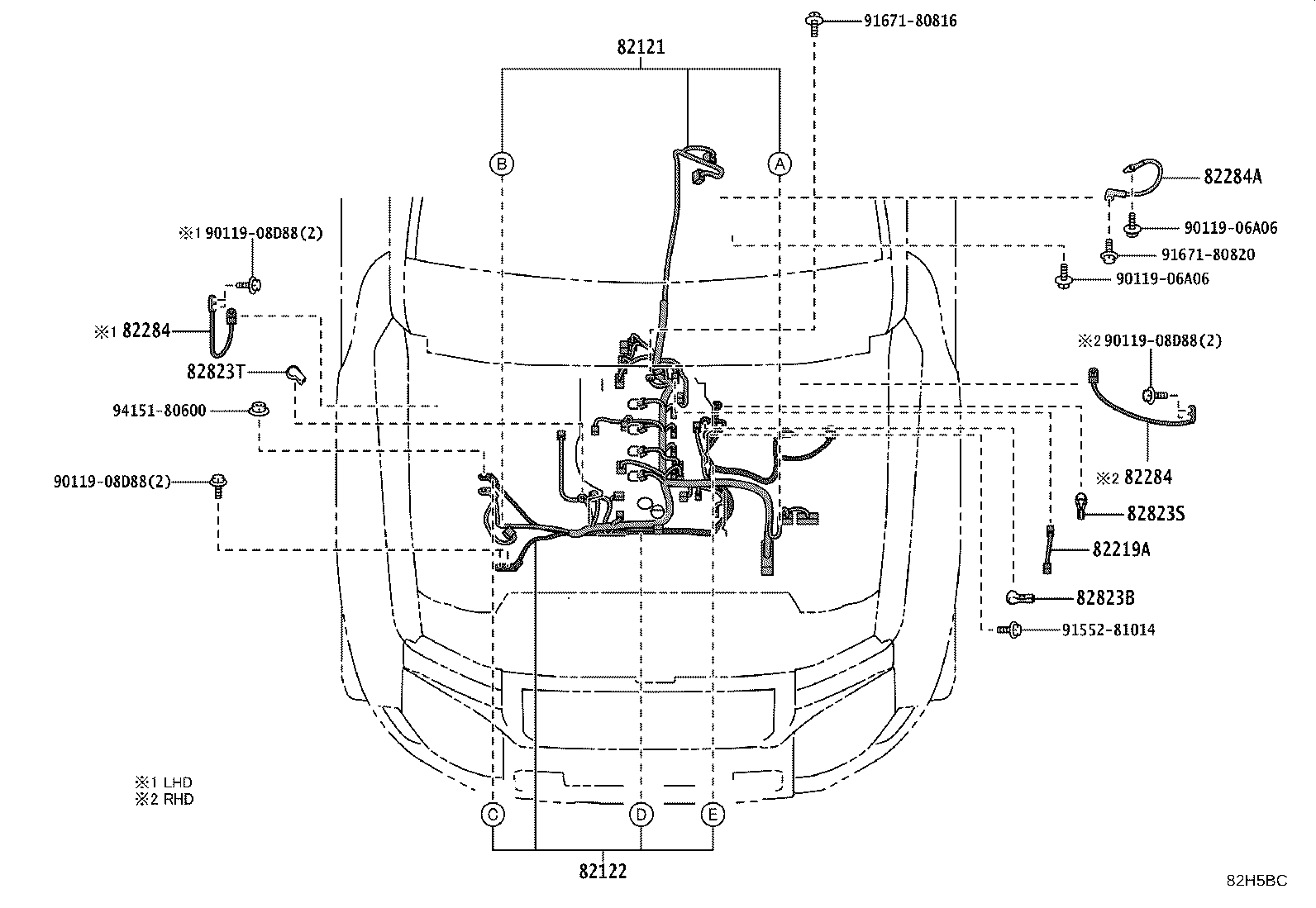

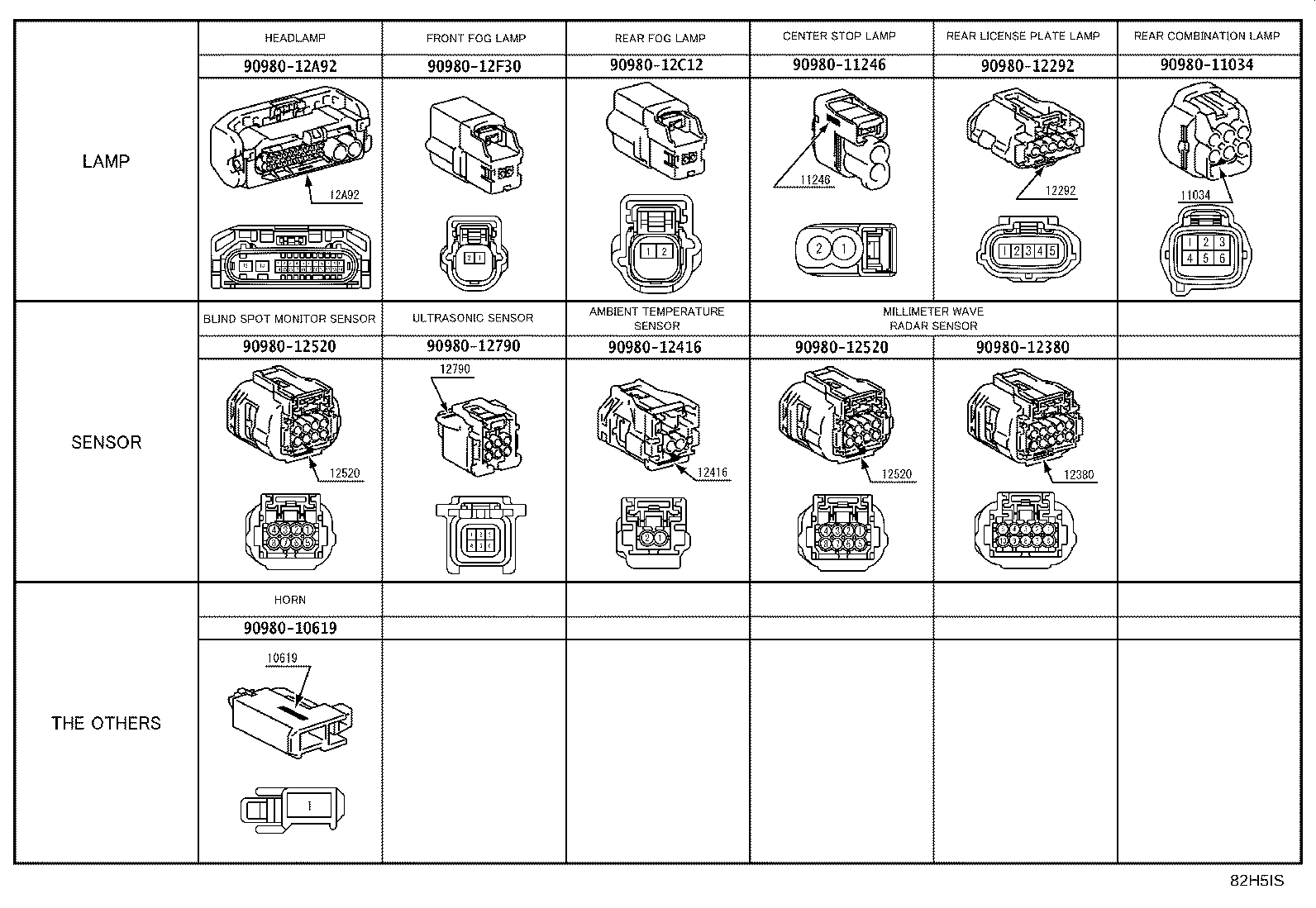

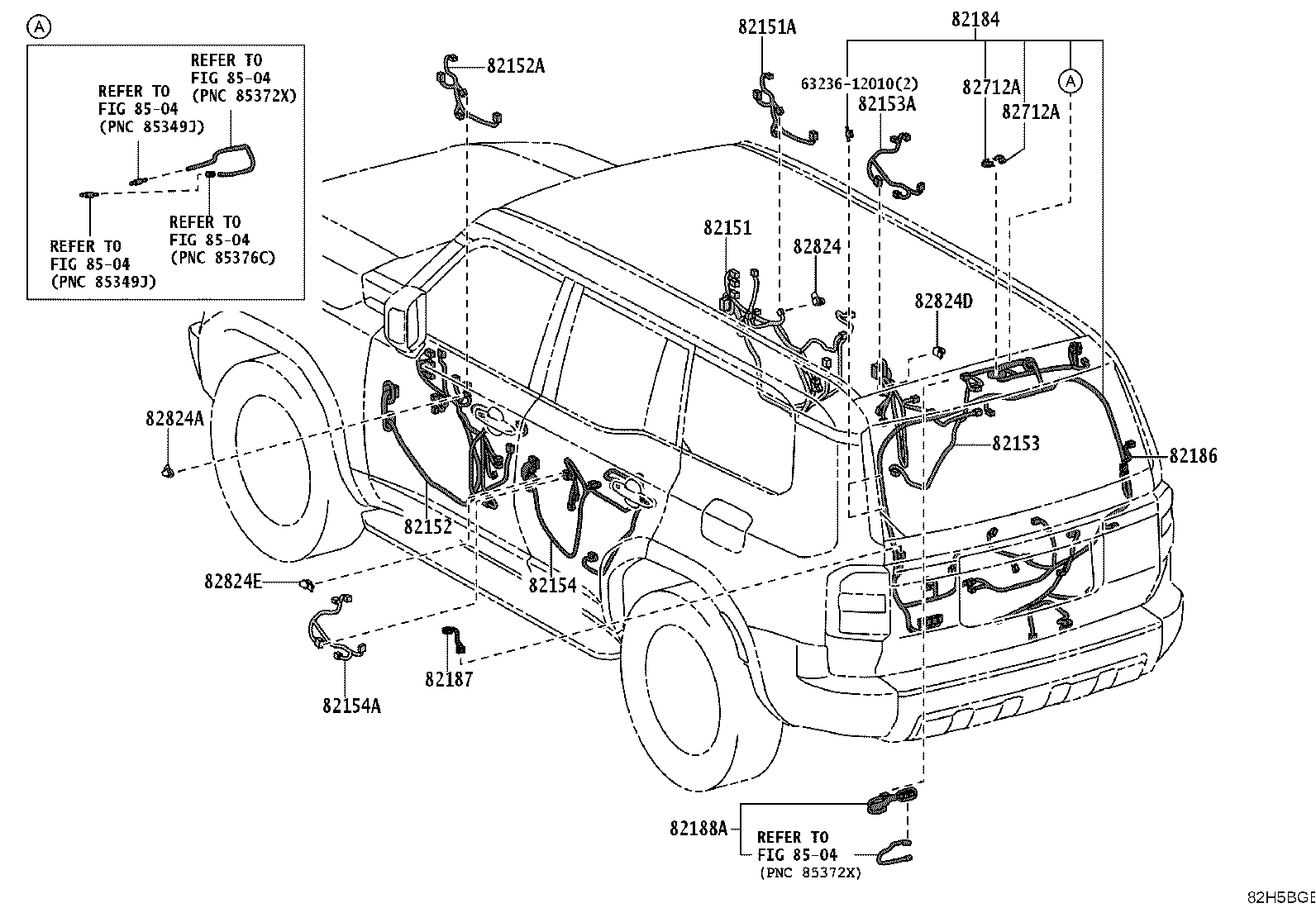

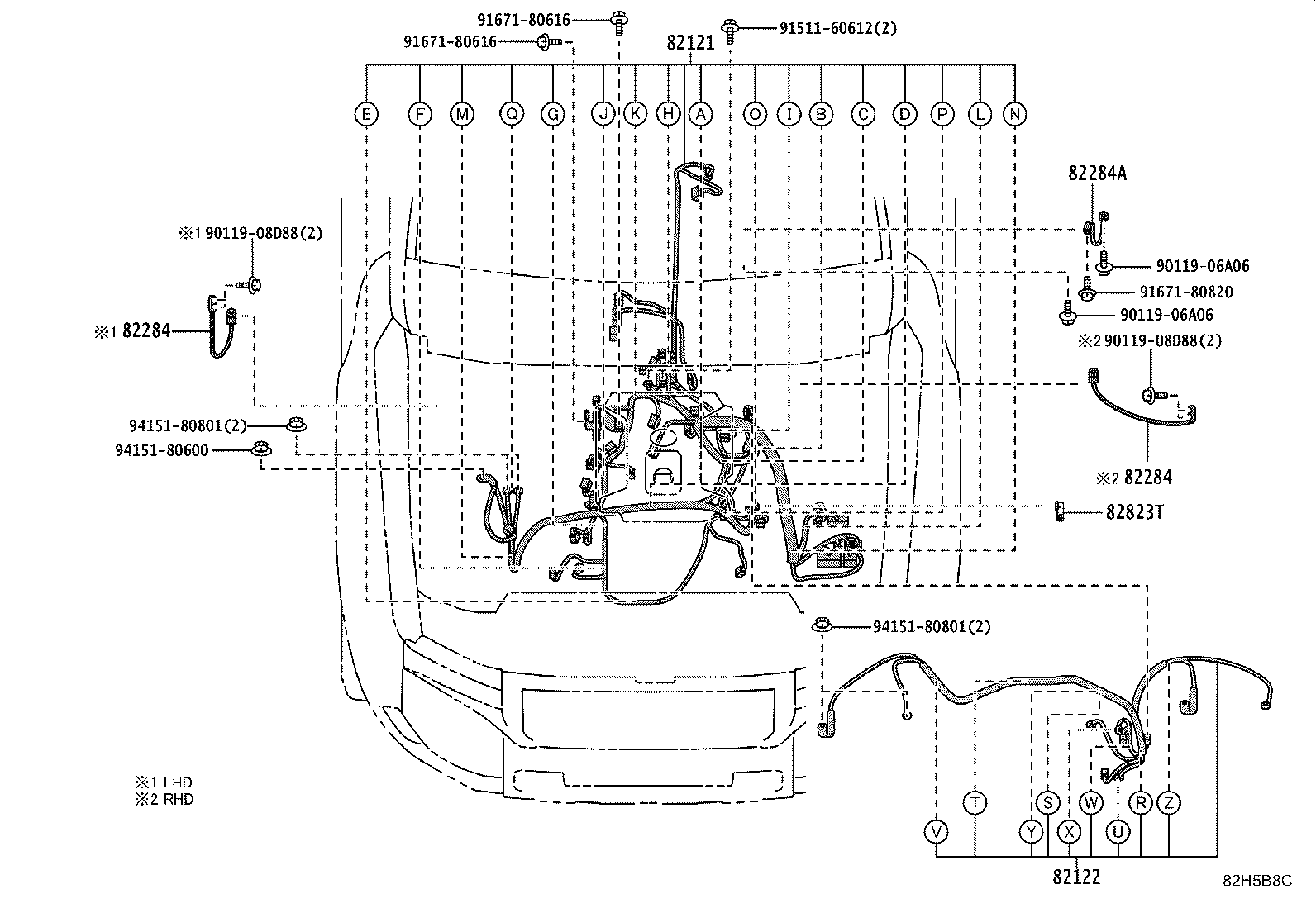

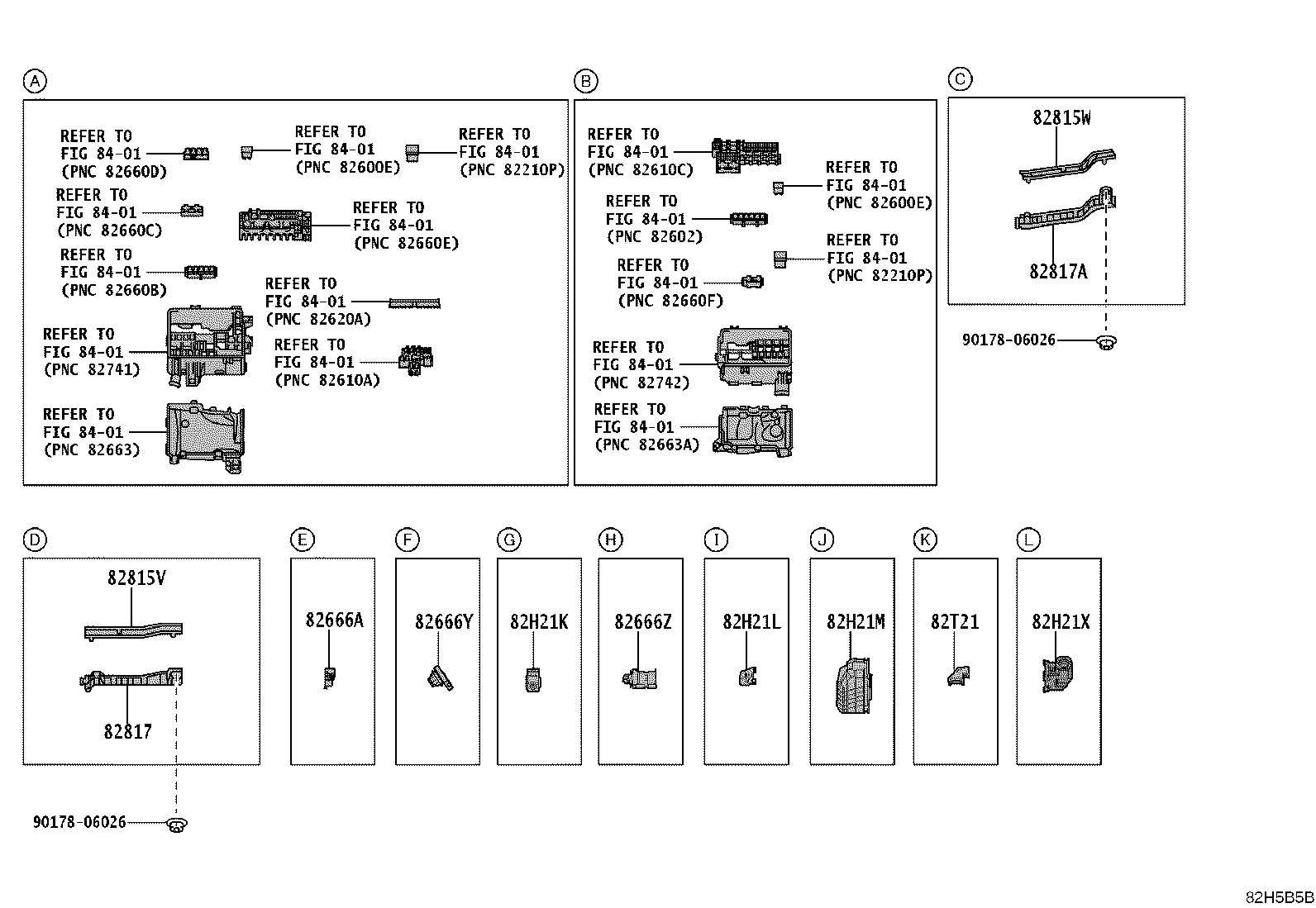

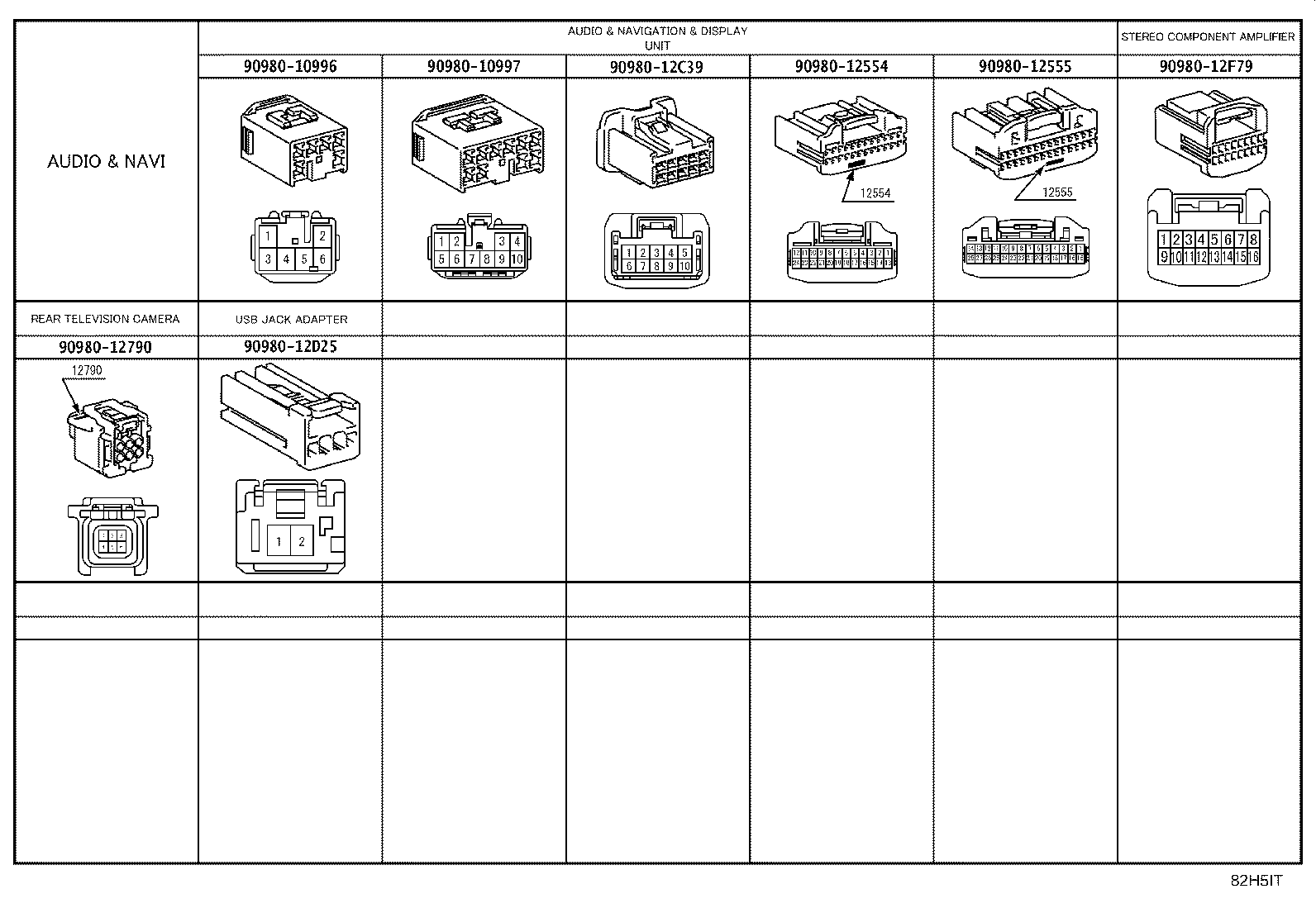

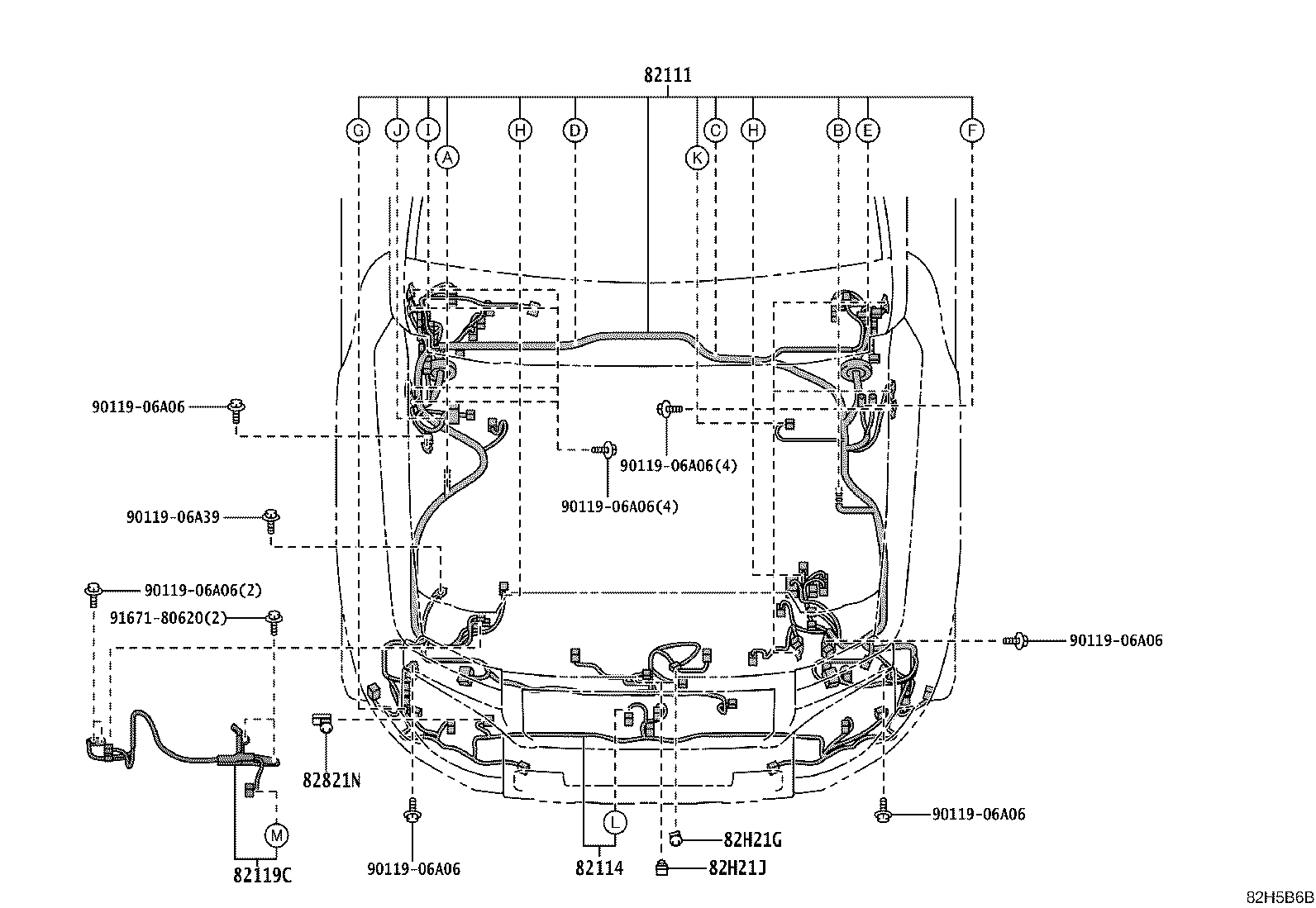

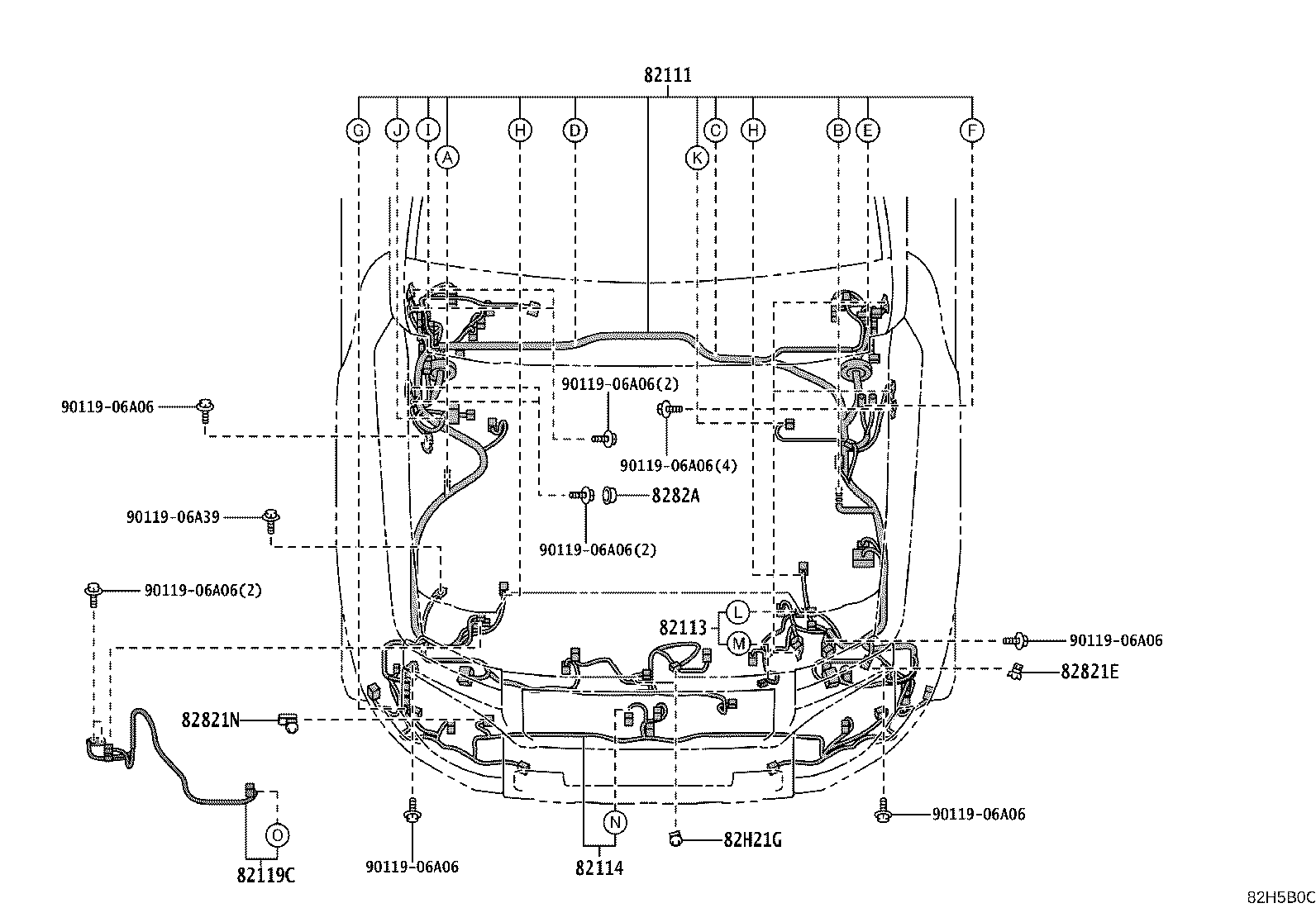

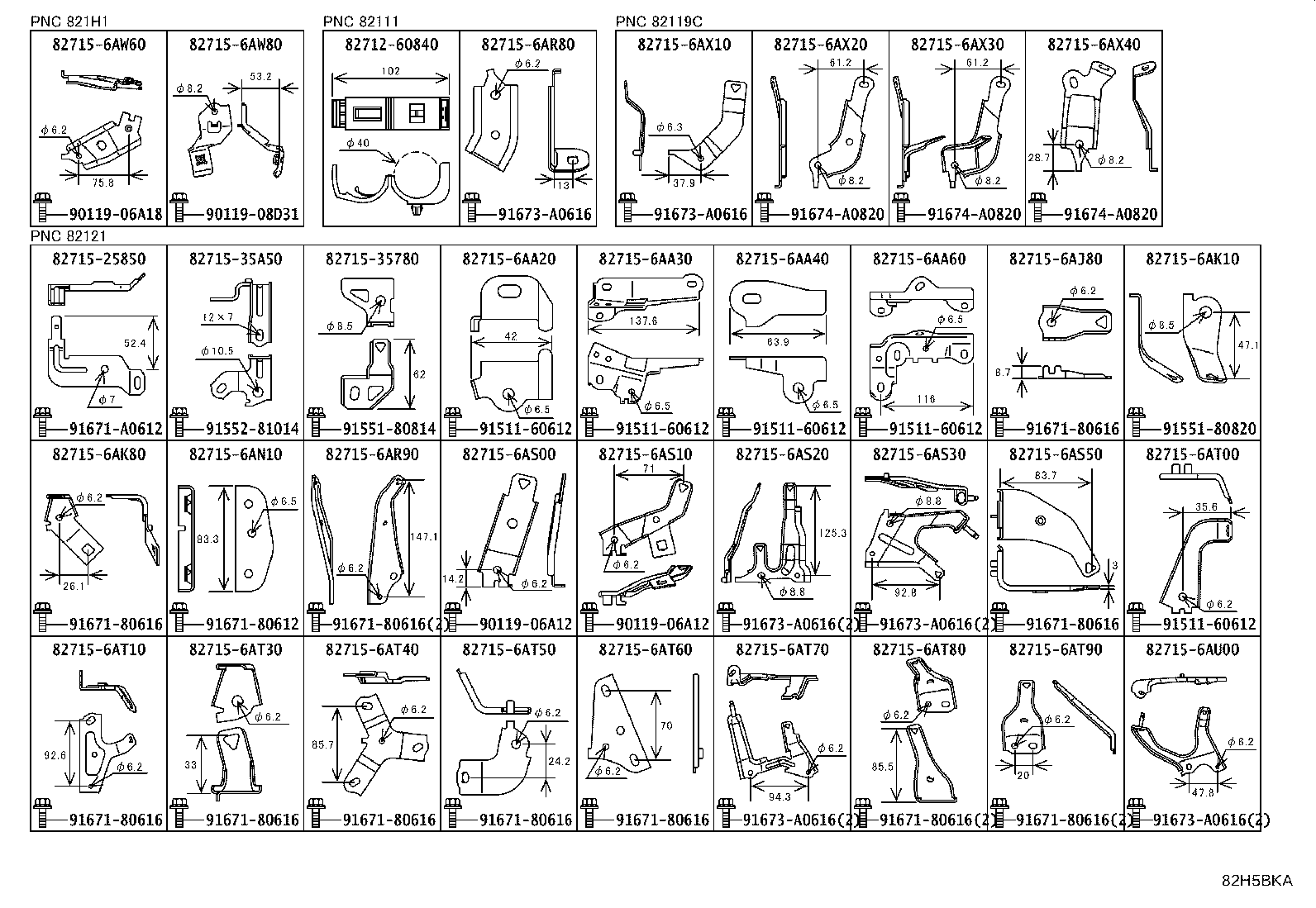

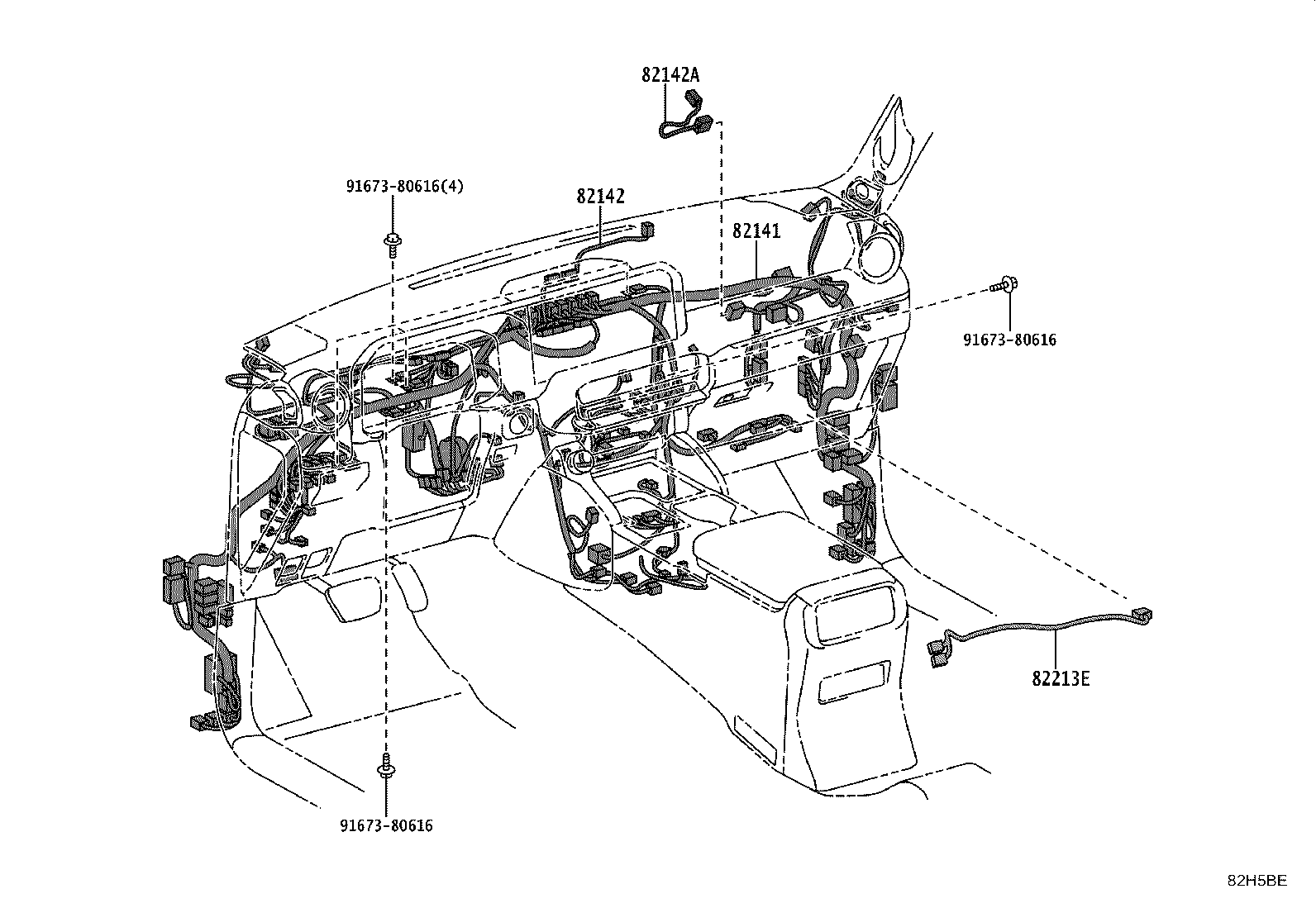

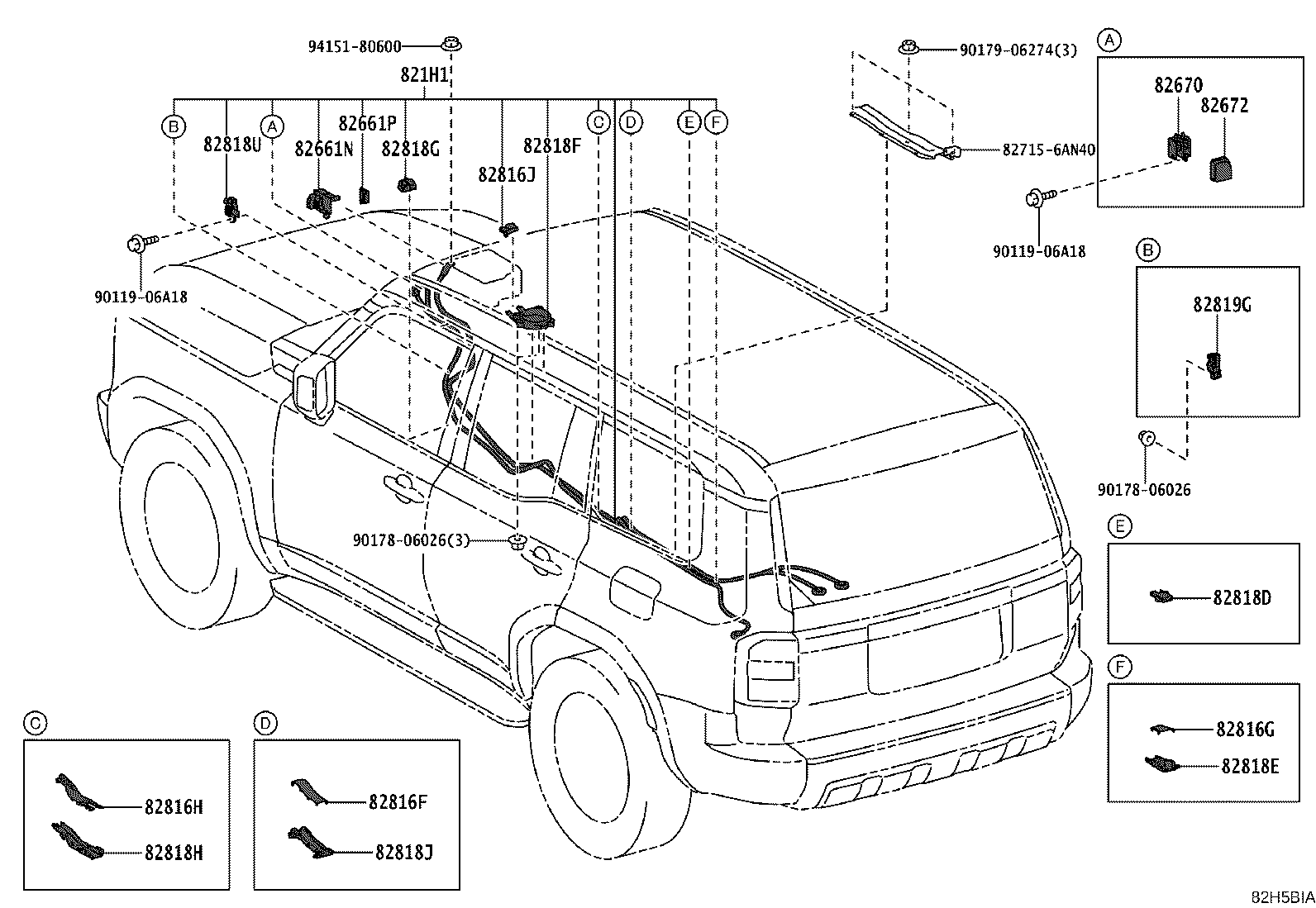

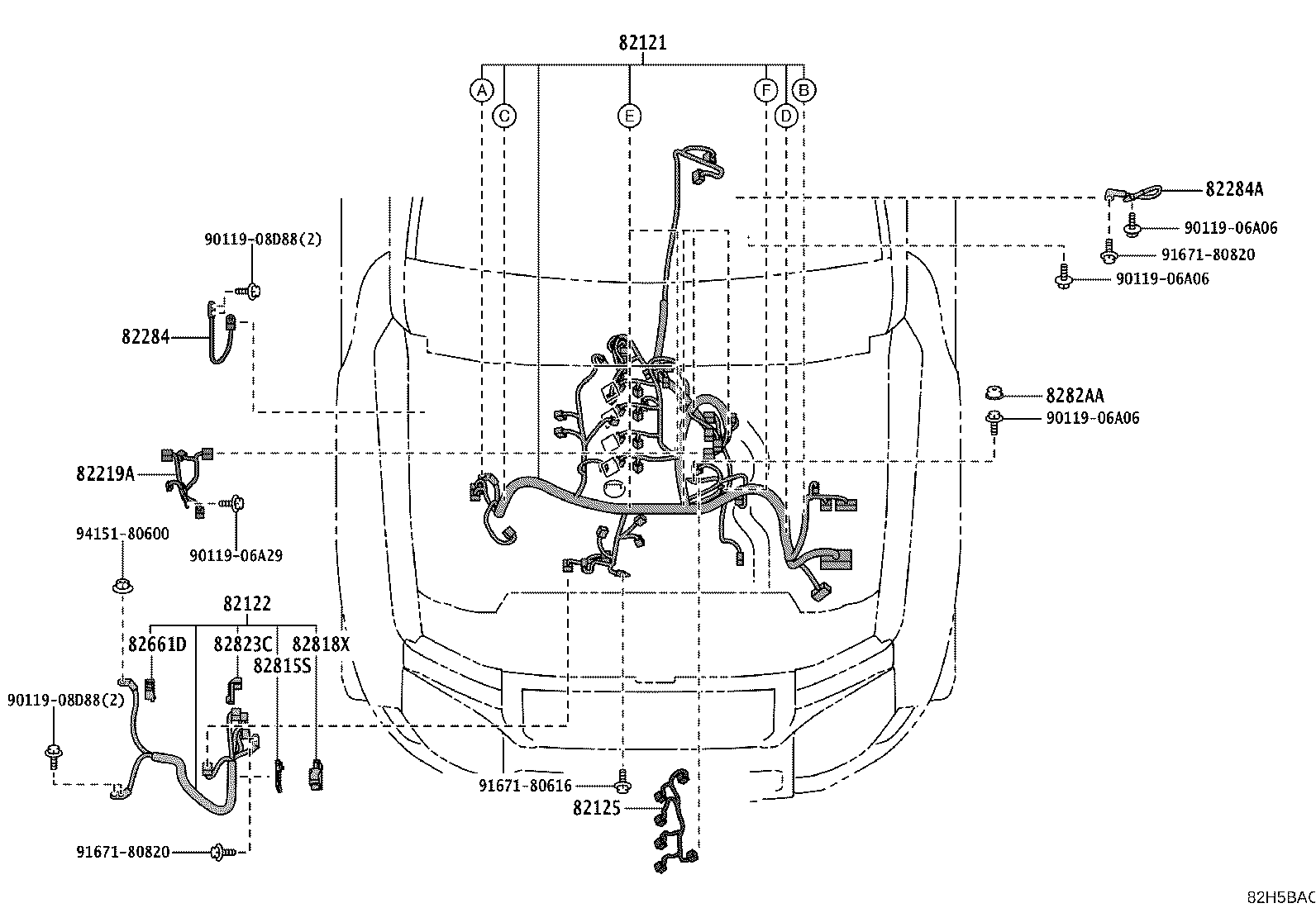

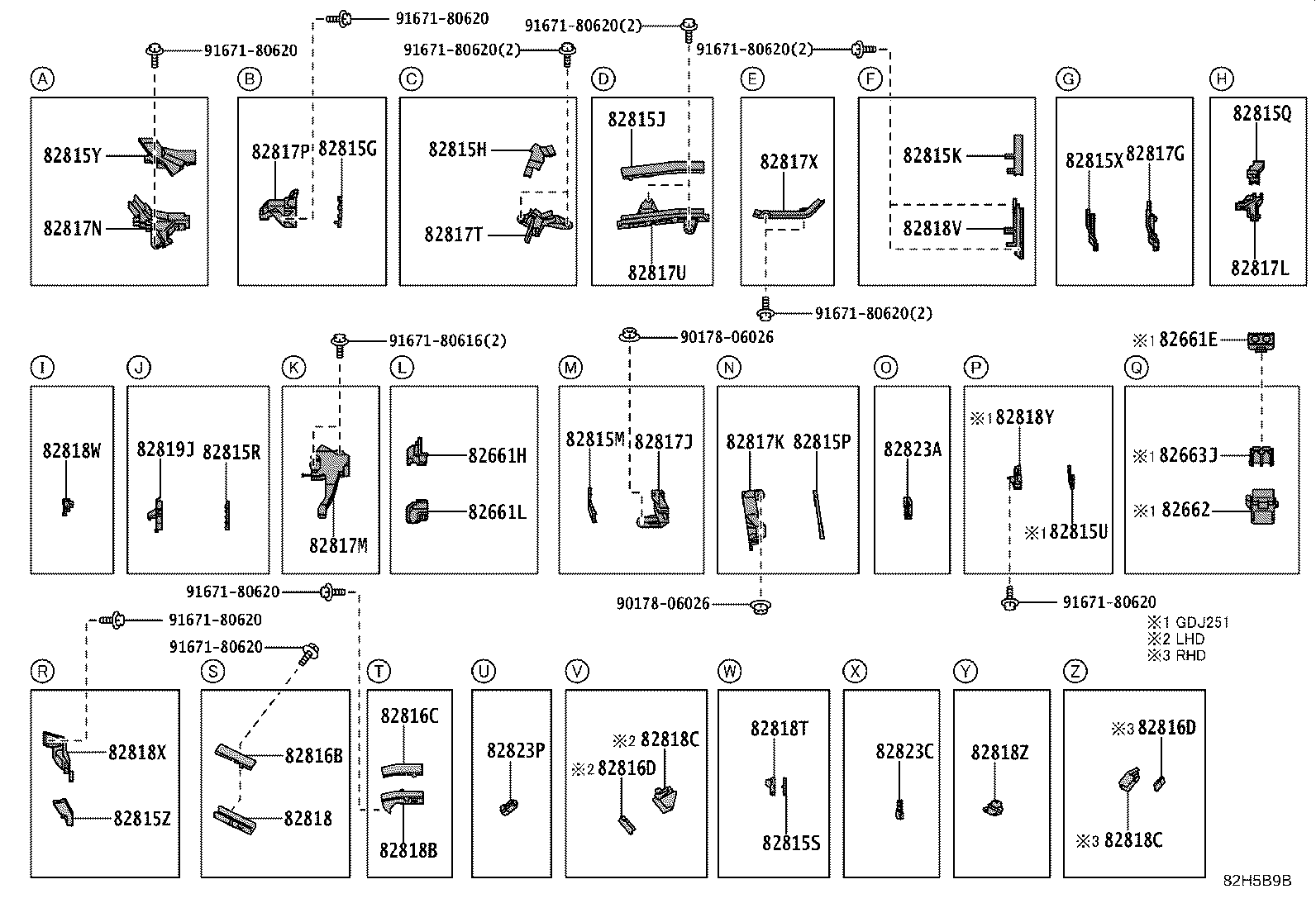

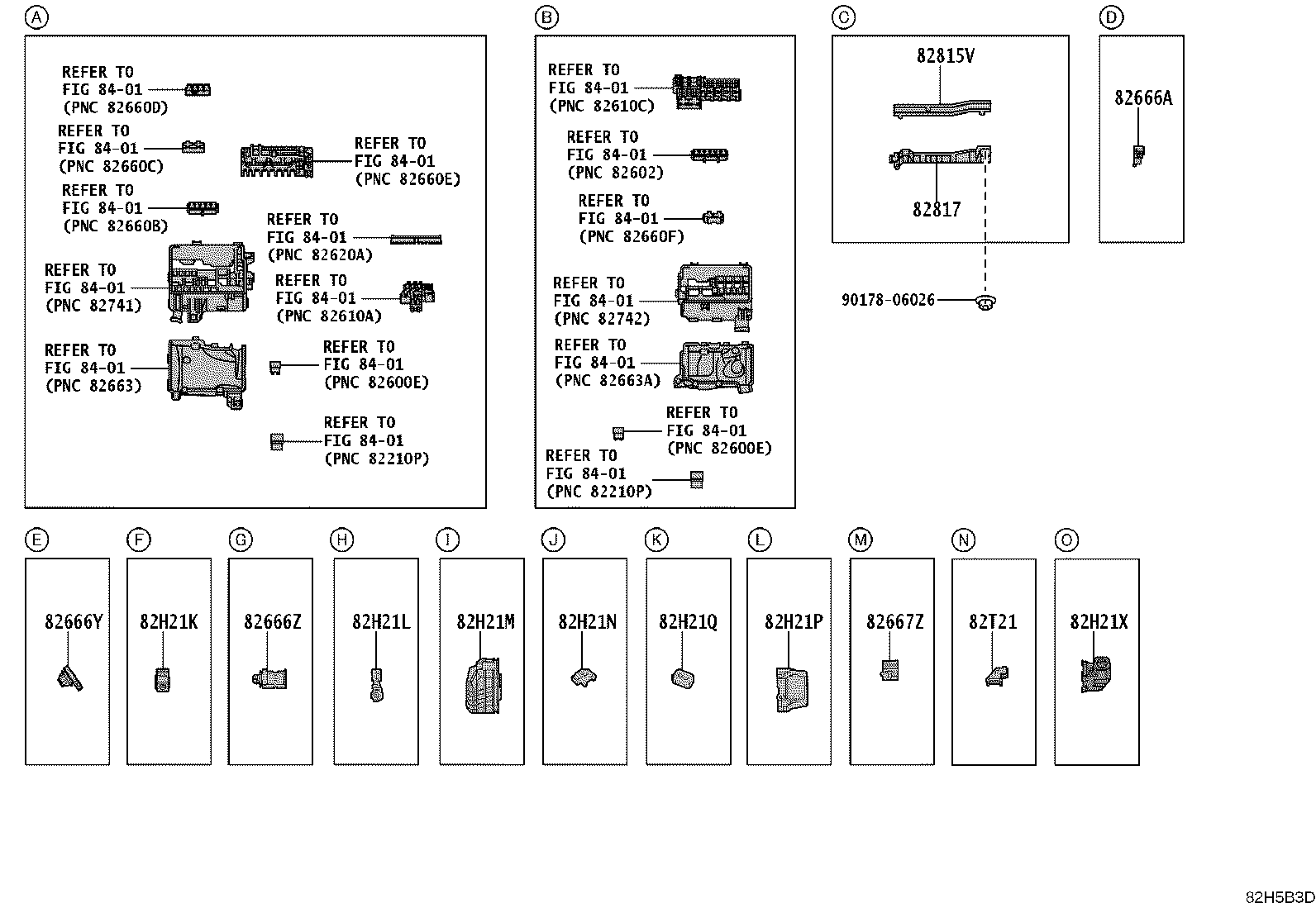

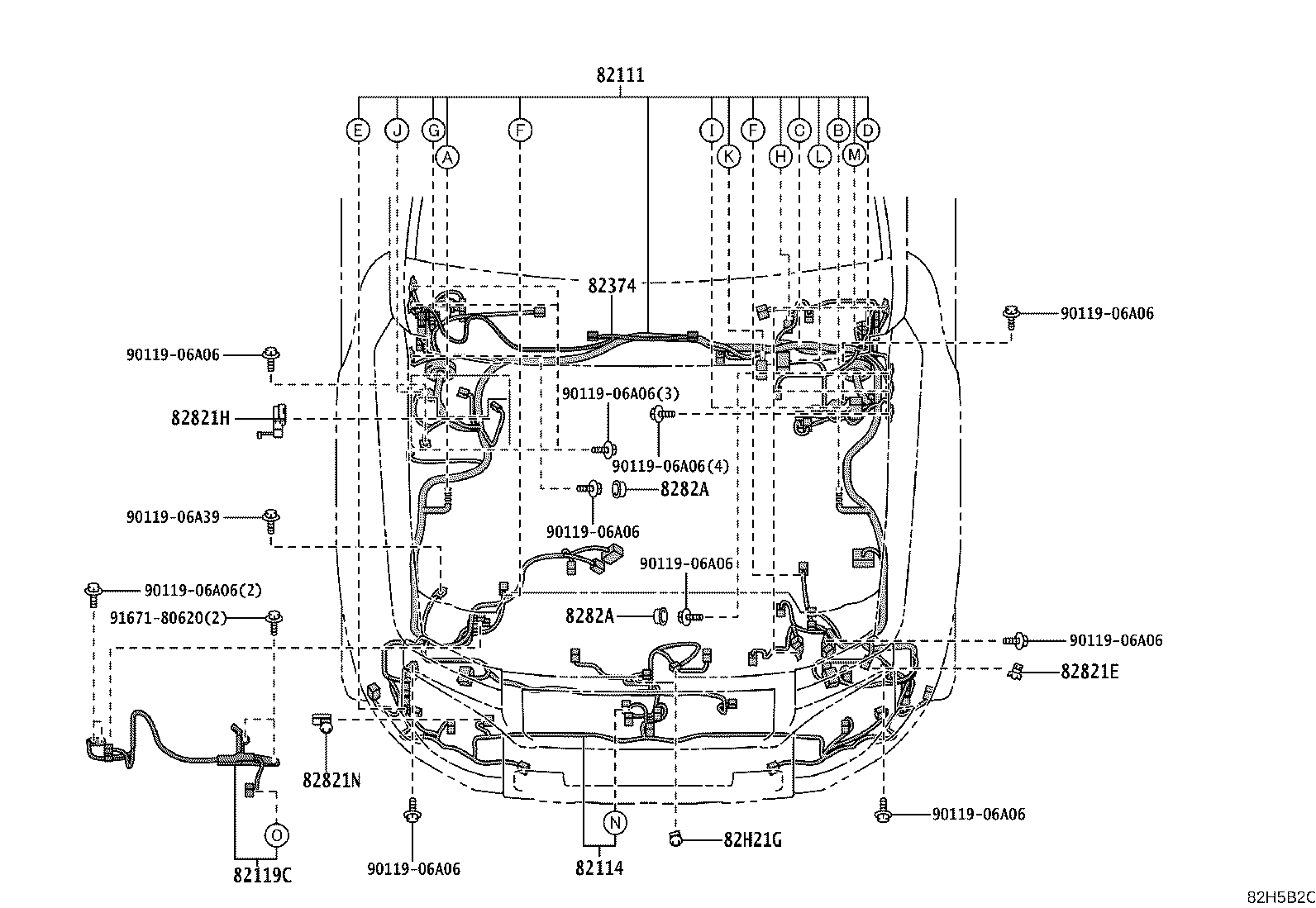

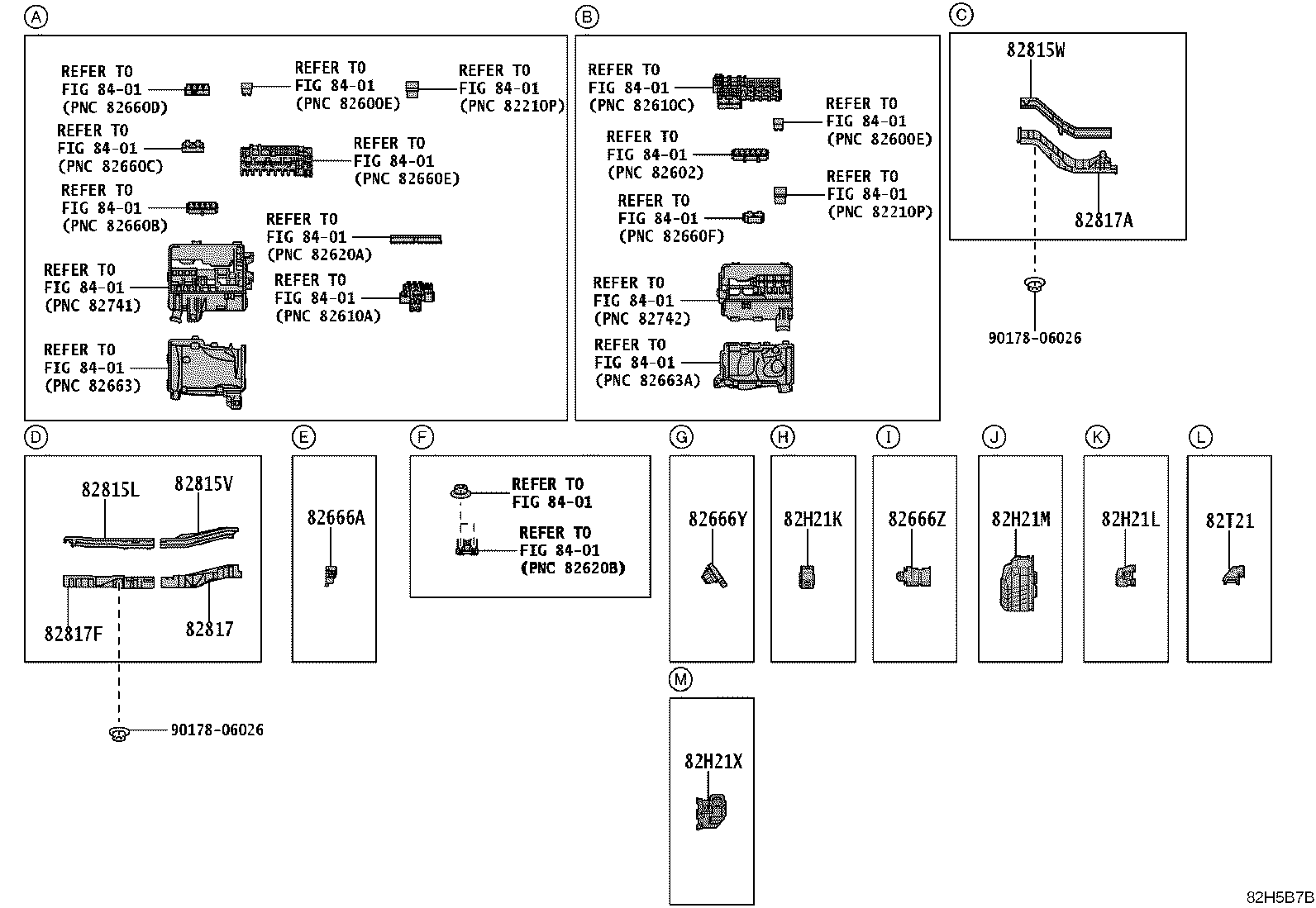

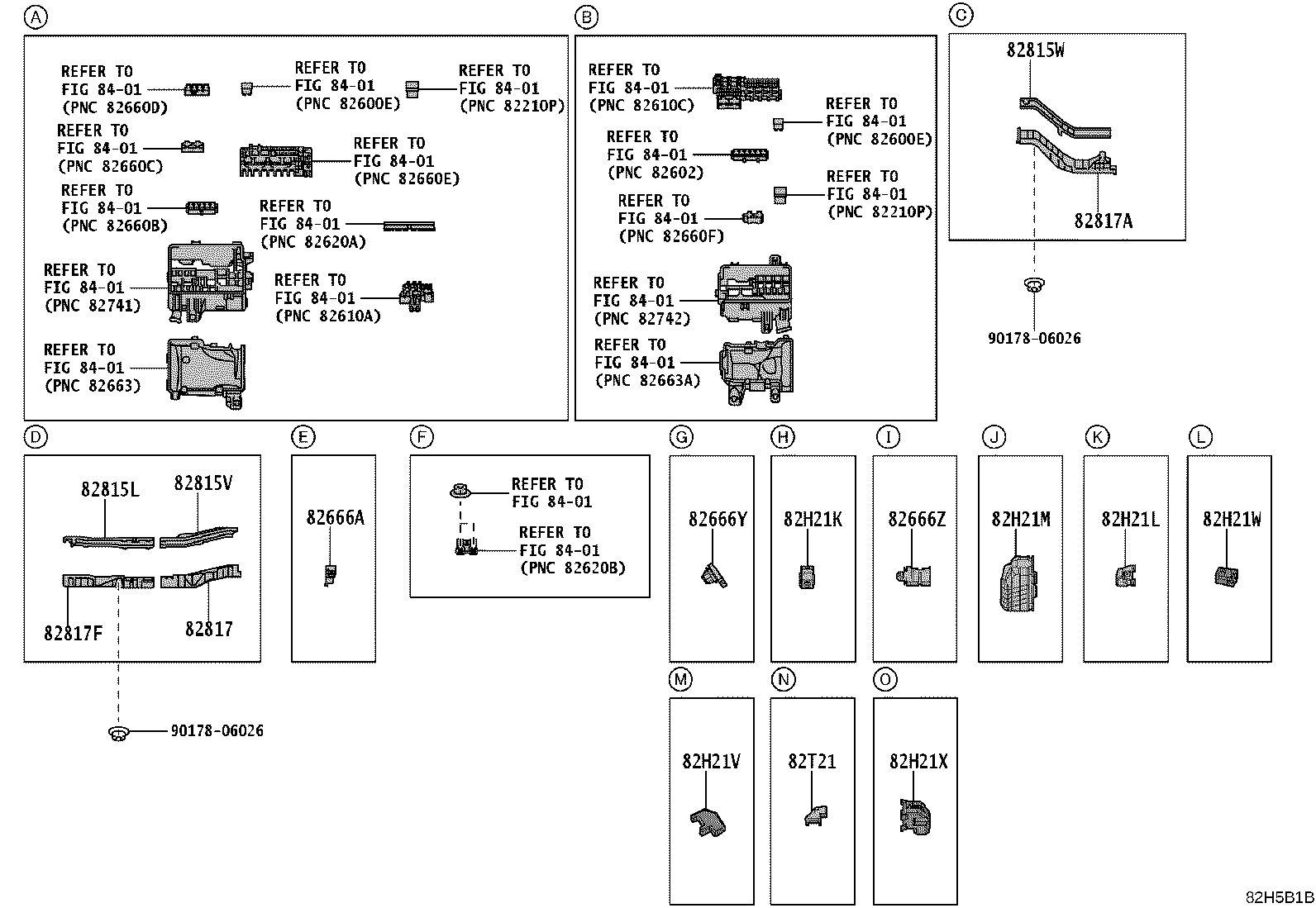

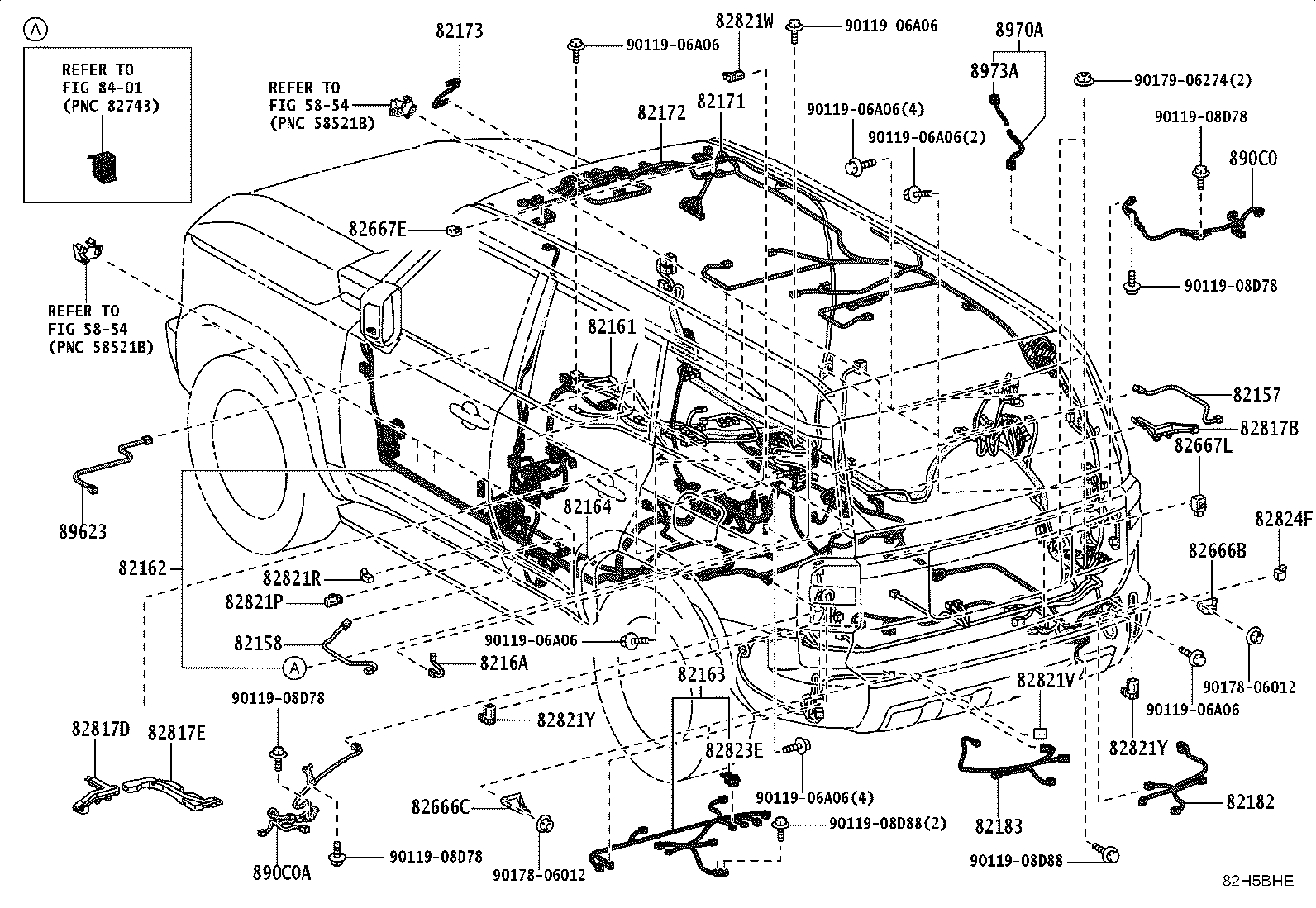

Figure 82H5AYC 82H5AYC 2024-01 → — Figure 82H5AZB 82H5AZB 2024-01 → — Figure 82H5B0C 82H5B0C 2024-01 → — Figure 82H5B1B 82H5B1B 2024-01 → — Figure 82H5B2C 82H5B2C 2024-01 → — Figure 82H5B3D 82H5B3D 2024-01 → — Figure 82H5B4C 82H5B4C 2024-01 → — Figure 82H5B5B 82H5B5B 2024-01 → — Figure 82H5B6B 82H5B6B 2024-01 → — Figure 82H5B7B 82H5B7B 2024-01 → — Figure 82H5B8C 82H5B8C 2024-01 → — Figure 82H5B9C 82H5B9C 2024-01 → — Figure 82H5BAC 82H5BAC 2024-01 → — Figure 82H5BBA 82H5BBA 2024-01 → — Figure 82H5BC 82H5BC 2024-01 → — Figure 82H5BD 82H5BD 2024-01 → — Figure 82H5BE 82H5BE 2024-01 → — Figure 82H5BF 82H5BF 2024-01 → — Figure 82H5BGB 82H5BGB 2024-01 → — Figure 82H5BHE 82H5BHE 2024-01 → — Figure 82H5BIA 82H5BIA 2024-01 → — Figure 82H5BJA 82H5BJA 2024-01 → — Figure 82H5BKA 82H5BKA 2024-01 → — Figure 82H5BLA 82H5BLA 2024-01 → — Figure 82H5BM 82H5BM 2024-01 → — Figure 82H5IS 82H5IS 2024-01 → — Figure 82H5IT 82H5IT 2024-01 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4
82119C Wire, Engine Room, NO.5
82121 Wire, Engine
82122 Wire, Engine, NO.2
82125 Wire, Transmission
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82151A Wire, Front Door, NO.2, RH
82152 Wire, Front Door, LH
82152A Wire, Front Door, NO.2, LH
82153 Wire, Rear Door, NO.1
82153A Wire, Rear Door, RH
82154 Wire, Rear Door, NO.2
82154A Wire, Rear Door, LH
82157 Wire, Step Panel, RH
82158 Wire, Step Panel, LH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
8216A Wire, Floor NO.7
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82173 Wire, Roof, NO.3
82182 Wire, Luggage Room, NO.2
82183 Wire, Luggage Room, NO.3
82184 Wire, Back Door, NO.1
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82188A Wire, Back Door, NO.3
82191A Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82193 Wire, Rear Seat, RH
82194 Wire, Rear Seat, LH
82195 Wire, Rear Seat, RH NO.2
82196A Wire, Rear Seat, LH NO.3
8219A Wire, Front Seat, RH NO.2
8219B Wire, Front Seat, LH NO.2
821H1 Wire, Floor Under
82213E Wire, Heater Blower
82219A Wire, Sensor
82284 Wire, Earth
82284A Wire, Earth NO.2
82374 Wire, Washer
82661D Cover, Relay Block, Side NO.1
82661E Cover, Relay Block, Side NO.2
82661H Cover, Relay Block
82661L Cover, Relay Block, NO.2
82661M Cover, Relay Block, NO.3
82661N Cover, Relay Block, NO.4
82661P Cover, Relay Block, NO.5
82662 Cover, Relay Block, Upper
82663J Cover, Connector Holder
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666Y Holder, Connector NO.18
82666Z Holder, Connector NO.19
82667E Holder, Connector, NO.20
82667L Holder, Connector, NO.26
82667Z Holder, Connector, NO.37
82670 Block Assy, Junction, NO.1
82672 Cover, Junktion Block
82712A Support, Wiring Harness
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815L Cover, Wiring Harness Protector, NO.9
82815M Cover, Wiring Harness Protector, NO.10
82815P Cover, Wiring Harness Protector, NO.12
82815Q Cover, Wiring Harness Protector, NO.13
82815R Cover, Wiring Harness Protector, NO.14
82815S Cover, Wiring Harness Protector, NO.15
82815U Cover, Wiring Harness Protector, NO.17
82815V Cover, Wiring Harness Protector, NO.1
82815W Cover, Wiring Harness Protector, NO.2
82815X Cover, Wiring Harness Protector, NO.3
82815Y Cover, Wiring Harness Protector, NO.4
82815Z Cover, Wiring Harness Protector, NO.18
82816B Cover, Wiring Harness Protector, NO.1
82816C Cover, Wiring Harness Protector, NO.2
82816D Cover, Wiring Harness Protector, NO.3
82816F Cover, Wiring Harness Protector, NO.4
82816G Cover, Wiring Harness Protector, NO.5
82816H Cover, Wiring Harness Protector, NO.6
82816J Cover, Wiring Harness Protector, NO.7
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82818 Protector, Wiring Harness, NO.2
82818B Protector, Wiring Harness, NO.3
82818C Protector, Wiring Harness, NO.4
82818D Protector, Wiring Harness, NO.5
82818E Protector, Wiring Harness, NO.6
82818F Protector, Wiring Harness, NO.7
82818G Protector, Wiring Harness, NO.8
82818H Protector, Wiring Harness, NO.9
82818J Protector, Wiring Harness, NO.10
82818S Protector, Wiring Harness, NO.15
82818T Protector, Wiring Harness, NO.16
82818U Protector, Wiring Harness, NO.17
82818V Protector, Wiring Harness, NO.18
82818W Protector, Wiring Harness, NO.19
82818X Protector, Wiring Harness, NO.20
82818Y Protector, Wiring Harness, NO.21
82818Z Protector, Wiring Harness, NO.22
82819G Protector, Wiring Harness, NO.23
82819H Protector, Wiring Harness, NO.24
82819J Protector, Wiring Harness, NO.25
82821E Cover, Connector
82821H Cover, Connector
82821N Cover, Connector
82821P Cover, Connector
82821R Cover, Connector
82821V Cover, Connector
82821W Cover, Connector
82821Y Cover, Connector
82823A Cap, Terminal, NO.2
82823B Cap, Terminal, NO.3
82823C Cap, Terminal, NO.4
82823E Cap, Terminal, NO.5
82823P Cap, Terminal, NO.6
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824A Connector, Wiring Harness
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
8282A Cap, Earth Bolt, NO.1
8282AA Cap, Earth Bolt, NO.2
82H21G Cover, Connector
82H21J Cover, Connector
82H21K Cover, Connector
82H21L Cover, Connector
82H21M Cover, Connector
82H21N Cover, Connector
82H21P Cover, Connector
82H21Q Cover, Connector
82H21V Cover, Connector
82H21W Cover, Connector
82H21X Cover, Connector
82T21 Cover, Connector
890C0 Wire Assy, Parking Brake, NO.1
890C0A Wire Assy, Parking Brake, NO.2
89623 Wire, Power Steering Sensor
8970A Cord Sub-assy, Theft Warning Sensor
8973A Harness, Theft Warning Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
