Toyota Land Cruiser Prado

2024-01 → present · chassis GDJ25#,TJA250,TRJ250 · catalogue 781290 · Europe

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

12 part groups · 2 illustrations

Illustrations

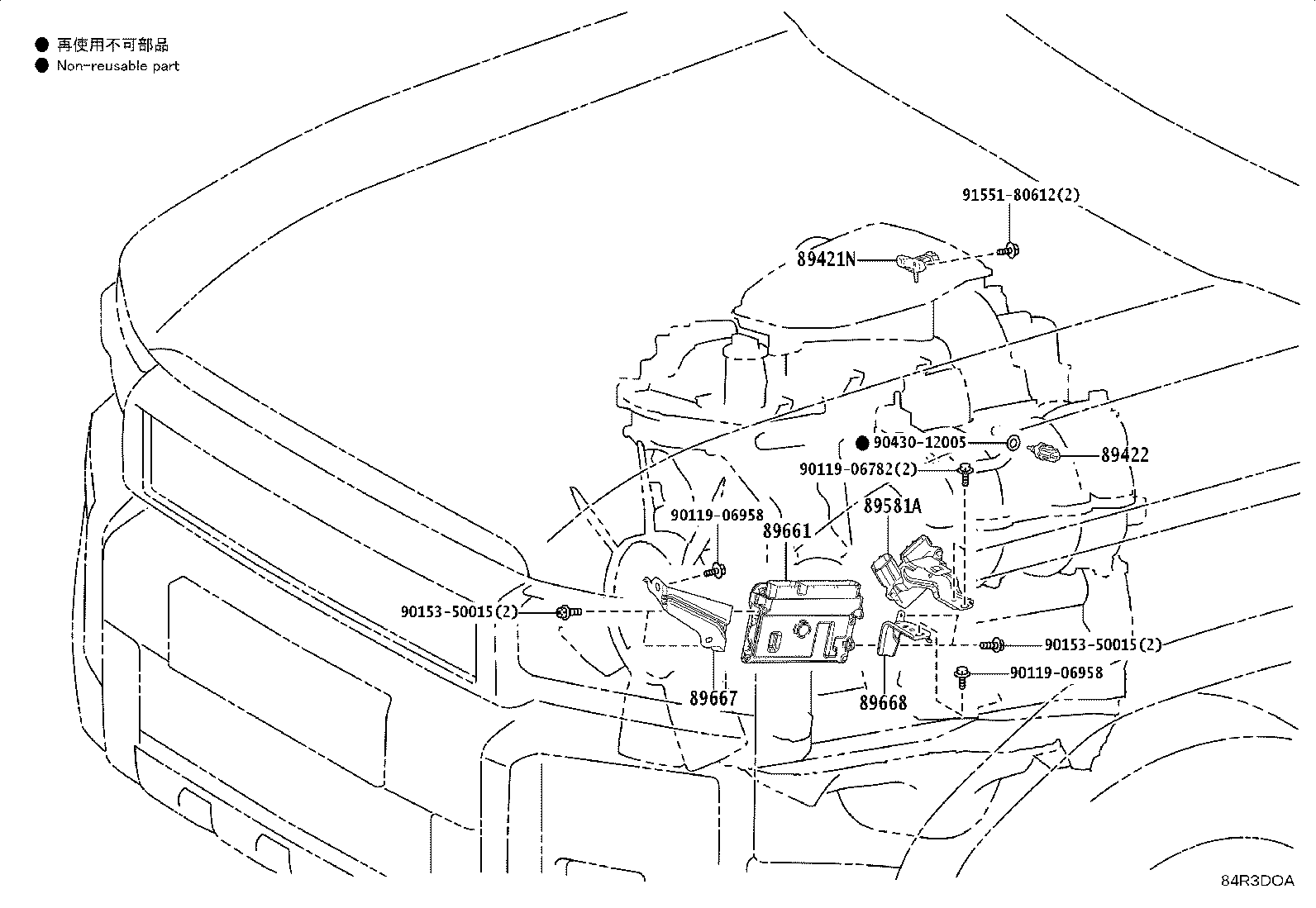

Figure 84R3IYA 84R3IYA 2024-01 → — Figure 84R3DOA 84R3DOA 2024-01 → —

Part groups

PNCDescription
89421K Sensor, Turbo Pressure, NO.1
89421L Sensor, Turbo Pressure, NO.2
89421N Sensor, Air Pressure
89422 Sensor, Water Temperature (FOR E.F.I.)
89424 Sensor, Inlet Air Temperature (FOR E.F.I.)
89458 Sensor, Fuel Pressure
89458H Sensor, Fuel Pressure, NO.2
89570A Computer Assy, Fuel Pump Control
89581A Driver, Air Injection Control
89661 Computer, Engine Control
89667 Bracket, Engine Control Computer
89668 Bracket, Engine Control Computer, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
