Toyota Land Cruiser Prado

2024-01 → present · chassis GDJ25#,TJA250,TRJ250 · catalogue 781290 · Europe

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Controled Diesel (ECD)

8 part groups · 2 illustrations

Illustrations

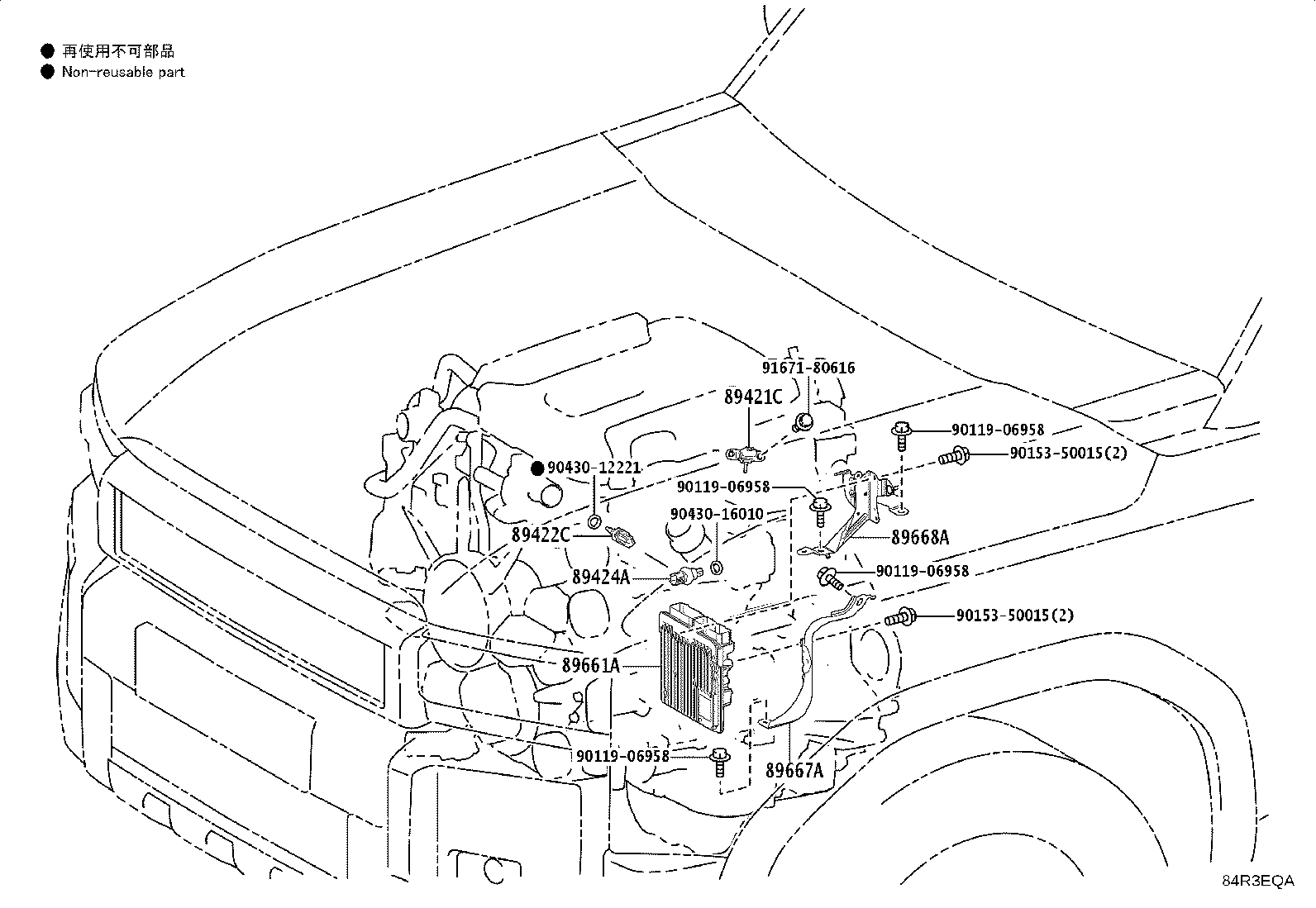

Figure 84R3EPA 84R3EPA 2024-01 → — Figure 84R3EQA 84R3EQA 2024-01 → —

Part groups

PNCDescription
89421C Sensor, Turbo Pressure (FOR DIESEL TURBO)
89422C Sensor, Diesel Engine Water Temperature
89422P Sensor, Water Temperature
89424A Sensor, Inlet Air Temperature (FOR DIESEL TURBO)
89424D Sensor, Inlet Air Temperature
89661A Computer, Engine Control
89667A Bracket, Engine Control Computer, NO.1
89668A Bracket, Engine Control Computer, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
