Toyota Land Cruiser Prado

2024-01 → present · chassis GDJ25#,TJA250,TRJ250 · catalogue 781290 · Europe

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

6 part groups · 2 illustrations

Illustrations

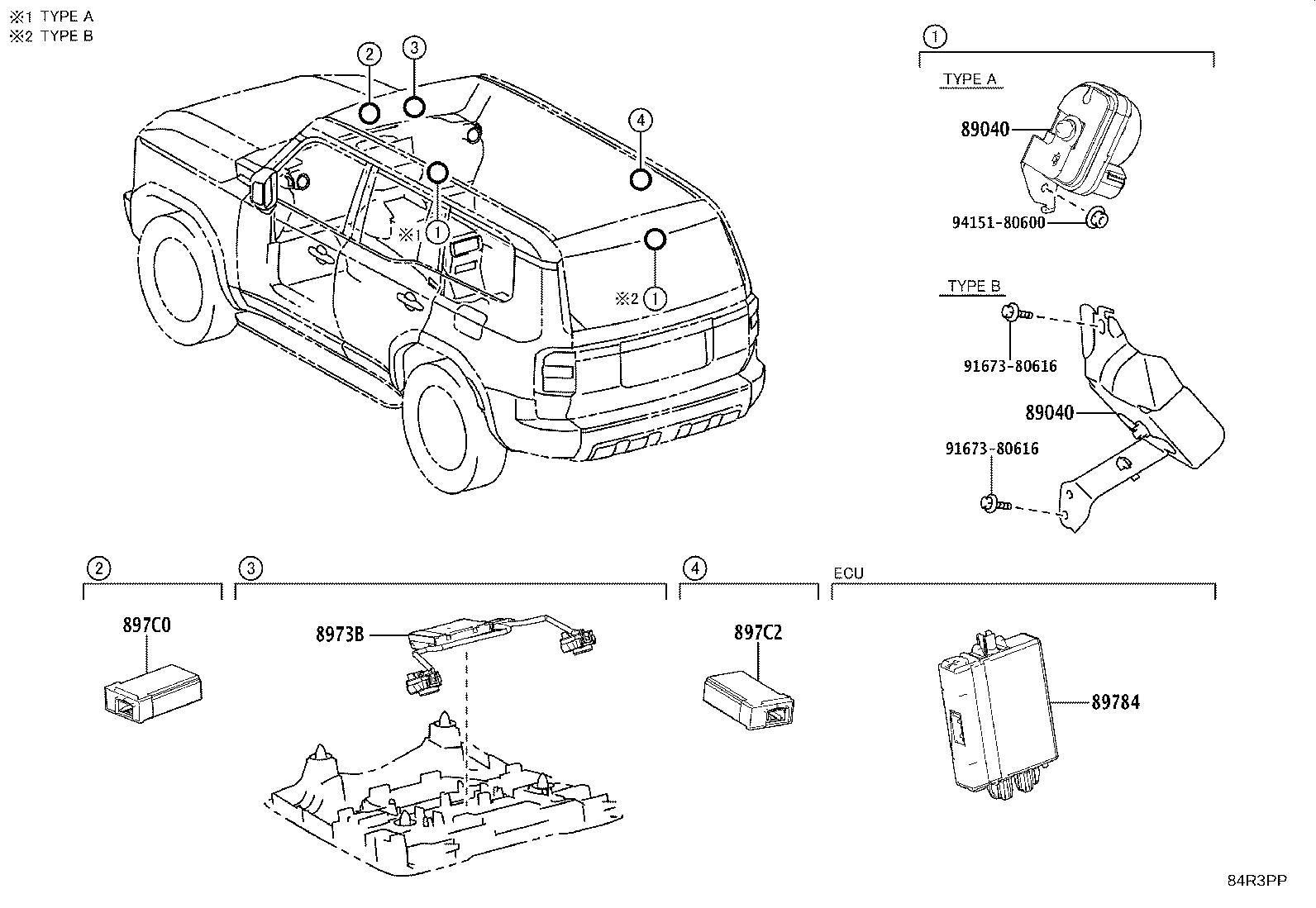

Figure 84R3CIA 84R3CIA 2024-01 → — Figure 84R3PP 84R3PP 2024-01 → —

Part groups

PNCDescription
89040 Siren Assy, Theft Warning
8973B Sensor, Theft Warning Ultrasonic & Tilt
89782 Coil, Transponder Key
89784 Computer, Immobilizer Code
897C0 Transceiver Assy, Electrical Key Ranging
897C2 Transceiver, Electrical Key Ranging
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
