Toyota Land Cruiser Prado
2024-01 → present · chassis GDJ25#,TJA250,TRJ250 · catalogue 781290 · Europe
Supported model
Data version 2024-07

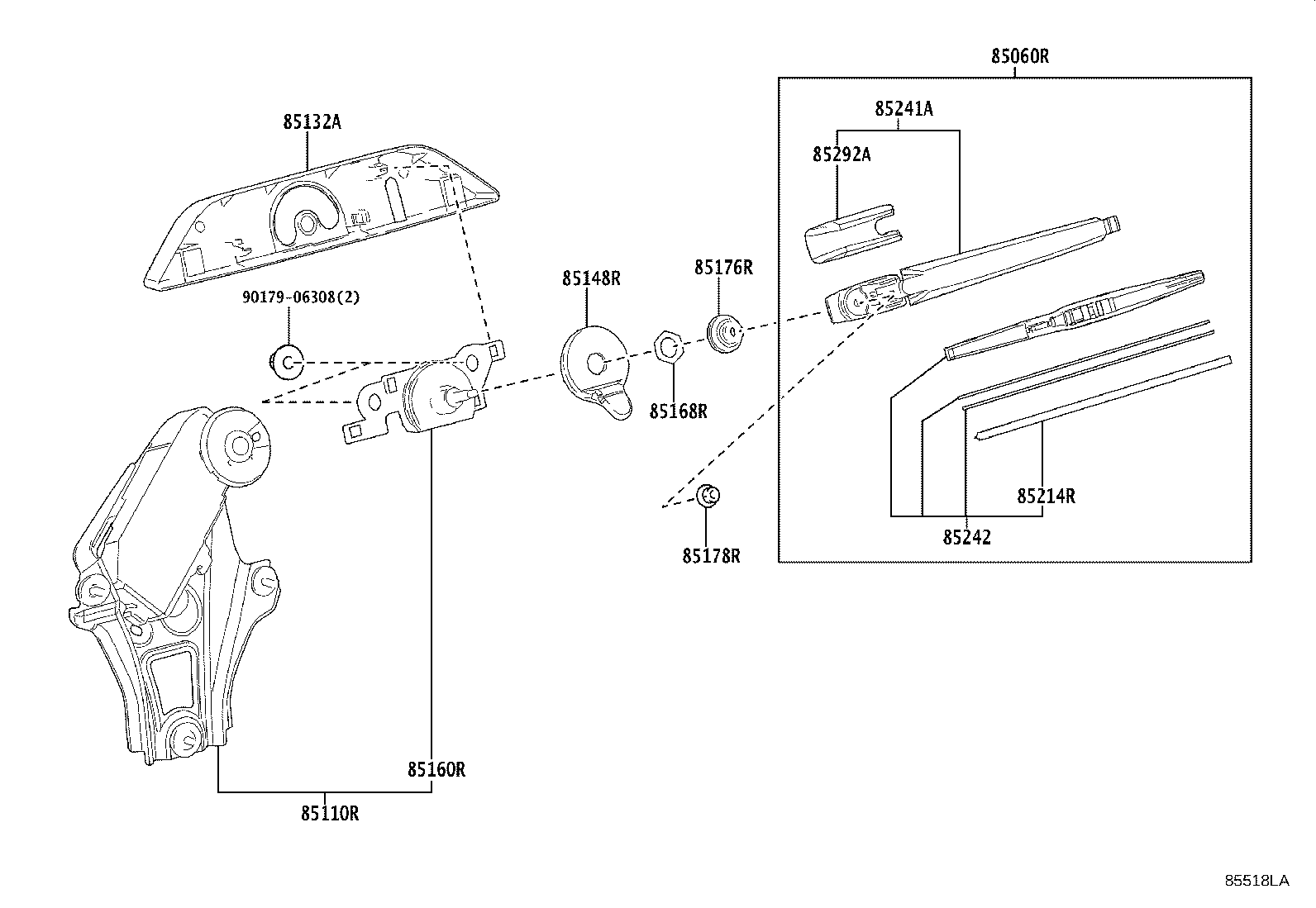

Rear Wiper
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85060R | Arm And Blade Assy, Rear Wiper |
| 85110R | Motor Assy, Rear Wiper |
| 85132A | Cover, Rear Wiper Shaft |
| 85143R | Grommet, Rear Wiper Motor |
| 85148R | Nut, W/Washer Packing, Rear Wiper Link Pivot |
| 85160R | Link Assy, Rear Wiper |
| 85168R | Nut, Rear Wiper Link Pivot, NO.1 |
| 85176R | Cap, Rear Wiper Link |
| 85178R | Nut (FOR REAR WIPER ARM SETTING) |
| 85214R | Rubber, Rear Wiper |
| 85241A | Arm, Rear Wiper |
| 85242 | Blade, RR Wiper |
| 85292A | Cap, Rear Wiper Arm Head |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
