Toyota Land Cruiser Prado
2024-01 → present · chassis GDJ25#,TJA250,TRJ250 · catalogue 781290 · Europe
Supported model
Data version 2024-07
Windshield Washer

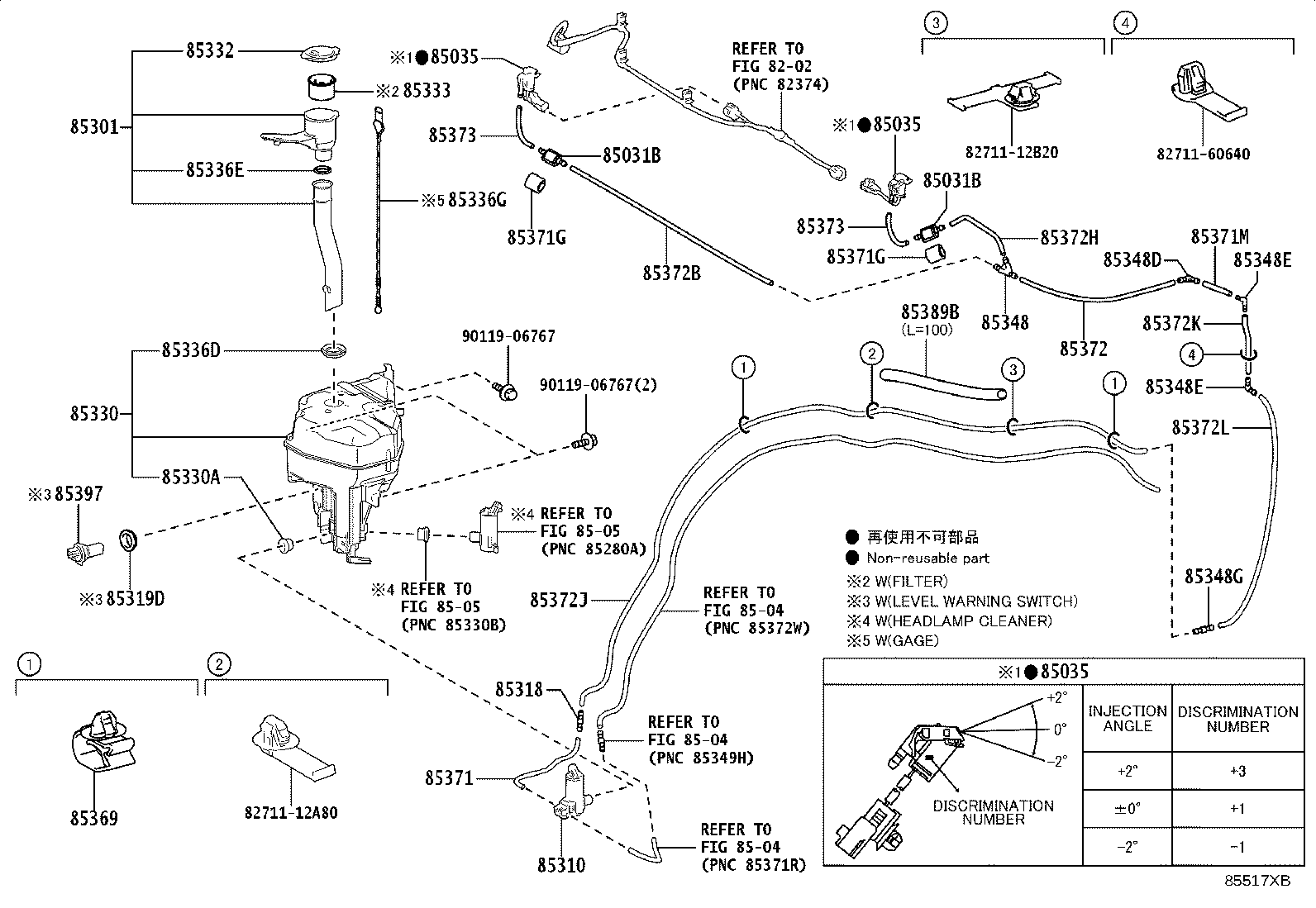

30 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85031B | Valve Sub-assy, Washer |
| 85035 | Nozzle Sub-assy, Washer |
| 85301 | Inlet Sub-assy, Washer |
| 85310 | Motor And Pump Assy, Windshield Washer |
| 85318 | Joint, Windshield Washer Motor |
| 85319D | Packing, Front Washer |
| 85330 | Jar Assy, Windshield Washer |
| 85330A | Bush, Windshield Washer Jar |
| 85332 | Cap, Windshield Washer Jar |
| 85333 | Filter, Windshield Washer Jar |
| 85336D | Packing, Windshield Washer Jar |
| 85336E | Packing, Windshield Washer Inlet Hose |
| 85336G | Gage, Water Level |
| 85348 | Joint, Windshield Washer Hose, NO.1 |
| 85348D | Joint, Windshield Washer Elbow, NO.1 |
| 85348E | Joint, Windshield Washer Elbow, NO.2 |
| 85348G | Joint, Windshield Washer Hose, NO.2 |
| 85369 | Clamp |
| 85371 | Hose, Windshield Washer (FROM MOTOR TO JOINT) |
| 85371G | Protector, Front Washer |
| 85371M | Hose, Windshield Washer (FROM JOINT TO TANK) |
| 85372 | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1 |
| 85372B | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2 |
| 85372H | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.3 |
| 85372J | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.4 |
| 85372K | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.5 |
| 85372L | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.6 |
| 85373 | Hose, Windshield Washer (FROM JOINT TO NOZZLE) |
| 85389B | Protector, Windshield Washer |
| 85397 | Switch Assy,Level Warning |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
