Toyota Land Cruiser Prado
2024-01 → present · chassis GDJ25#,TJA250,TRJ250 · catalogue 781290 · Europe
Supported model
Data version 2024-07

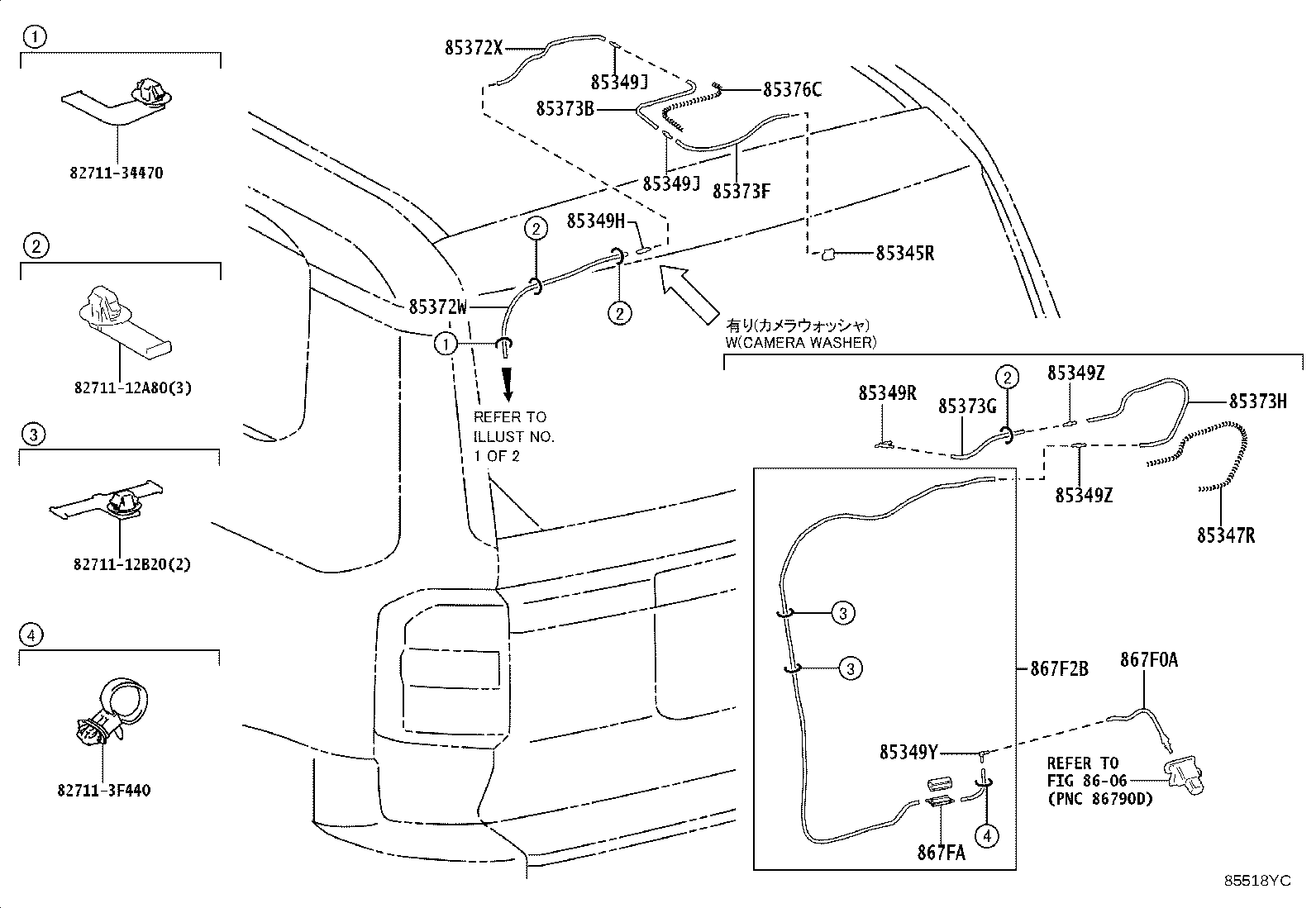

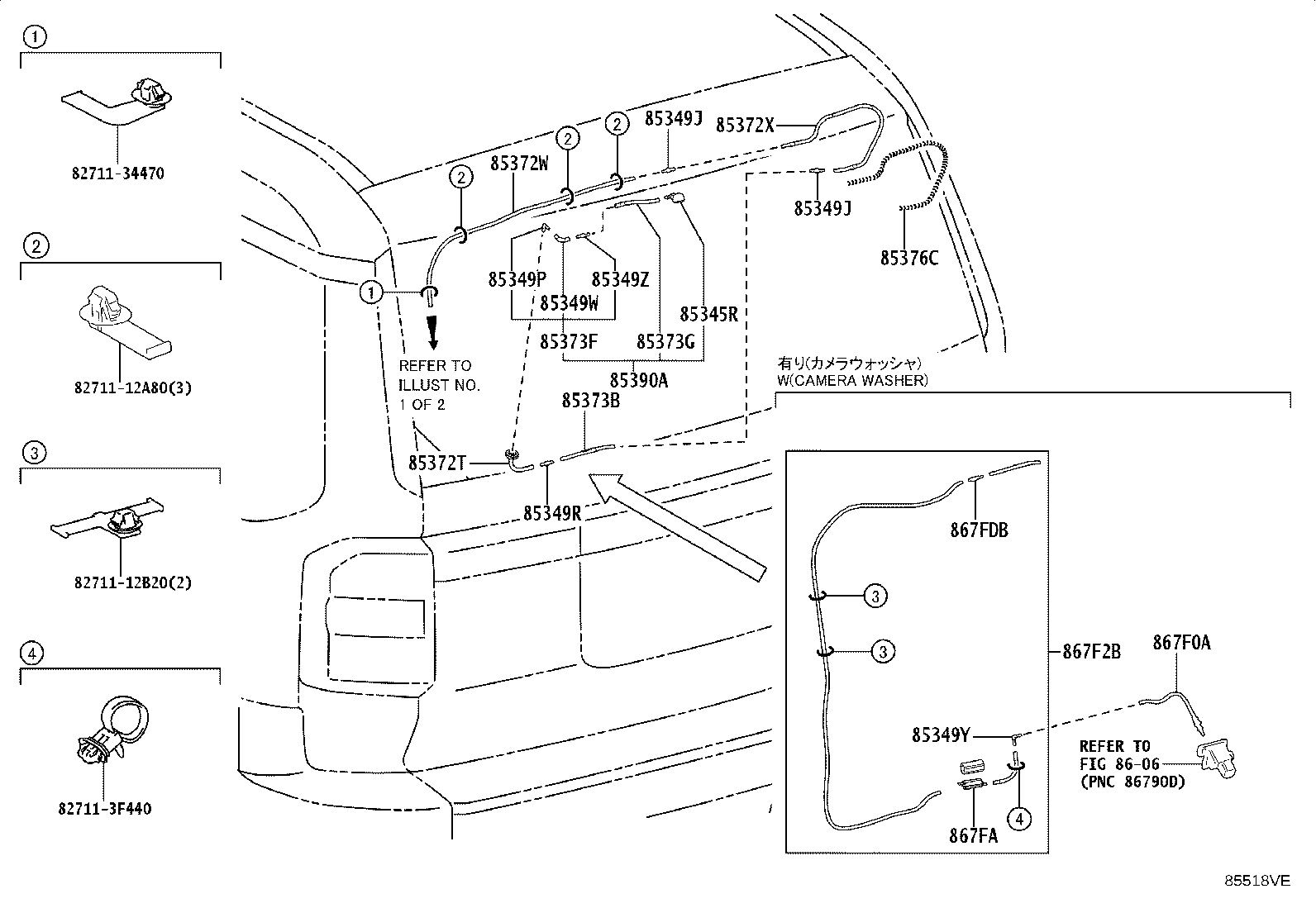

Rear Washer
37 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 85345R | Nozzle, Rear Washer |
| 85347R | Spring |
| 85348S | Joint, Rear Washer Elbow, NO.1 |
| 85349F | Joint, Rear Washer Hose, NO.1 |
| 85349G | Joint, Rear Washer Hose, NO.2 |
| 85349H | Joint, Rear Washer Hose, NO.3 |
| 85349J | Joint, Rear Washer Hose, NO.4 |
| 85349K | Joint, Rear Washer Elbow, NO.2 |
| 85349P | Joint, Rear Washer Elbow, NO.3 |
| 85349R | Joint, Rear Washer Hose, NO.5 |
| 85349W | Joint, Rear Washer Elbow, NO.4 |
| 85349Y | Joint, Rear Washer Elbow, NO.5 |
| 85349Z | Joint, Rear Washer Hose, NO.6 |
| 85360R | Bracket Assy, Rear Washer |
| 85371N | Clamp, Rear Washer Hose |
| 85371P | Clamp, Rear Washer Hose, NO.2 |
| 85371Q | Clamp, Rear Washer Hose, NO.3 |
| 85371R | Hose, Rear Washer (FROM MOTOR TO JOINT) |
| 85372D | Grommet, Rear Washer Hose |
| 85372N | Hose, Rear Washer (FROM JOINT TO JOINT), NO.1 |
| 85372P | Hose, Rear Washer (FROM JOINT TO JOINT), NO.2 |
| 85372Q | Hose, Rear Washer (FROM JOINT TO JOINT), NO.3 |
| 85372S | Hose, Rear Washer (FROM JOINT TO JOINT), NO.4 |
| 85372T | Grommet, Washer |
| 85372W | Hose, Rear Washer (FROM JOINT TO JOINT), NO.5 |
| 85372X | Hose, Rear Washer (FROM JOINT TO JOINT), NO.6 |
| 85373B | Hose, Rear Washer(FROM JOINT TO JOINT), NO.7 |
| 85373F | Hose, Rear Washer(FROM JOINT TO JOINT), NO.8 |
| 85373G | Hose, Rear Washer(FROM JOINT TO JOINT), NO.9 |
| 85373H | Hose, Rear Washer(FROM JOINT TO JOINT), NO.10 |
| 85376C | Spring, Washer Hose |
| 85389C | Protector, Washer |
| 85390A | Nozzle & Hose Assy, RR Washer |
| 867F0A | Nozzle Assy, Camera Cleaner, NO.1 |
| 867F2B | Hose, Camera Cleaner, NO.1 |
| 867FA | Filter, Cleaner Hose |
| 867FDB | Joint, Lidar Cleaner Hose, Rear NO.4 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
