Toyota Land Cruiser Prado

2024-01 → present · chassis GDJ25#,TJA250,TRJ250 · catalogue 781290 · Europe

Supported model Data version 2024-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

8 part groups · 2 illustrations

Illustrations

Figure 86A27KA

86A27KA 2024-01 → —

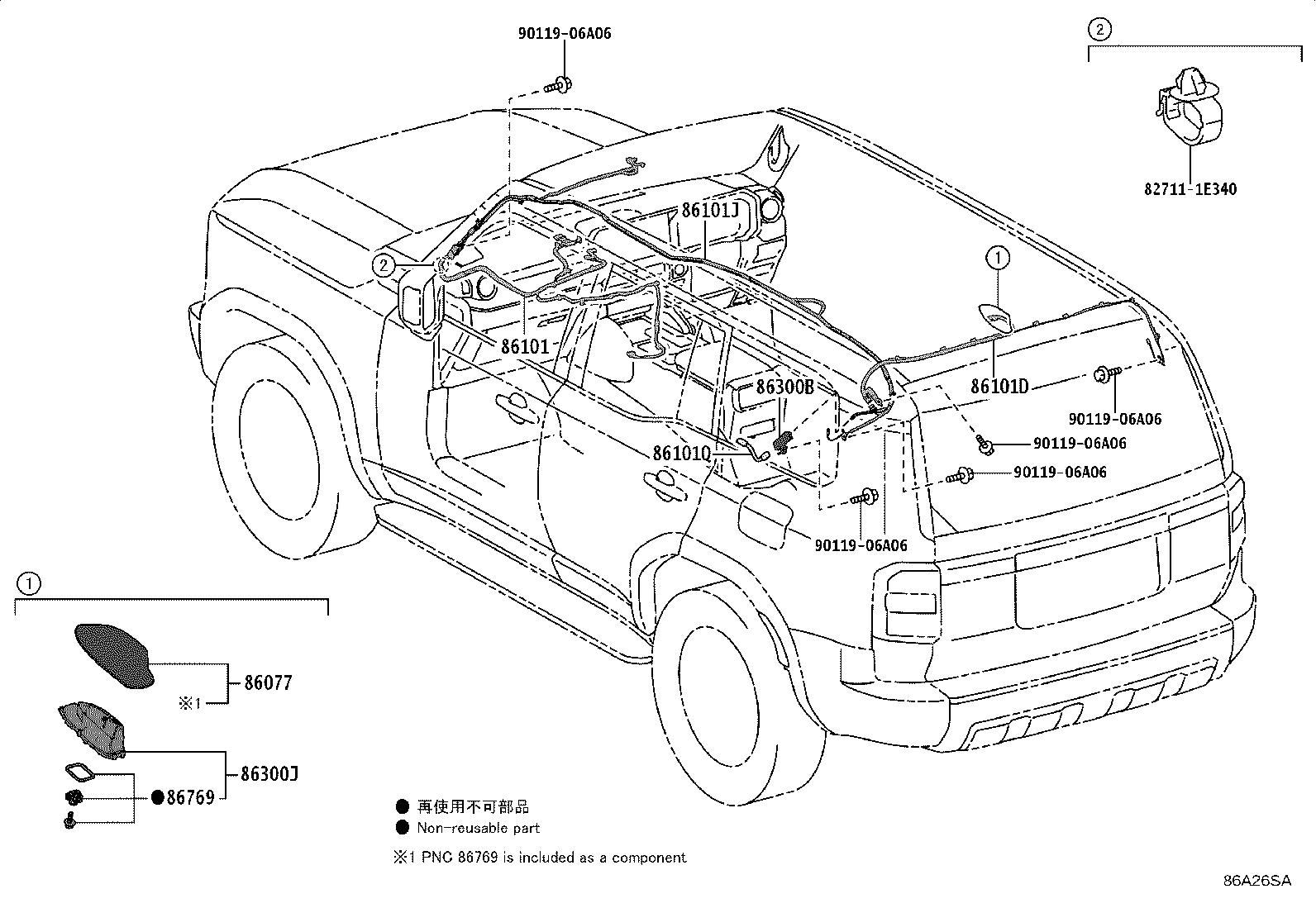

Figure 86A26SA

86A26SA 2024-01 → —

Part groups

PNC	Description
86077	Cover Kit, Antenna
86101	Cord Sub-assy, Antenna
86101D	Cord Sub-assy, Antenna, NO.3
86101J	Cord Sub-assy, Antenna, NO.2
86101Q	Cord Sub-assy, Antenna, NO.4
86300B	Antenna Assy, Amplifier, NO.1
86300J	Antenna Assy, Roof
86769	Housing, Roof Antenna

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
