Toyota Land Cruiser Prado

2024-01 → present · chassis GDJ25#,TJA250,TRJ250 · catalogue 781290 · Europe

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

77 part groups · 10 illustrations

Illustrations

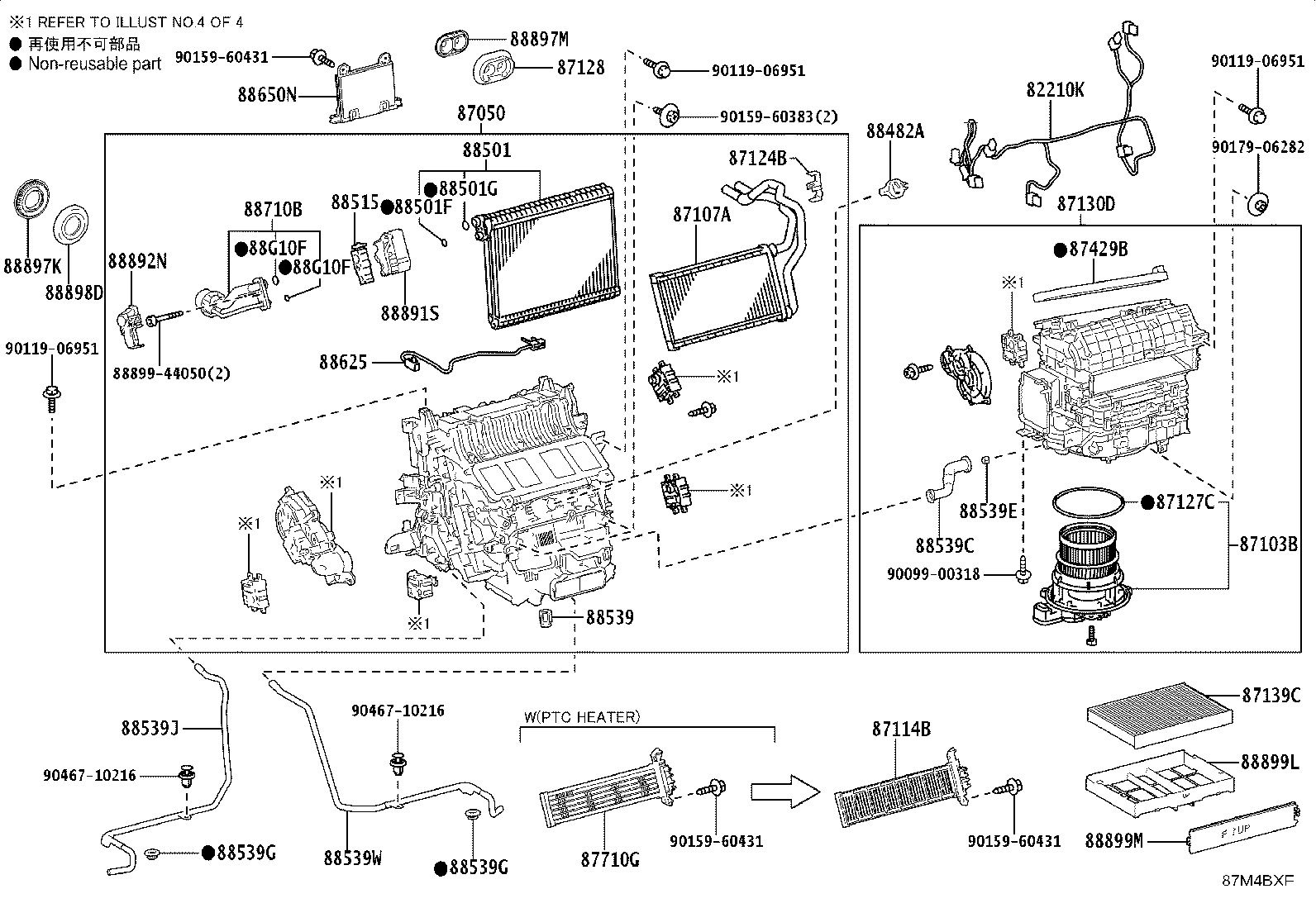

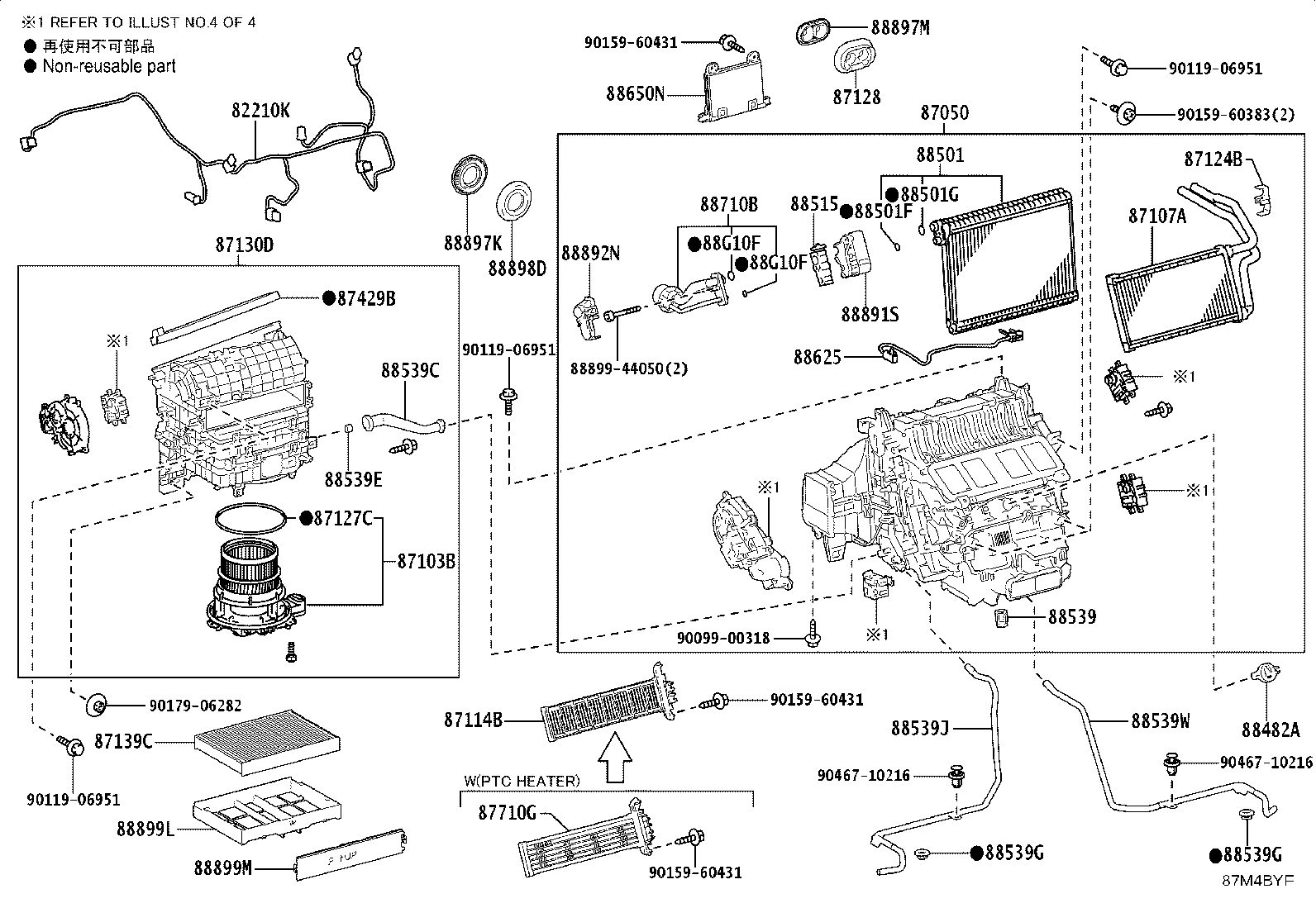

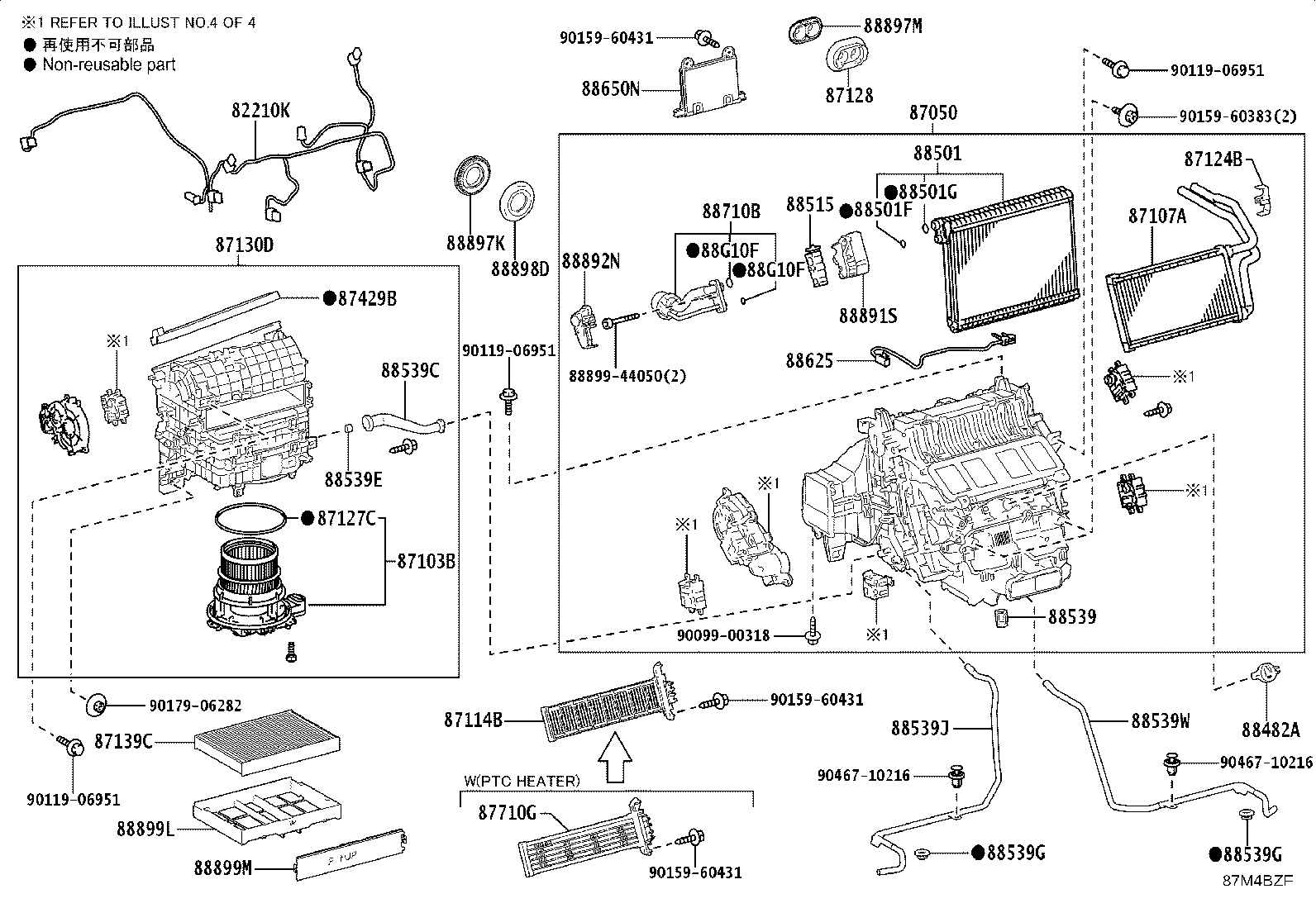

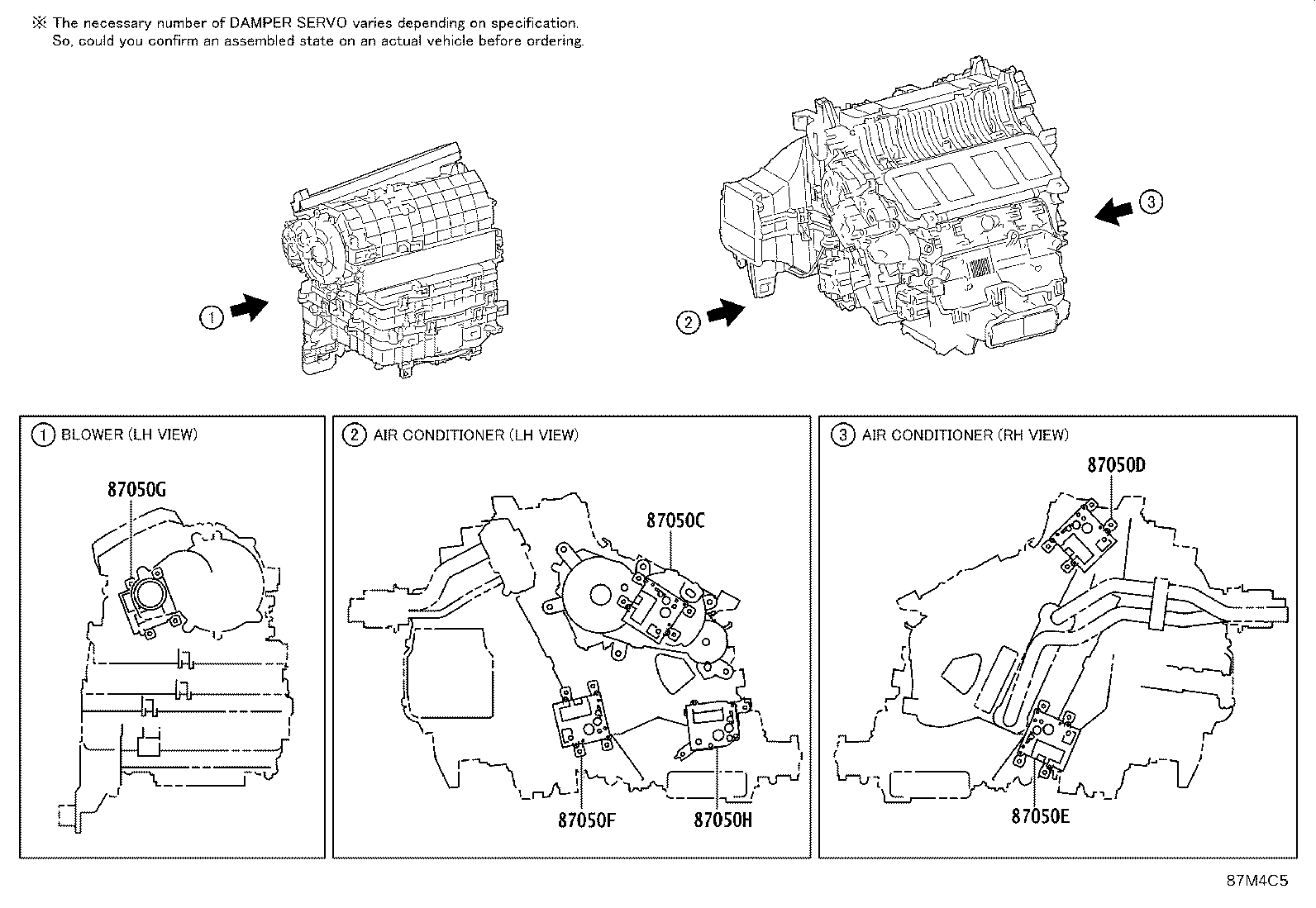

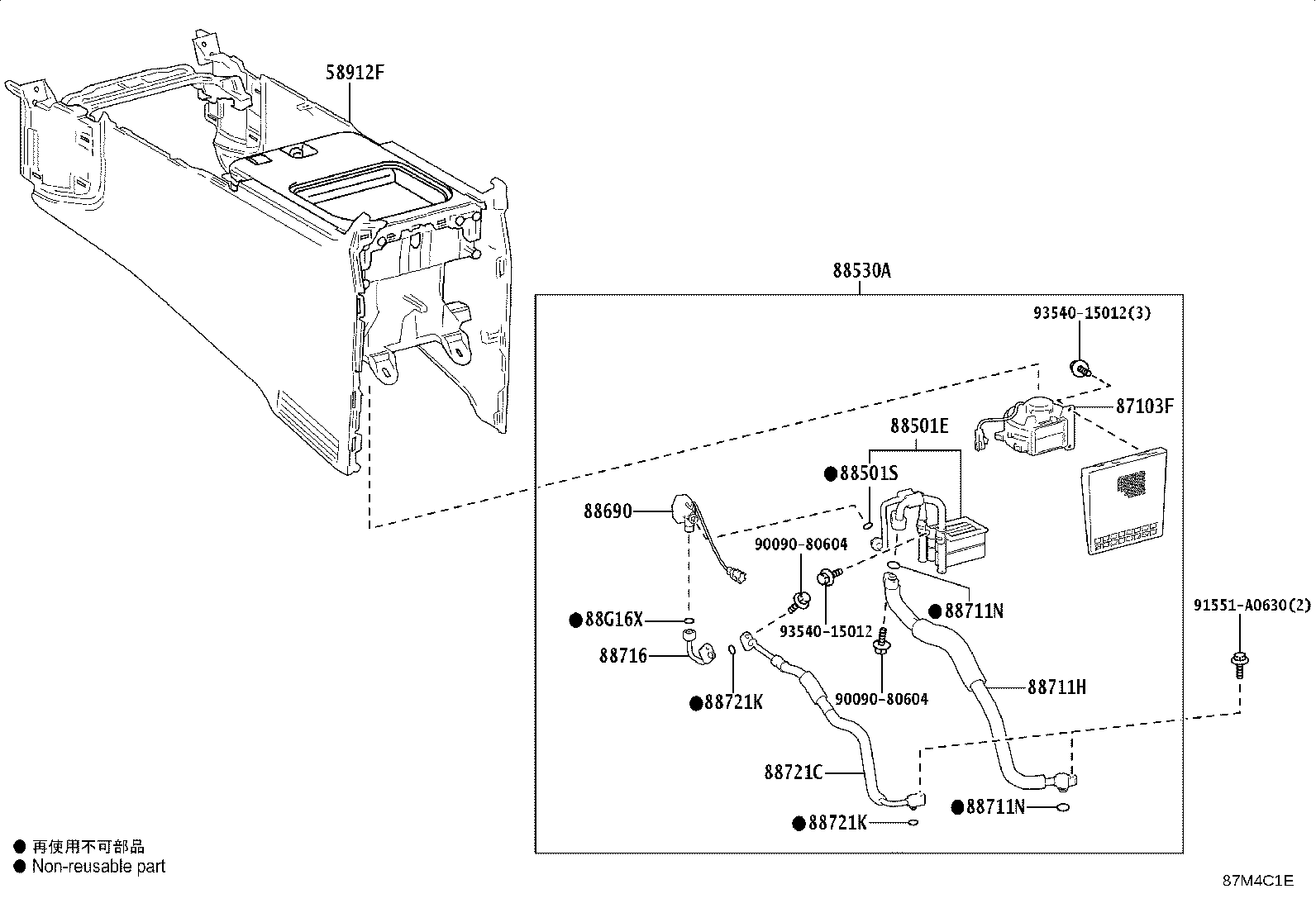

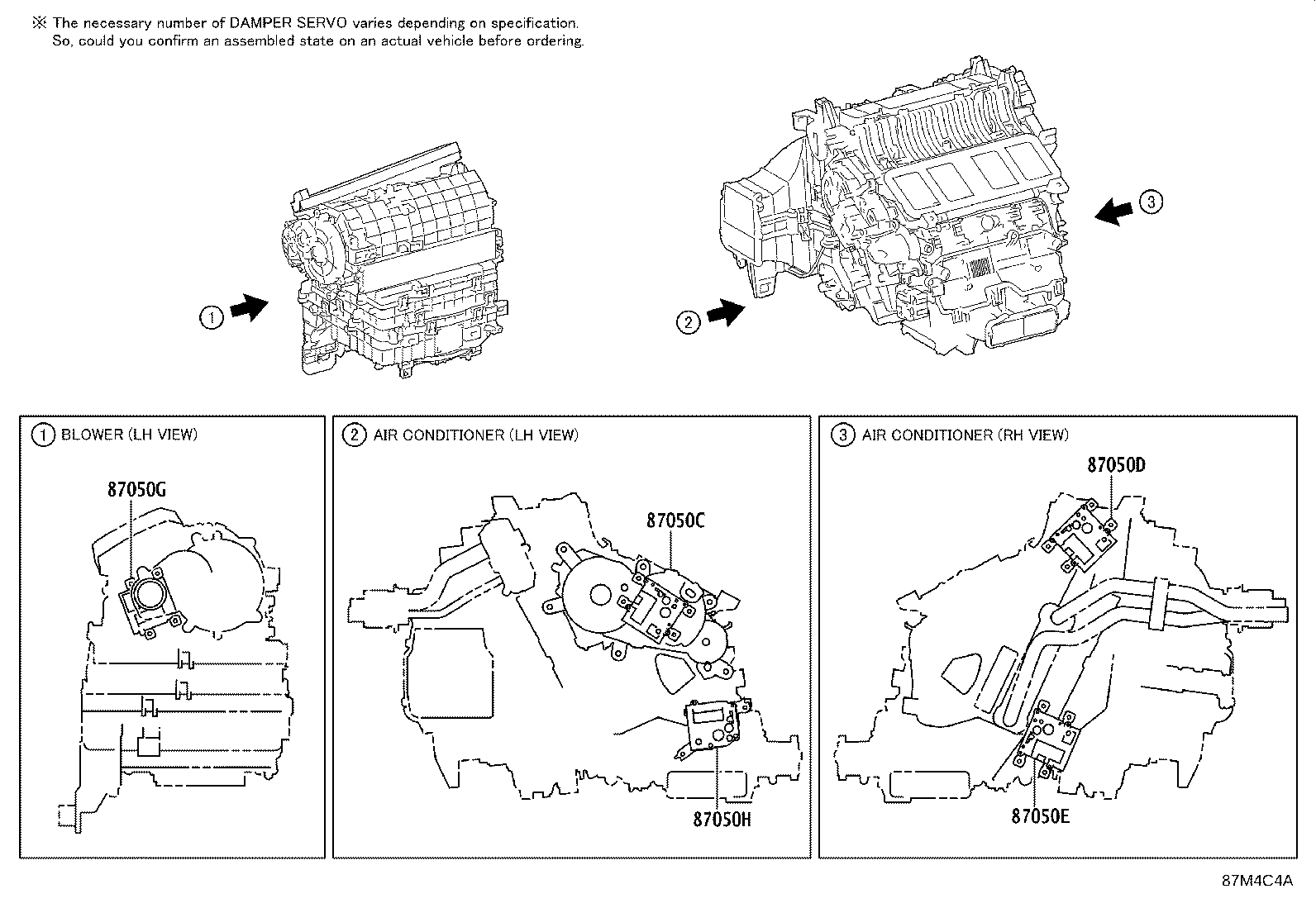

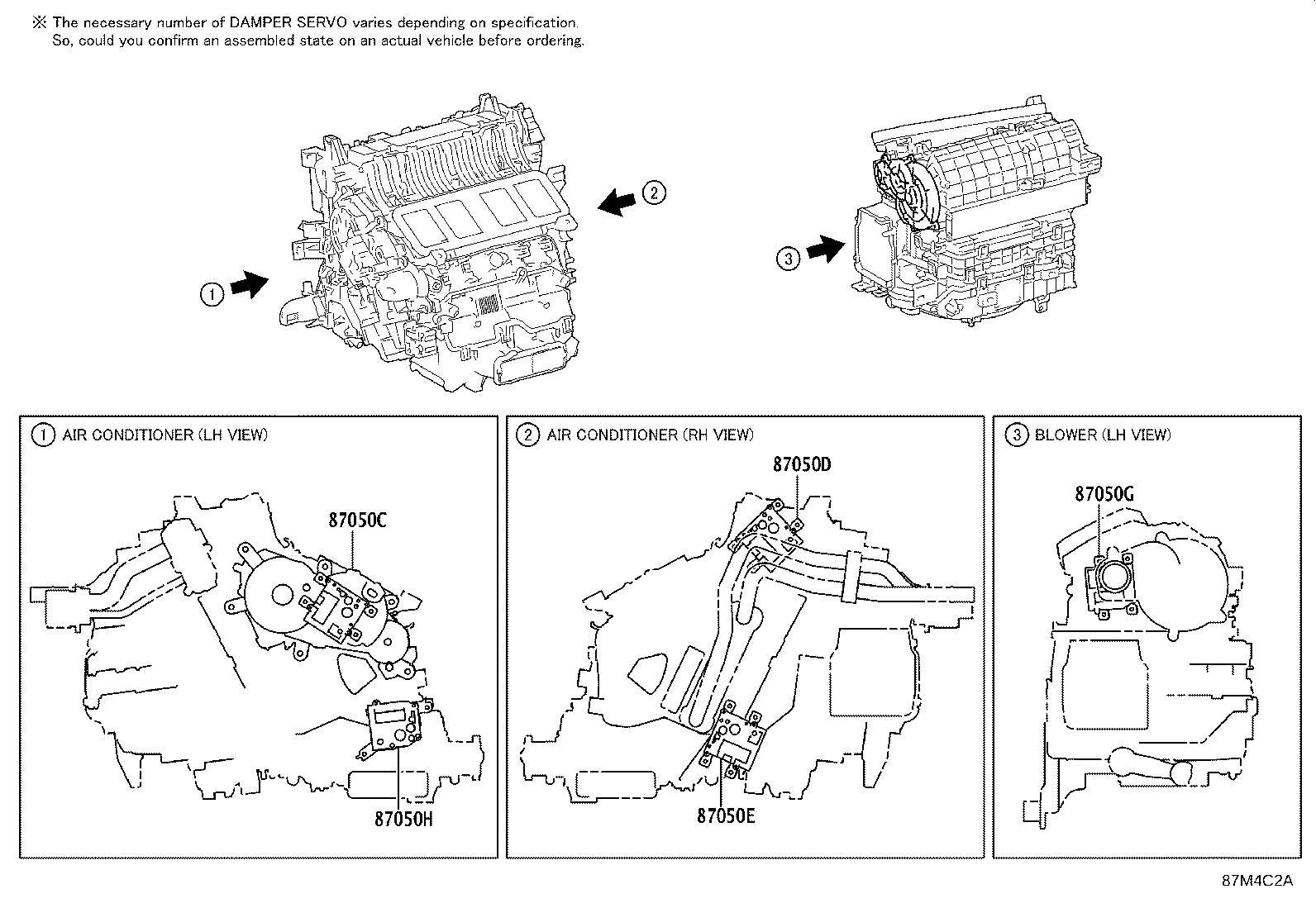

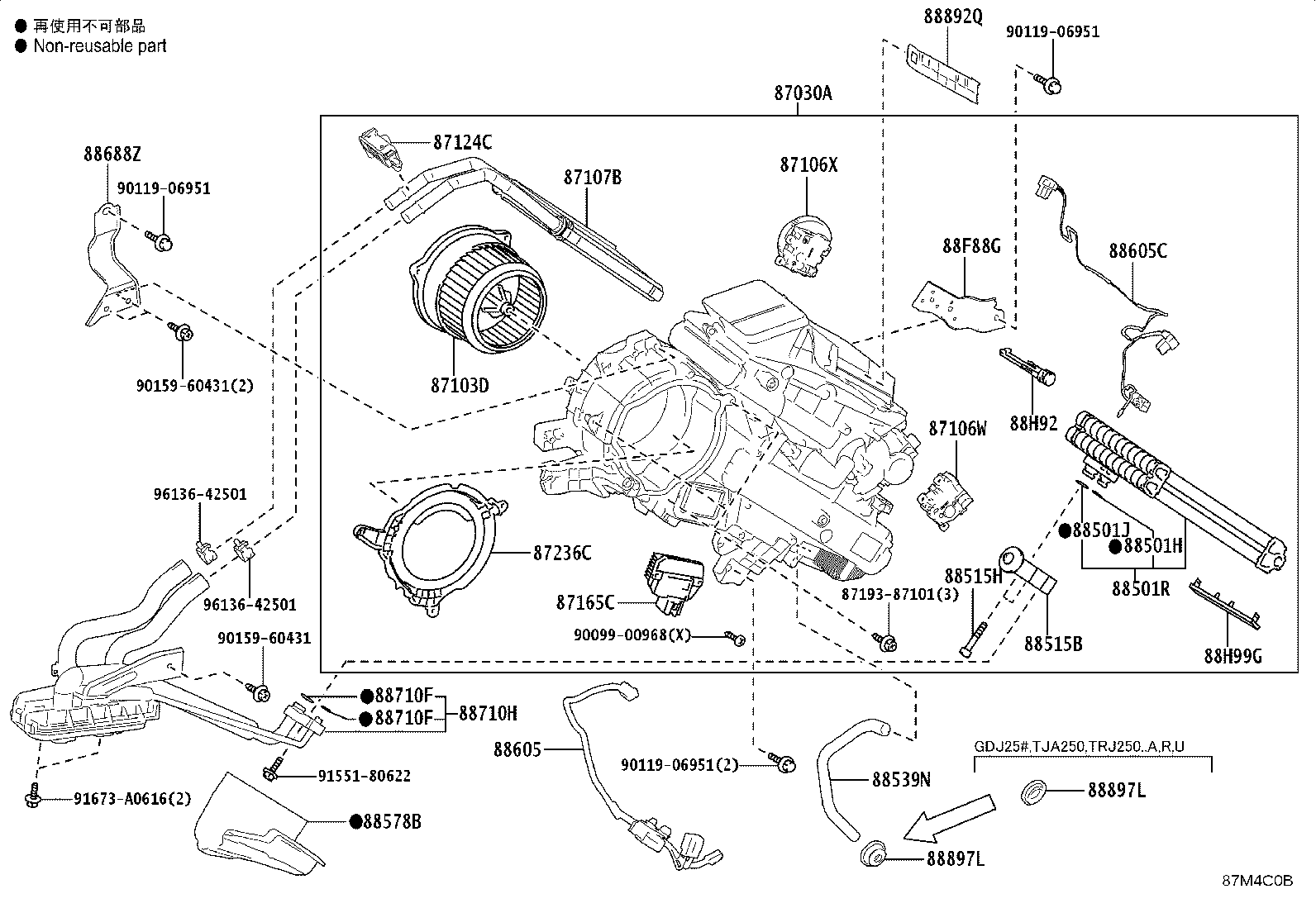

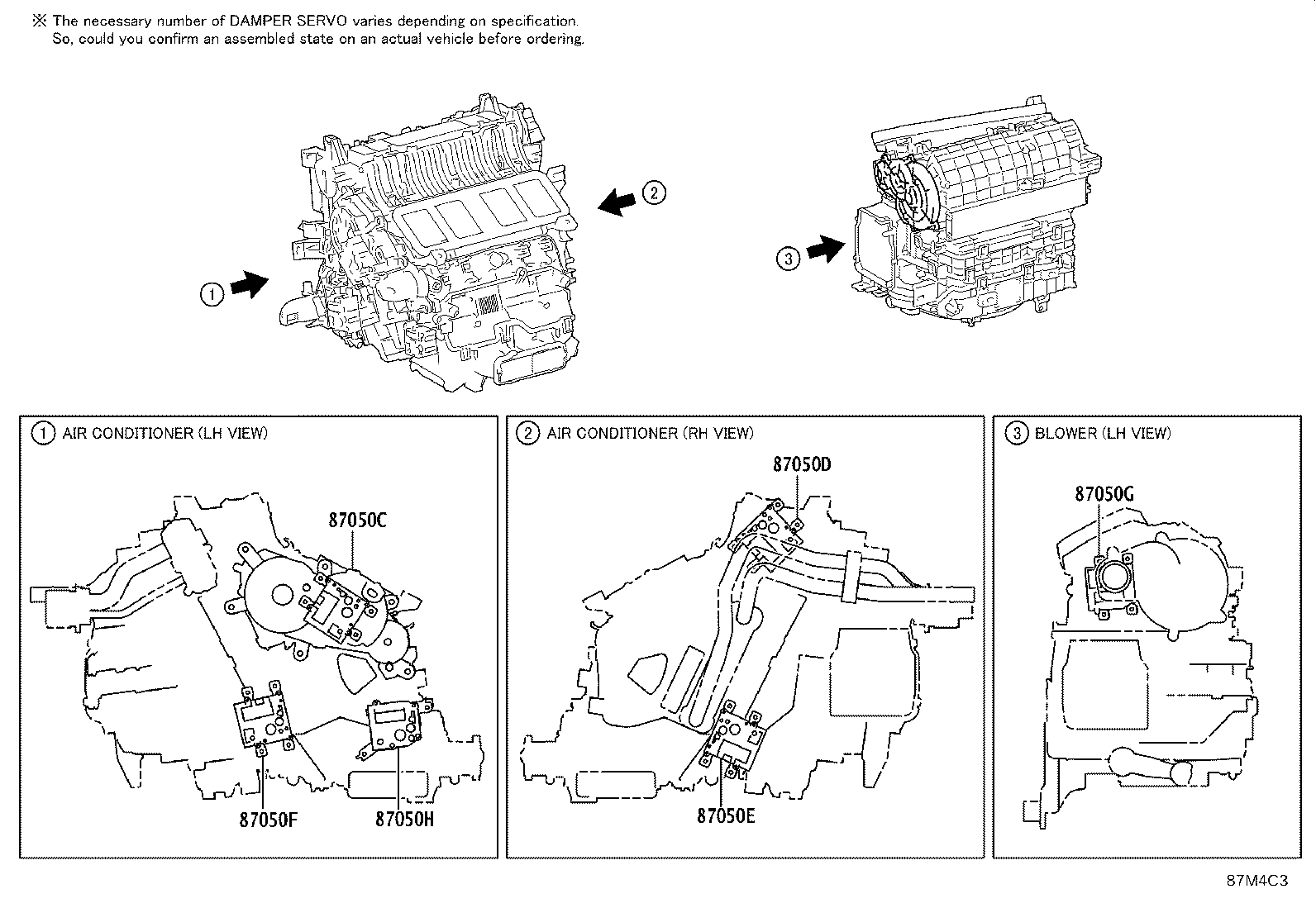

Figure 87M4BWF 87M4BWF 2024-01 → — Figure 87M4BXF 87M4BXF 2024-01 → — Figure 87M4BYF 87M4BYF 2024-01 → — Figure 87M4BZF 87M4BZF 2024-01 → — Figure 87M4C0B 87M4C0B 2024-01 → — Figure 87M4C1E 87M4C1E 2024-01 → — Figure 87M4C2A 87M4C2A 2024-01 → — Figure 87M4C3 87M4C3 2024-01 → — Figure 87M4C4A 87M4C4A 2024-01 → — Figure 87M4C5 87M4C5 2024-01 → —

Part groups

PNCDescription
58912F Panel, Box, NO.2(FOR COOL BOX)
82210K Harness Assy, Air Conditioner
87030A Unit Assy, Cooling, Rear
87050 Radiator Assy, Air Conditioner
87050C Damper Servo Sub-assy, Air Conditioner Radiator, NO.1
87050D Damper Servo Sub-assy, Air Conditioner Radiator, NO.2
87050E Damper Servo Sub-assy, Air Conditioner Radiator, NO.3
87050F Damper Servo Sub-assy, Air Conditioner Radiator, NO.4
87050G Damper Servo Sub-assy, Air Conditioner Radiator, NO.5
87050H Damper Servo Sub-assy, Air Conditioner Radiator, NO.6
87103B Motor Sub-assy, Blower W/Fan
87103D Motor Sub-assy, Blower W/Fan(FOR REAR)
87103F Motor Sub-assy, Blower W/Fan(FOR COOL BOX)
87106W Servo Sub-assy, Damper(FOR AIRMIX REAR)
87106X Servo Sub-assy, Damper(FOR MODE REAR)
87107A Unit Sub-assy, Heater Radiator
87107B Unit Sub-assy, Heater Radiator
87114B Cover, Heater
87124B Clamp, Heater
87124C Clamp, Heater
87127C Packing, Blower Motor Sub-assy, NO.1
87128 Grommet, Heater
87130D Blower Assy
87139C Filter, Clean Air
87165C Control, Blower Motor
87236C Cover, Heater Blower
87429B Packing, Cooler Unit, NO.1
87710G Quick Heater Assy
88482A Cover
88501 Evaporator Sub-assy, Cooler, NO.1
88501E Evapolator Sub-assy, Cooler (COOL BOX)
88501F O-ring, Cooler Evaporator NO.1(DISCHARGE)
88501G O-ring, Cooler Evaporator NO.1(SUCTION)
88501H O-ring, Cooler Evaporator NO.2(DISCHARGE)
88501J O-ring, Cooler Evaporator NO.2(SUCTION)
88501R Evaporator Sub-assy (REAR)
88501S Ring, O (REAR EVAPORATOR SUB-ASSY)
88515 Valve, Cooler Expansion
88515B Valve, Rear Cooling Unit Expansion
88515H Bolt(FOR REAR COOLER EXPANSION VALVE)
88530A Box Assy, Cooling, NO.2
88539 Hose, Cooler Unit Drain, NO.1
88539C Hose, Cooler Unit Drain, NO.2
88539E Hose, Cooler Unit Drain, NO.3
88539G Grommet (FOR COOLER UNIT DRAIN HOSE)
88539J Hose, Drain Cooler
88539N Hose, Cooler Unit Drain, NO.4
88539W Hose, Drain Cooler, NO.2
88578B Packing, Cooling Unit, NO.1
88605 Harness Sub-assy, Cooler Wiring, NO.1
88605C Harness Sub-assy, Cooler Wiring, NO.2
88625 Thermistor, Cooler, NO.1
88650N Amplifier Assy, Air Conditioner
88688Z Bracket
88690 Valve Assy, Cooler Magnet
88710B Tube Assy, Air Conditioner
88710F Ring, O
88710H Tube & Accessory Assy, Air Conditioner
88711H Hose, Discharge
88711N Ring, O, NO.1 (FOR DISCHARGE HOSE)
88716 Tube, Liquid
88721C Hose, Liquid
88721K Ring, O, NO.1 (FOR LIQUID HOSE)
88891S Cover, Cooler, NO.1
88892N Cover, Cooler, NO.2
88892Q Plate, Cooler
88897K Grommet, (FOR COOLER PIPE)
88897L Grommet (FOR DRAIN HOSE)
88897M Grommet (FOR HEATER PIPE)
88898D Grommet
88899L Parts, Cooling Unit
88899M Plate, Cover(FOR AIR FILTER)
88F88G Bracket, RR Air Conditioner Unit, NO.1
88G10F Ring, O, NO.3 (FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88G16X Ring, O, NO.1 (FOR LIQUID TUBE)
88H92 Cover, Cooler, NO.2
88H99G Parts, Cooling Unit, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
