Toyota Land Cruiser Prado

2024-01 → present · chassis GDJ25#,TJA250,TRJ250 · catalogue 781290 · Europe

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

60 part groups · 18 illustrations

Illustrations

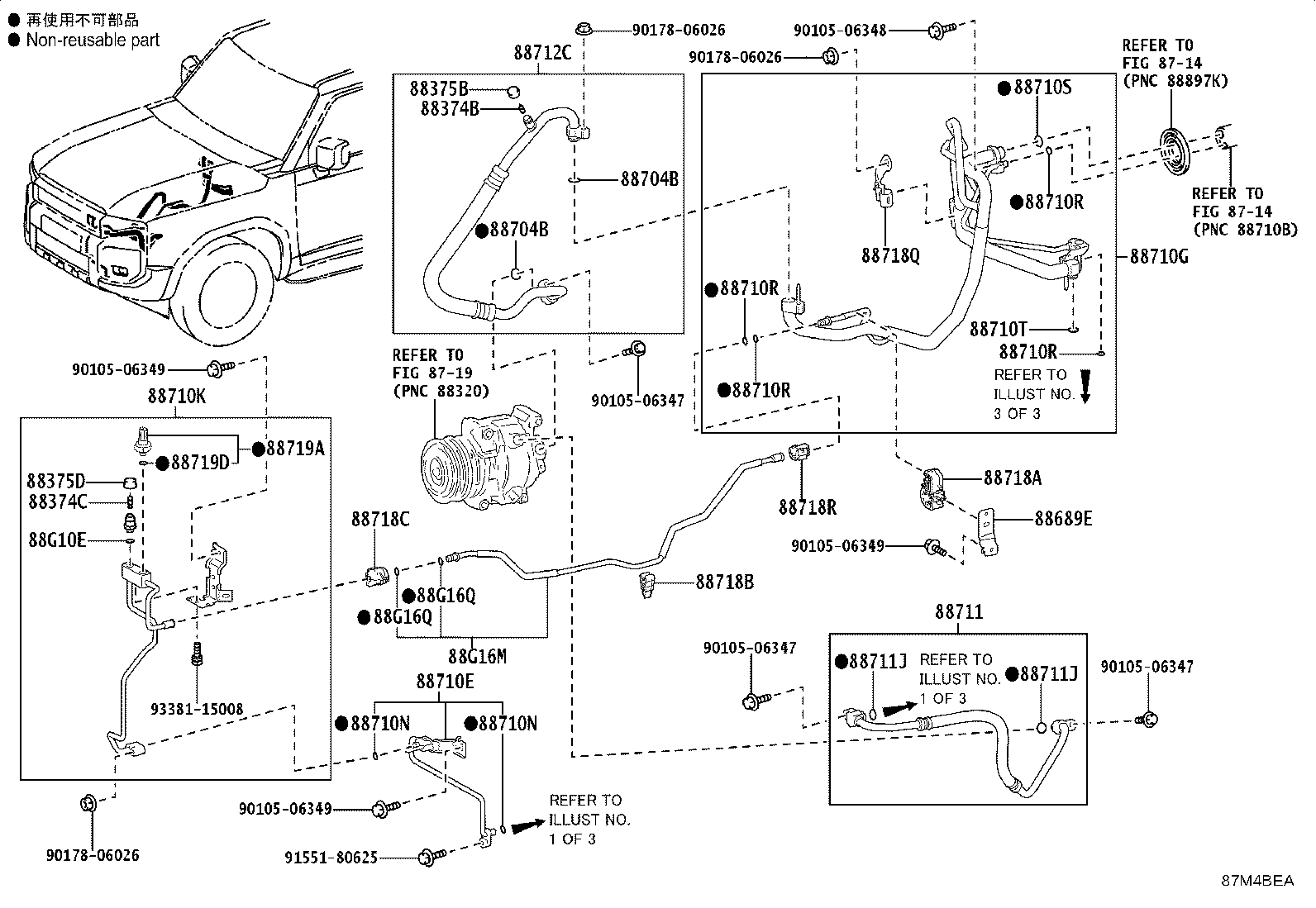

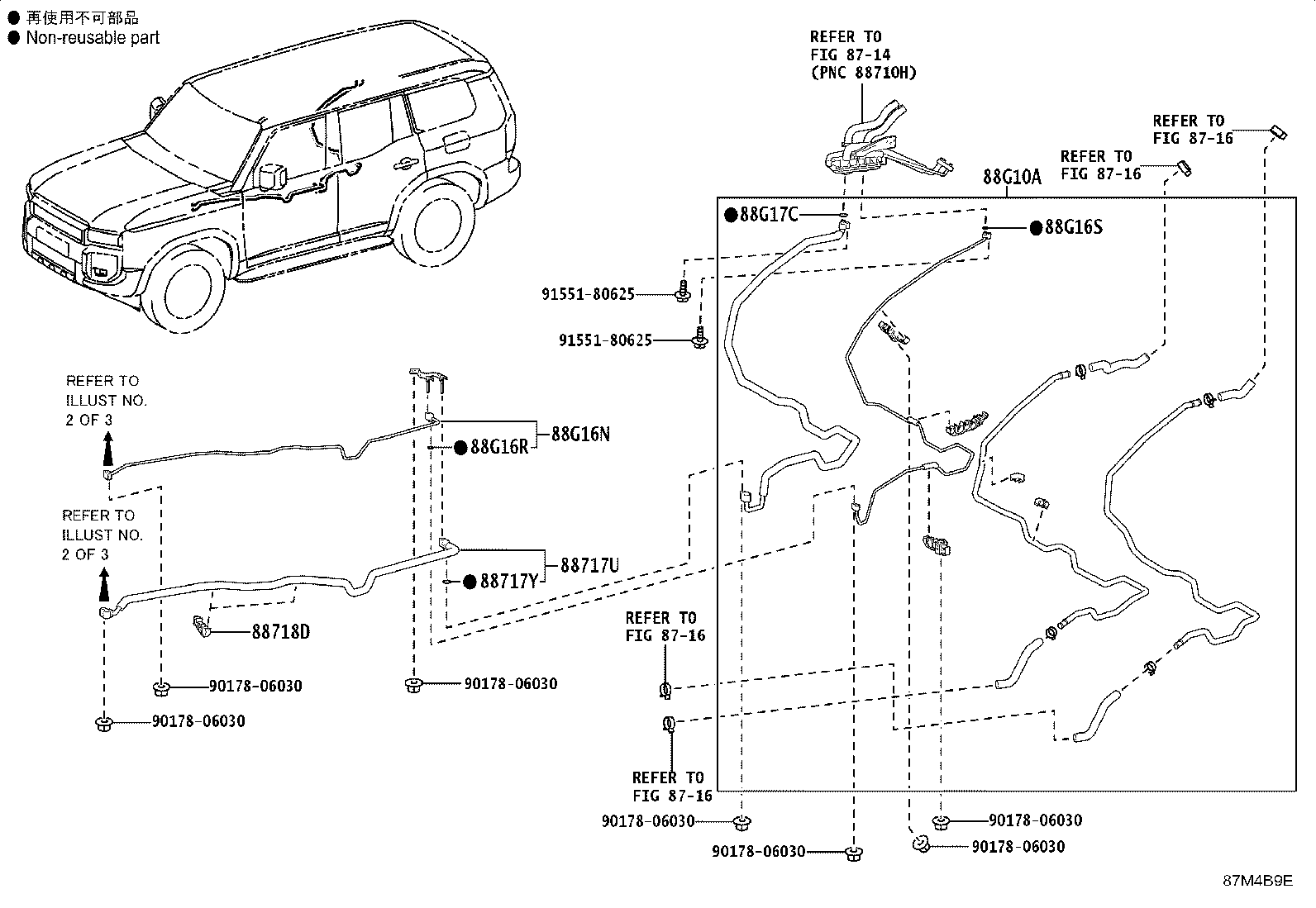

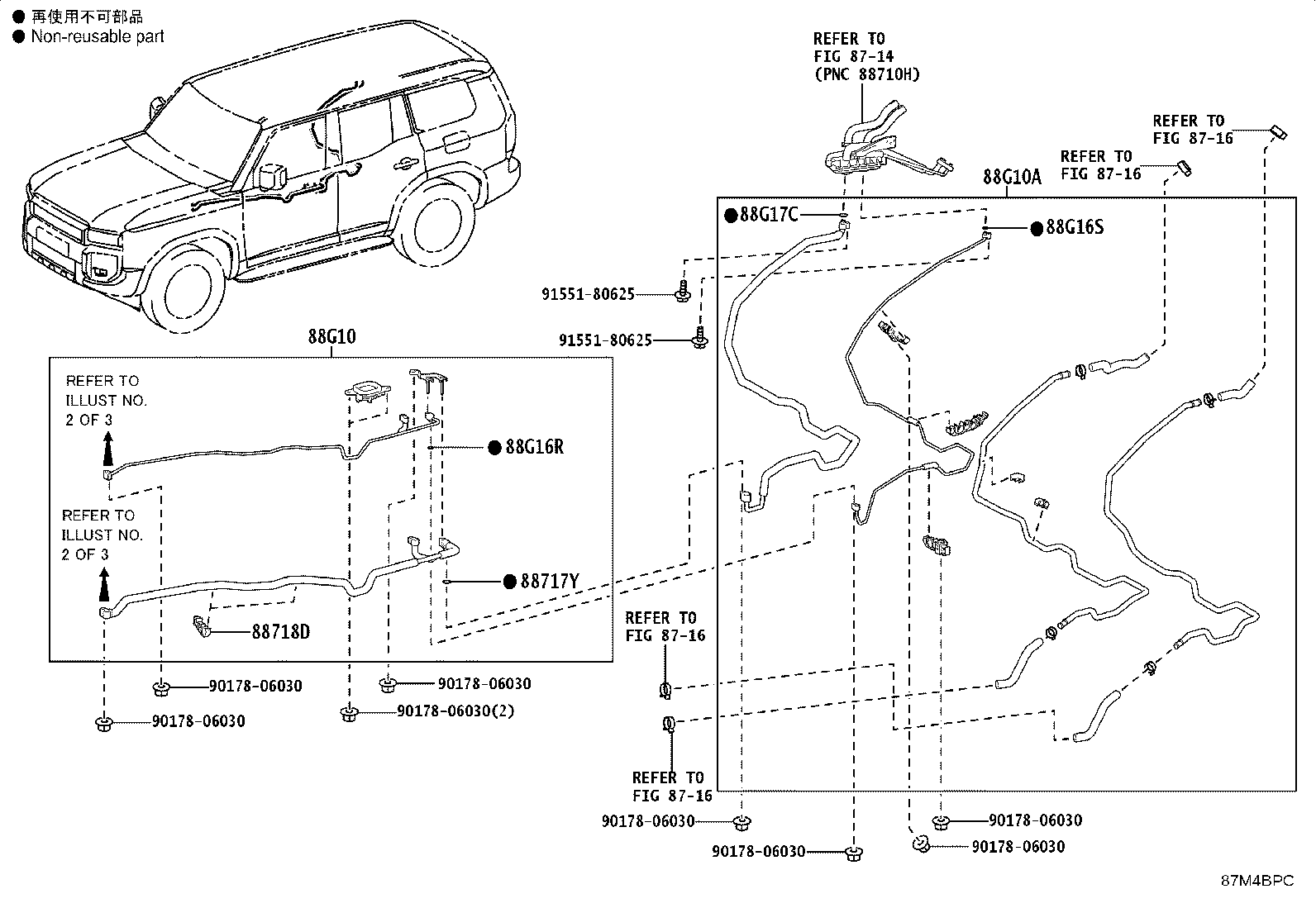

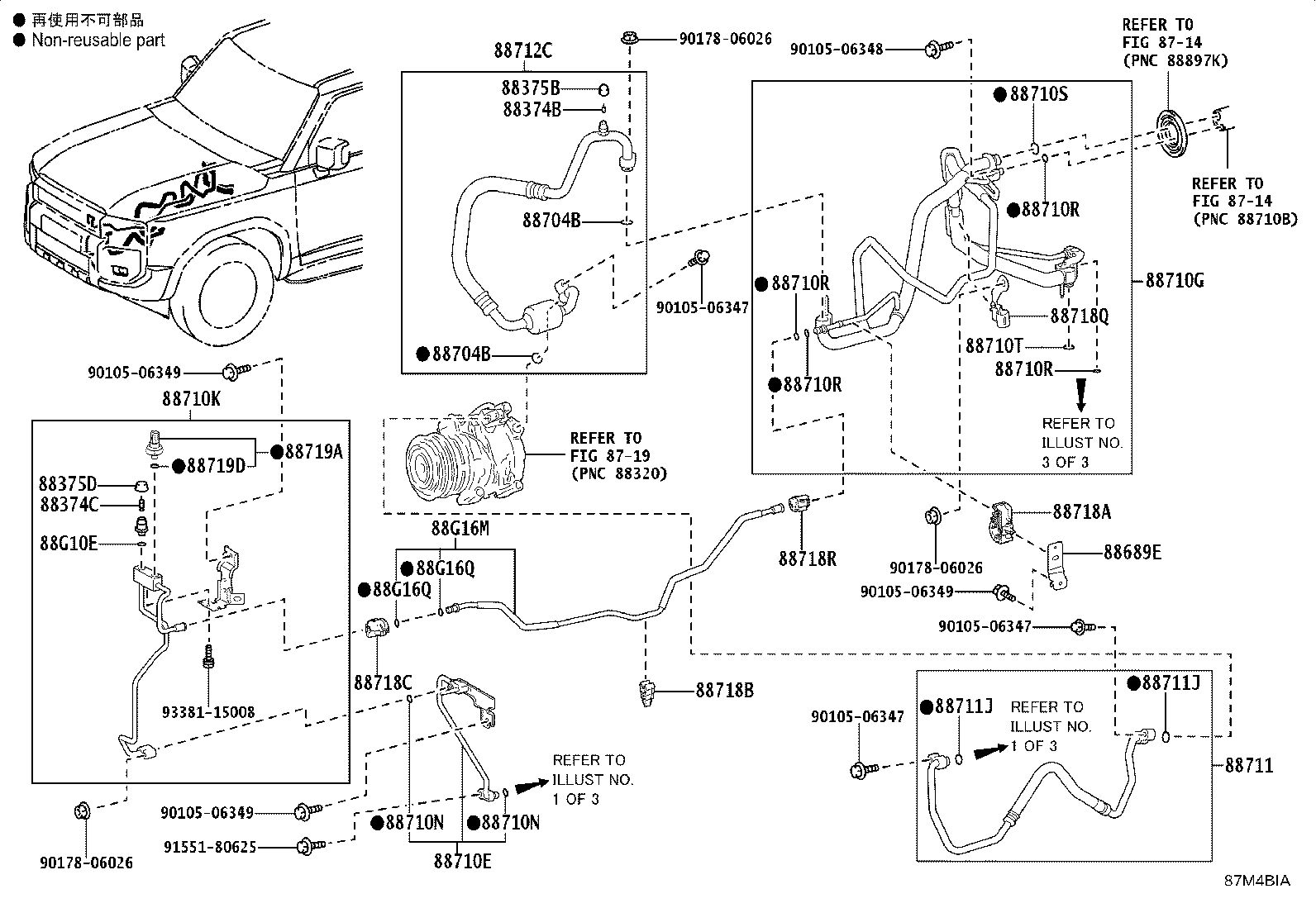

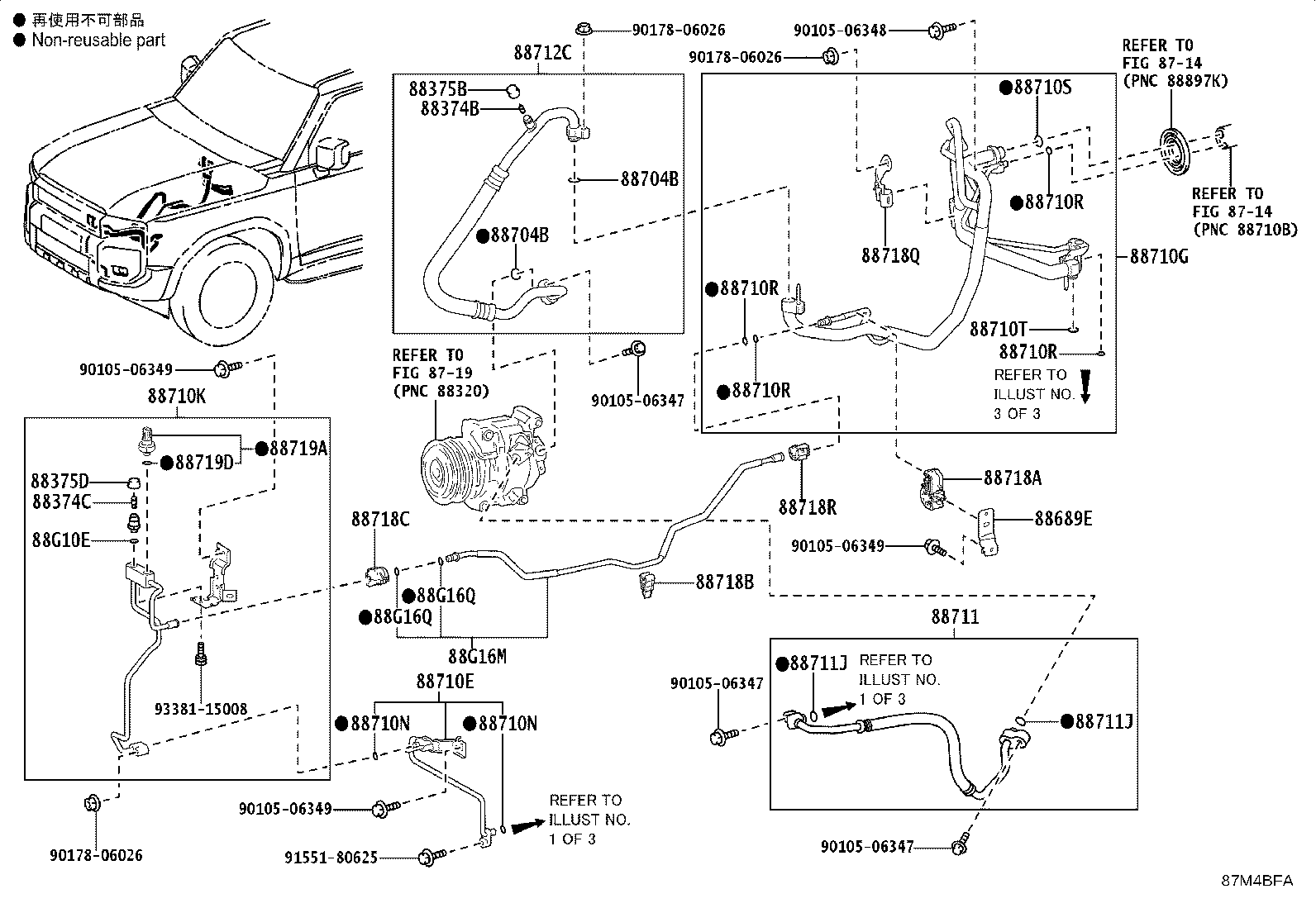

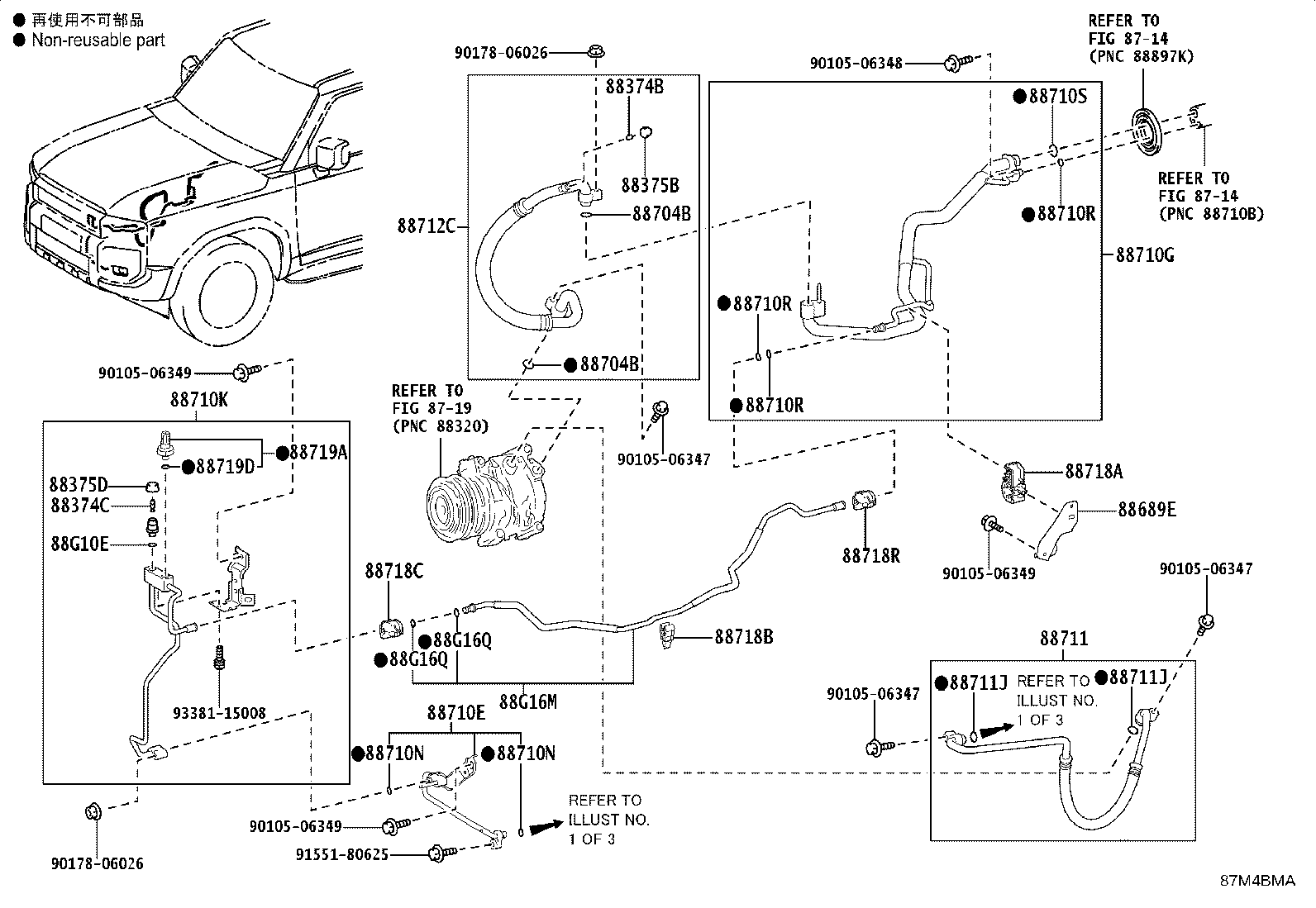

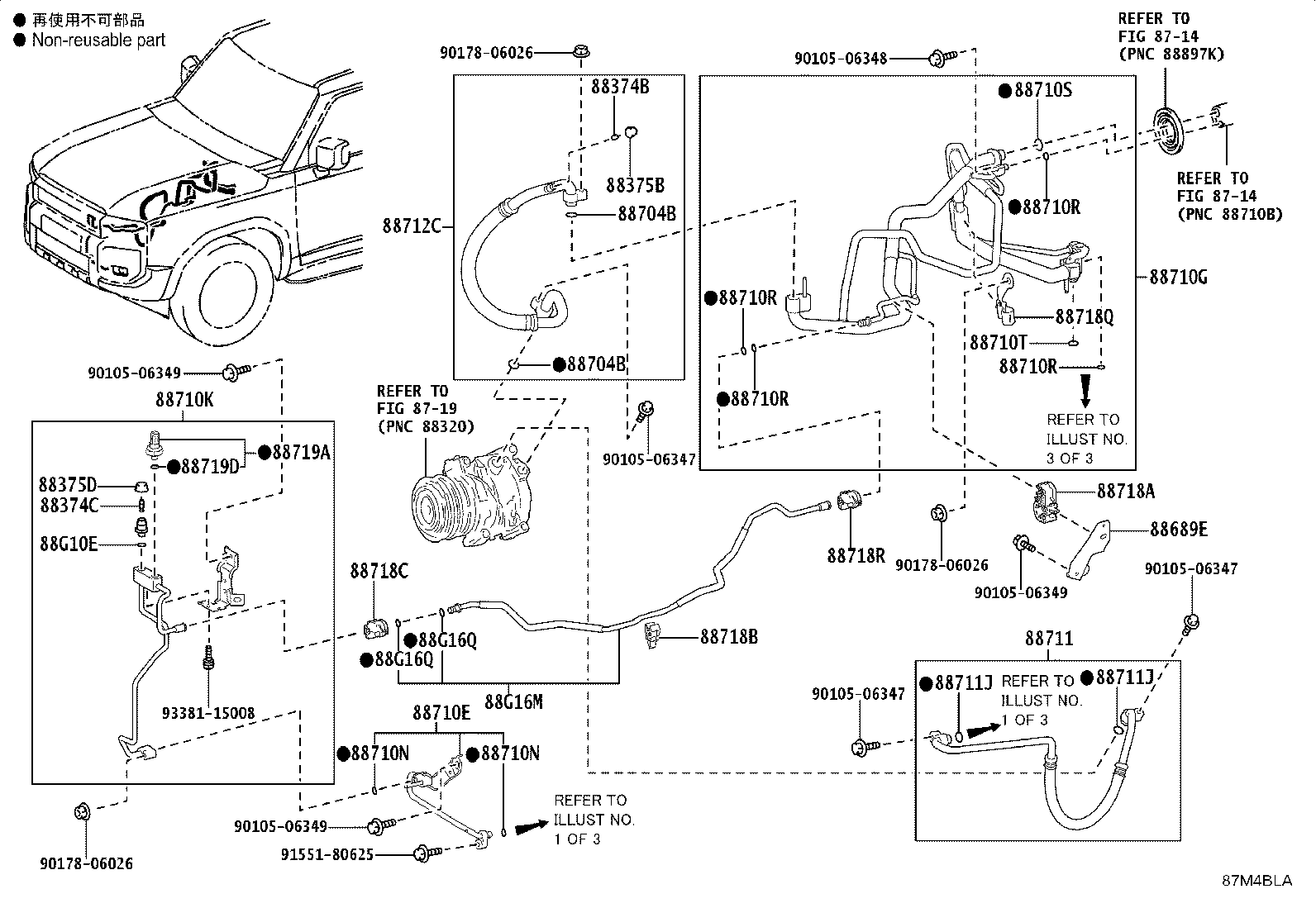

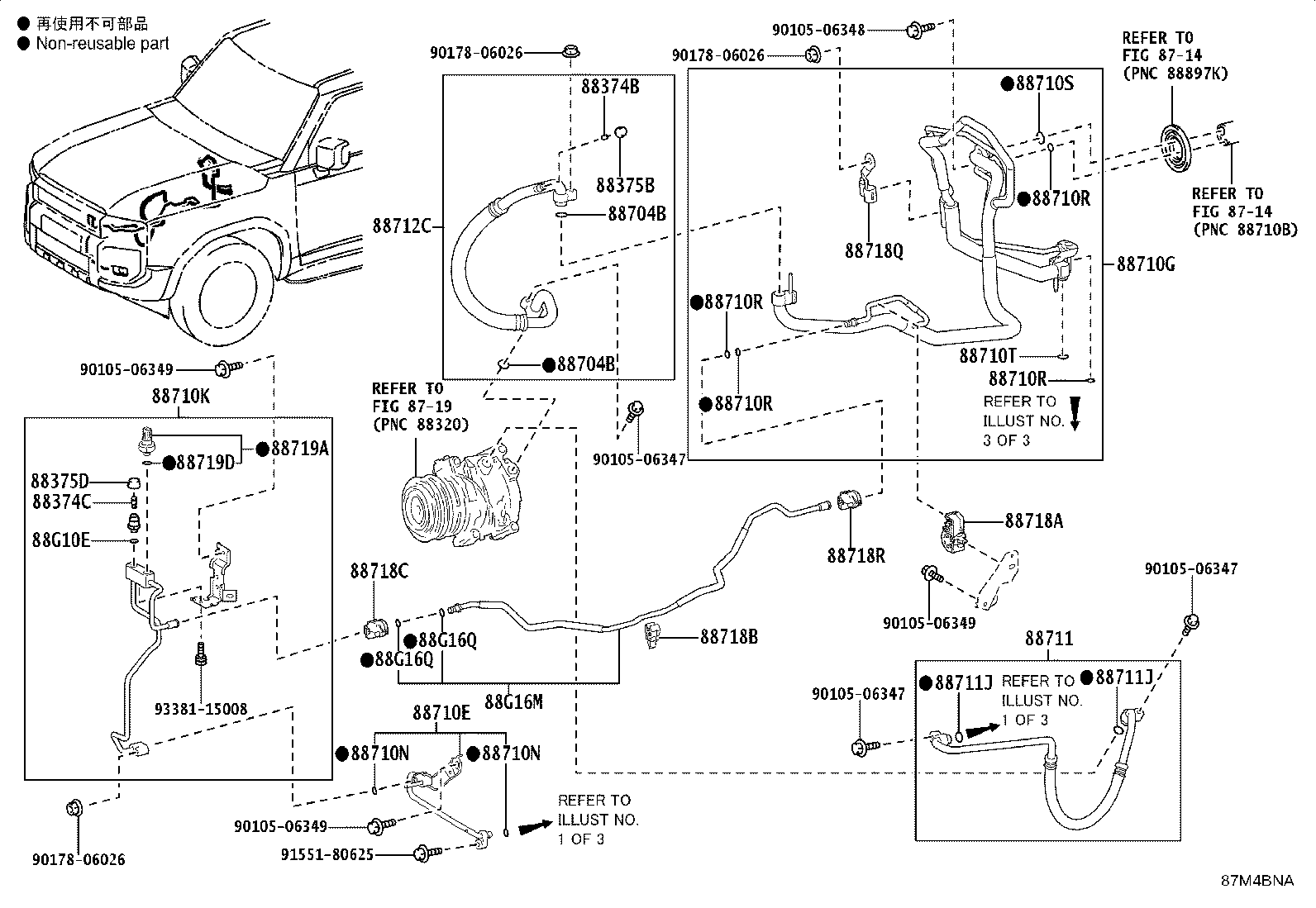

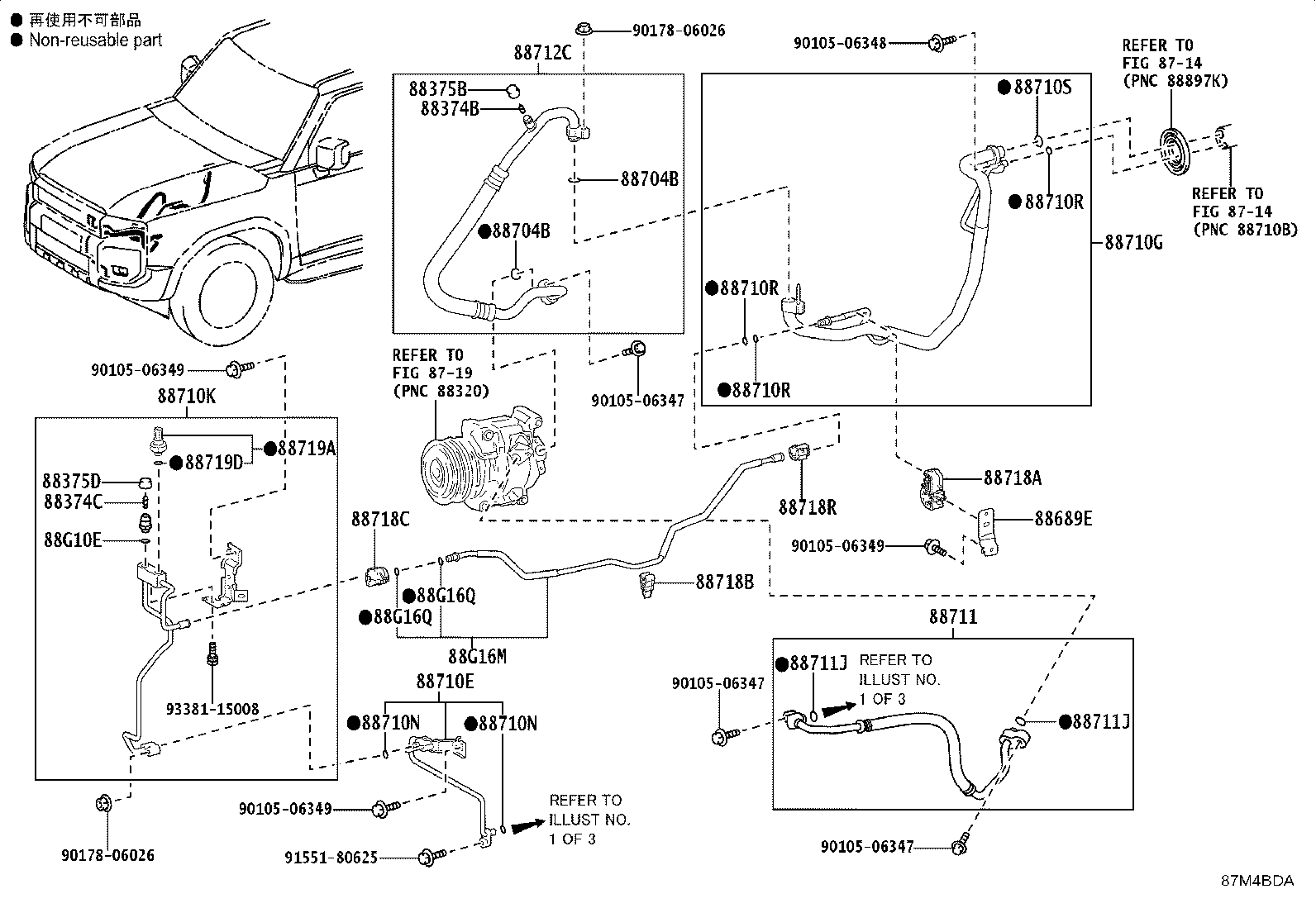

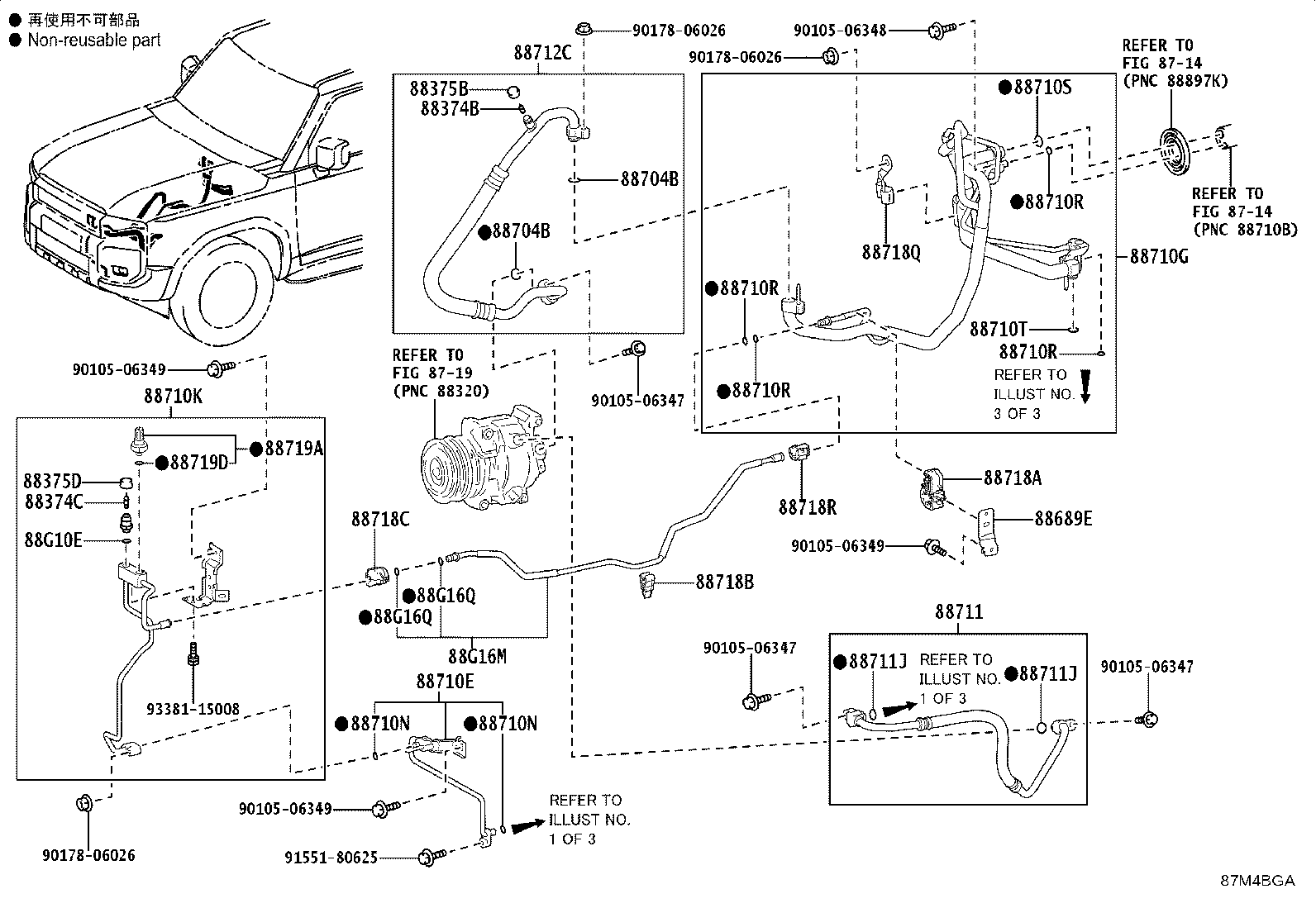

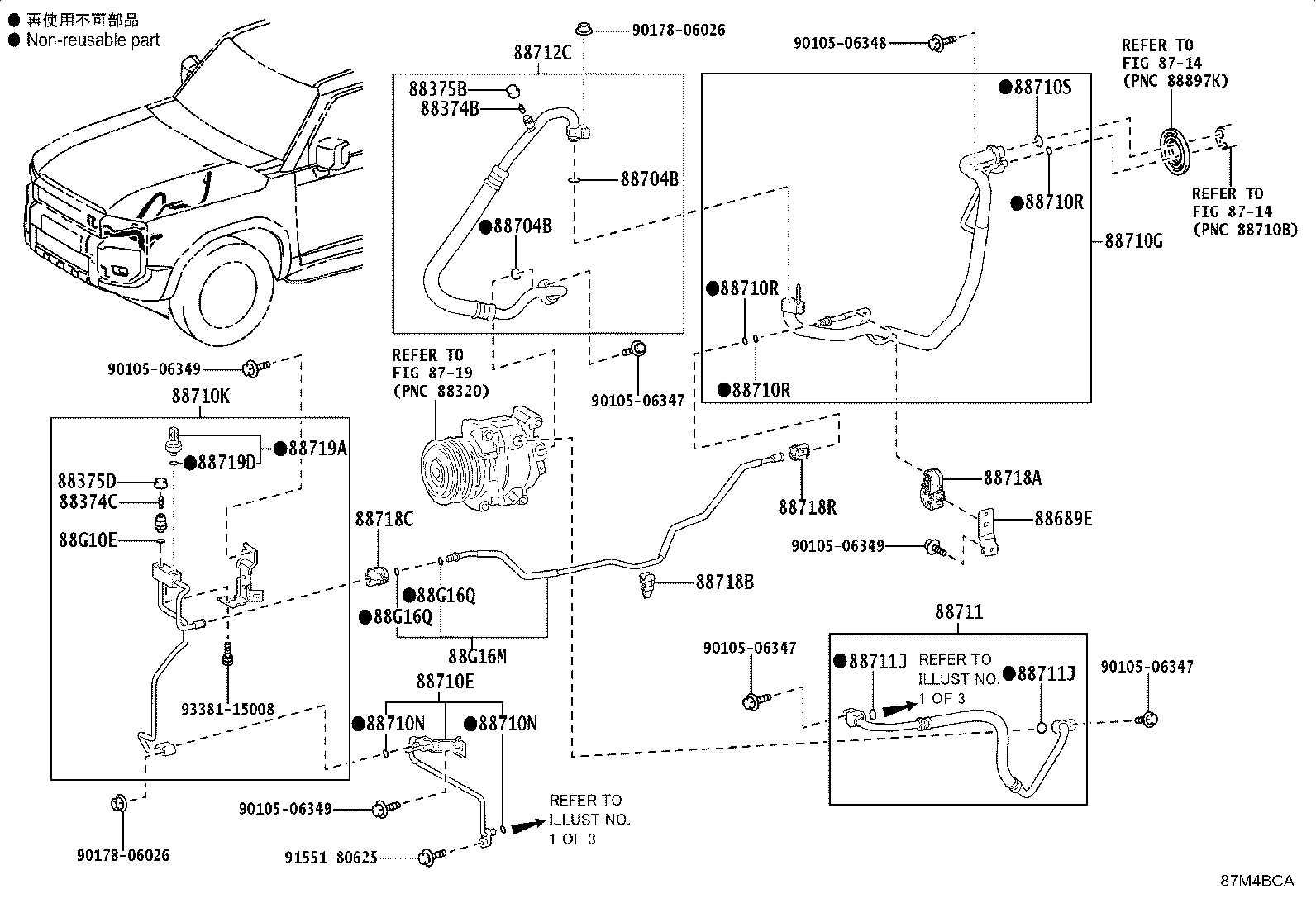

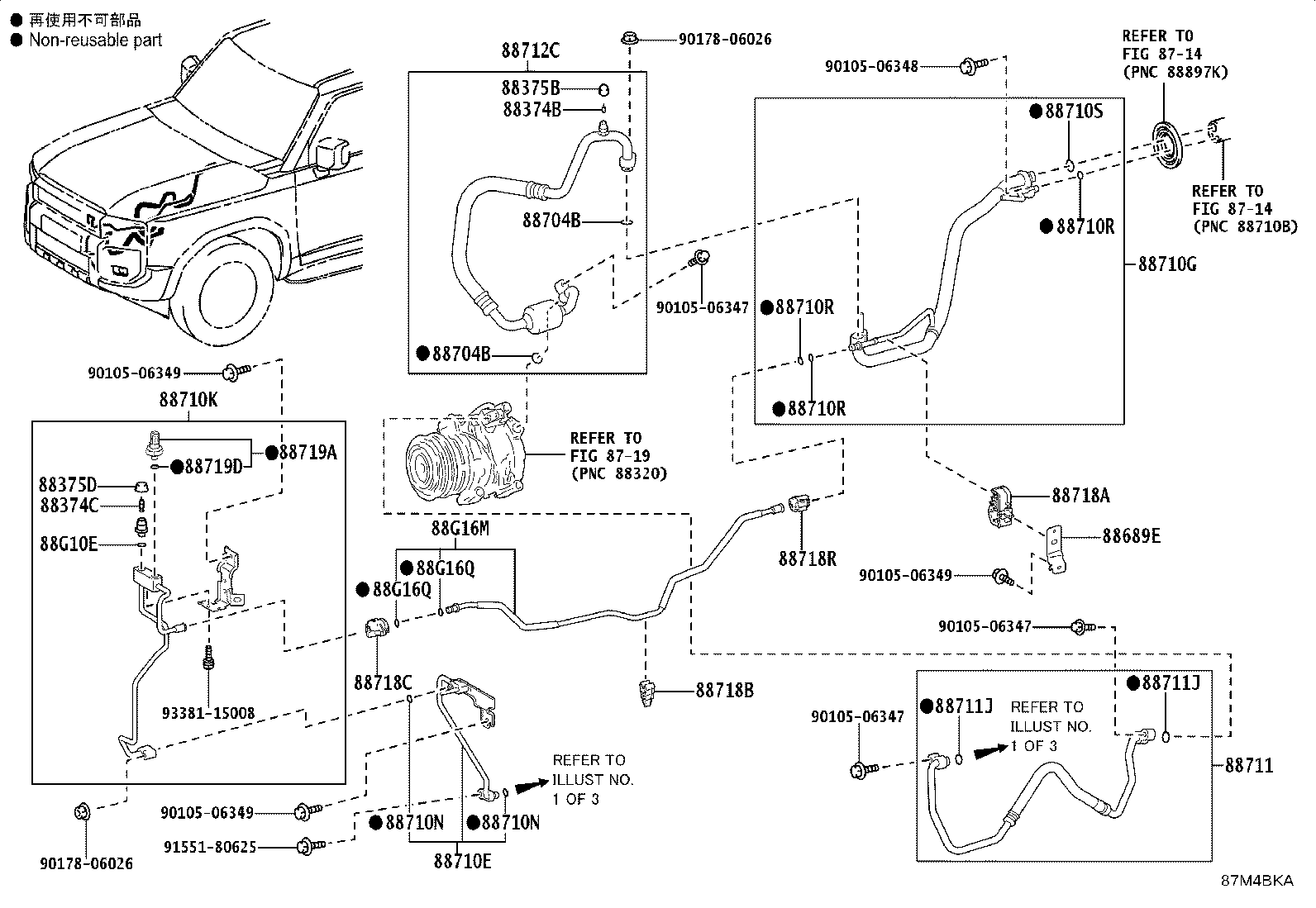

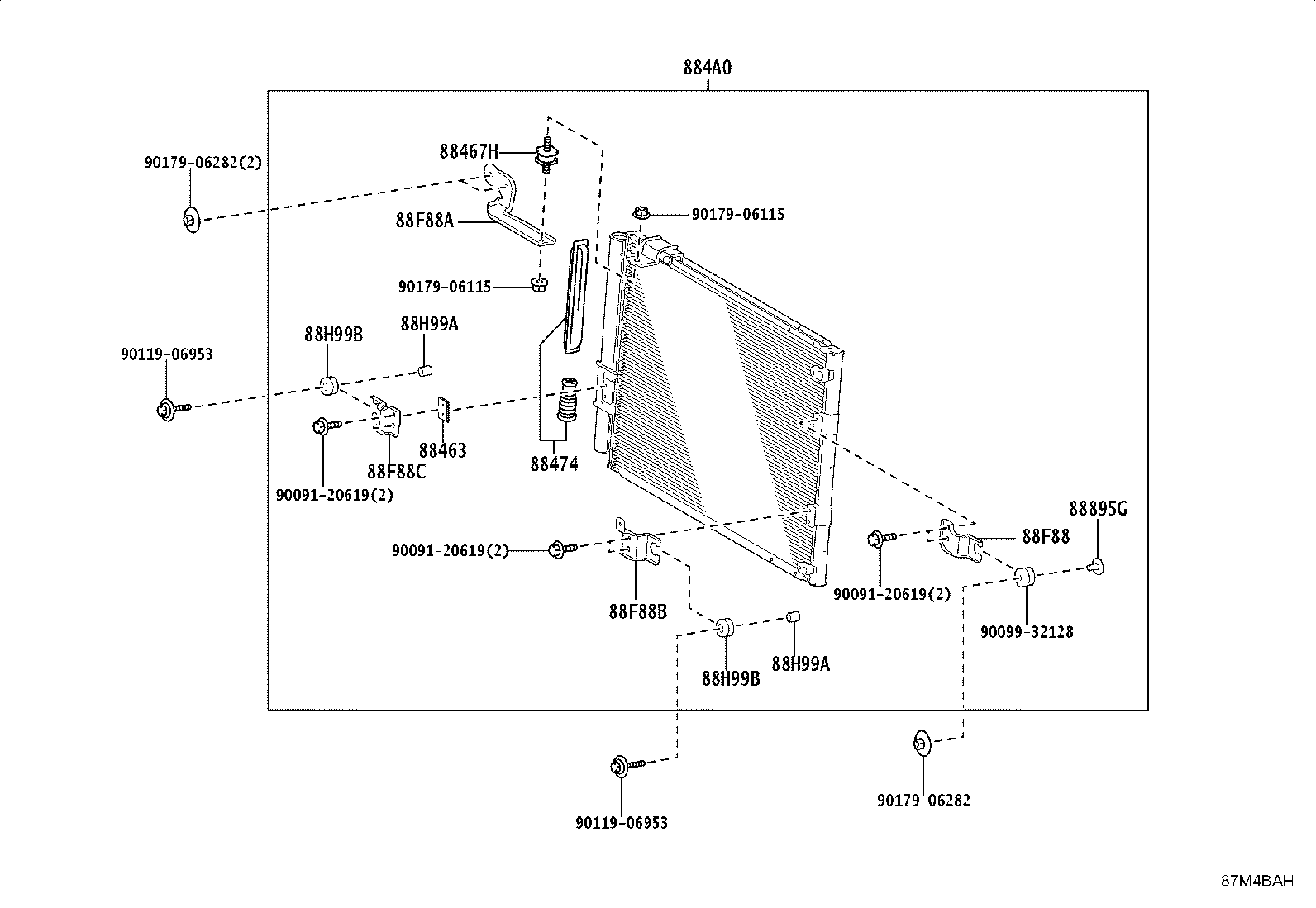

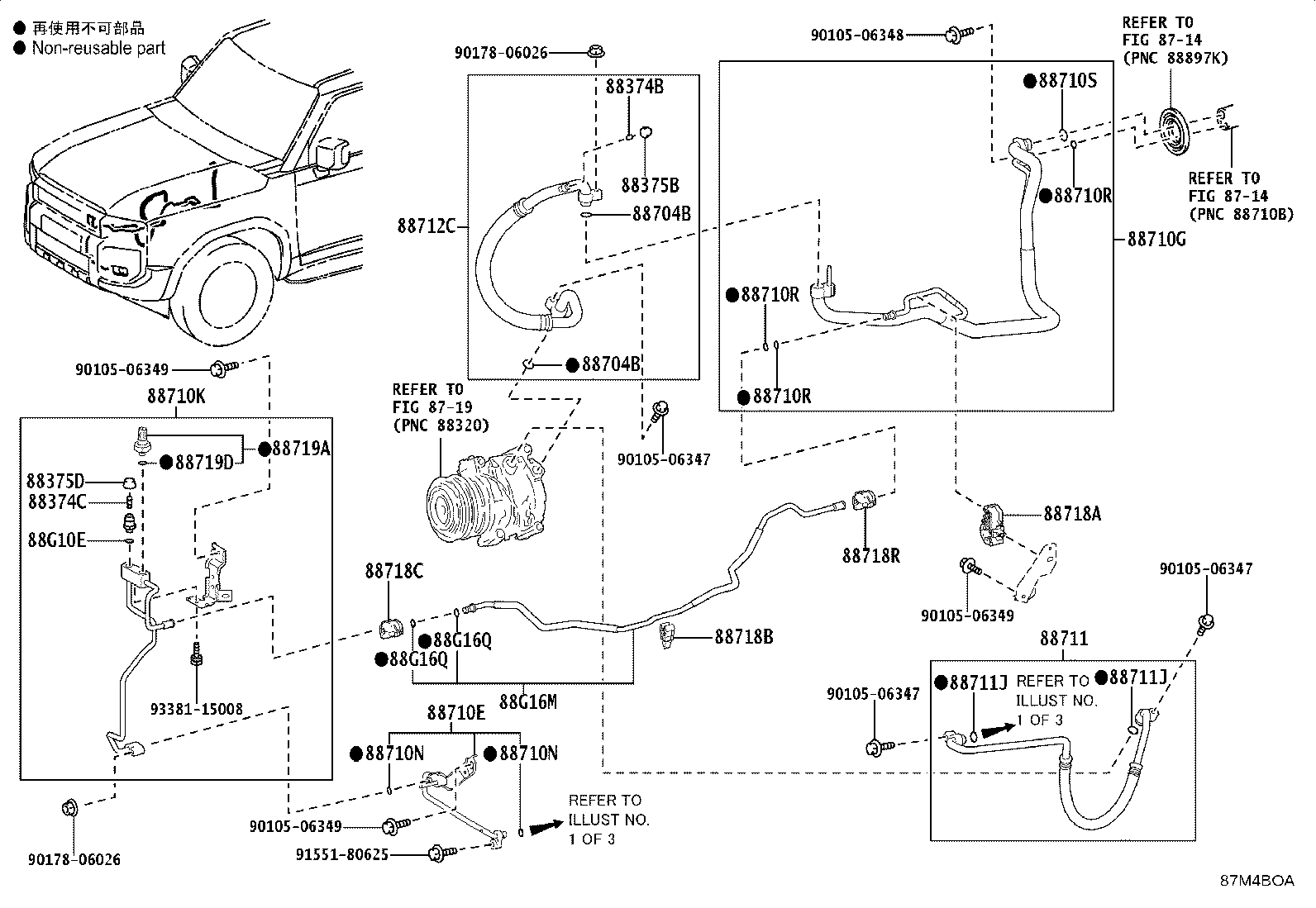

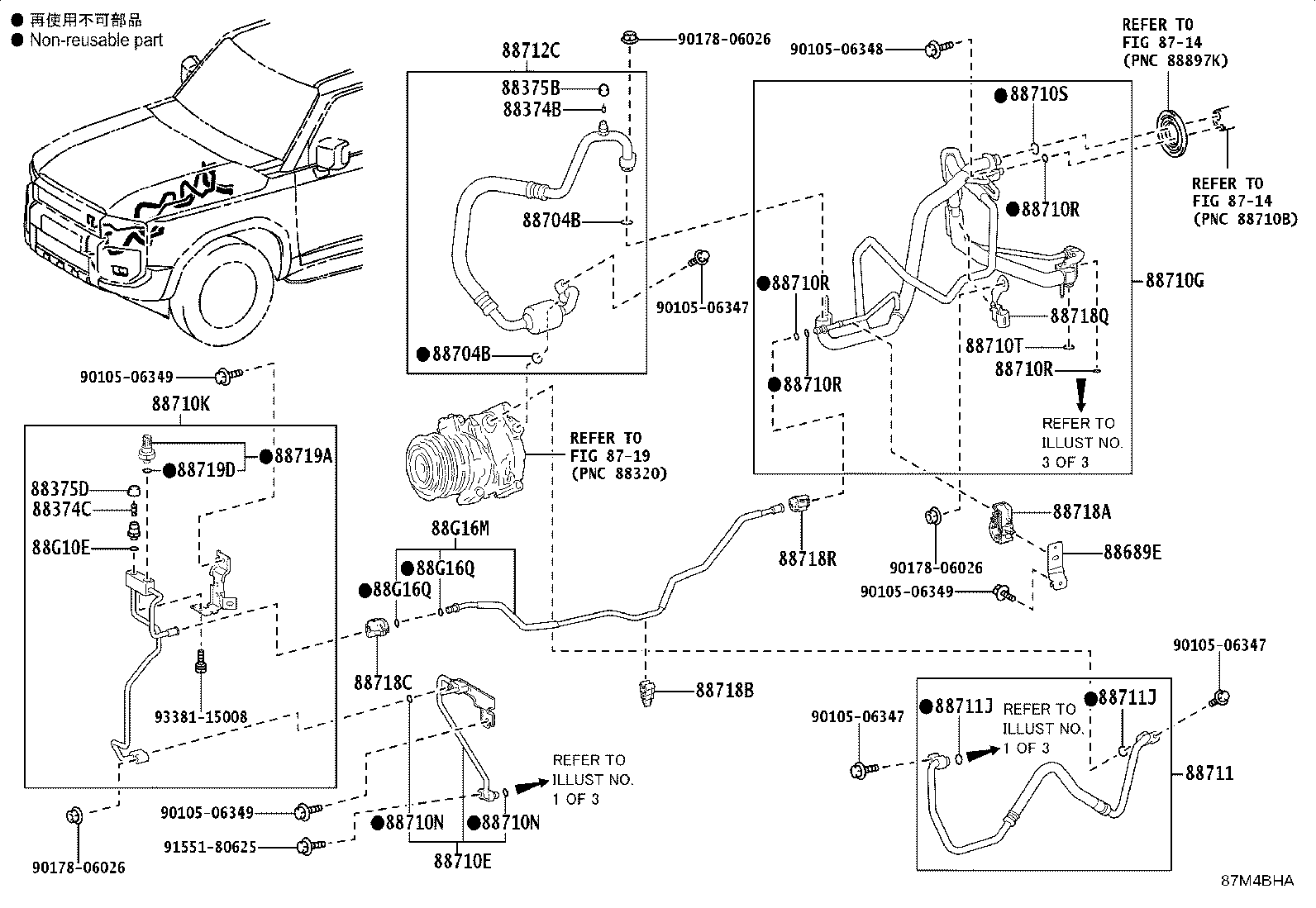

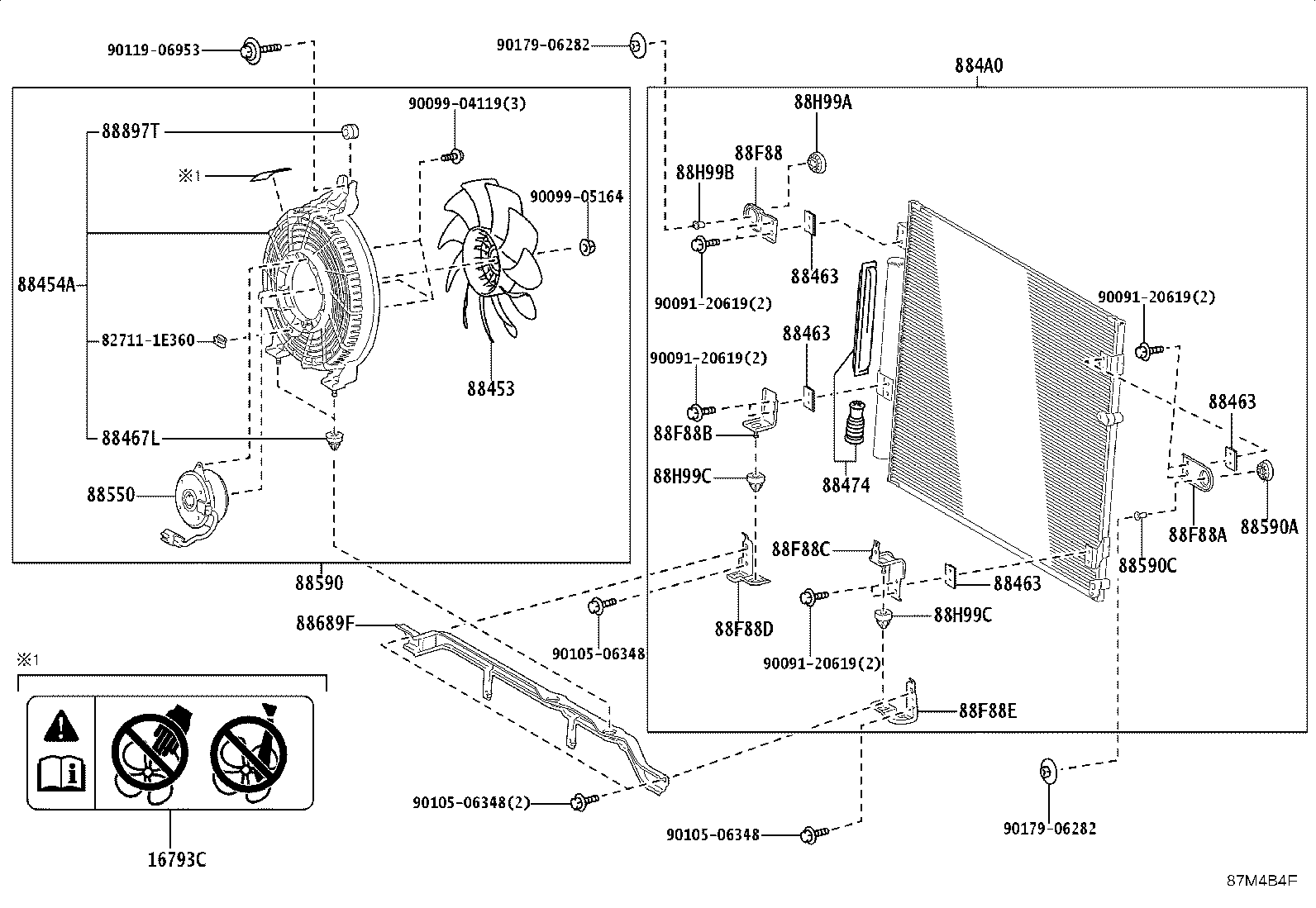

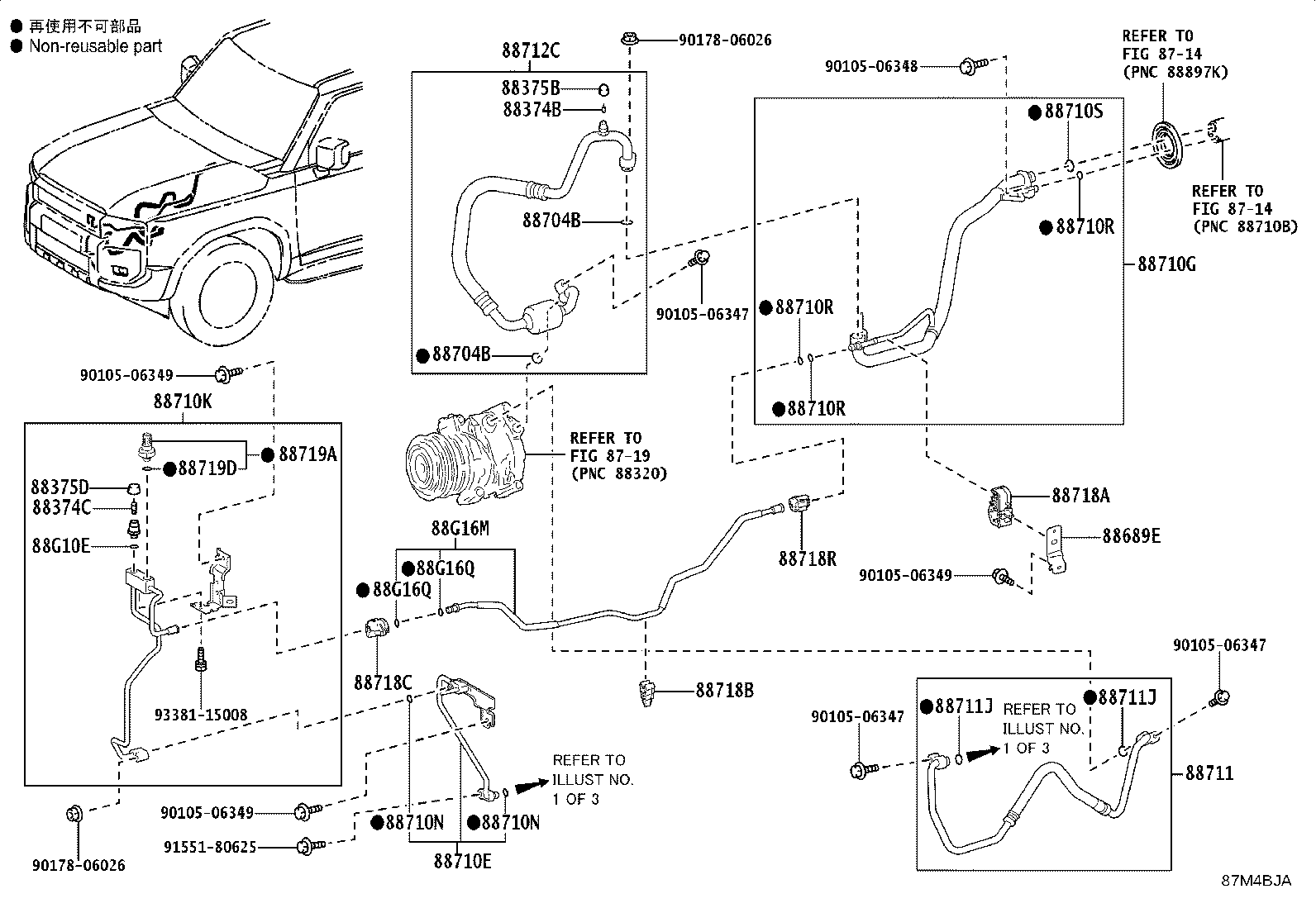

Figure 87M4B3F 87M4B3F 2024-01 → — Figure 87M4BAH 87M4BAH 2024-01 → — Figure 87M4B4F 87M4B4F 2024-01 → — Figure 87M4BCA 87M4BCA 2024-01 → — Figure 87M4BDA 87M4BDA 2024-01 → — Figure 87M4BEA 87M4BEA 2024-01 → — Figure 87M4BFA 87M4BFA 2024-01 → — Figure 87M4BGA 87M4BGA 2024-01 → — Figure 87M4BHA 87M4BHA 2024-01 → — Figure 87M4BIA 87M4BIA 2024-01 → — Figure 87M4BJA 87M4BJA 2024-01 → — Figure 87M4BKA 87M4BKA 2024-01 → — Figure 87M4BLA 87M4BLA 2024-01 → — Figure 87M4BMA 87M4BMA 2024-01 → — Figure 87M4BNA 87M4BNA 2024-01 → — Figure 87M4BOA 87M4BOA 2024-01 → — Figure 87M4BPC 87M4BPC 2024-01 → — Figure 87M4B9E 87M4B9E 2024-01 → —

Part groups

PNCDescription
16793C Label, Cooling Fan Caution
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88453 Fan, Cooling (FOR CONDENSER)
88454A Shroud, Fan
88463 Bracket, Cooler Condenser, NO.1
88467H Cushion, Condenser Bracket, NO.1
88467L Cushion, Cooler, NO.1
88467Q Bush, NO.1
88474 Dryer, Cooler
884A0 Condenser Assy, Cooler
88550 Motor Assy, Blower (FOR CONDENSER)
88590 Blower Assy, W/Shroud
88590A Parts, Cooling Unit
88590C Parts, Cooling Unit
88689E Bracket, Cooler, NO.1
88689F Bracket, Cooler, NO.2
88704B Ring, O(FOR SUCTION HOSE)
88710E Tube & Accessory Assy, Air Conditioner
88710G Tube & Accessory Assy, Air Conditioner, NO.2
88710K Tube & Accessory Assy, Air Conditioner, NO.3
88710N Ring, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88710R Ring, O, NO.1(FOR TUBE & ACCESSORY ASSY, A/C, NO.2)
88710S Ring, O, NO.2(FOR TUBE & ACCESSORY ASSY, A/C, NO.2)
88710T Ring, O, NO.3(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88711 Hose, Cooler Refrigerant Discharge, NO.1
88711J Ring, O, NO.1(FOR DISCHARGE HOSE)
88712C Hose, Suction
88717U Tube, Suction, NO.1
88717Y Ring, O, NO.1(FOR SUCTION TUBE)
88718A Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88718B Clamp, NO.2(FOR COOLER REFRIGERANT PIPE)
88718C Clamp, NO.3(FOR COOLER REFRIGERANT PIPE)
88718D Clamp, NO.4(FOR COOLER REFRIGERANT PIPE)
88718Q Clamp, Piping
88718R Clamp, Piping
88719A Sensor, Air Conditioner Pressure
88719D Ring, O(FOR AIR CONDITIONER PRESSURE SENSOR)
88895G Bush
88897T Grommet, Cooler
88F88 Bracket, Condenser, NO.1
88F88A Bracket, Condenser, NO.2
88F88B Bracket, Condenser, NO.3
88F88C Bracket, Condenser, NO.4
88F88D Bracket, Condenser, NO.5
88F88E Bracket, Condenser, NO.6
88G10 Tube & Accessory Assy, Air Conditioner, NO.4
88G10A Tube & Accessory Assy, Air Conditioner, NO.5
88G10E Ring, O, NO.1 (FOR TUBE & ACCESSORY ASSY, A/C, NO.3)
88G16M Tube, Liquid, NO.1
88G16N Tube, Liquid, NO.2
88G16Q Ring, O, NO.1(FOR LIQUID TUBE)
88G16R Ring, O, NO.2(FOR LIQUID TUBE)
88G16S Ring, O, NO.3(FOR LIQUID TUBE)
88G17C Ring, O, NO.2 (FOR SUCTION TUBE)
88H99A Bush, Condenser Bracket, NO.1
88H99B Bush, Condenser Bracket, NO.2
88H99C Bush, Condenser Bracket, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
