Toyota Land Cruiser Prado

2024-01 → present · chassis GDJ25#,TJA250,TRJ250 · catalogue 781290 · Europe

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

11 part groups · 3 illustrations

Illustrations

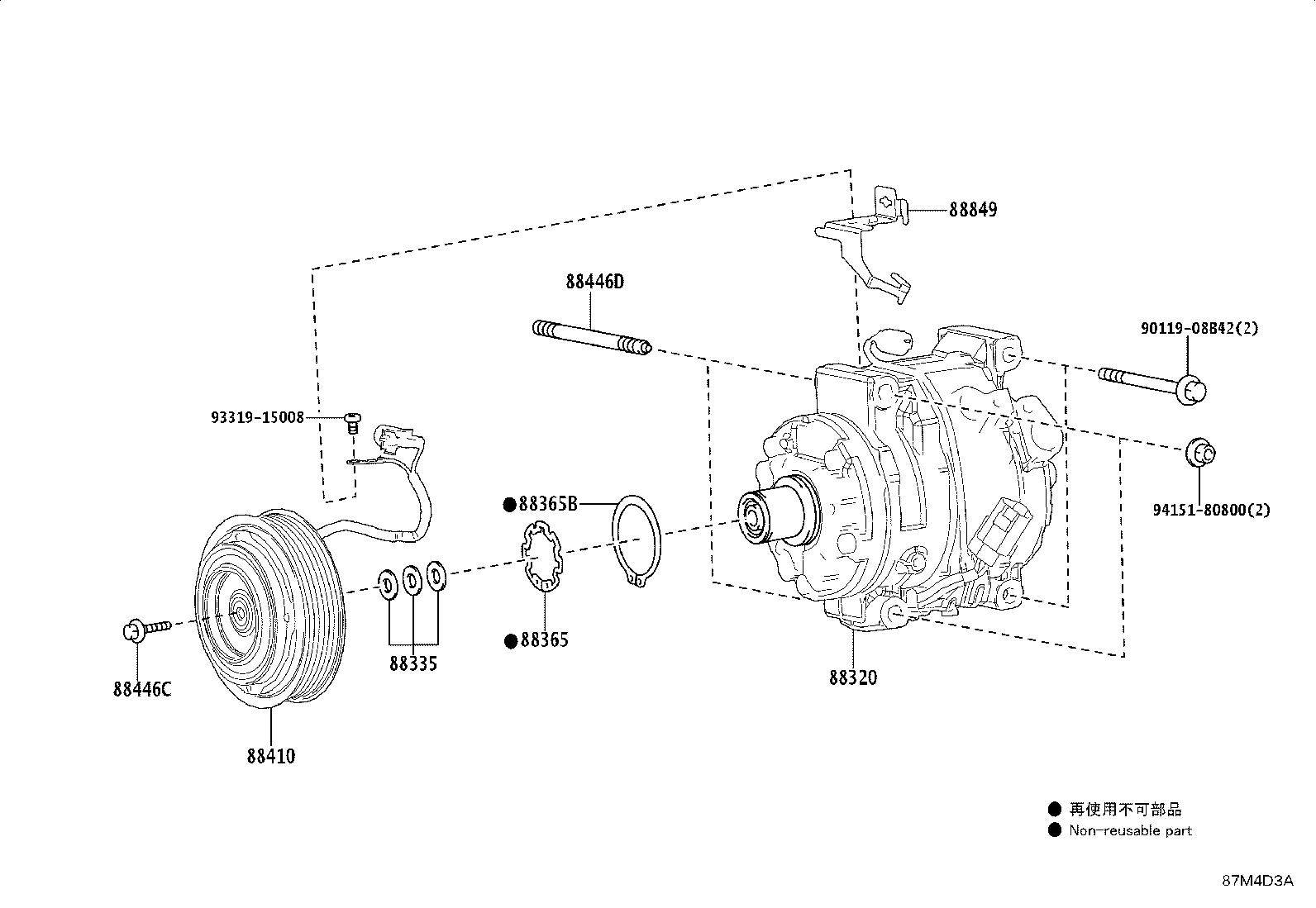

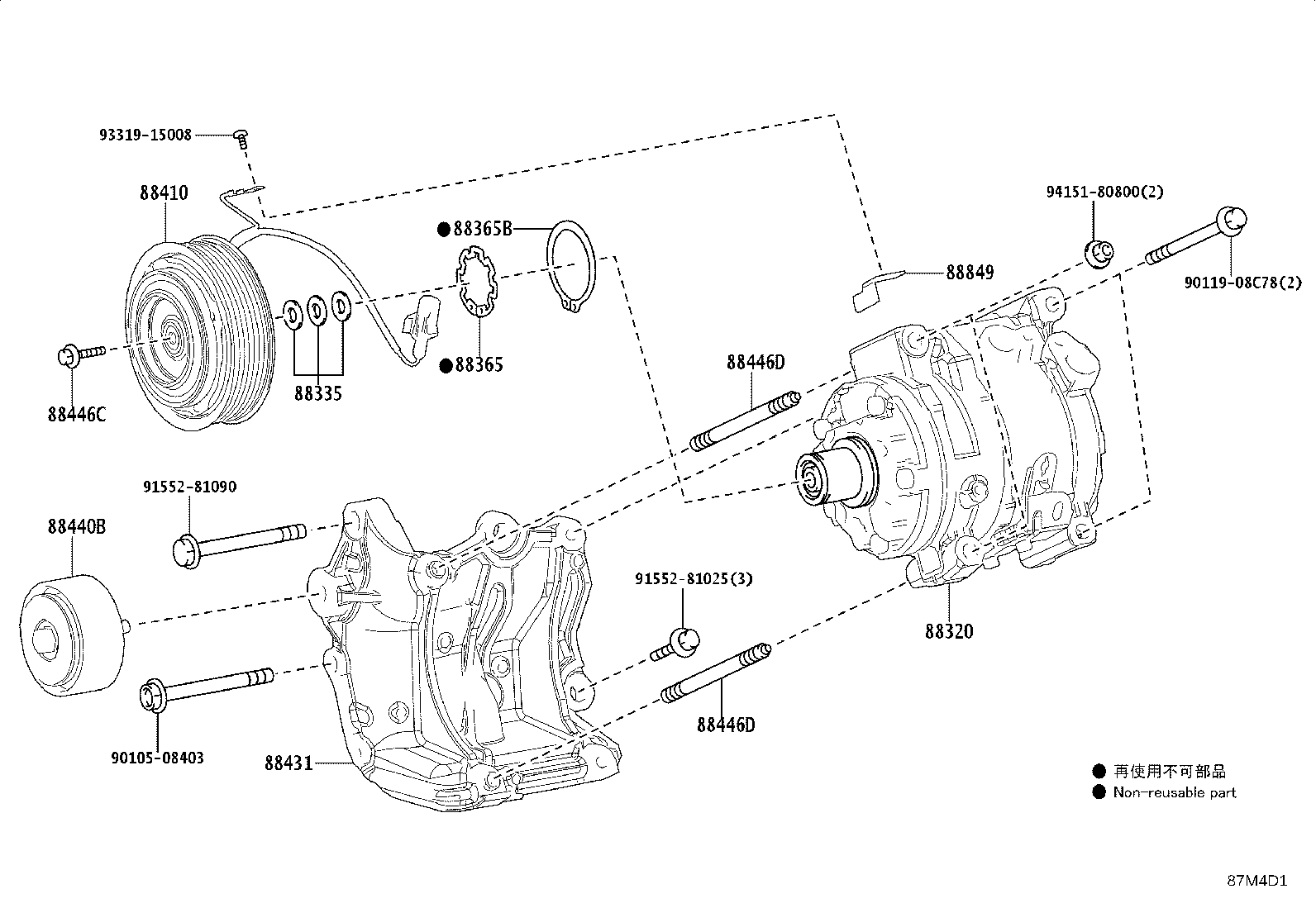

Figure 87M4D4A 87M4D4A 2024-01 → — Figure 87M4D1A 87M4D1A 2024-01 → — Figure 87M4D3A 87M4D3A 2024-01 → —

Part groups

PNCDescription
88320 Compressor Assy, Cooler
88335 Gasket Kit, Overhaul
88365 Ring, Snap
88365B Ring, Snap, NO.2
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
88440B Pulley Assy, Idle
88446C Bolt, Magnet Clutch Setting
88446D Bolt, Cooler
88688K Bracket, Cooler Compressor
88849 Bracket, Cooler Compressor, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
