Toyota Land Cruiser

1984-11 → 1990-01 · chassis RJ7#,LJ7#,BJ7# · catalogue 781520 · Europe

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

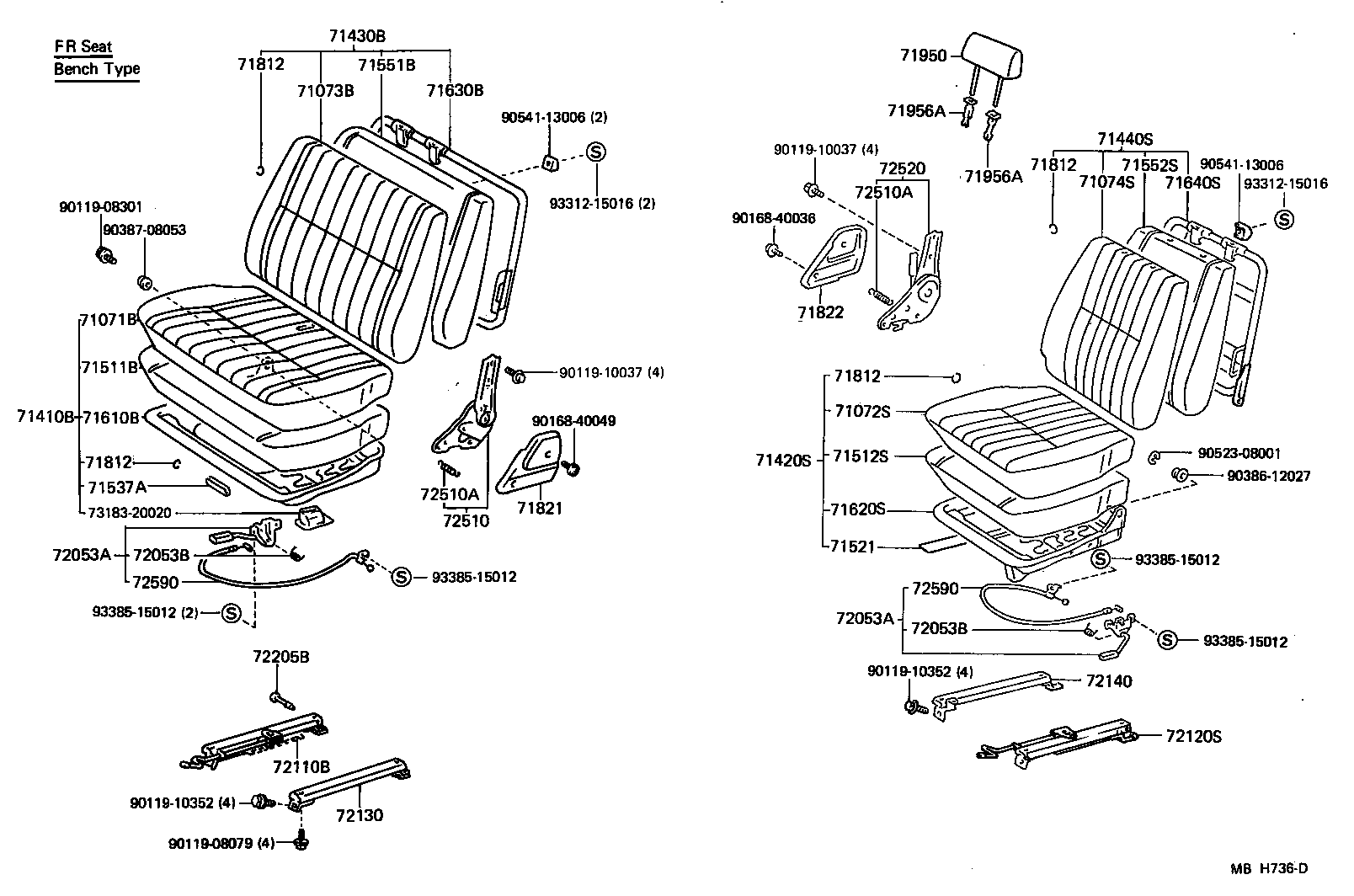

Exploded illustration MBH736D 71430B — BACK ASSY, FRONT SEAT(FOR BENCH TYPE) (6 parts) 71950 — HEADREST ASSY, FRONT SEAT (8 parts) 71812 — CLIP (FOR FRONT SEAT CUSHION COVER) (1 parts) 71551B — PAD, FRONT SEATBACK(FOR BENCH TYPE) (1 parts) 71630B — SPRING ASSY, FRONT SEATBACK(FOR BENCH TYPE) (1 parts) 71073B — COVER, FRONT SEATBACK(FOR BENCH TYPE) (6 parts) 71956A — SUPPORT, FRONT SEAT HEADREST (4 parts) 9054113006 — not listed in this catalogue 71440S — BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) (64 parts) 9011910037 — not listed in this catalogue 71812 — CLIP (FOR FRONT SEAT CUSHION COVER) (1 parts) 9054113006 — not listed in this catalogue 71552S — PAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (3 parts) 72520 — ADJUSTER ASSY, RECLINING SEATBACK, LH (5 parts) 71956A — SUPPORT, FRONT SEAT HEADREST (4 parts) 71074S — COVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (62 parts) 71640S — SPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (2 parts) 9331215016 — not listed in this catalogue 72510A — SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) (1 parts) 9331215016 — not listed in this catalogue 9011908301 — not listed in this catalogue 9016840036 — not listed in this catalogue 9038708053 — not listed in this catalogue 71822 — SHIELD, FRONT SEAT SIDE, LH (6 parts) 71071B — COVER, FRONT SEAT CUSHION(FOR BENCH TYPE) (6 parts) 71511B — PAD, FRONT SEAT CUSHION(FOR BENCH TYPE) (1 parts) 9011910037 — not listed in this catalogue 71812 — CLIP (FOR FRONT SEAT CUSHION COVER) (1 parts) 71072S — COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) (16 parts) 71410B — CUSHION ASSY, FRONT SEAT(FOR BENCH TYPE) (6 parts) 71610B — SPRING ASSY, FRONT SEAT CUSHION(FOR BENCH TYPE) (1 parts) 9016840049 — not listed in this catalogue 9052308001 — not listed in this catalogue 71512S — PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) (3 parts) 71420S — CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) (36 parts) 71812 — CLIP (FOR FRONT SEAT CUSHION COVER) (1 parts) 9038612027 — not listed in this catalogue 71537A — PROTECTOR, FRONT SEAT CUSHION (1 parts) 72510A — SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) (1 parts) 71821 — SHIELD, FRONT SEAT SIDE, RH (6 parts) 71620S — SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) (6 parts) 7318320020 — not listed in this catalogue 72510 — ADJUSTER ASSY, RECLINING SEATBACK, RH (4 parts) 71521 — PAD, FRONT SEAT CUSHION SILENCER, A (1 parts) 72053A — LEVER SUB-ASSY, RECLINING REMOTE CONTROL (14 parts) 72053B — SPRING(FOR RECLINING REMOTE CONTROL LEVER) (2 parts) 9338515012 — not listed in this catalogue 9338515012 — not listed in this catalogue 72590 — CABLE ASSY, SEATBACK CONTROL (3 parts) 72590 — CABLE ASSY, SEATBACK CONTROL (3 parts) 9338515012 — not listed in this catalogue 72053A — LEVER SUB-ASSY, RECLINING REMOTE CONTROL (14 parts) 72053B — SPRING(FOR RECLINING REMOTE CONTROL LEVER) (2 parts) 9338515012 — not listed in this catalogue 72205B — PIN SUB-ASSY, SEAT TRACK OPEN LEVER (1 parts) 9011910352 — not listed in this catalogue 72140 — TRACK ASSY, LH SEAT, INNER (6 parts) 72120S — TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT) (12 parts) 72110B — TRACK ASSY, SEAT, OUTER RH (FOR BENCH SEAT) (2 parts) 9011910352 — not listed in this catalogue 72130 — TRACK ASSY, RH SEAT, INNER (7 parts) 9011908079 — not listed in this catalogue
MBH736D · 42 callouts, 20 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
304 parts on this figure
Part number Description Fitment Price
71071B — Cover, Front Seat Cushion(FOR BENCH TYPE)
71071-90K06-03 note Cover, Front Seat Cushion(FOR BENCH TYPE)
1984-11 → 1990-01 ended
BJ75 PIC —
71071-90K06-05 note Cover, Front Seat Cushion(FOR BENCH TYPE)
1984-11 → 1990-01 ended
BJ75 PIC —
71071-90K22-03 note Cover, Front Seat Cushion(FOR BENCH TYPE)
1986-08 → 1987-08 ended
BJ75 PIC —
71071-90K22-05 note Cover, Front Seat Cushion(FOR BENCH TYPE)
1986-08 → 1987-08 ended
BJ75 PIC —
71071-90K35-03 note Cover, Front Seat Cushion(FOR BENCH TYPE)
1987-08 → 1990-01 ended
BJ75 PIC —
71071-90K35-06 note Cover, Front Seat Cushion(FOR BENCH TYPE)
1987-08 → 1990-01 ended
BJ75 PIC —
71072S — Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71072-90K05-03 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1984-11 → 1986-08 ended
BJ7#,LJ7#,RJ7# —
71072-90K05-03 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1986-08 → 1990-01 ended
BJ70,73,75,LJ70,RJ70 STD —
71072-90K05-05 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1984-11 → 1986-08 ended
BJ7#,LJ7#,RJ7# —
71072-90K05-05 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1986-08 → 1990-01 ended
BJ70,73,75,LJ70,RJ70 STD —
71072-90K15-03 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
BJ75 —
71072-90K15-03 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
BJ70,71,73,LJ7#,RJ70 LX,VM —
71072-90K15-03 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
LJ70 HT STD —
71072-90K15-03 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1984-11 → 1986-08 ended
BJ70,71,73,LJ7#,RJ7# HT —
71072-90K15-05 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
BJ75 —
71072-90K15-05 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
BJ70,71,73,LJ7#,RJ70 LX,VM —
71072-90K15-05 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
LJ70 HT STD —
71072-90K15-05 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1984-11 → 1986-08 ended
BJ70,71,73,LJ7#,RJ7# HT —
71072-90K23-03 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
LJ70 VX —
71072-90K23-06 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
LJ70 VX —
71072-90K28-03 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
BJ70,71,73,LJ7#,RJ7# LX,VM —
71072-90K28-06 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
BJ70,71,73,LJ7#,RJ7# LX,VM —
71073B — Cover, Front Seatback(FOR BENCH TYPE)
71073-90K06-03 note Cover, Front Seatback(FOR BENCH TYPE)
1984-11 → 1990-01 ended
BJ75 PIC —
71073-90K06-05 note Cover, Front Seatback(FOR BENCH TYPE)
1984-11 → 1990-01 ended
BJ75 PIC —
71073-90K27-03 note Cover, Front Seatback(FOR BENCH TYPE)
1986-08 → 1987-08 ended
BJ75 PIC —
71073-90K27-05 note Cover, Front Seatback(FOR BENCH TYPE)
1986-08 → 1987-08 ended
BJ75 PIC —
71073-90K50-03 note Cover, Front Seatback(FOR BENCH TYPE)
1987-08 → 1990-01 ended
BJ75 PIC —
71073-90K50-06 note Cover, Front Seatback(FOR BENCH TYPE)
1987-08 → 1990-01 ended
BJ75 PIC —
71074S — Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71074-90K02-03 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1986-08 → 1990-01 ended
BJ70,73,75,LJ70,RJ70 (HT,SOT) STD —
71074-90K02-03 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1984-11 → 1986-08 ended
BJ7#,LJ7#,RJ7# HT,SOT —
71074-90K02-05 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1986-08 → 1990-01 ended
BJ70,73,75,LJ70,RJ70 (HT,SOT) STD —
71074-90K02-05 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1984-11 → 1986-08 ended
BJ7#,LJ7#,RJ7# HT,SOT —
71074-90K12-03 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1986-08 → 1990-01 ended
BJ70,73,75,LJ70,RJ70 (HT,SOT) STD —
71074-90K12-03 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1984-11 → 1986-08 ended
BJ7#,LJ7#,RJ7# HT,SOT —
71074-90K12-03 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1984-11 → 1990-01 ended
BJ75 PIC —
71074-90K12-05 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1986-08 → 1990-01 ended
BJ70,73,75,LJ70,RJ70 (HT,SOT) STD —
71074-90K12-05 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1984-11 → 1986-08 ended
BJ7#,LJ7#,RJ7# HT,SOT —
71074-90K12-05 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1984-11 → 1990-01 ended
BJ75 PIC —
71074-90K13-03 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
BJ70,73,RJ70 LX,VM —
71074-90K13-03 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
BJ75 HT —
71074-90K13-03 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
BJ75 PIC —
71074-90K13-03 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1984-11 → 1985-10 ended
BJ70,73,LJ70,RJ70 HT —
71074-90K13-03 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1985-10 → 1986-08 ended
BJ70,73,RJ7# —
71074-90K13-05 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1985-10 → 1986-08 ended
BJ70,73,RJ7# —
71074-90K13-05 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1984-11 → 1985-10 ended
BJ70,73,LJ70,RJ70 HT —
71074-90K13-05 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
BJ75 PIC —
71074-90K13-05 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
BJ75 HT —
71074-90K13-05 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
BJ70,73,RJ70 LX,VM —
71074-90K15-03 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1985-10 → 1986-08 ended
BJ71,LJ7# HT —
71074-90K15-03 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
BJ71,LJ7# LX —
71074-90K15-03 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
LJ70 HT STD —
71074-90K15-05 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
BJ71,LJ7# LX —
71074-90K15-05 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
LJ70 HT STD —
71074-90K15-05 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1985-10 → 1986-08 ended
BJ71,LJ7# HT —
71074-90K18-03 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
BJ75 HT —
71074-90K18-03 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
BJ70,73,RJ70 LX —
71074-90K18-03 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1984-11 → 1985-10 ended
BJ70,73,LJ70,RJ70 HT —
71074-90K18-03 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1985-10 → 1986-08 ended
BJ70,73,RJ7# —
71074-90K18-05 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
BJ75 HT —
71074-90K18-05 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
BJ70,73,RJ70 LX —
71074-90K18-05 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1984-11 → 1985-10 ended
BJ70,73,LJ70,RJ70 HT —
71074-90K18-05 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1985-10 → 1986-08 ended
BJ70,73,RJ7# —
71074-90K20-03 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1985-10 → 1986-08 ended
BJ71,LJ7# HT —
71074-90K20-03 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
LJ70 HT STD —
71074-90K20-03 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
BJ71,LJ7# LX —
71074-90K20-05 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
BJ71,LJ7# LX —
71074-90K20-05 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1985-10 → 1986-08 ended
BJ71,LJ7# HT —
71074-90K20-05 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
LJ70 HT STD —
71074-90K29-03 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
LJ70 VX —
71074-90K29-06 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
LJ70 VX —
71074-90K34-03 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
BJ75 PIC —
71074-90K34-03 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
BJ75 HT —
71074-90K34-03 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
BJ70,73,RJ7# LX,VM —
71074-90K34-06 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
BJ75 HT —
71074-90K34-06 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
BJ70,73,RJ7# LX,VM —
71074-90K34-06 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
BJ75 PIC —
71074-90K39-03 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
BJ71,LJ7# LX —
71074-90K39-03 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
LJ70 HT STD —
71074-90K39-06 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
BJ71,LJ7# LX —
71074-90K39-06 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
LJ70 HT STD —
71074-90K40-03 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
BJ75 HT —
71074-90K40-03 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
BJ70,73,RJ7# LX —
71074-90K40-06 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
BJ75 HT —
71074-90K40-06 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
BJ70,73,RJ7# LX —
71074-90K45-03 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
LJ70 LHD HT (LX,STD) —
71074-90K45-03 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
BJ71,LJ7# LX —
71074-90K45-06 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
BJ71,LJ7# LX —
71074-90K45-06 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
LJ70 LHD HT (LX,STD) —
71074-90K48-03 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
LJ70 LHD VX —
71074-90K48-06 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
LJ70 LHD VX —
71410B — Cushion Assy, Front Seat(FOR BENCH TYPE)
71410-90K18-03 note Cushion Assy, Front Seat(FOR BENCH TYPE)
1984-11 → 1990-01 ended
BJ75 PIC —
71410-90K18-05 note Cushion Assy, Front Seat(FOR BENCH TYPE)
1984-11 → 1990-01 ended
BJ75 PIC —
71410-90K51-03 note Cushion Assy, Front Seat(FOR BENCH TYPE)
1986-08 → 1987-08 ended
BJ75 PIC —
71410-90K51-05 note Cushion Assy, Front Seat(FOR BENCH TYPE)
1986-08 → 1987-08 ended
BJ75 PIC —
71410-90K76-03 note Cushion Assy, Front Seat(FOR BENCH TYPE)
1987-08 → 1990-01 ended
BJ75 PIC —
71410-90K76-06 note Cushion Assy, Front Seat(FOR BENCH TYPE)
1987-08 → 1990-01 ended
BJ75 PIC —
71420S — Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71420-90K01-03 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1984-11 → 1990-01 ended
BJ75 —
71420-90K01-03 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1984-11 → 1986-08 ended
LJ70 SOT —
71420-90K01-05 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1984-11 → 1986-08 ended
LJ70 SOT —
71420-90K01-05 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1984-11 → 1990-01 ended
BJ75 —
71420-90K12-03 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1984-11 → 1986-08 ended
BJ70,71,73,LJ7#,RJ7# —
71420-90K12-03 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1986-08 → 1990-01 ended
BJ70,73,LJ70,RJ70 STD —
71420-90K12-05 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1984-11 → 1986-08 ended
BJ70,71,73,LJ7#,RJ7# —
71420-90K12-05 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1986-08 → 1990-01 ended
BJ70,73,LJ70,RJ70 STD —
71420-90K15-03 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1985-12 → 1986-08 ended
BJ70,71,73,LJ7#,RJ7# HT STD —
71420-90K15-03 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
BJ75 —
71420-90K15-03 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
BJ70,71,73,LJ7#,RJ70 LX —
71420-90K15-03 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1984-11 → 1985-12 ended
BJ70,71,73,LJ7#,RJ7# HT —
71420-90K15-05 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
BJ75 —
71420-90K15-05 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
BJ70,71,73,LJ7#,RJ70 LX —
71420-90K15-05 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1985-12 → 1986-08 ended
BJ70,71,73,LJ7#,RJ7# HT STD —
71420-90K15-05 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1984-11 → 1985-12 ended
BJ70,71,73,LJ7#,RJ7# HT —
71420-90K17-03 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
BJ70,71,73,LJ7#,RJ70 LX,VM —
71420-90K17-03 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
LJ70 HT STD —
71420-90K17-03 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1984-11 → 1986-08 ended
BJ70,71,73,LJ7#,RJ7# HT —
71420-90K17-05 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
BJ70,71,73,LJ7#,RJ70 LX,VM —
71420-90K17-05 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
LJ70 HT STD —
71420-90K17-05 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1984-11 → 1986-08 ended
BJ70,71,73,LJ7#,RJ7# HT —
71420-90K41-03 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1988-01 → 1990-01 ended
LJ70 RHD VX —
71420-90K41-06 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1988-01 → 1990-01 ended
LJ70 RHD VX —
71420-90K44-03 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
LJ70 HT STD —
71420-90K44-03 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
BJ70,71,73,LJ7#,RJ7# LX,VM —
71420-90K44-06 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
BJ70,71,73,LJ7#,RJ7# LX,VM —
71420-90K44-06 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
LJ70 HT STD —
71420-90K48-03 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
BJ75 —
71420-90K48-03 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
BJ70,71,73,LJ7#,RJ7# LX —
71420-90K48-06 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
BJ75 —
71420-90K48-06 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
BJ70,71,73,LJ7#,RJ7# LX —
71420-90K64-03 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
LJ70 LHD VX —
71420-90K64-06 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
LJ70 LHD VX —
71420-90K67-03 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
LJ70 LHD VX —
71420-90K67-06 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
LJ70 LHD VX —
71430B — Back Assy, Front Seat(FOR BENCH TYPE)
71430-90K16-03 note Back Assy, Front Seat(FOR BENCH TYPE)
1984-11 → 1990-01 ended
BJ75 PIC —
71430-90K16-05 note Back Assy, Front Seat(FOR BENCH TYPE)
1984-11 → 1990-01 ended
BJ75 PIC —
71430-90K50-03 note Back Assy, Front Seat(FOR BENCH TYPE)
1986-08 → 1987-08 ended
BJ75 PIC —
71430-90K50-05 note Back Assy, Front Seat(FOR BENCH TYPE)
1986-08 → 1987-08 ended
BJ75 PIC —
71430-90K73-03 note Back Assy, Front Seat(FOR BENCH TYPE)
1987-08 → 1990-01 ended
BJ75 PIC —
71430-90K73-06 note Back Assy, Front Seat(FOR BENCH TYPE)
1987-08 → 1990-01 ended
BJ75 PIC —
71440S — Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71440-90K03-03 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1986-08 → 1990-01 ended
BJ70,73,75,LJ70,RJ70 (HT,SOT) STD —
71440-90K03-03 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1984-11 → 1986-08 ended
BJ7#,LJ7#,RJ7# HT,SOT —
71440-90K03-05 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1986-08 → 1990-01 ended
BJ70,73,75,LJ70,RJ70 (HT,SOT) STD —
71440-90K03-05 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1984-11 → 1986-08 ended
BJ7#,LJ7#,RJ7# HT,SOT —
71440-90K07-03 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1984-11 → 1990-01 ended
BJ75 PIC —
71440-90K07-05 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1984-11 → 1990-01 ended
BJ75 PIC —
71440-90K17-03 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1984-11 → 1986-08 ended
BJ7#,LJ7#,RJ7# HT,SOT —
71440-90K17-03 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1986-08 → 1990-01 ended
BJ70,73,75,LJ70,RJ70 (HT,SOT) STD —
71440-90K17-05 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1984-11 → 1986-08 ended
BJ7#,LJ7#,RJ7# HT,SOT —
71440-90K17-05 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1986-08 → 1990-01 ended
BJ70,73,75,LJ70,RJ70 (HT,SOT) STD —
71440-90K18-03 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1984-11 → 1985-10 ended
BJ70,73,LJ70,RJ70 HT —
71440-90K18-03 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
BJ70,73,RJ70 LX,VM —
71440-90K18-03 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
BJ75 HT —
71440-90K18-03 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1985-10 → 1986-08 ended
BJ70,73,RJ7# —
71440-90K18-05 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1984-11 → 1985-10 ended
BJ70,73,LJ70,RJ70 HT —
71440-90K18-05 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
BJ70,73,RJ70 LX,VM —
71440-90K18-05 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
BJ75 HT —
71440-90K18-05 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1985-10 → 1986-08 ended
BJ70,73,RJ7# —
71440-90K35-03 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1985-10 → 1986-08 ended
BJ70,73,RJ7# —
71440-90K35-03 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
BJ75 HT —
71440-90K35-03 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
BJ70,73,RJ70 LX —
71440-90K35-03 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1984-11 → 1985-10 ended
BJ70,73,LJ70,RJ70 HT —
71440-90K35-05 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
BJ70,73,RJ70 LX —
71440-90K35-05 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1984-11 → 1985-10 ended
BJ70,73,LJ70,RJ70 HT —
71440-90K35-05 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
BJ75 HT —
71440-90K35-05 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1985-10 → 1986-08 ended
BJ70,73,RJ7# —
71440-90K42-03 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
BJ71,LJ7# LX —
71440-90K42-03 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
LJ70 HT STD —
71440-90K42-03 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1985-10 → 1986-08 ended
BJ71,LJ7# HT —
71440-90K42-05 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
BJ71,LJ7# LX —
71440-90K42-05 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
LJ70 HT STD —
71440-90K42-05 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1985-10 → 1986-08 ended
BJ71,LJ7# HT —
71440-90K45-03 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1985-10 → 1986-08 ended
BJ71,LJ7# HT —
71440-90K45-03 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
LJ70 HT STD —
71440-90K45-03 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
BJ71,LJ7# LX —
71440-90K45-05 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
LJ70 HT STD —
71440-90K45-05 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
BJ71,LJ7# LX —
71440-90K45-05 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1985-10 → 1986-08 ended
BJ71,LJ7# HT —
71440-90K52-03 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
BJ75 PIC —
71440-90K52-05 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1986-08 → 1987-08 ended
BJ75 PIC —
71440-90K55-03 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1988-01 → 1990-01 ended
LJ70 RHD VX —
71440-90K55-06 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1988-01 → 1990-01 ended
LJ70 RHD VX —
71440-90K59-03 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
BJ70,73,RJ7# LX —
71440-90K59-03 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
BJ75 HT —
71440-90K59-06 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
BJ75 HT —
71440-90K59-06 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
BJ70,73,RJ7# LX —
71440-90K62-03 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
BJ71,LJ7# LX —
71440-90K62-03 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
LJ70 HT STD —
71440-90K62-06 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
BJ71,LJ7# LX —
71440-90K62-06 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
LJ70 HT STD —
71440-90K63-03 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
BJ71,LJ7# LX —
71440-90K63-03 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
LJ70 LHD HT (LX,STD) —
71440-90K63-06 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
BJ71,LJ7# LX —
71440-90K63-06 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
LJ70 LHD HT (LX,STD) —
71440-90K65-03 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
BJ70,73,RJ7# LX,VM —
71440-90K65-03 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
BJ75 HT —
71440-90K65-06 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
BJ75 HT —
71440-90K65-06 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
BJ70,73,RJ7# LX,VM —
71440-90K69-03 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
BJ75 PIC —
71440-90K69-06 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
BJ75 PIC —
71440-90K78-03 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
LJ70 LHD VX —
71440-90K78-06 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
LJ70 LHD VX —
71440-90K80-03 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
LJ70 LHD VX —
71440-90K80-06 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
LJ70 LHD VX —
71511B — Pad, Front Seat Cushion(FOR BENCH TYPE)
71501-90K03 Pad, Front Seat Cushion(FOR BENCH TYPE)
1984-11 → 1990-01 ended
BJ75 PIC —
71512S — Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71502-90K02 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
1988-01 → 1990-01 ended
LJ70 RHD VX —
71502-90K02 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
LJ70 LHD VX —
71502-90K02 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
1984-11 → 1990-01 ended
BJ7#,LJ7#,RJ7# LX,STD,VM —
71521 — Pad, Front Seat Cushion Silencer, A
71521-90K00 Pad, Front Seat Cushion Silencer, A
1984-11 → 1990-01 ended
BJ7#,LJ7#,RJ7# —
71537A — Protector, Front Seat Cushion
71537-90K00 Protector, Front Seat Cushion
1984-11 → 1990-01 ended
BJ75 PIC —
71551B — Pad, Front Seatback(FOR BENCH TYPE)
71505-90K03 Pad, Front Seatback(FOR BENCH TYPE)
1984-11 → 1990-01 ended
BJ75 PIC —
71552S — Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71506-90K02 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
1984-11 → 1990-01 ended
BJ7#,LJ7#,RJ7# LX,STD,VM —
71506-90K02 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
LJ70 LHD VX —
71506-90K02 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
1988-01 → 1990-01 ended
LJ70 RHD VX —
71610B — Spring Assy, Front Seat Cushion(FOR BENCH TYPE)
71610-90K04 Spring Assy, Front Seat Cushion(FOR BENCH TYPE)
1984-11 → 1990-01 ended
BJ75 PIC —
71620S — Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71620-90K00 Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1984-11 → 1990-01 ended
BJ70,71,73,LJ7#,RJ7# —
71620-90K01 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1984-11 → 1985-12 ended
BJ70,71,73,LJ7#,RJ7# —
71620-90K01 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1985-12 → 1986-08 ended
BJ70,71,73,LJ7#,RJ7# STD —
71620-90K01 Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1984-11 → 1990-01 ended
BJ75 —
71620-90K01 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1986-08 → 1990-01 ended
BJ70,71,73,LJ7#,RJ7# LX —
71620-90K01 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1987-08 → 1990-01 ended
LJ70 LHD VX —
71630B — Spring Assy, Front Seatback(FOR BENCH TYPE)
71013-90K07 Spring Assy, Front Seatback(FOR BENCH TYPE)
1984-11 → 1990-01 ended
BJ75 PIC —
71640S — Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71014-90K02 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
1984-11 → 1990-01 ended
BJ75 PIC —
71014-90K03 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
1984-11 → 1990-01 ended
BJ7#,LJ7#,RJ7# HT,SOT —
71812 — Clip (FOR FRONT SEAT CUSHION COVER)
90468-18071 Clip (FOR FRONT SEAT CUSHION COVER)
1984-11 → 1990-01 ended
BJ7#,LJ7#,RJ7# —
71821 — Shield, Front Seat Side, RH
71811-90K00-03 note Shield, Front Seat Side, RH
1984-11 → 1990-01 ended
BJ75 HT —
71811-90K00-06 note Shield, Front Seat Side, RH
1984-11 → 1990-01 ended
BJ75 HT —
71811-90K01-03 note Shield, Front Seat Side, RH
1984-11 → 1990-01 ended
BJ70,71,73,LJ7#,RJ7# —
71811-90K01-03 note Shield, Front Seat Side, RH
1984-11 → 1990-01 ended
BJ75 PIC —
71811-90K01-06 note Shield, Front Seat Side, RH
1984-11 → 1990-01 ended
BJ70,71,73,LJ7#,RJ7# —
71811-90K01-06 note Shield, Front Seat Side, RH
1984-11 → 1990-01 ended
BJ75 PIC —
71822 — Shield, Front Seat Side, LH
71812-90K00-03 note Shield, Front Seat Side, LH
1986-08 → 1990-01 ended
BJ70,LJ70 RHD (LX,STD) —
71812-90K00-06 note Shield, Front Seat Side, LH
1986-08 → 1990-01 ended
BJ70,LJ70 RHD (LX,STD) —
71812-90K01-03 note Shield, Front Seat Side, LH
1984-11 → 1990-01 ended
BJ7#,LJ7#,RJ7# LHD —
71812-90K01-03 note Shield, Front Seat Side, LH
1988-01 → 1990-01 ended
LJ70 RHD VX —
71812-90K01-06 note Shield, Front Seat Side, LH
1984-11 → 1990-01 ended
BJ7#,LJ7#,RJ7# LHD —
71812-90K01-06 note Shield, Front Seat Side, LH
1988-01 → 1990-01 ended
LJ70 RHD VX —
71950 — Headrest Assy, Front Seat
71910-90K00-03 note Headrest Assy, Front Seat
1986-08 → 1990-01 ended
BJ70,LJ70 RHD —
71910-90K00-06 note Headrest Assy, Front Seat
1986-08 → 1990-01 ended
BJ70,LJ70 RHD —
71910-90K01-03 note Headrest Assy, Front Seat
1984-11 → 1990-01 ended
BJ7#,LJ7#,RJ7# LHD (HT,SOT) (LX,STD,VM) —
71910-90K01-06 note Headrest Assy, Front Seat
1984-11 → 1990-01 ended
BJ7#,LJ7#,RJ7# LHD (HT,SOT) (LX,STD,VM) —
71910-90K02-03 note Headrest Assy, Front Seat
1984-11 → 1990-01 ended
BJ75 PIC —
71910-90K02-06 note Headrest Assy, Front Seat
1984-11 → 1990-01 ended
BJ75 PIC —
71910-90K06-03 note Headrest Assy, Front Seat
1987-08 → 1990-01 ended
LJ70 VX —
71910-90K06-06 note Headrest Assy, Front Seat
1987-08 → 1990-01 ended
LJ70 VX —
71956A — Support, Front Seat Headrest
71930-10060-33 note Support, Front Seat Headrest
1984-11 → 1990-01 ended
BJ7#,LJ7#,RJ7# —
71930-10060-36 note Support, Front Seat Headrest
1984-11 → 1990-01 ended
BJ7#,LJ7#,RJ7# —
71931-10010-33 note Support, Front Seat Headrest
1984-11 → 1990-01 ended
BJ7#,LJ7#,RJ7# —
71931-10010-36 note Support, Front Seat Headrest
1984-11 → 1990-01 ended
BJ7#,LJ7#,RJ7# —
72053A — Lever Sub-assy, Reclining Remote Control
72053-90K00-03 note Lever Sub-assy, Reclining Remote Control
1984-11 → 1990-01 ended
BJ75 HT —
72053-90K00-03 note Lever Sub-assy, Reclining Remote Control
1986-08 → 1990-01 ended
BJ70,LJ70 RHD —
72053-90K00-06 note Lever Sub-assy, Reclining Remote Control
1984-11 → 1990-01 ended
BJ75 HT —
72053-90K00-06 note Lever Sub-assy, Reclining Remote Control
1986-08 → 1990-01 ended
BJ70,LJ70 RHD —
72053-90K01-03 note Lever Sub-assy, Reclining Remote Control
1984-11 → 1990-01 ended
BJ75 PIC —
72053-90K01-06 note Lever Sub-assy, Reclining Remote Control
1984-11 → 1990-01 ended
BJ75 PIC —
72053-90K02-03 note Lever Sub-assy, Reclining Remote Control
1984-11 → 1990-01 ended
BJ70,71,73,LJ7#,RJ7# LHD —
72053-90K02-06 note Lever Sub-assy, Reclining Remote Control
1984-11 → 1990-01 ended
BJ70,71,73,LJ7#,RJ7# LHD —
72054-90K00-03 note Lever Sub-assy, Reclining Remote Control
1987-08 → 1990-01 ended
LJ70 LHD VX —
72054-90K00-03 note Lever Sub-assy, Reclining Remote Control
1984-11 → 1990-01 ended
BJ7#,LJ7#,RJ7# LX,STD,VM —
72054-90K00-06 note Lever Sub-assy, Reclining Remote Control
1987-08 → 1990-01 ended
LJ70 LHD VX —
72054-90K00-06 note Lever Sub-assy, Reclining Remote Control
1984-11 → 1990-01 ended
BJ7#,LJ7#,RJ7# LX,STD,VM —
72054-90K03-03 note Lever Sub-assy, Reclining Remote Control
1988-01 → 1990-01 ended
LJ70 RHD VX —
72054-90K03-06 note Lever Sub-assy, Reclining Remote Control
1988-01 → 1990-01 ended
LJ70 RHD VX —
72053B — Spring(FOR RECLINING REMOTE CONTROL LEVER)
90508-16079 note Spring(FOR RECLINING REMOTE CONTROL LEVER)
1984-11 → 1990-01 ended
BJ7#,LJ7#,RJ7# —
90508-16080 note Spring(FOR RECLINING REMOTE CONTROL LEVER)
1984-11 → 1990-01 ended
BJ7#,LJ7#,RJ7# —
72110B — Track Assy, Seat, Outer RH (FOR BENCH SEAT)
72110-90K13 Track Assy, Seat, Outer RH (FOR BENCH SEAT)
1984-11 → 1987-08 ended
BJ75 PIC —
72110-90K21 Track Assy, Seat, Outer RH (FOR BENCH SEAT)
1987-08 → 1990-01 ended
BJ75 PIC —
72120S — Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
72120-90K00 Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
1984-11 → 1987-08 ended
BJ70,71,73,LJ7#,RJ7# LHD —
72120-90K01 Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
1986-08 → 1987-08 ended
BJ70,LJ70 RHD —
72120-90K03 note Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
1984-11 → 1985-12 ended
BJ70,71,73,LJ7#,RJ7# —
72120-90K03 note Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
1985-12 → 1986-08 ended
BJ70,71,73,LJ7#,RJ7# STD —
72120-90K03 note Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
1986-08 → 1987-08 ended
BJ70,71,73,LJ7#,RJ70 LHD LX —
72120-90K04 note Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
1986-08 → 1987-08 ended
LJ70 RHD —
72120-90K06 Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
1984-11 → 1987-08 ended
BJ75 —
72120-90K14 Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
1987-08 → 1990-01 ended
BJ70,71,73,LJ7#,RJ7# LHD —
72120-90K16 note Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
1987-08 → 1990-01 ended
BJ70,71,73,LJ7#,RJ7# LHD (LX,VX) —
72120-90K17 Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
1987-08 → 1990-01 ended
BJ75 —
72120-90K19 Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
1987-08 → 1990-01 ended
BJ70,LJ70 RHD —
72120-90K21 note Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
1987-08 → 1990-01 ended
LJ70 RHD LX —
72130 — Track Assy, RH Seat, Inner
72130-90K00 Track Assy, RH Seat, Inner
1984-11 → 1990-01 ended
BJ70,71,73,LJ7#,RJ7# —
72130-90K02 note Track Assy, RH Seat, Inner
1984-11 → 1985-12 ended
BJ70,71,73,LJ7#,RJ7# —
72130-90K02 note Track Assy, RH Seat, Inner
1985-12 → 1986-08 ended
BJ70,71,73,LJ7#,RJ7# STD —
72130-90K02 note Track Assy, RH Seat, Inner
1986-08 → 1990-01 ended
BJ70,71,73,LJ7#,RJ7# LX —
72130-90K02 note Track Assy, RH Seat, Inner
1987-08 → 1990-01 ended
LJ70 LHD VX —
72130-90K04 Track Assy, RH Seat, Inner
1984-11 → 1990-01 ended
BJ75 HT —
72130-90K07 Track Assy, RH Seat, Inner
1984-11 → 1990-01 ended
BJ75 PIC —
72140 — Track Assy, LH Seat, Inner
72140-90K00 Track Assy, LH Seat, Inner
1984-11 → 1990-01 ended
BJ70,71,73,LJ7#,RJ7# —
72140-90K03 note Track Assy, LH Seat, Inner
1986-08 → 1990-01 ended
BJ70,71,73,LJ7#,RJ7# LX —
72140-90K03 note Track Assy, LH Seat, Inner
1987-08 → 1990-01 ended
LJ70 LHD VX —
72140-90K03 note Track Assy, LH Seat, Inner
1985-12 → 1986-08 ended
BJ70,71,73,LJ7#,RJ7# STD —
72140-90K03 note Track Assy, LH Seat, Inner
1984-11 → 1985-12 ended
BJ70,71,73,LJ7#,RJ7# —
72140-90K06 Track Assy, LH Seat, Inner
1984-11 → 1990-01 ended
BJ75 —
72205B — Pin Sub-assy, Seat Track Open Lever
72205-90K00 Pin Sub-assy, Seat Track Open Lever
1984-11 → 1990-01 ended
BJ75 PIC —
72510 — Adjuster Assy, Reclining Seatback, RH
72510-90K00 Adjuster Assy, Reclining Seatback, RH
1986-08 → 1990-01 ended
BJ70,LJ70 RHD —
72510-90K01-01 note Adjuster Assy, Reclining Seatback, RH
1984-11 → 1990-01 ended
BJ75 HT —
72510-90K02 Adjuster Assy, Reclining Seatback, RH
1984-11 → 1990-01 ended
BJ75 PIC —
72510-90K07 Adjuster Assy, Reclining Seatback, RH
1984-11 → 1990-01 ended
BJ70,71,73,LJ7#,RJ7# LHD —
72510A — Spring, Tension, NO.1(FOR RECLINING SEAT ADJUSTER)
90507-16007 Spring, Tension, NO.1(FOR RECLINING SEAT ADJUSTER)
1984-11 → 1990-01 ended
BJ7#,LJ7#,RJ7# —
72520 — Adjuster Assy, Reclining Seatback, LH
72520-90K00 Adjuster Assy, Reclining Seatback, LH
1984-11 → 1990-01 ended
BJ7#,LJ7#,RJ7# LHD (HT,SOT) —
72520-90K01-01 note Adjuster Assy, Reclining Seatback, LH
1986-08 → 1988-01 ended
BJ70,LJ70 RHD —
72520-90K01-01 note Adjuster Assy, Reclining Seatback, LH
1988-01 → 1990-01 ended
BJ70,LJ70 RHD (LX,STD) —
72520-90K02 Adjuster Assy, Reclining Seatback, LH
1984-11 → 1990-01 ended
BJ75 PIC —
72520-90K10 Adjuster Assy, Reclining Seatback, LH
1988-01 → 1990-01 ended
LJ70 RHD VX —
72590 — Cable Assy, Seatback Control
72570-90K00 note Cable Assy, Seatback Control
1984-11 → 1990-01 ended
BJ7#,LJ7#,RJ7# HT,SOT —
72570-90K01 note Cable Assy, Seatback Control
1984-11 → 1990-01 ended
BJ75 PIC —
72580-90K00 note Cable Assy, Seatback Control
1984-11 → 1990-01 ended
BJ7#,LJ7#,RJ7# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
