Toyota Land Cruiser
1984-11 → 1990-01 · chassis RJ7#,LJ7#,BJ7# · catalogue 781520 · Europe
Discontinued model
Data version 1990-06

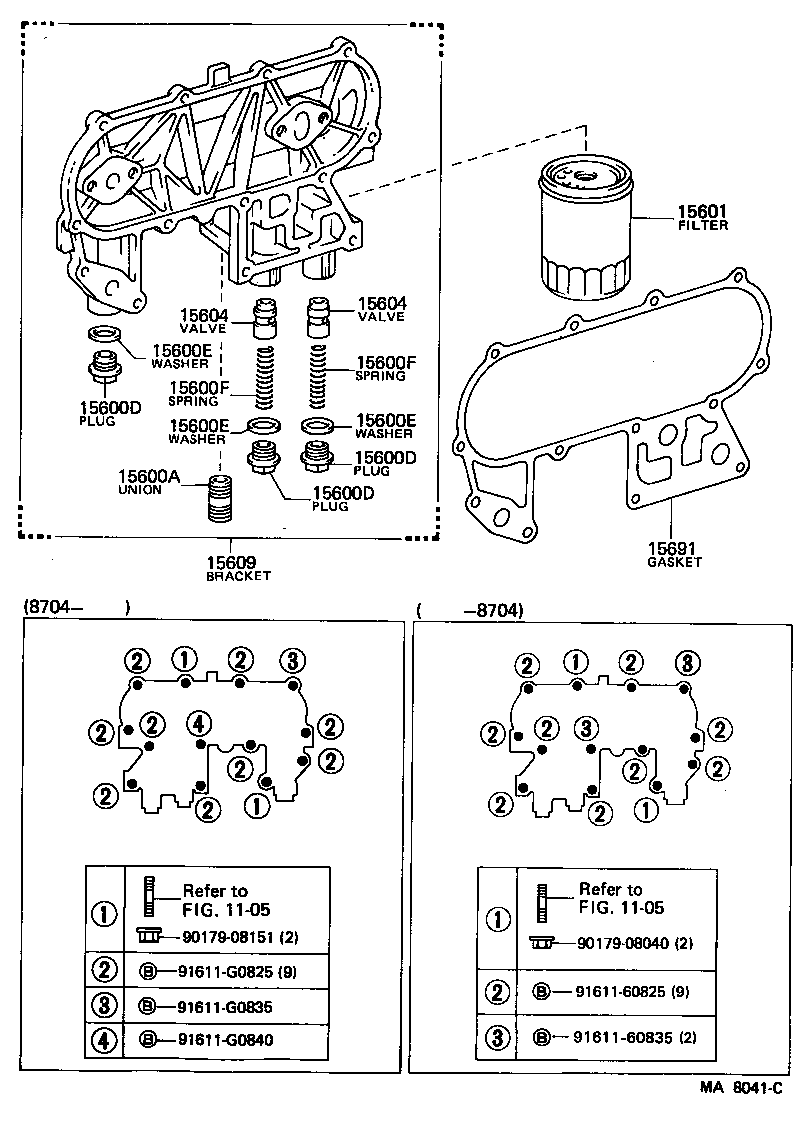

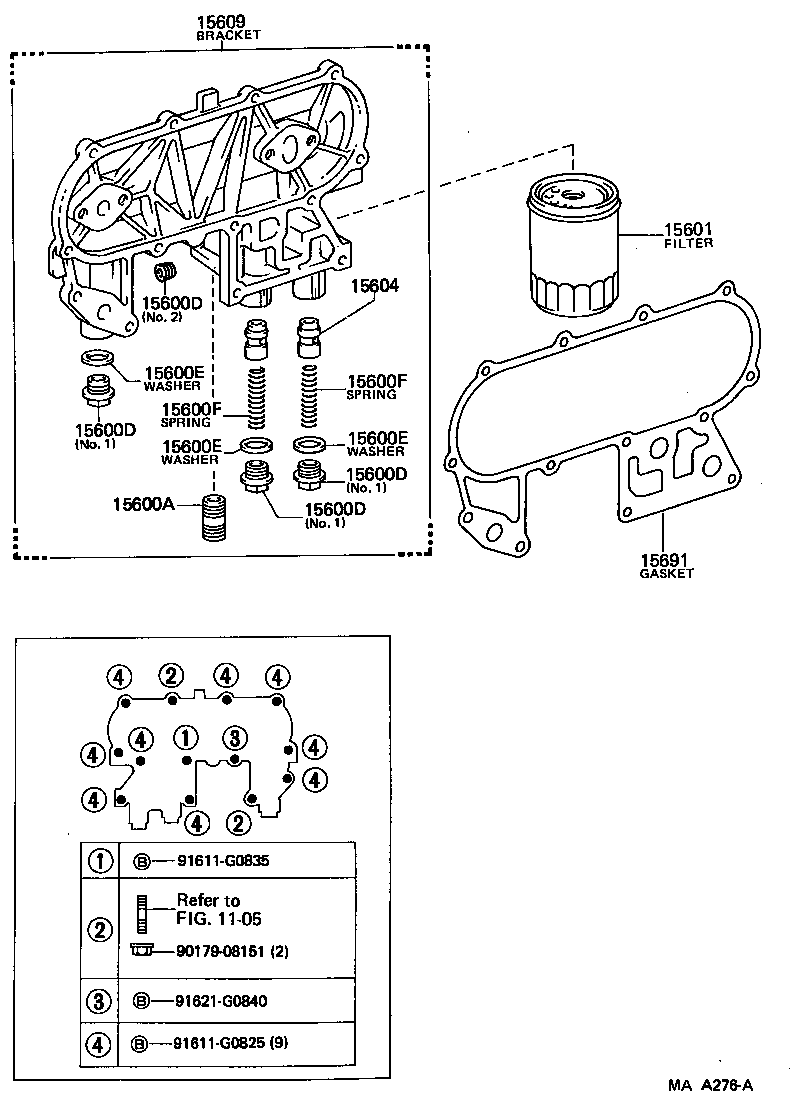

Oil Filter
8 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 15600A | Union(FOR OIL FILTER) |
| 15600D | Plug(FOR OIL FILTER) |
| 15600E | Washer(FOR OIL FILTER) |
| 15600F | Spring, Compression(FOR OIL FILTER) |
| 15601 | Filter Sub-assy, Oil |
| 15604 | Valve Sub-assy, Oil Safety |
| 15609 | Bracket Sub-assy, Oil Filter |
| 15691 | Gasket, Oil Filter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
