Toyota Land Cruiser

1984-11 → 1990-01 · chassis RJ7#,LJ7#,BJ7# · catalogue 781520 · Europe

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

52 part groups · 9 illustrations

Illustrations

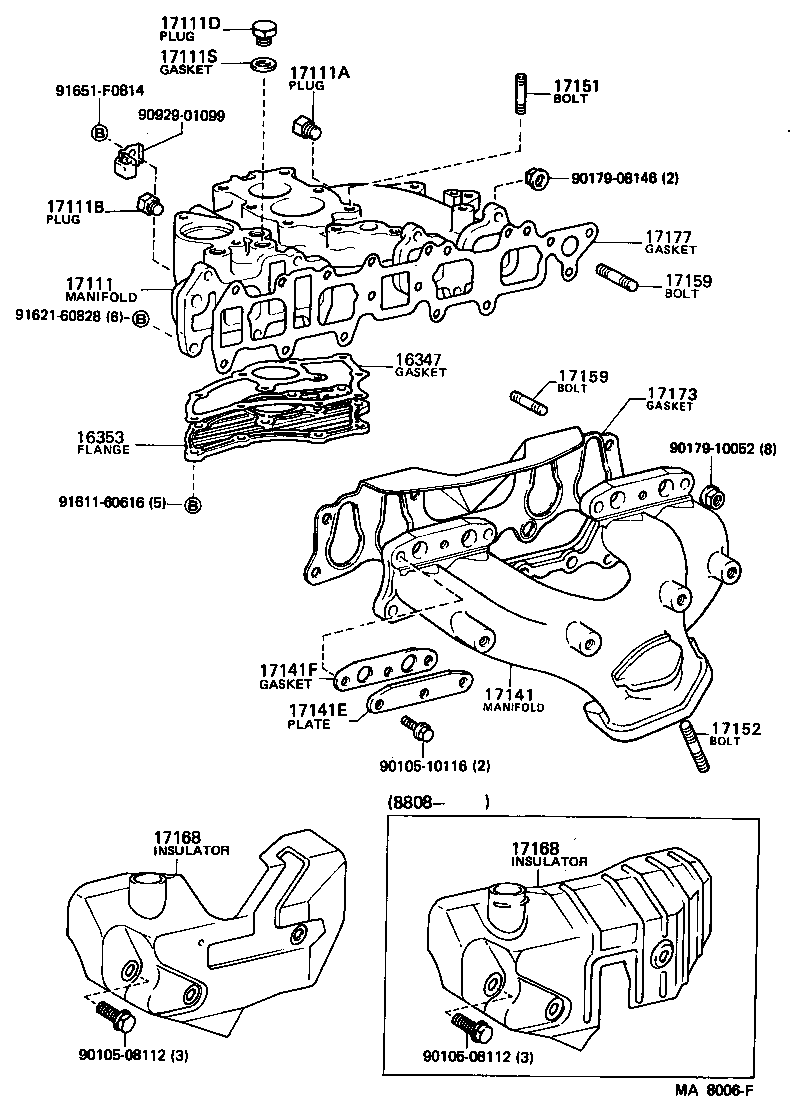

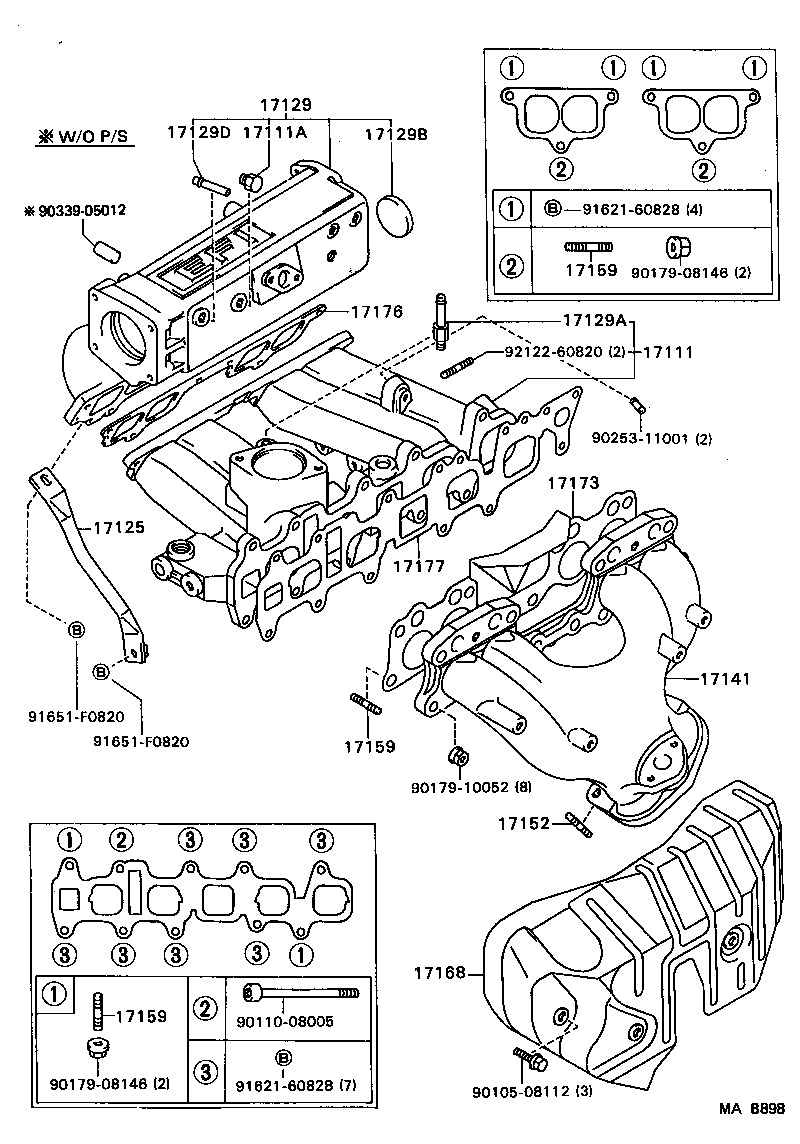

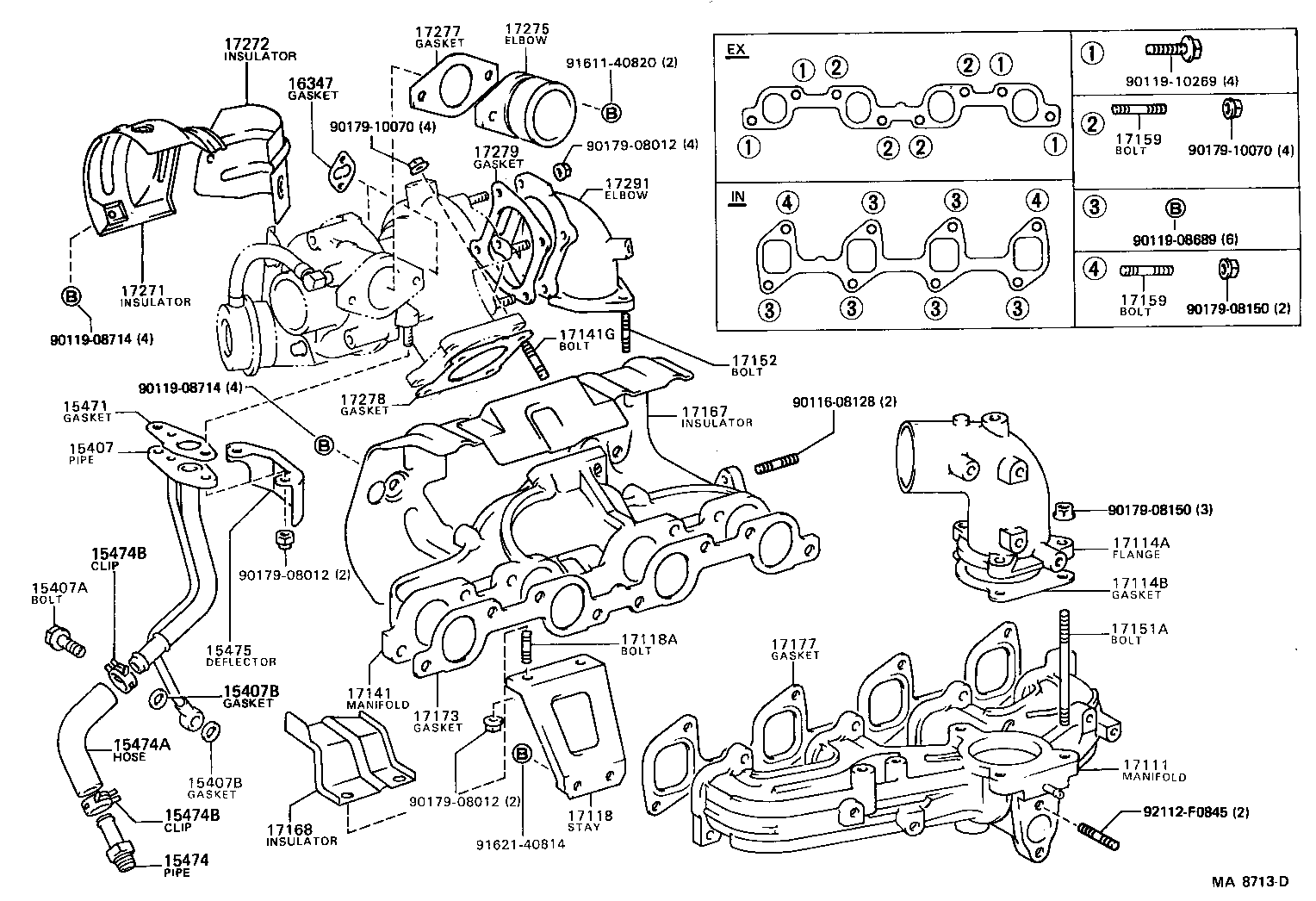

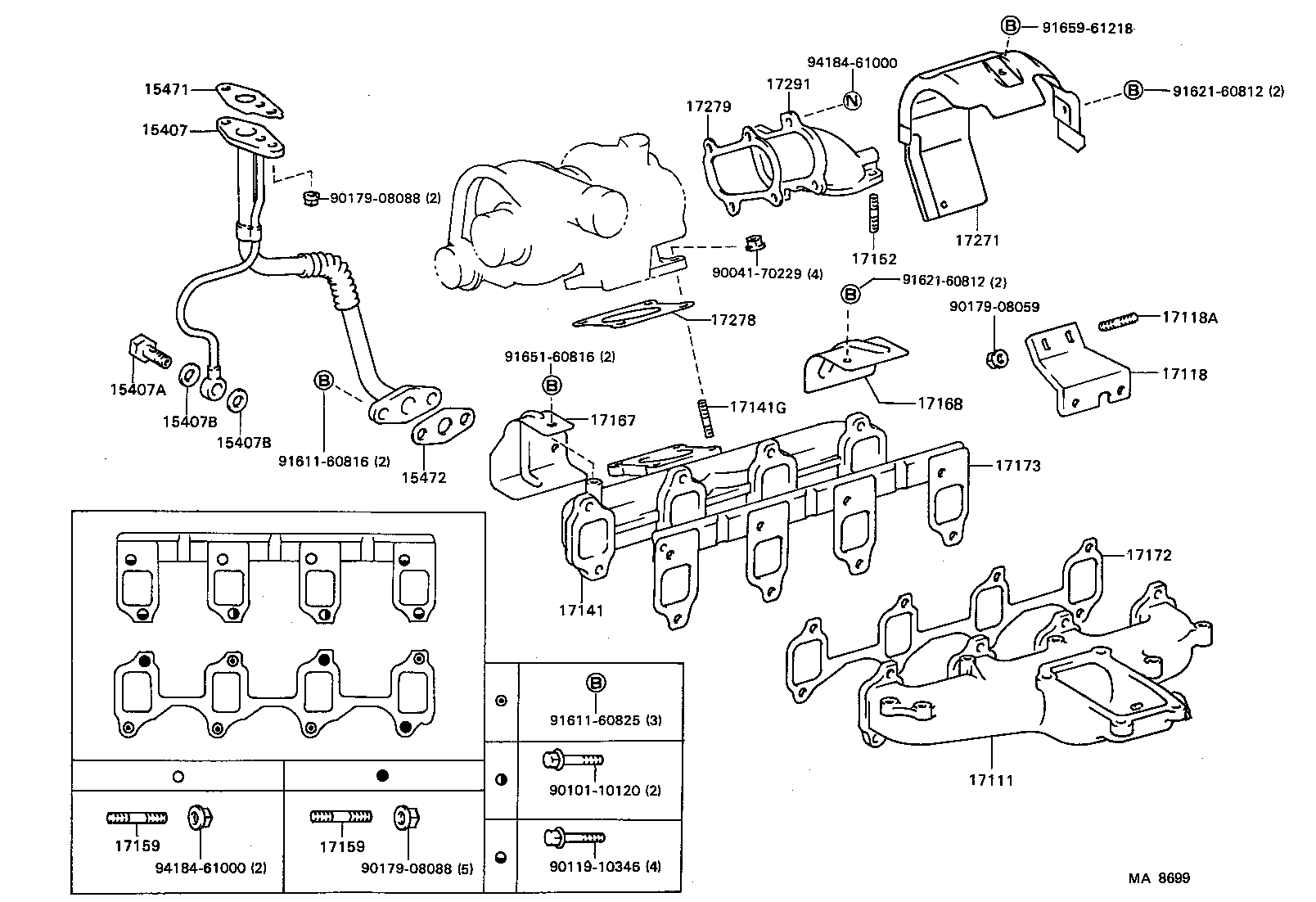

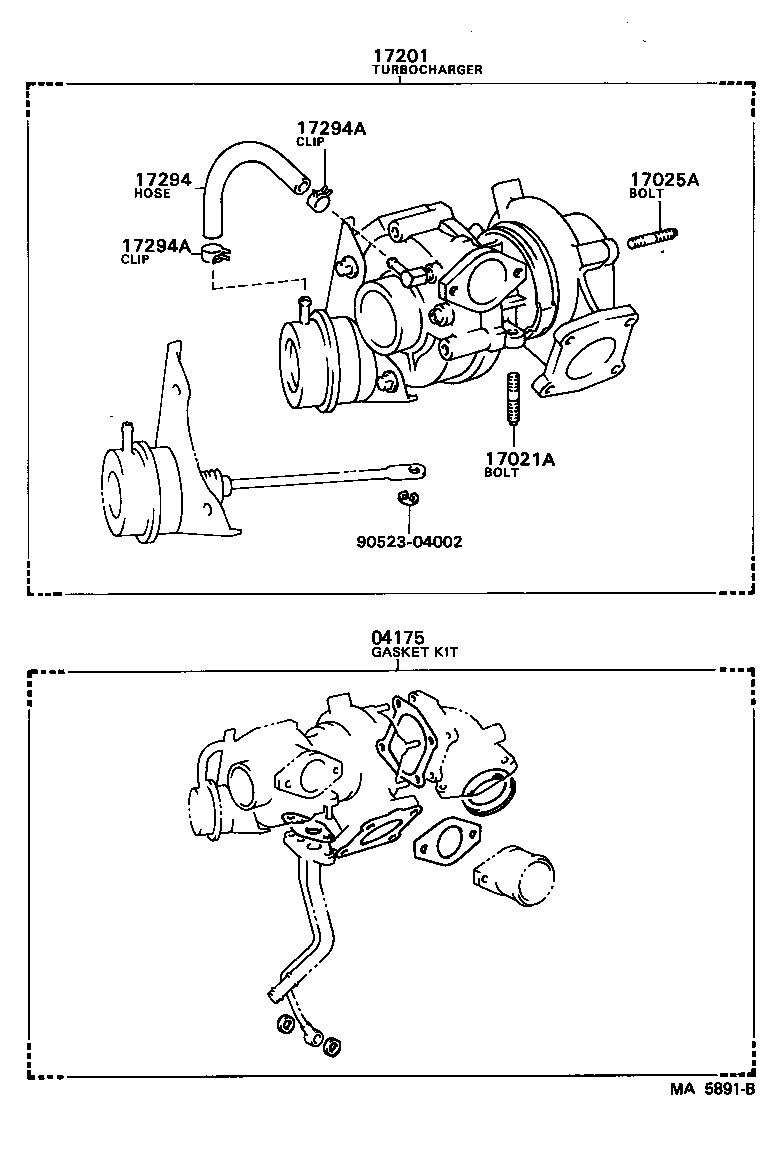

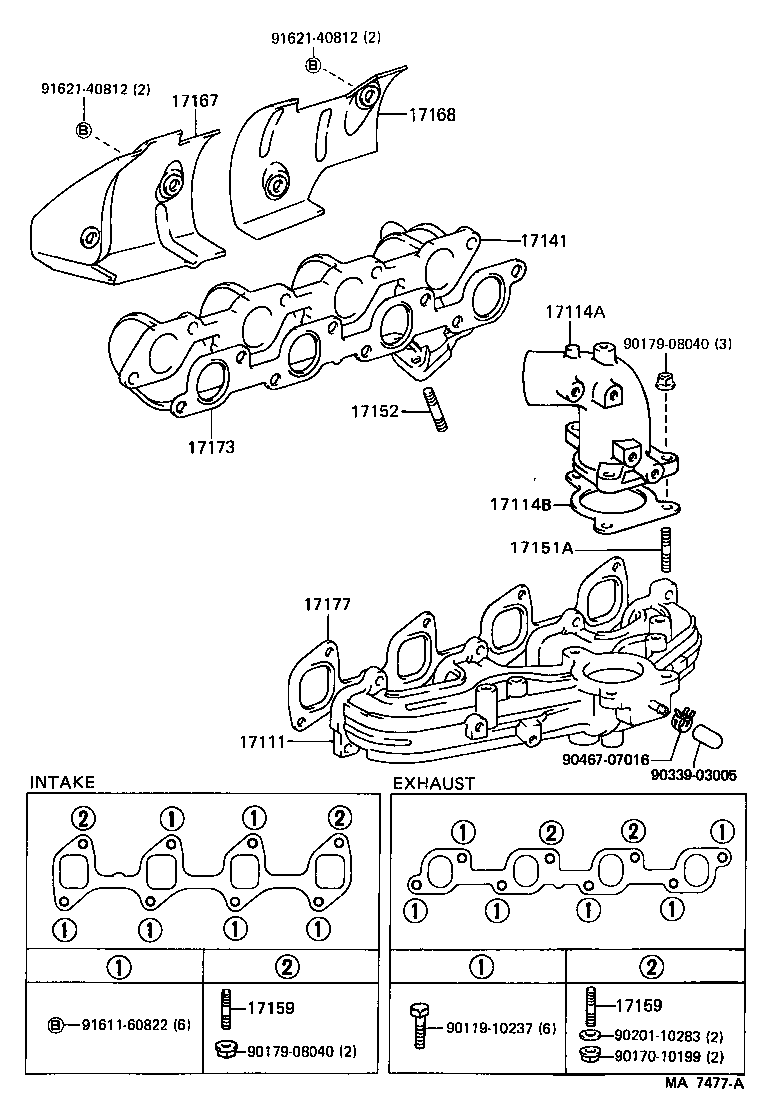

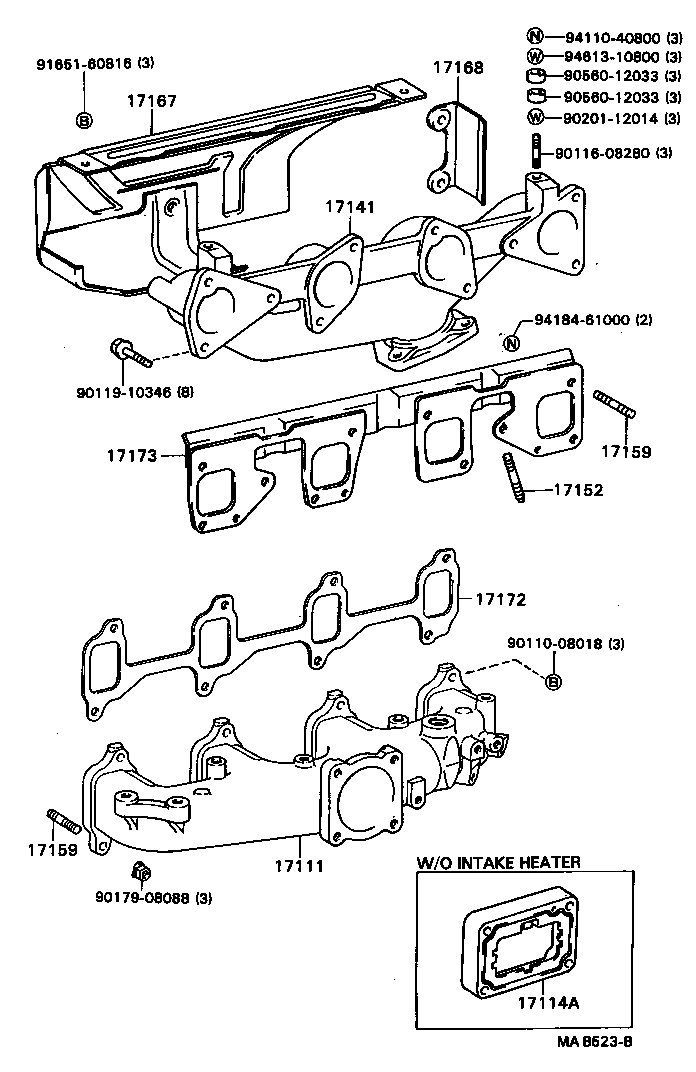

Figure MA7966B MA7966B 1984-11 → 1988-08 Figure MAB523B MAB523B 1988-08 → — Figure MA8699 MA8699 1985-10 → — Figure MA7739B MA7739B 1985-10 → — Figure MA7477A MA7477A 1984-11 → 1985-10 Figure MA8713D MA8713D 1985-10 → — Figure MA5891B MA5891B 1985-10 → — Figure MA8006F MA8006F 1984-11 → — Figure MAB898 MAB898 1988-12 → —

Part groups

PNCDescription
04175 Gasket Kit, Turbocharger
15407 Pipe Sub-assy, Turbo Oil Inlet
15407A Bolt, Union(FOR TURBO OIL INLET PIPE)
15407B Gasket(FOR TURBO OIL INLET PIPE)
15471 Gasket, Turbo Oil Inlet
15472 Gasket, Turbo Oil Outlet, NO.1
15474 Pipe, Turbo Oil Outlet
15474A Hose, Turbo Oil Outlet
15474B Clamp OR Clip(FOR TURBO OIL OUTLET HOSE)
15475 Deflector, Oil
16347 Gasket, Water By-pass
16353 Flange, Water By-pass
17021A Bolt, Stud(FOR BEARING HOUSING)
17025A Bolt, Stud(FOR TURBINE HOUSING)
17111 Manifold, Intake
17111A Plug, NO.1
17111B Plug, NO.2
17111D Plug, NO.4
17111S Gasket(FOR MANIFOLD PLUG)
17114A Flange, Intake
17114B Gasket, Intake Flange
17118 Stay, Manifold
17118A Bolt, Stud(FOR MANIFOLD STAY)
17125 Stay, Surge Tank, NO.1
17129 Tank, Intake Air Surge
17129A Union, NO.1
17129B Plug
17129D Union, NO.2
17141 Manifold, Exhaust
17141E Plate, Exhaust Manifold
17141F Gasket(FOR EXHAUST MANIFOLD PLATE)
17141G Bolt, Stud(FOR TURBOCHARGER)
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17151A Bolt, Stud(FOR MANIFOLD TO VENTURI)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17172 Gasket, Manifold TO Cylinder Head
17173 Gasket, Exhaust Manifold TO Head
17176 Gasket, Air Surge Tank TO Intake Manifold
17177 Gasket, Intake Manifold TO Head, NO.1
17201 Turbocharger Sub-assy
17271 Insulator, Turbo, NO.1
17272 Insulator, Turbo, NO.2
17275 Elbow, Compressor Outlet
17277 Gasket, Compressor Outlet
17278 Gasket, Turbo TO Exhaust Manifold
17279 Gasket, Turbine Outlet Elbow
17291 Elbow, Turbine Outlet
17294 Hose, Actuator
17294A Clip(FOR ACTUATOR HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
