Toyota Land Cruiser

1984-11 → 1990-01 · chassis RJ7#,LJ7#,BJ7# · catalogue 781520 · Europe

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

20 part groups · 5 illustrations

Illustrations

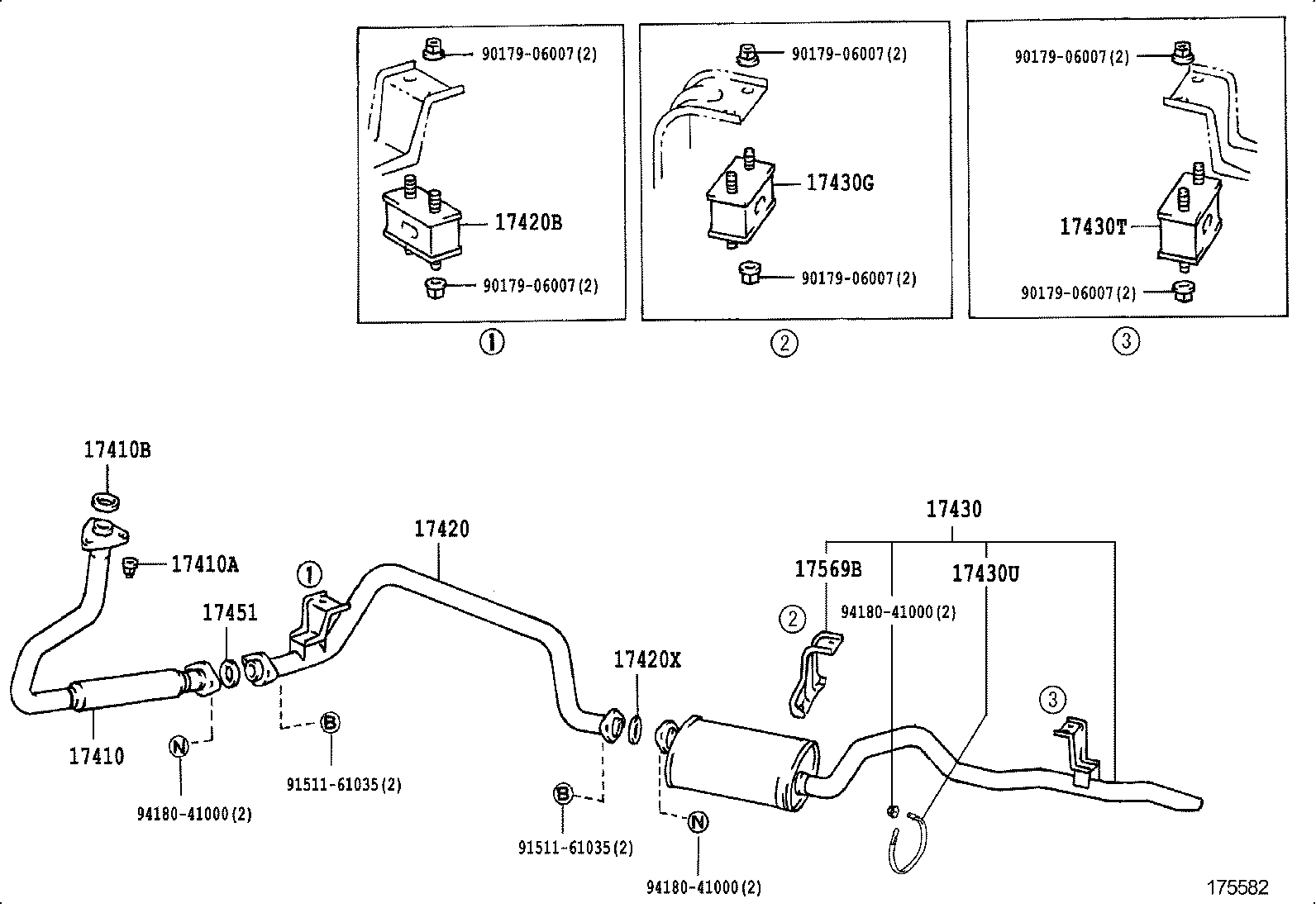

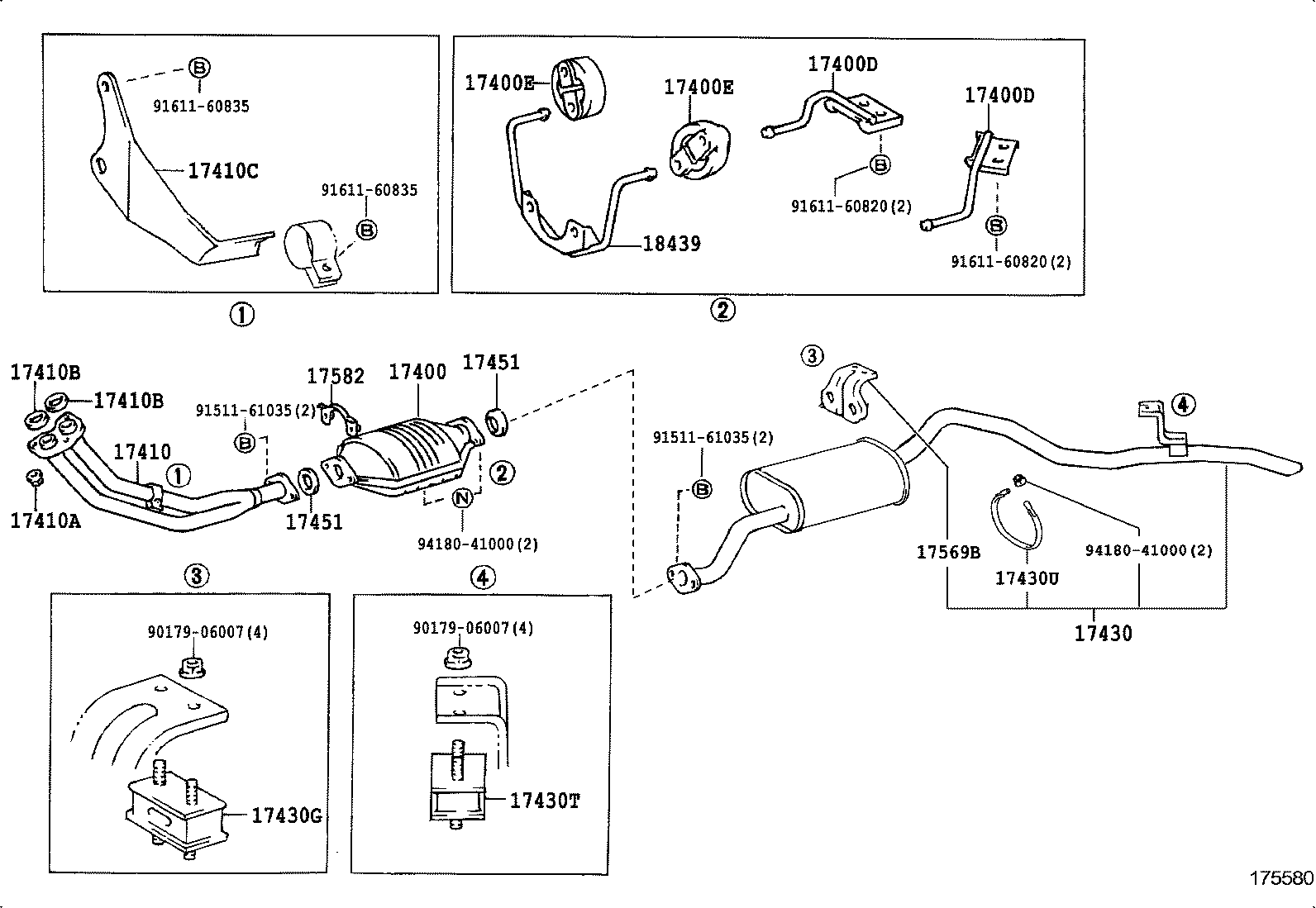

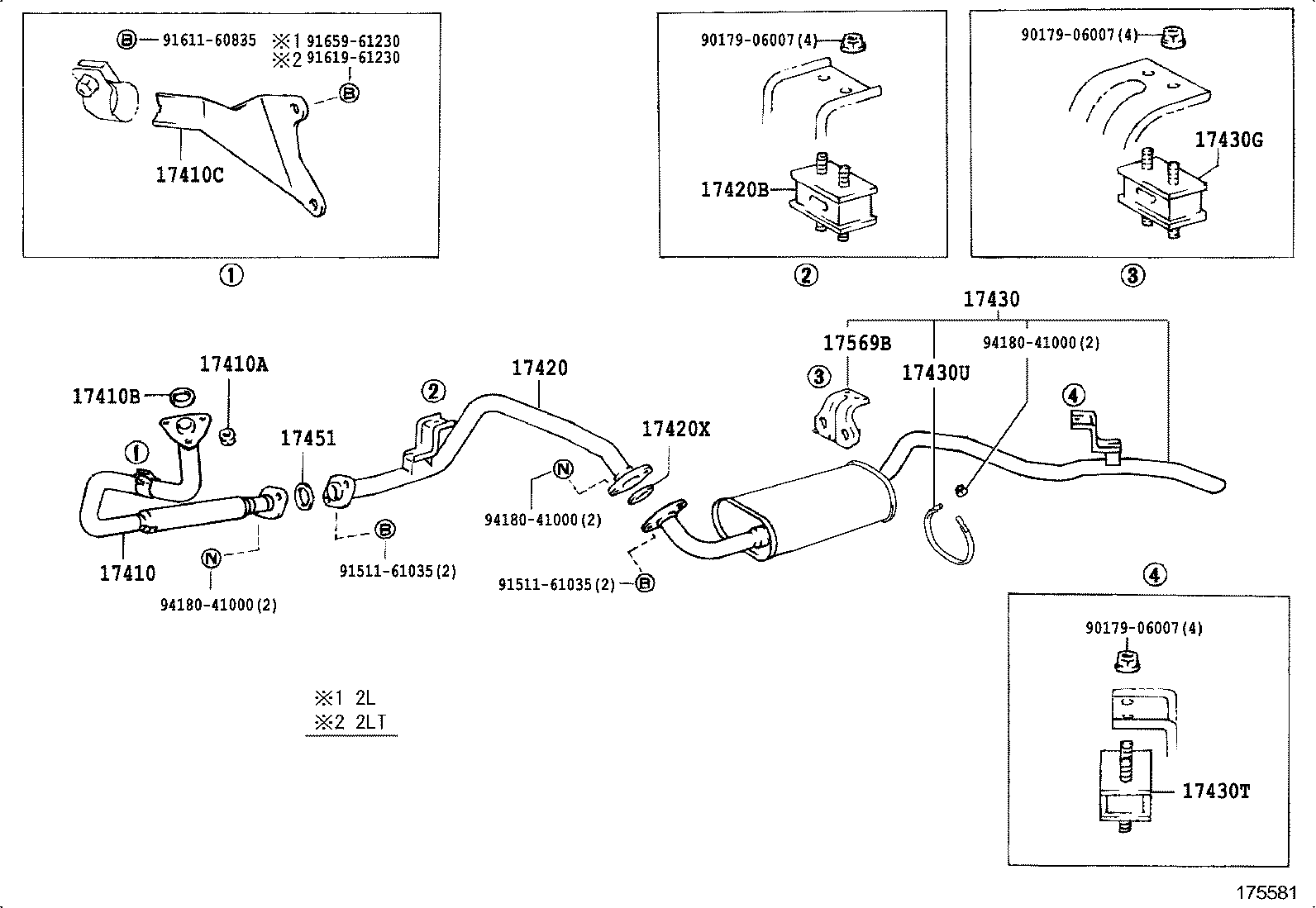

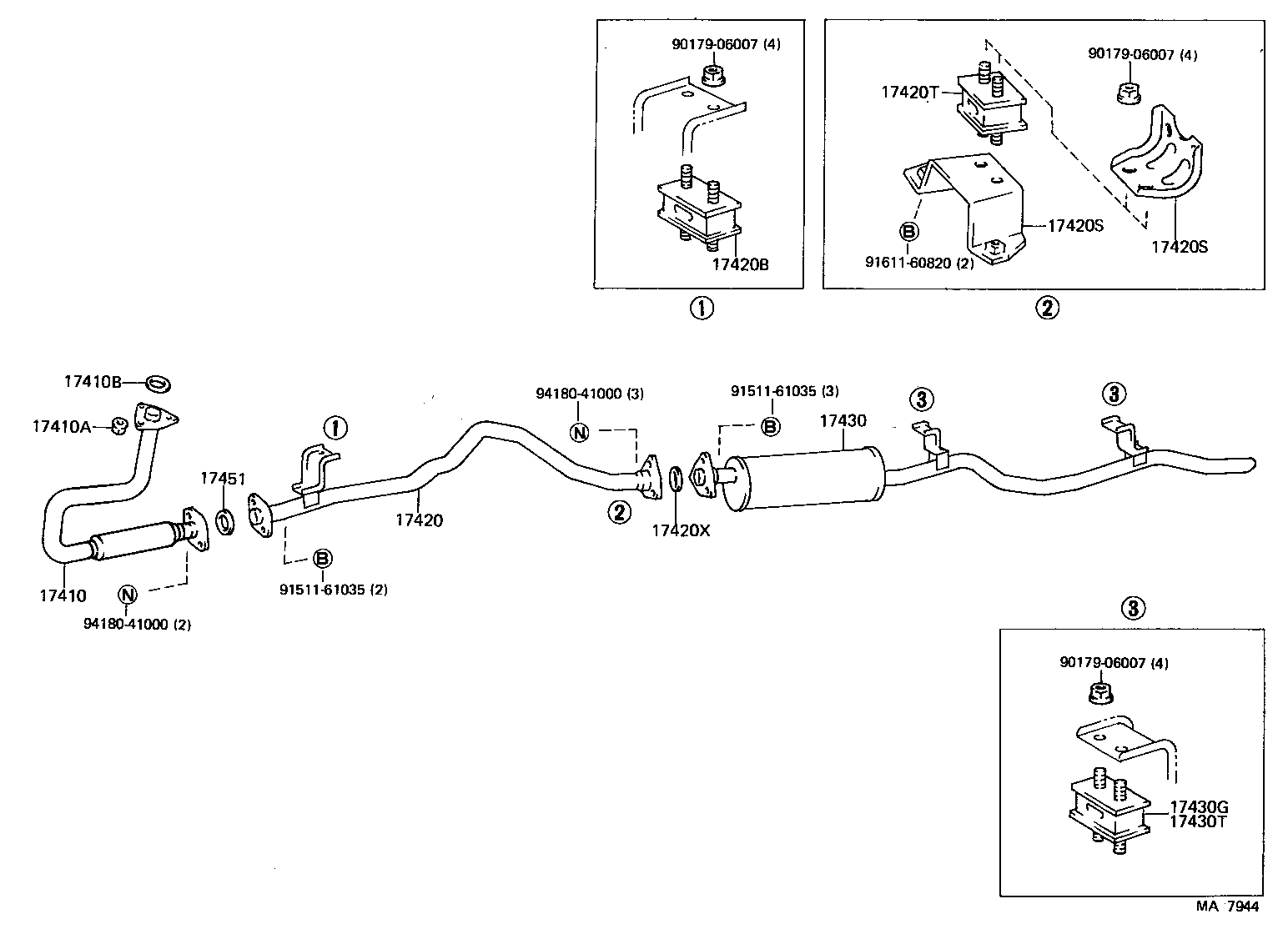

Figure 175579A 175579A 1984-11 → — Figure 175580A 175580A 1988-12 → — Figure 175581A 175581A 1984-11 → — Figure 175582B 175582B 1984-11 → — Figure MA7944 MA7944 1984-11 → —

Part groups

PNCDescription
17400 Converter Assy, W/Catalyst
17400D Bracket, Catalytic Converter Support
17400E Ring, Catalytic Converter
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17410C Bracket, Exhaust Pipe Front (FOR FRONT)
17420 Pipe Assy, Exhaust, Center
17420B Cushion, Exhaust Pipe Center, Front
17420S Bracket, Exhaust Pipe Center, Rear
17420T Cushion, Exhaust Pipe Center, Rear
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17430G Cushion, Exhaust Tailpipe(FOR CENTER)
17430T Cushion, Exhaust Tailpipe (FOR REAR)
17430U Clamp NO.1, Exhaust Tailpipe (FOR REAR)
17451 Gasket, Exhaust Pipe
17569B Stay, Exhaust Pipe Support, NO.2
17582 Bracket, Catalytic Converter Support, Upper
18439 Bracket, Convertor Protector, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
