Toyota Land Cruiser

1984-11 → 1990-01 · chassis RJ7#,LJ7#,BJ7# · catalogue 781520 · Europe

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Pump

11 part groups · 4 illustrations

Illustrations

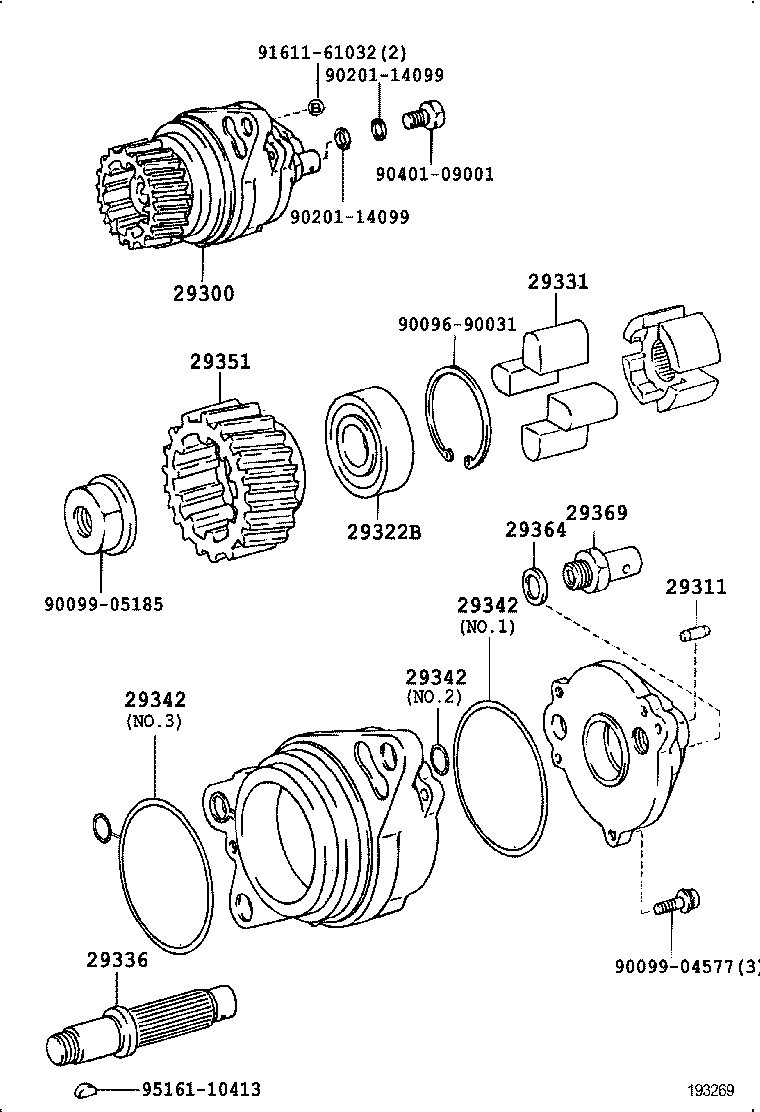

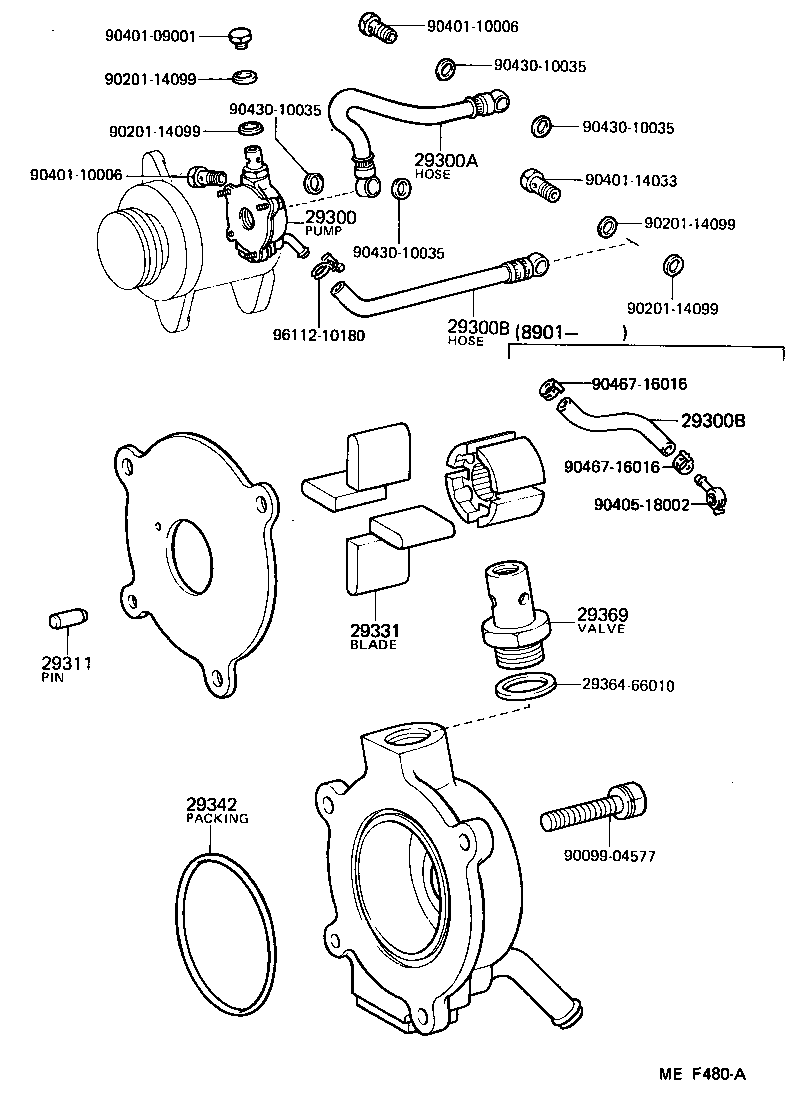

Figure MEF479D MEF479D 1984-11 → — Figure MEF480A MEF480A 1984-11 → 1988-08 Figure MEF480A MEF480A 1988-08 → — Figure 193269 193269 1988-08 → —

Part groups

PNCDescription
29300 Pump Assy, Vacuum
29300A Hose, Vacuum Pump Oil Inlet
29300B Hose, Vacuum Pump Oil Outlet
29311 Pin, Vacuum Pump Dowel, NO.1
29322B Bearing, Vacuum Pump
29331 Blade, Vacuum Pump, A
29336 Shaft, Vacuum Pump
29342 Packing, Vacuum Pump
29351 Gear, Vacuum Pump
29364 Washer, Vacuum Pump
29369 Valve Sub-assy, Check
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
