Toyota Land Cruiser
1984-11 → 1990-01 · chassis RJ7#,LJ7#,BJ7# · catalogue 781520 · Europe
Discontinued model
Data version 1990-06
Clutch & Release Fork
10 part groups · 6 illustrations
Part groups

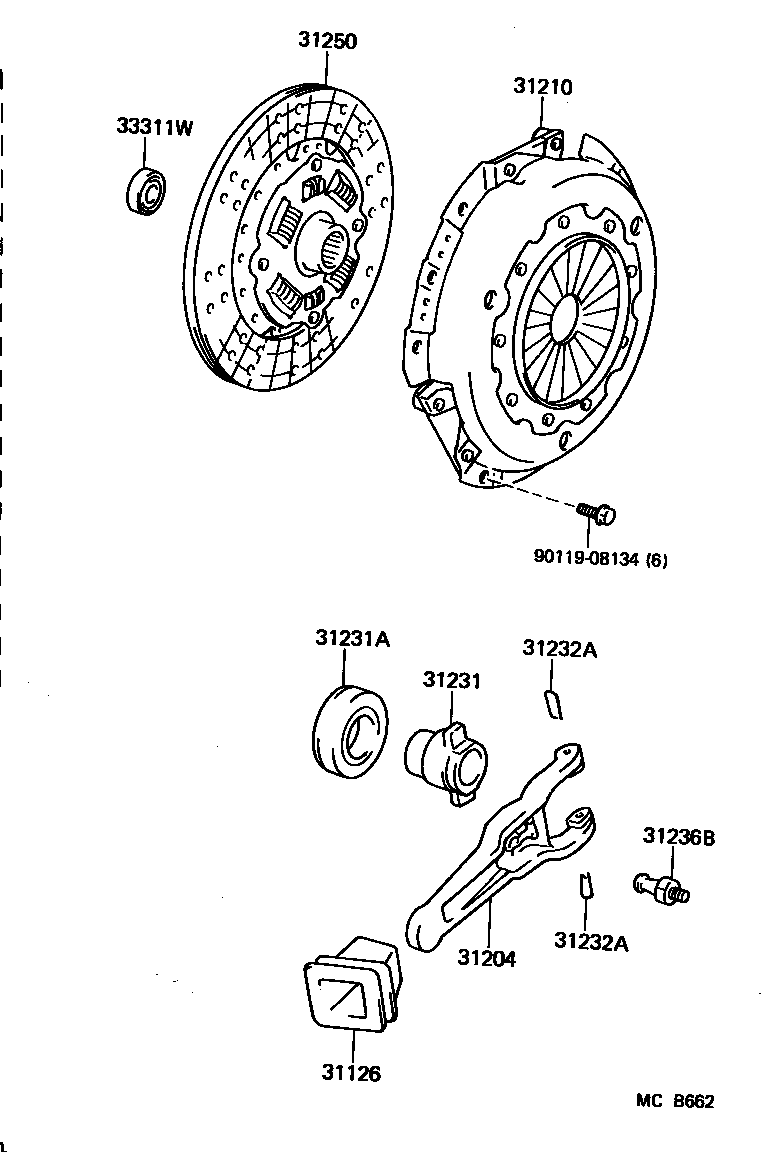

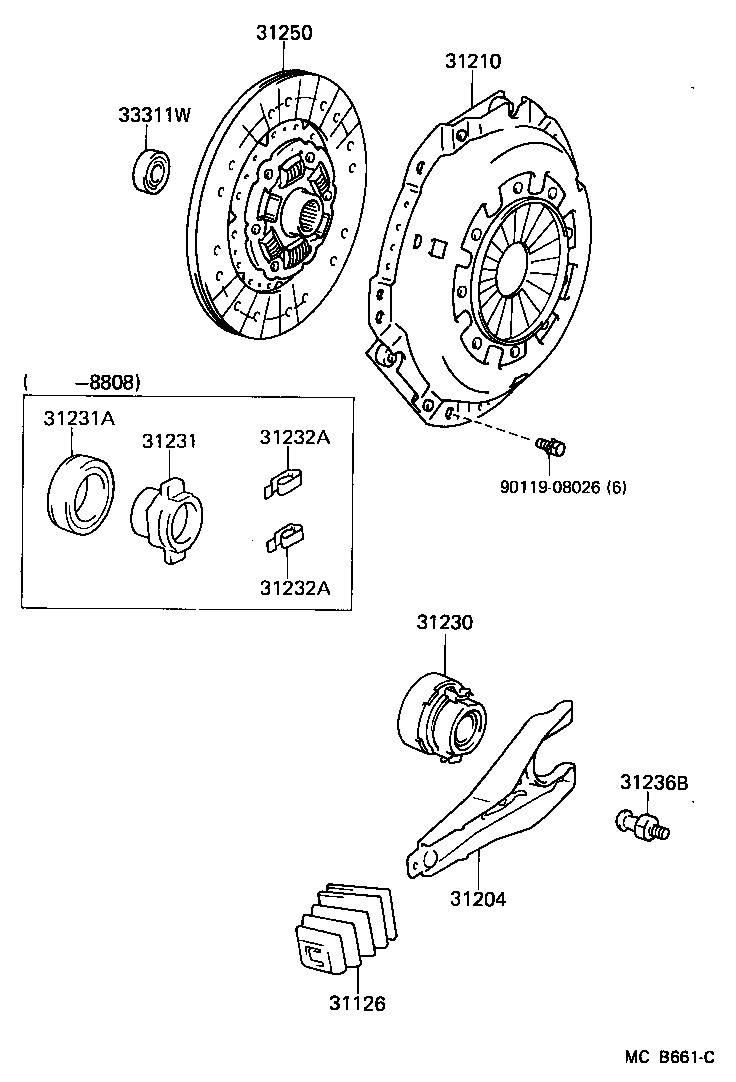

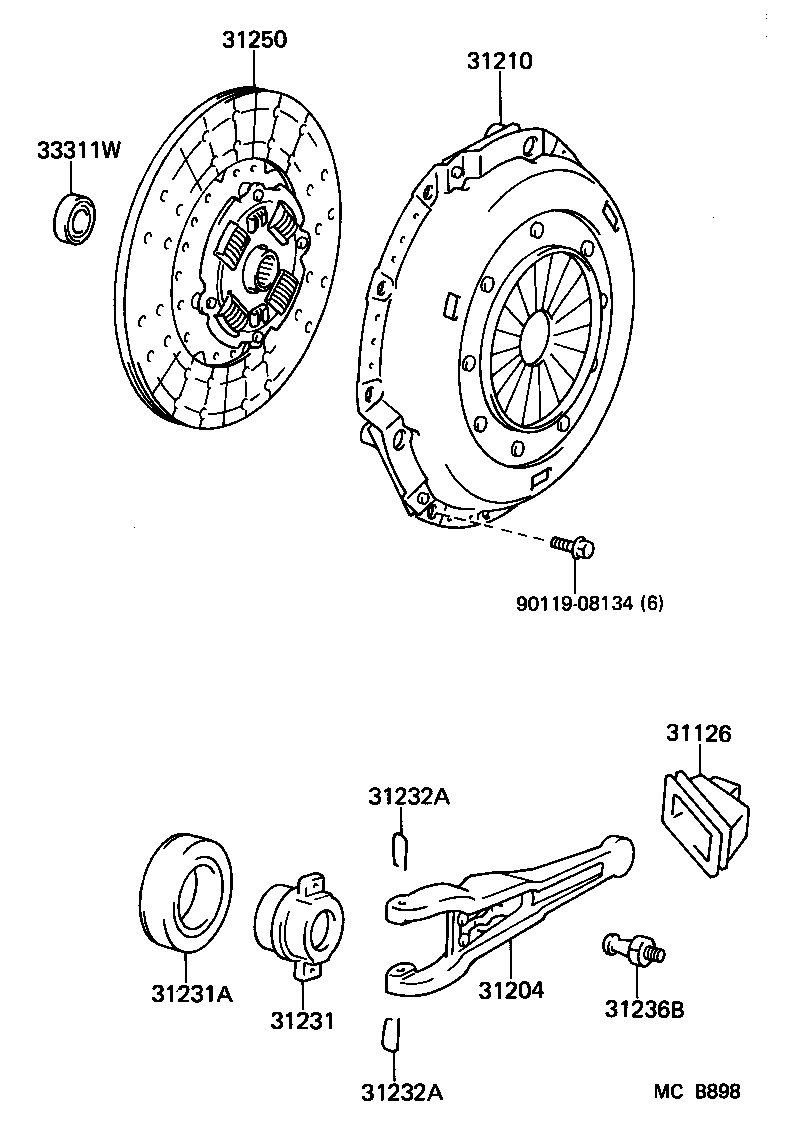

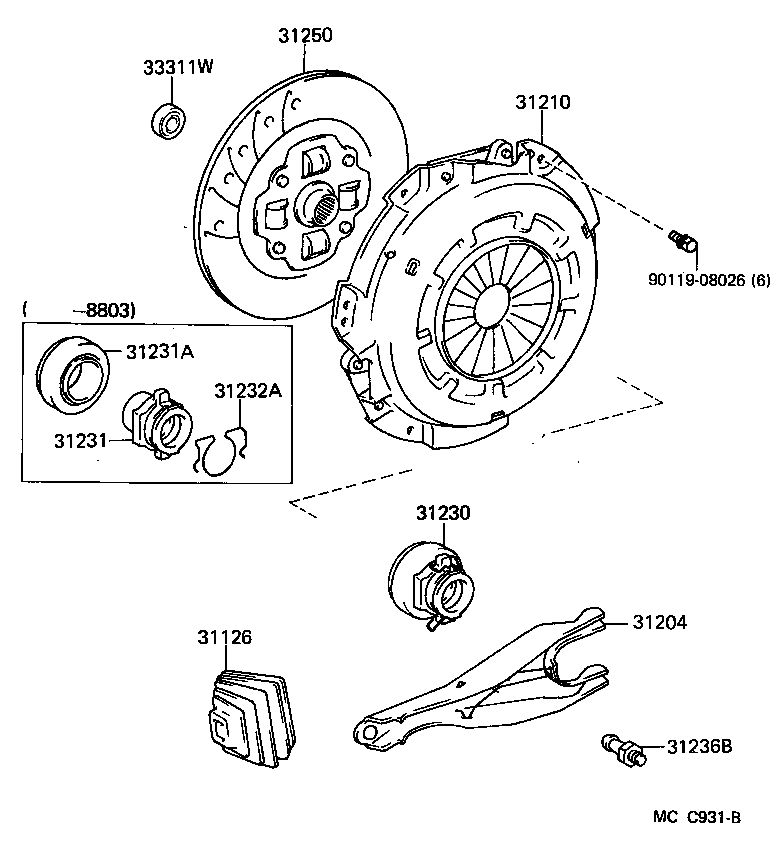

| PNC | Description |
|---|---|
| 31126 | Boot, Clutch Release Fork |
| 31204 | Fork Sub-assy, Clutch Release |
| 31210 | Cover Assy, Clutch |
| 31230 | Bearing Assy, Clutch Release |
| 31231 | Hub, Clutch Release Bearing |
| 31231A | Bearing, Ball(FOR CLUTCH RELEASE HUB) |
| 31232A | Clip, Release Bearing Hub |
| 31236B | Support, Release Fork |
| 31250 | Disc Assy, Clutch |
| 33311W | Bearing (FOR INPUT SHAFT) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
