Toyota Land Cruiser

1984-11 → 1990-01 · chassis RJ7#,LJ7#,BJ7# · catalogue 781520 · Europe

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Master Cylinder

19 part groups · 7 illustrations

Illustrations

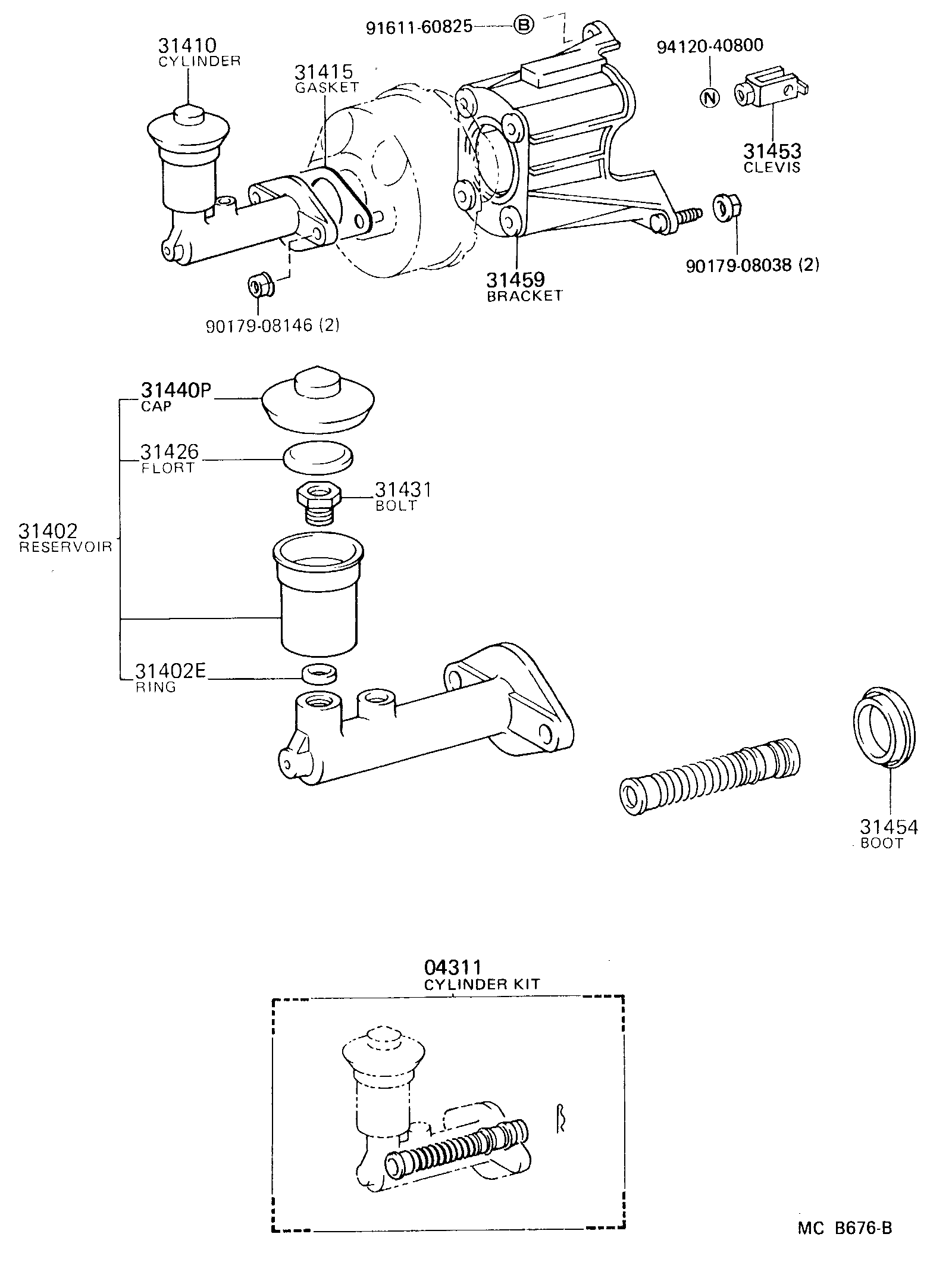

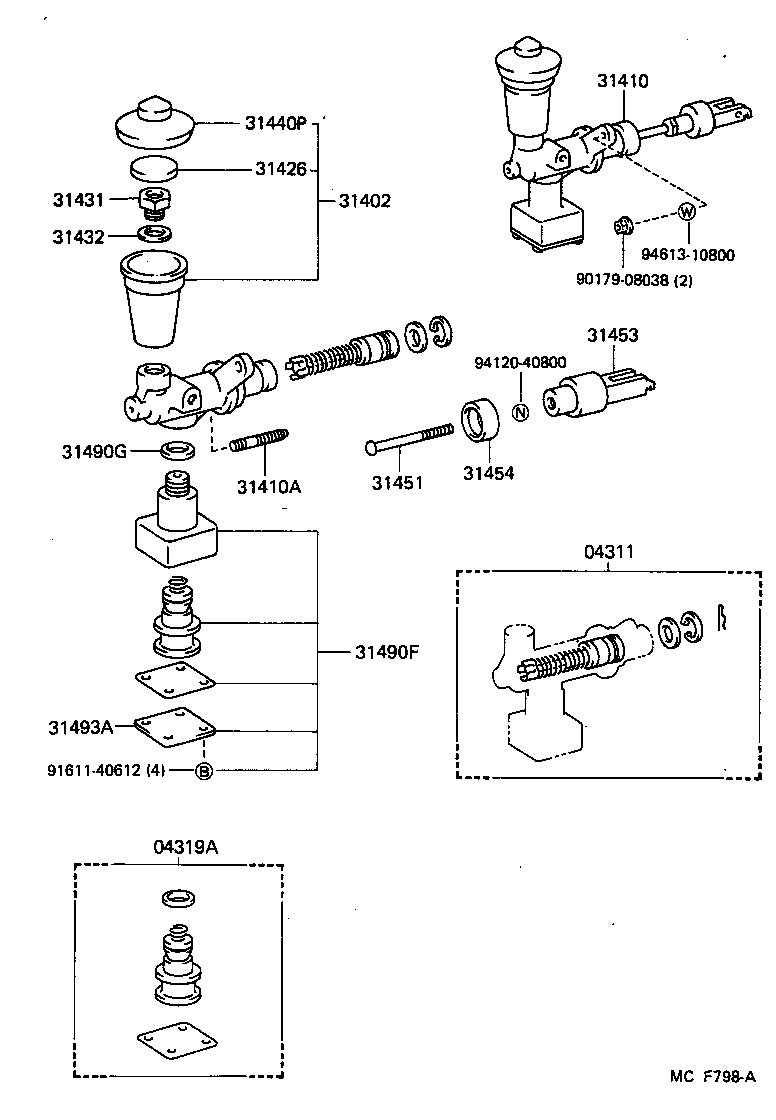

Figure MCB673C MCB673C 1984-11 → 1987-12 Figure MCB673C MCB673C 1984-11 → — Figure MCB673C MCB673C 1987-12 → — Figure MCF798A MCF798A 1987-12 → — Figure MCC951B MCC951B 1986-08 → — Figure MCB676B MCB676B 1984-11 → — Figure MCD755A MCD755A 1986-08 → 1988-08

Part groups

PNCDescription
04311 Cylinder Kit, Clutch Master
04319A Cylinder Kit, Clutch Accumulator
31402 Reservoir Sub-assy, Clutch Master Cylinder
31402E Ring(FOR CLUTCH MASTER CYLINDER RESERVOIR)
31410 Cylinder Assy, Clutch Master
31410A Bolt(FOR CLUTCH MASTER CYLINDER SETTING)
31415 Gasket, Clutch Master Cylinder
31426 Float, Clutch Master Cylinder Reservoir
31431 Bolt, Clutch Master Cylinder Reservoir Set
31432 Washer, Clutch Reservoir Set Bolt
31440P Cap Assy, Clutch Master Cylinder Reservoir Filler
31451 Rod, Clutch Master Cylinder Push
31453 Clevis, Clutch Master Cylinder Push Rod
31454 Boot, Clutch Master Cylinder
31459 Bracket, Clutch Master Cylinder
31464 Insulator, Clutch Master Cylinder Heat
31490F Accumulator Assy, Master Cylinder
31490G Gasket(FOR CLUTCH MASTER CYLINDER ACCUMULATOR)
31493A Bracket, Clutch Accumulator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
