Toyota Land Cruiser
1984-11 → 1990-01 · chassis RJ7#,LJ7#,BJ7# · catalogue 781520 · Europe
Discontinued model
Data version 1990-06

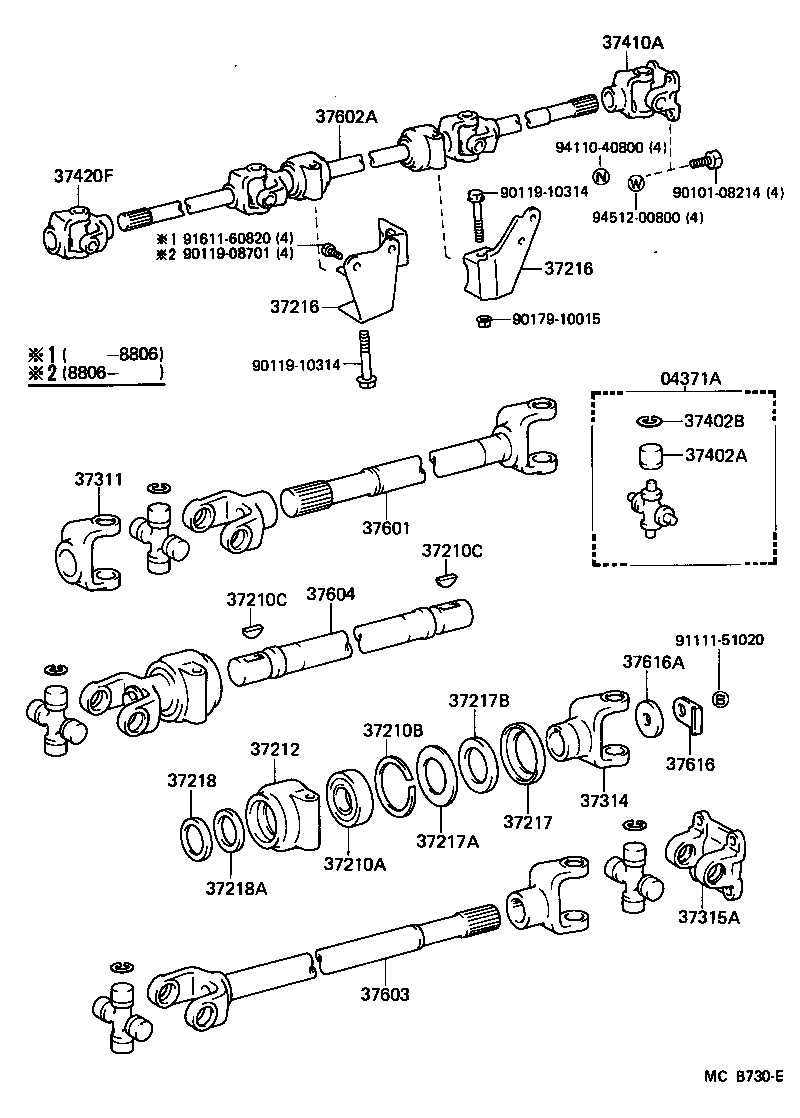

Drive Shaft
24 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 04371A | Spider Kit, Universal Joint(FOR WINCH DRIVE SHAFT) |
| 37210A | Bearing (FOR PILLOW BLOCK) |
| 37210B | Ring, Hole Snap (FOR PILLOW BLOCK BEARING) |
| 37210C | Key, Woodruff (FOR PILLOW BLOCK) |
| 37212 | Body, Pillow Block, NO.2 |
| 37216 | Bracket, Pillow Block |
| 37217 | Retainer, Dust Seal, NO.1 |
| 37217A | Washer, Plate (FOR PILLOW BLOCK RETAINER) |
| 37217B | Seal, Dust (FOR PILLOW BLOCK RETAINER) |
| 37218 | Retainer, Dust Seal, NO.2 |
| 37218A | Seal, Dust (FOR NO.2 PILLOW BLOCK RETAINER) |
| 37311 | Yoke, Universal Joint, NO.1 (FOR WINCH DRIVE SHAFT) |
| 37314 | Yoke, Universal Joint Sleeve |
| 37315A | Yoke, Universal Joint Flange (FOR WINCH DRIVE SHAFT) |
| 37402A | Bearing Sub-assy, Universal Joint Spider (FOR WINCH) |
| 37402B | Ring, Hole Snap (FOR WINCH DRIVE SHAFT SPIDER BEARING) |
| 37410A | Joint Assy, Universal, W/Yoke (FOR WINCH) |
| 37420F | Joint Assy, Universal, W/Flange Yoke |
| 37601 | Shaft Sub-assy, Drive, Front NO.1 |
| 37602A | Shaft Sub-assy, W/Yoke Drive, Front |
| 37603 | Shaft Sub-assy, Drive, Front NO.3 |
| 37604 | Shaft Sub-assy, Drive, Front NO.2 |
| 37616 | Plate, Drive Shaft Lock |
| 37616A | Washer (FOR DRIVE SHAFT LOCK PLATE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
