Toyota Land Cruiser

1984-11 → 1990-01 · chassis RJ7#,LJ7#,BJ7# · catalogue 781520 · Europe

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transfer Vacuum Piping

12 part groups · 3 illustrations

Illustrations

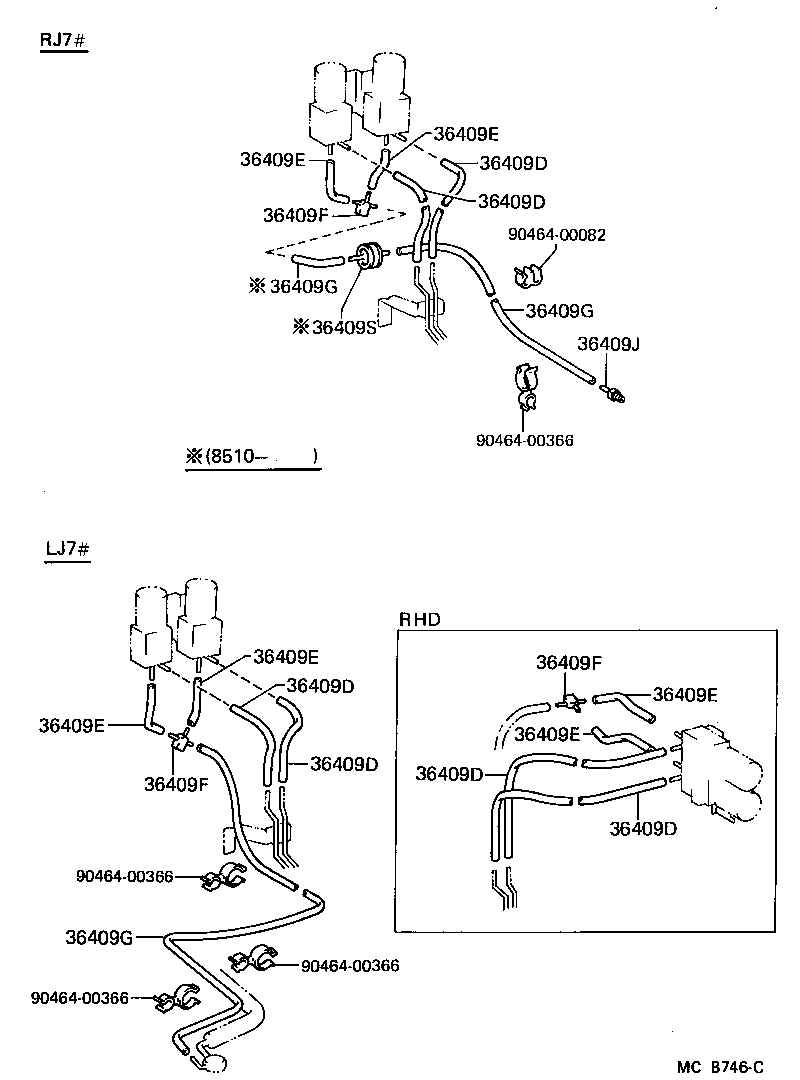

Figure MCB744A MCB744A 1984-11 → — Figure MCB746C MCB746C 1984-11 → — Figure MCB745C MCB745C 1984-11 → —

Part groups

PNCDescription
36409 Support Sub-assy, Vacuum Tube Union
36409C Hose, Vacuum, NO.1 (FOR FRONT DRIVE SHIFT)
36409D Hose, Vacuum, NO.2 (FOR FRONT DRIVE SHIFT)
36409E Hose, Vacuum, NO.3 (FOR FRONT DRIVE SHIFT)
36409F Way, 3, NO.1 (FOR FRONT DRIVE SHIFT)
36409G Hose, Vacuum, NO.4 (FOR FRONT DRIVE SHIFT)
36409J Union (FOR FRONT DRIVE SHIFT)
36409S Valve, Check (FOR FRONT DRIVE SHIFT)
36481 Tube, Front Drive Vacuum, NO.1
36481B Clamp, Front Drive Vacuum Tube, NO.1
36481C Clamp, Front Drive Vacuum Tube, NO.2
36482 Tube, Front Drive Vacuum, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
