Toyota Land Cruiser

1984-11 → 1990-01 · chassis RJ7#,LJ7#,BJ7# · catalogue 781520 · Europe

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Winch

137 part groups · 12 illustrations

Illustrations

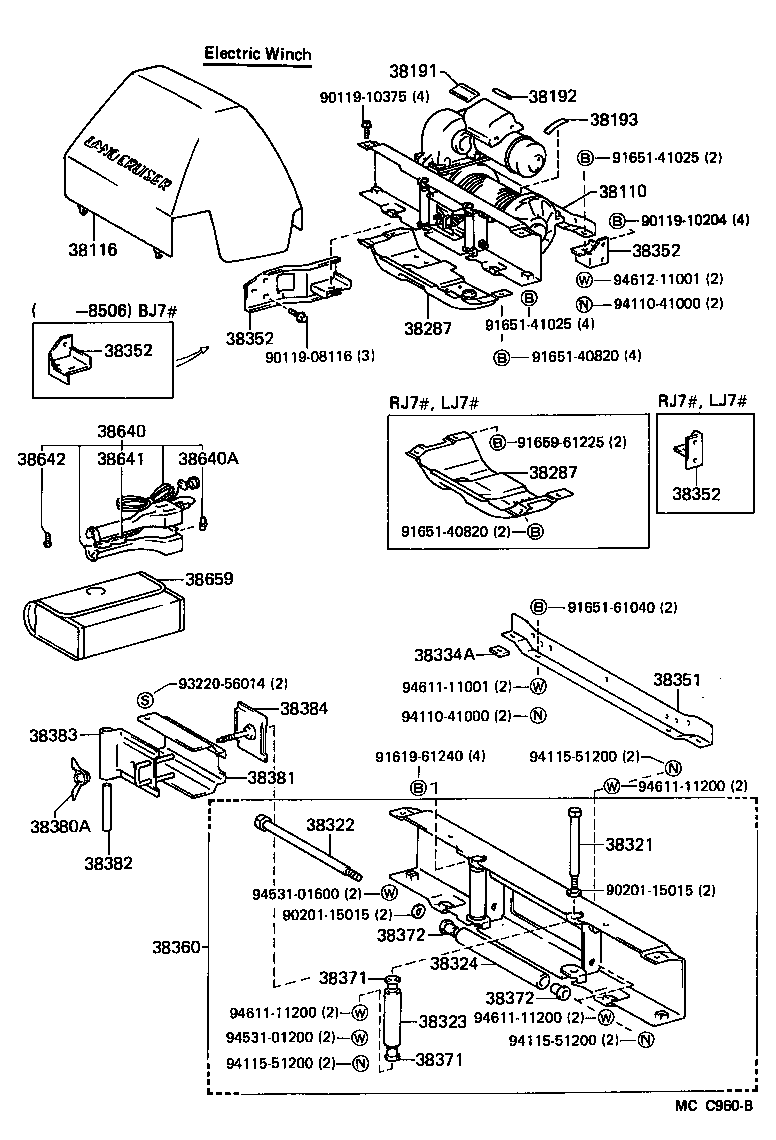

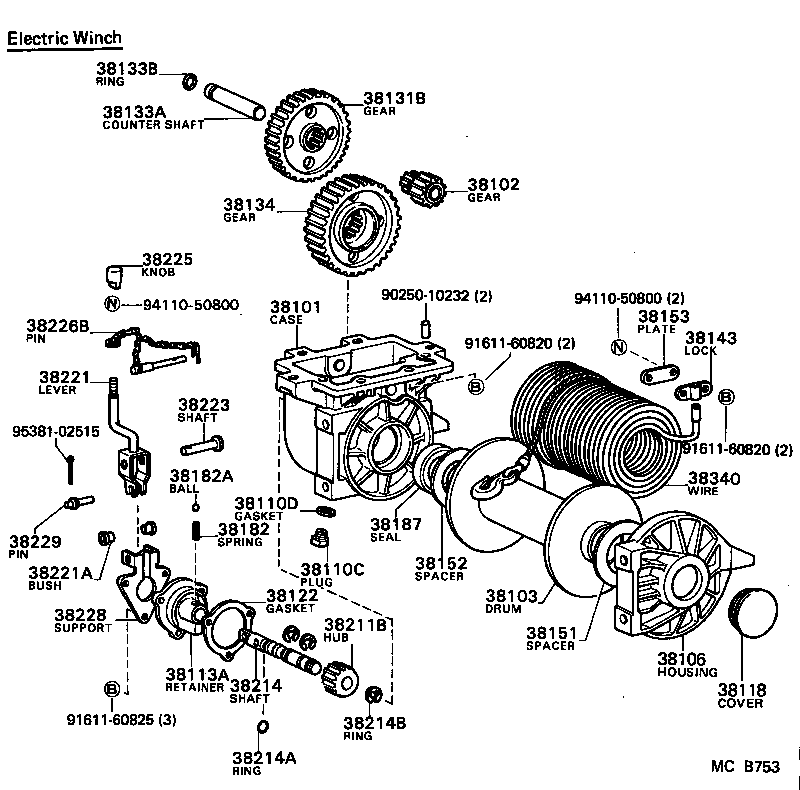

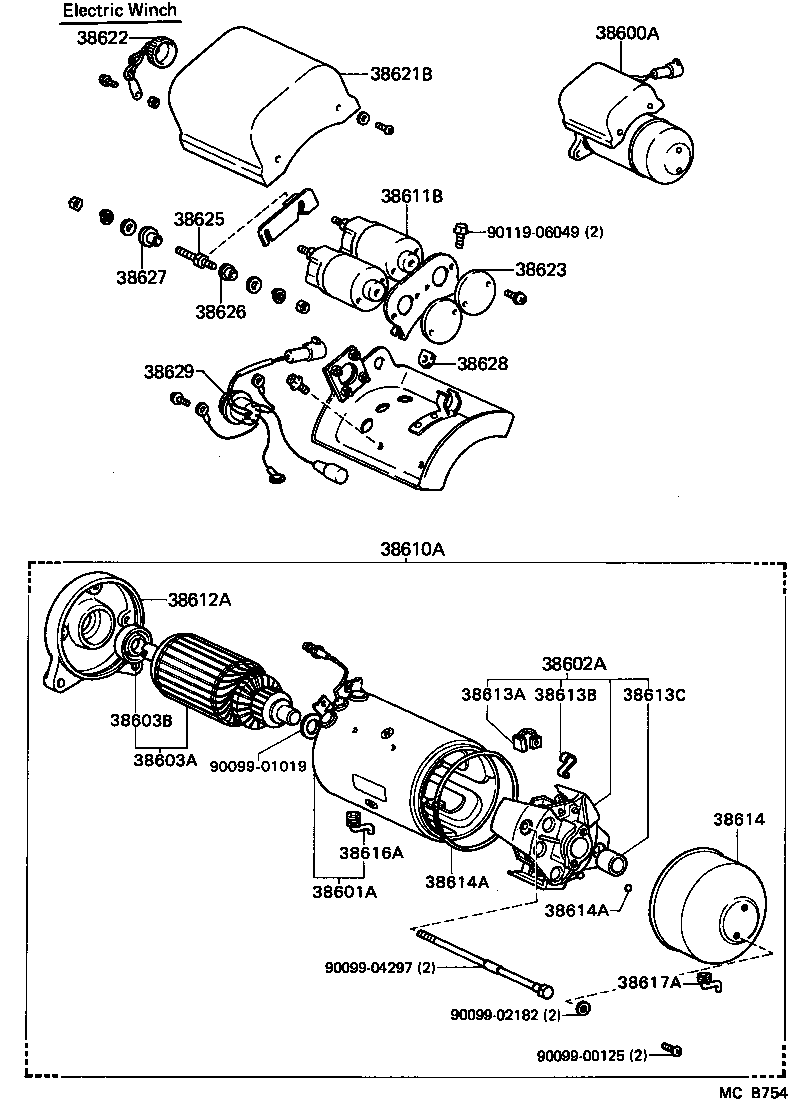

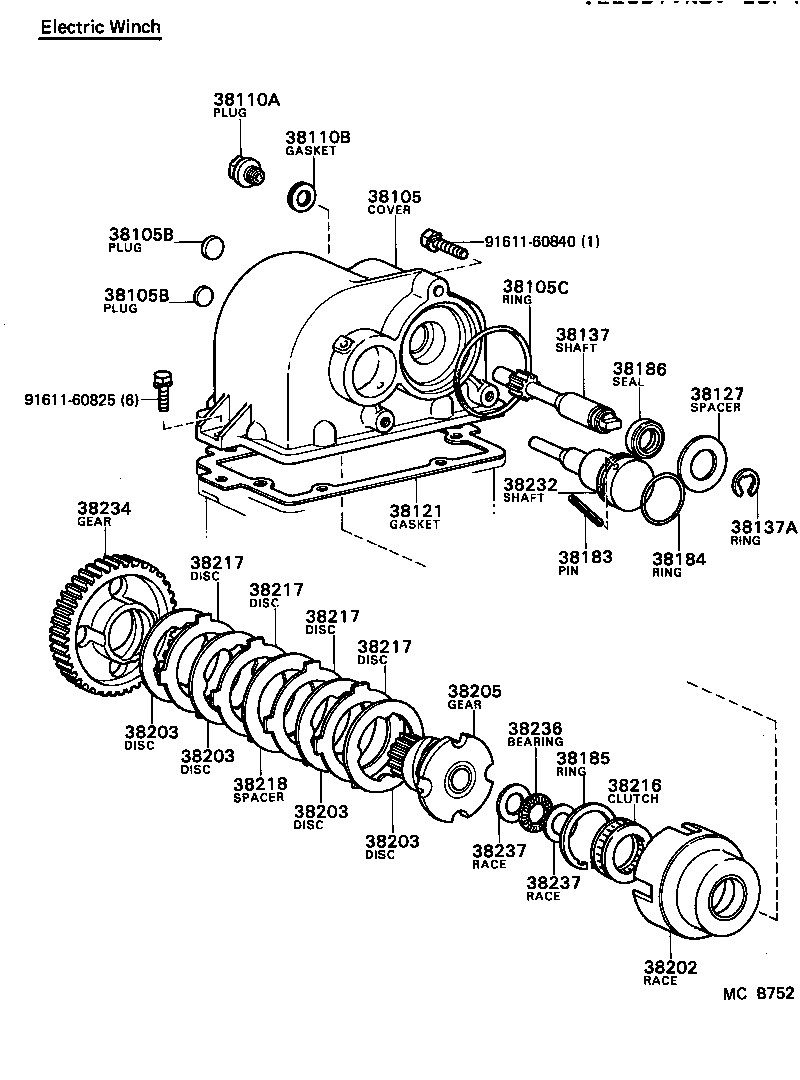

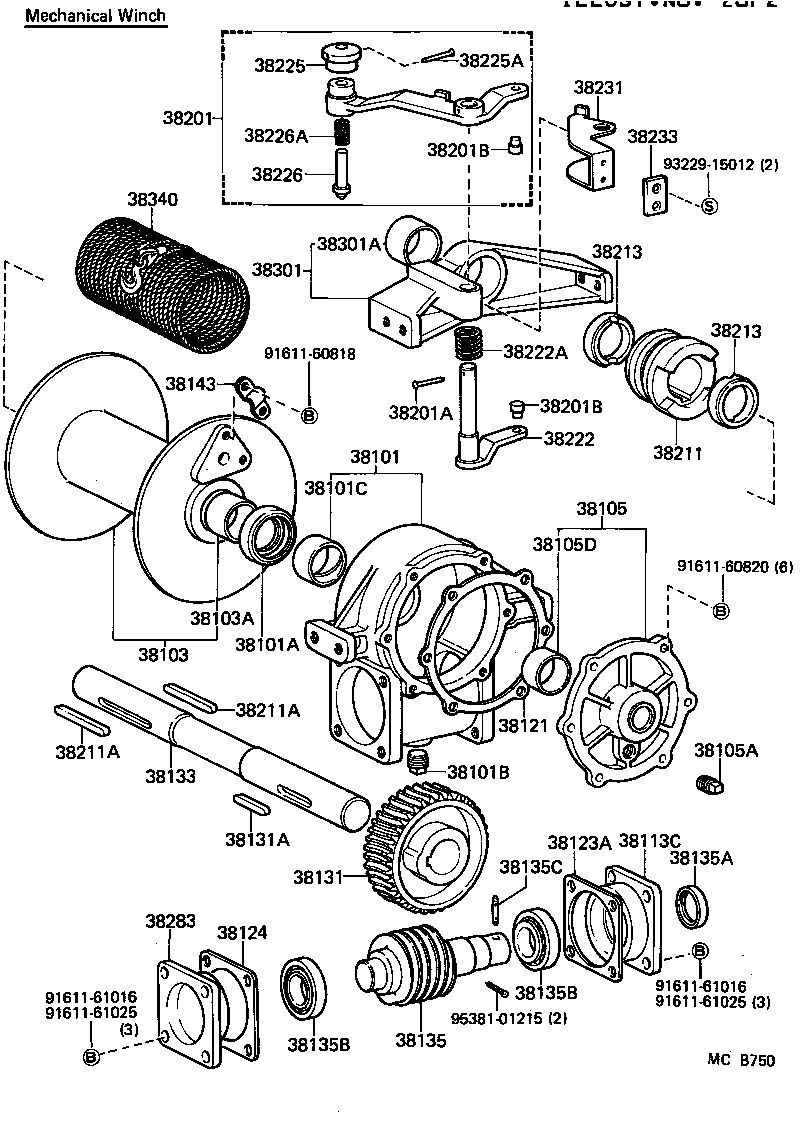

Figure MCC959B MCC959B 1984-11 → 1985-10 Figure MCC959B MCC959B 1985-10 → — Figure MCB750 MCB750 1984-11 → 1985-10 Figure MCB750 MCB750 1985-10 → — Figure MCC960B MCC960B 1984-11 → — Figure MCC960B MCC960B 1987-08 → — Figure MCB752 MCB752 1984-11 → — Figure MCB752 MCB752 1987-08 → — Figure MCB753 MCB753 1984-11 → — Figure MCB753 MCB753 1987-08 → — Figure MCB754 MCB754 1984-11 → — Figure MCB754 MCB754 1987-08 → —

Part groups

PNCDescription
38101 Case Sub-assy, Winch Gear
38101A Seal, Type T Oil (FOR WINCH GEAR CASE)
38101B Plug, W/Head Taper Screw (FOR WINCH GEAR CASE)
38101C Bush, Solid (FOR WINCH GEAR CASE)
38102 Gear Sub-assy, Countershaft
38103 Drum Sub-assy, Winch
38103A Bush (FOR WINCH DRUM)
38105 Cover Sub-assy, Winch Gear Case
38105A Plug (FOR WINCH SIDE GEAR CASE)
38105B Plug, Tight (FOR WINCH GEAR CASE COVER)
38105C Ring, O (FOR WINCH GEAR CASE COVER)
38105D Bush (FOR WINCH GEAR CASE COVER)
38106 Housing Sub-assy, Winch Drum
38110 Winch Assy
38110A Plug, Filler
38110B Gasket (FOR FILLER PLUG)
38110C Plug, Drain
38110D Gasket (FOR DRAIN PLUG)
38113A Retainer, Shift Shaft
38113C Retainer, Worm Bearing, NO.1
38116 Cover, Winch
38118 Cover, Winch Drum Housing
38121 Gasket, Winch Gear Case Cover
38122 Gasket, Shift Shaft Retainer
38123A Shim, Winch Worm Adjust, NO.1
38124 Shim, Winch Worm Adjust, NO.2
38127 Spacer, Input Shaft
38131 Gear, Worm
38131A Key, Sliding (FOR WINCH WORM GEAR)
38131B Gear, Counter, NO.1
38133 Shaft, Worm Gear
38133A Countershaft
38133B Ring, O (FOR COUNTERSHAFT)
38134 Gear, Winch Output
38135 Worm, Winch
38135A Seal, Type T Oil (FOR WINCH WORM)
38135B Bearing (FOR WINCH WORM)
38135C Pin, Safety Lock
38137 Shaft, Winch Input
38137A Ring, E (FOR WINCH INPUT SHAFT)
38143 Lock, Wire
38151 Spacer, Winch Drum, NO.1
38152 Spacer, Winch Drum, NO.2
38153 Plate, Wire Lock
38182 Spring, Shift Lock
38182A Ball (FOR SHIFT LOCK SPRING)
38183 Pin, Brake Shaft Lock
38184 Ring, Brake Shaft, O
38185 Ring, Clutch Outer Race Snap
38186 Seal, Gear Case Cover Oil
38187 Seal, Gear Case Oil
38191 Plate, Winch Caution, NO.1
38192 Plate, Winch Caution, NO.2
38193 Plate, Winch Caution, NO.3
38201 Lever Sub-assy, Winch Clutch
38201A Pin, Winch Clutch Lever
38201B Pin, Winch Clutch
38202 Race Sub-assy, Clutch, Outer
38203 Disc Sub-assy, Winch Clutch, Inner
38205 Gear Sub-assy, Brake Shaft Driven
38211 Clutch, Winch
38211A Key, Winch Clutch
38211B Hub, Winch Clutch
38213 Spacer, Clutch Feather Key
38214 Shim, Winch Worm Adjust, NO.2
38214A Ring, O (FOR CLUTCH HUB SHIFT SHAFT)
38214B Ring, E (FOR CLUTCH HUB SHIFT SHAFT)
38216 Clutch, Winch 1 Way
38217 Disc, Winch Clutch, Outer
38218 Spacer, Clutch Disc
38221 Lever, Clutch Hub Shift
38221A Bush (FOR CLUTCH HUB SHIFT LEVER)
38222 Lever, Winch Clutch, Lower
38222A Spring (FOR WINCH CLUTCH LOWER LEVER)
38223 Shaft, Clutch Shift Lever
38225 Knob, Winch Clutch Lever
38225A Pin, Winch Clutch Lever Knob
38226 Pin, Lever Shift Lock
38226A Spring, Lever Shift Lock Pin
38226B Pin, Clutch Shift Lever Lock
38227 Plate, Winch Clutch Lever Shift Lock
38228 Support, Clutch Shift Lever
38229 Pin, Clutch Shift Lever
38231 Shoe, Brake
38232 Shaft, Winch Brake
38233 Plate, Brake
38234 Gear, Brake Shaft Drive
38236 Bearing, Gear Thrust
38237 Race, Gear Thrust Bearing
38283 Retainer, Worm Bearing, NO.2
38287 Cover, Winch Under
38301 Bracket Sub-assy, Winch End
38301A Bush (FOR WINCH END BRACKET)
38321 Shaft, Winch Roller
38322 Shaft, Winch Roller, NO.2
38323 Roller, Winch Wire Guide, NO.1
38324 Roller, Winch Wire Guide, NO.2
38334A Spacer, Rear Member
38340 Wire Assy, Winch Chain
38351 Base, Winch
38352 Support, Winch Base
38360 Bracket Assy, Winch Roller
38371 Bush, Winch Roller, NO.1
38372 Bush, Winch Roller, NO.2
38380A Nut, Wing (FOR WINCH HOOK HOLDER)
38381 Bracket, Winch Hook Holder
38382 Shaft, Winch Hook Holder
38383 Support, Winch Hook Holder Bracket, NO.1
38384 Support, Winch Hook Holder Bracket, NO.2
38600A Motor Assy, W/Magnet Switch, Winch
38601A Yoke Sub-assy, Winch Motor
38602A Frame Sub-assy, Cummutator End (FOR WINCH MOTER)
38603A Armature Sub-assy, Winch Motor
38603B Bearing, NO.1 (FOR WINCH MOTOR ARMATURE)
38610A Motor Assy, Winch
38611B Switch, Magnet, NO.2 (FOR WINCH MOTOR)
38612A Frame, Winch Motor End
38613A Brush, Winch Motor
38613B Spring, Winch Motor Brush
38613C Bush (FOR WINCH MOTOR)
38614 Cover, Commutator Winch
38614A Ring, O(FOR WINCH MOTOR)
38616A Duct, Yoke Winch
38617A Duct, Cover Winch
38621B Cover, Magnet Switch Winch
38622 Cover, Connector Winch
38623 Stopper, Winch Motor
38625 Bolt, Stud Winch Motor
38626 Bushing, Stepped Female Winch Motor
38627 Bushing, Stepped Male Winch Motor
38628 Gromet, Winch
38629 Wire, Winch Motor
38640 Switch Assy, Winch Control
38640A Bulb (FOR WINCH CONTROL SWITCH)
38641 Gasket (FOR WINCH CONTROL SWITCH)
38642 Screw (FOR WINCH CONTROL SWITCH)
38659 Cover, Winch Control Switch
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
