Toyota Land Cruiser

1984-11 → 1990-01 · chassis RJ7#,LJ7#,BJ7# · catalogue 781520 · Europe

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Differential Lock Control

16 part groups · 3 illustrations

Illustrations

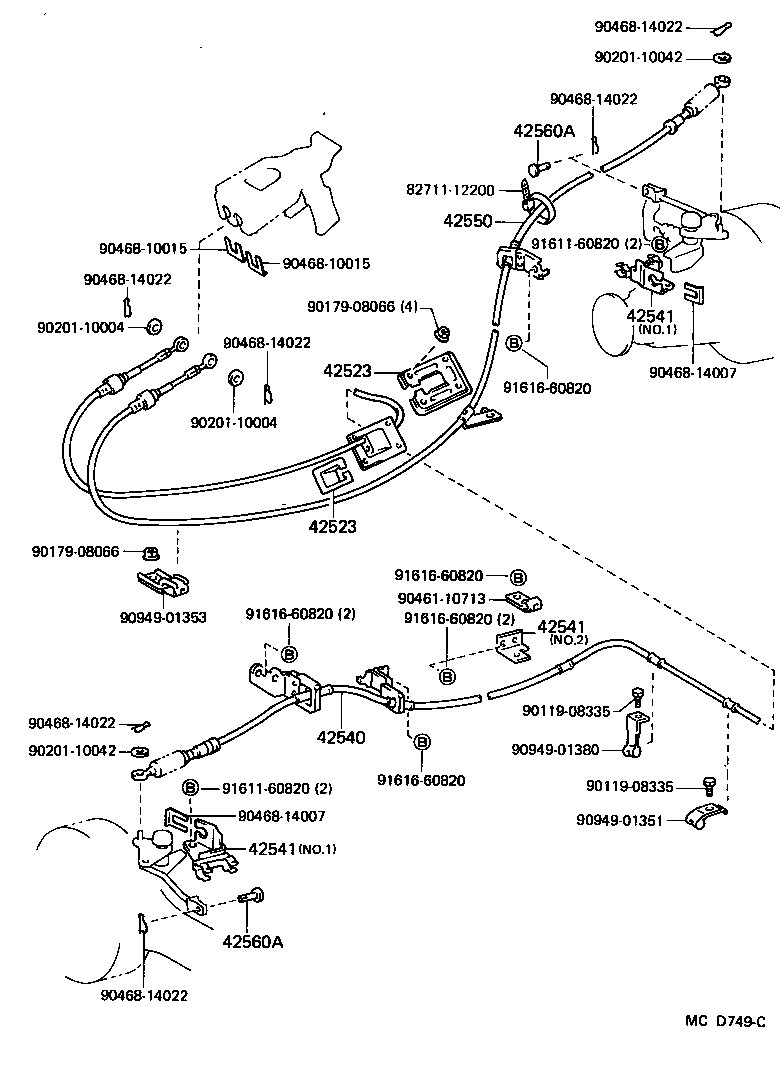

Figure MCD747A MCD747A 1986-08 → — Figure MCD747A MCD747A 1987-08 → — Figure MCD749C MCD749C 1986-08 → —

Part groups

PNCDescription
42506 Rod Sub-assy, Differential Lock Cable Link
42513 Bracket, Differential Lock
42514 Knob, Differential Lock, Front
42514A Bush (FOR DIFFERENTIAL LOCK KNOB)
42515 Knob, Differential Lock, Rear
42518 Shaft, Differential Lock Link
42523 Cover, Differential Lock Grommet
42537B Cover, Control Shaft Dust, NO.3
42537C Cover, Control Shaft Dust, NO.4
42540 Cable Assy, Differential Lock, Front
42541 Bracket, Differential Lock Cable
42550 Cable Assy, Differential Lock, Rear
42560 Link Assy, Differential Lock Cable
42560A Pin, W/Hole (FOR DIFFERENTIAL LOCK CABLE LINK)
42562 Shaft, Differential Lock Cable Link
42562A Bush (FOR DIFFERENTIAL LOCK CABLE LINK SHAFT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
