Toyota Land Cruiser

1984-11 → 1990-01 · chassis RJ7#,LJ7#,BJ7# · catalogue 781520 · Europe

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

43 part groups · 8 illustrations

Illustrations

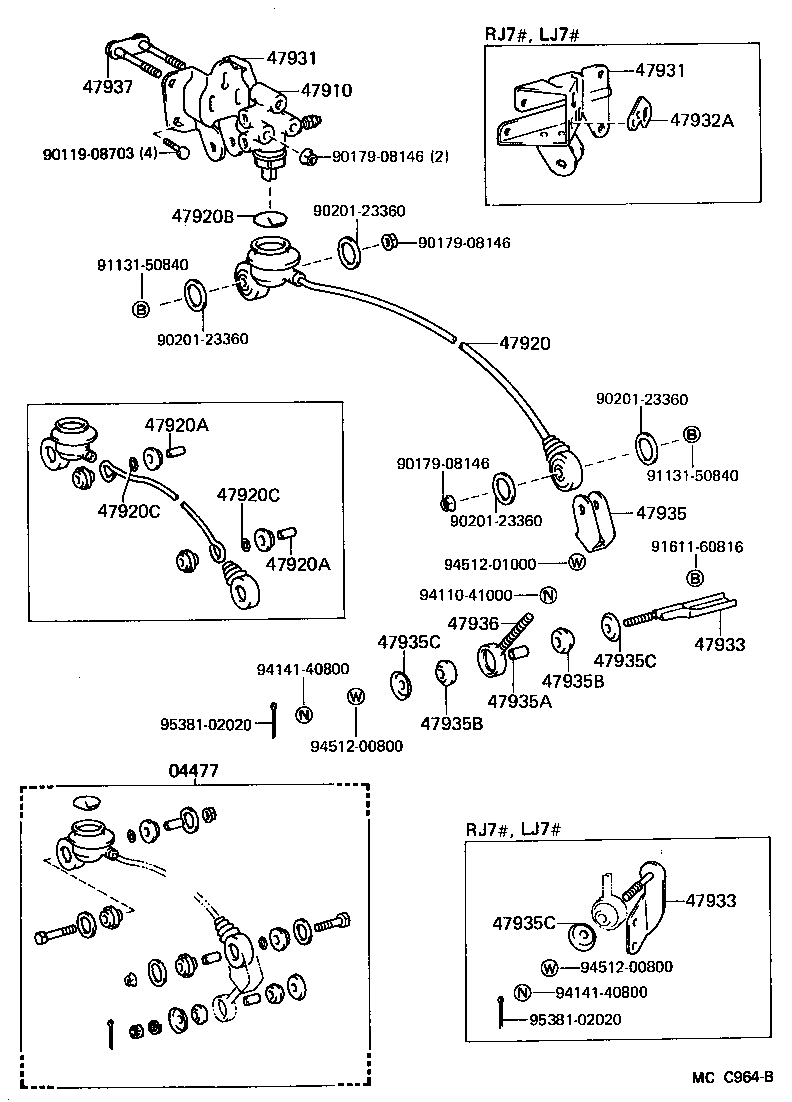

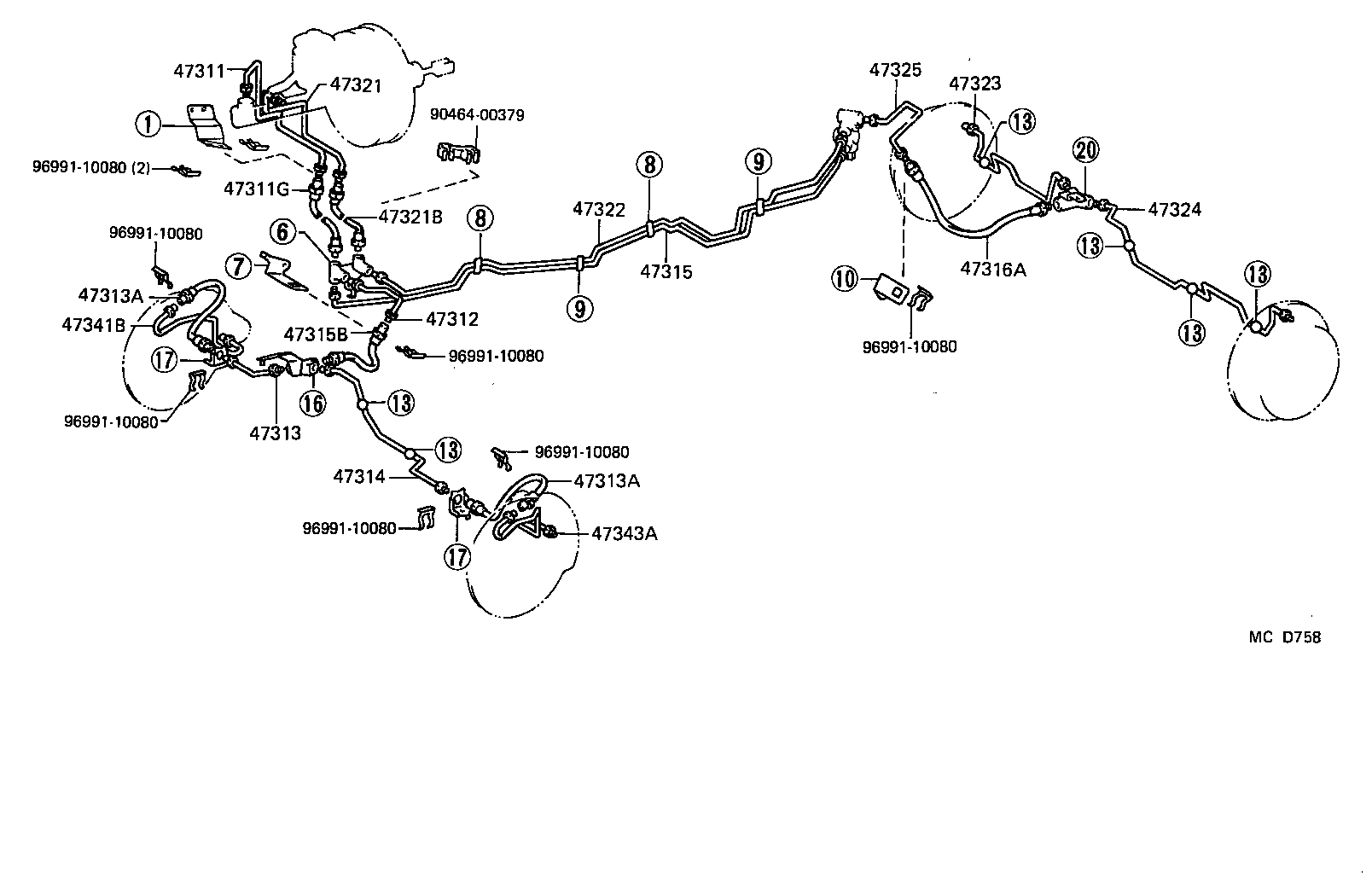

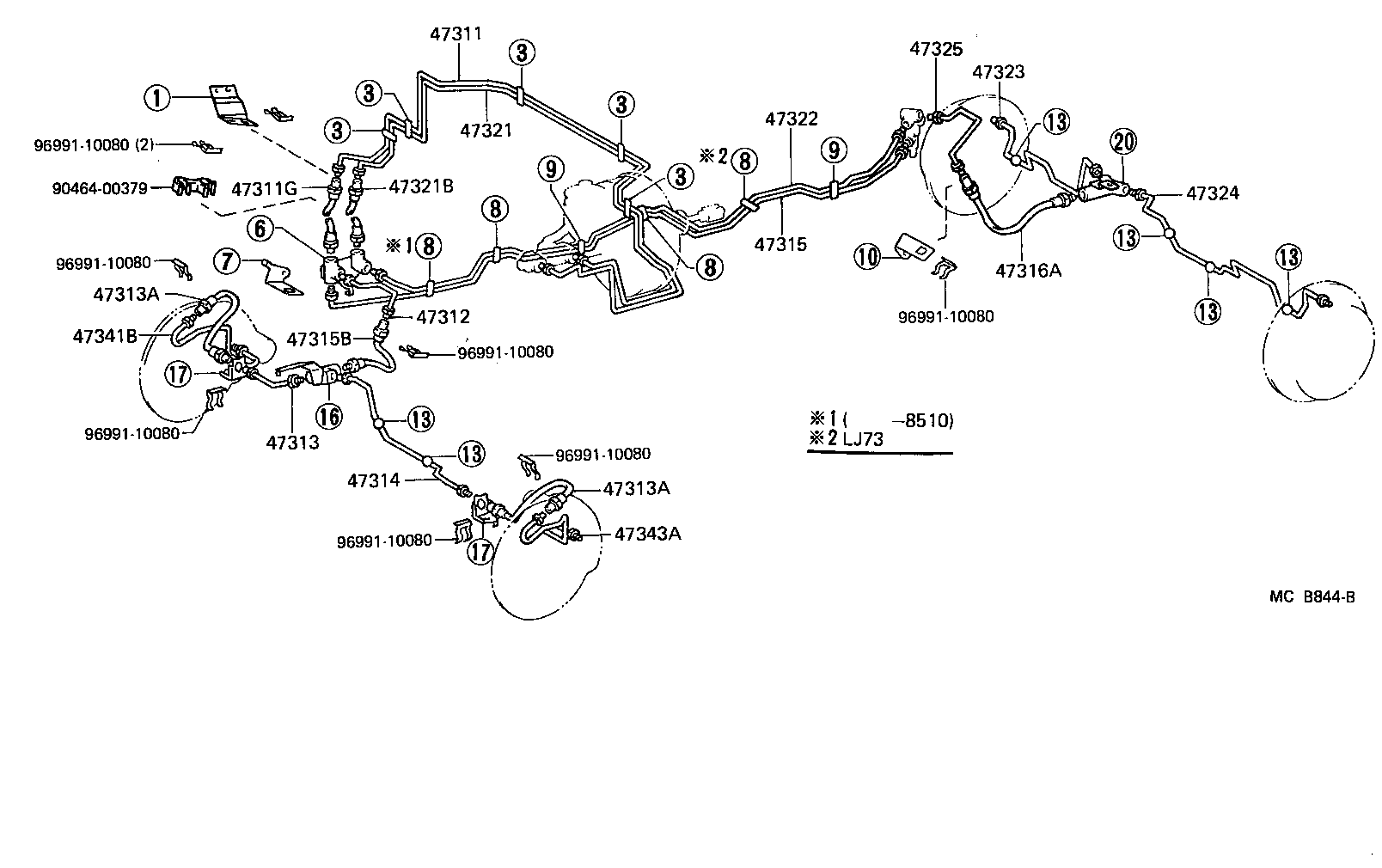

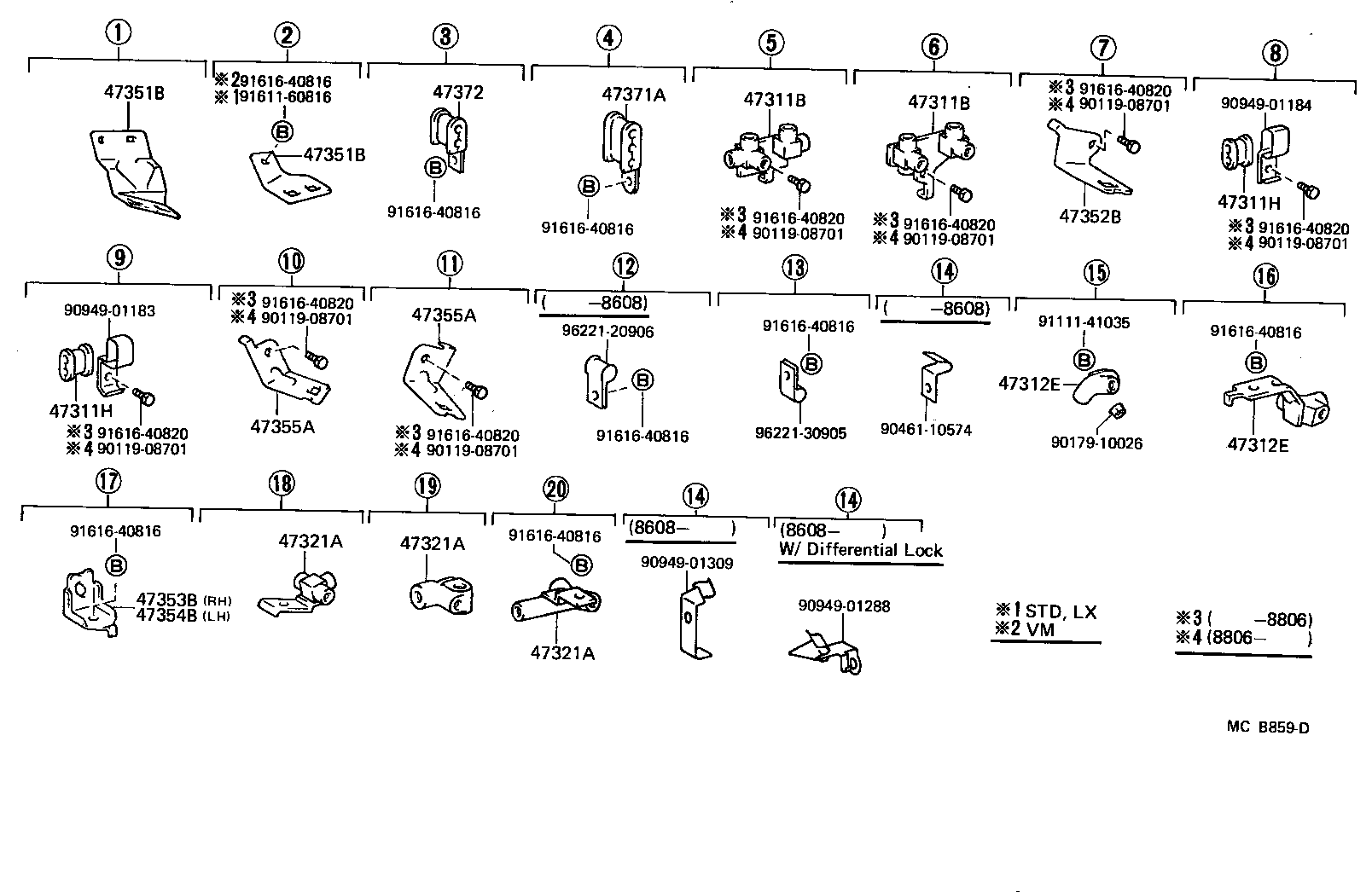

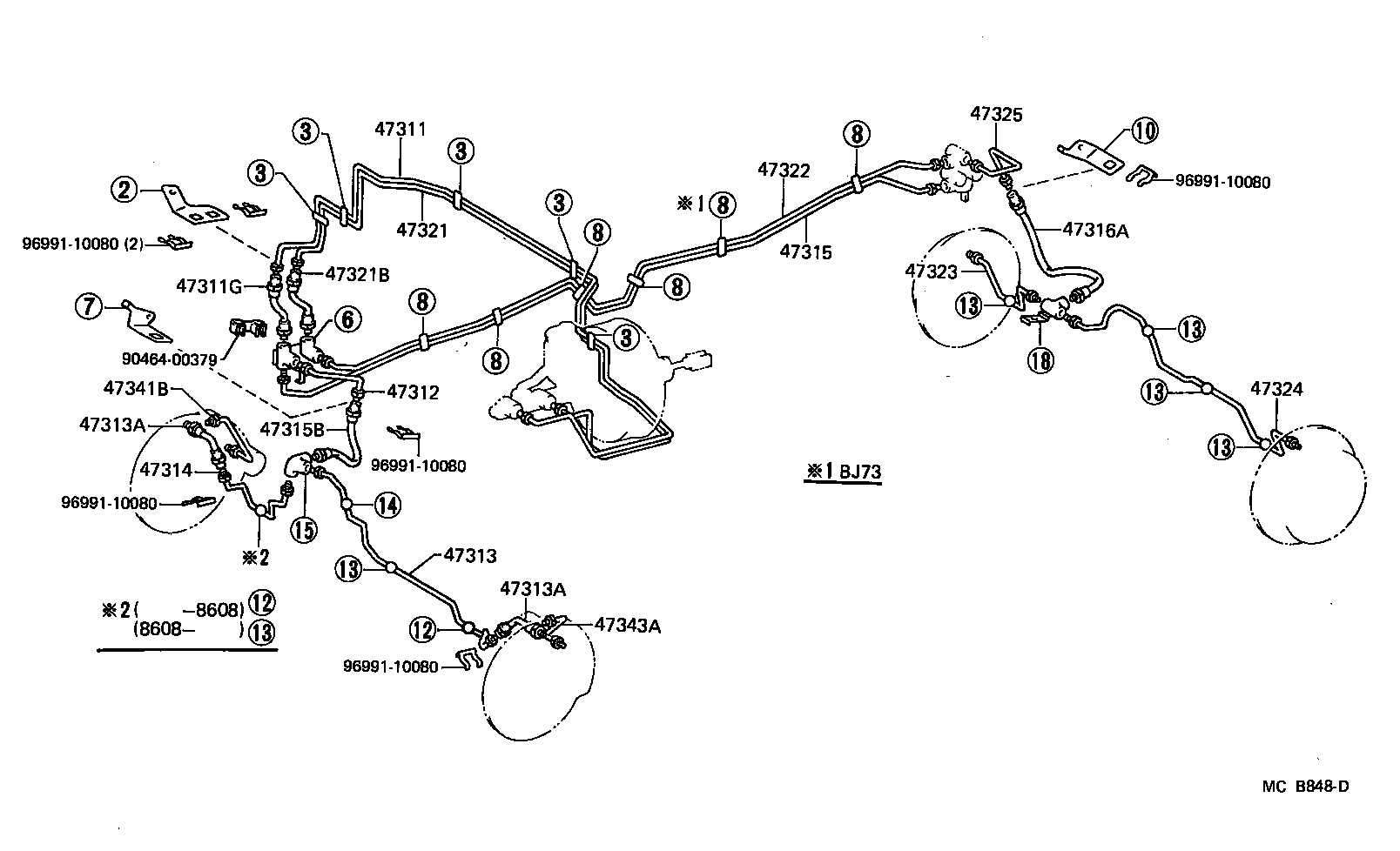

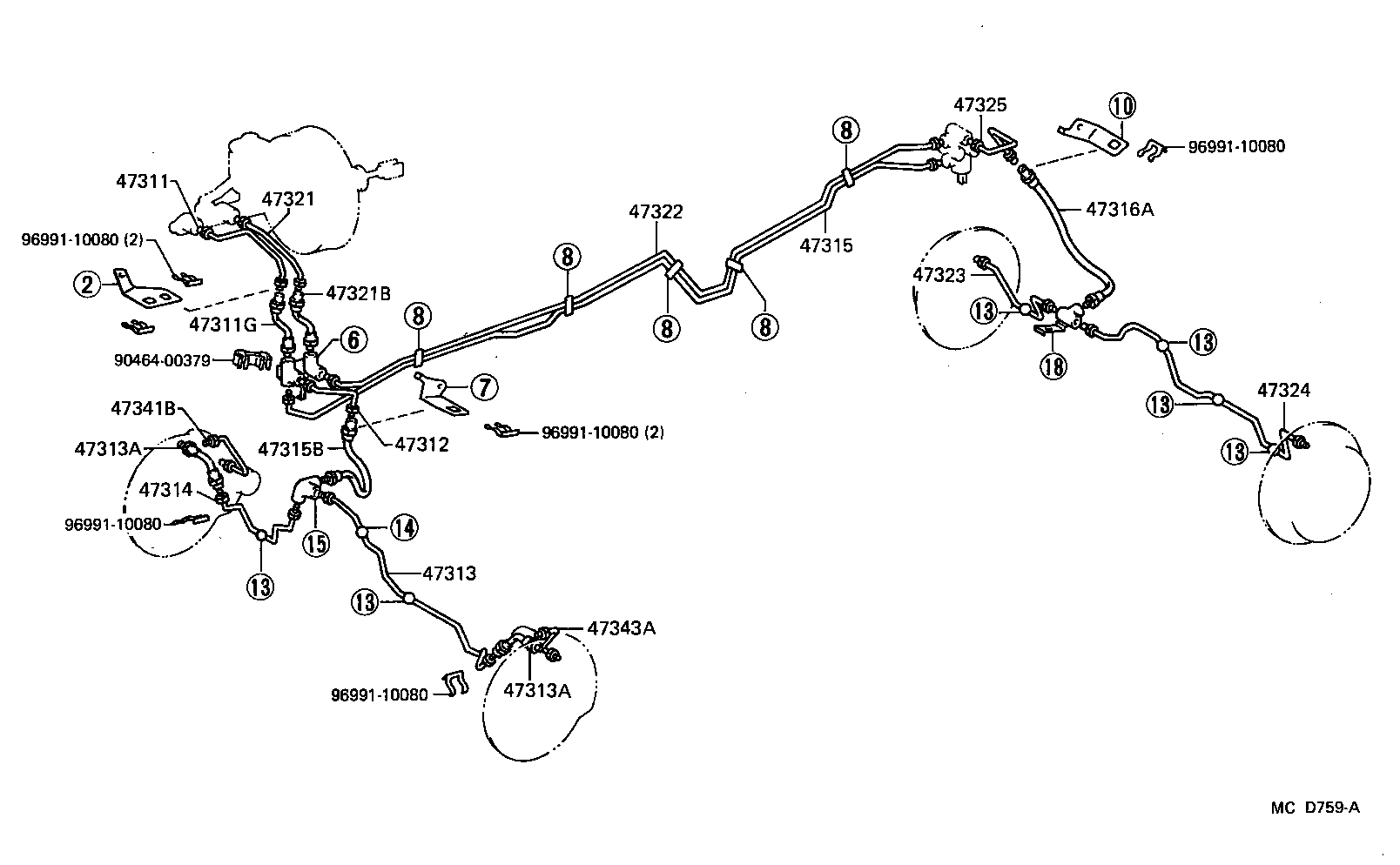

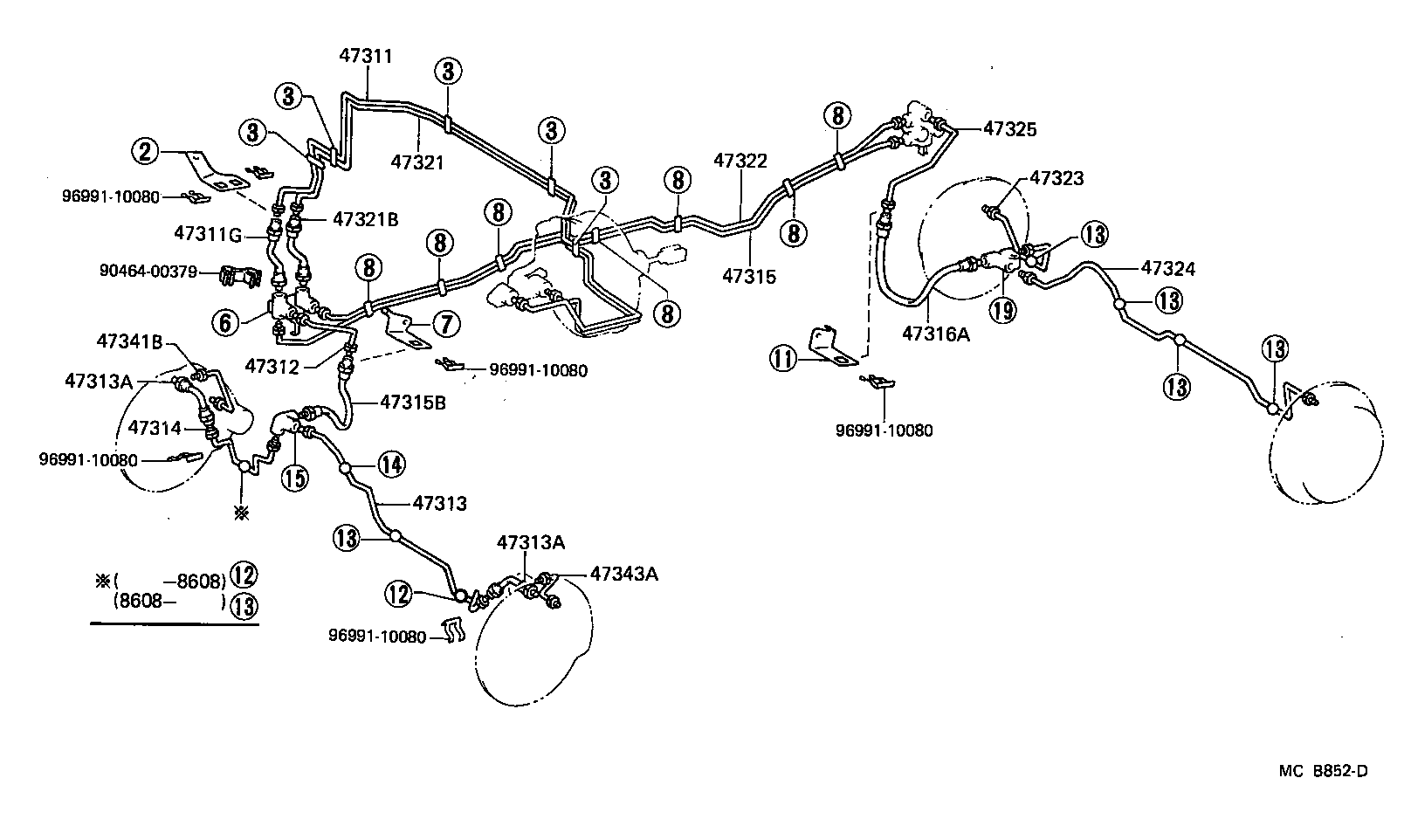

Figure MCB841B MCB841B 1984-11 → — Figure MCD758 MCD758 1986-08 → — Figure MCB844B MCB844B 1984-11 → — Figure MCD759A MCD759A 1986-08 → 1988-08 Figure MCB848D MCB848D 1984-11 → — Figure MCB852D MCB852D 1984-11 → — Figure MCB859D MCB859D 1984-11 → — Figure MCC964B MCC964B 1984-11 → —

Part groups

PNCDescription
04477 Bush & Boot Kit, Load Sensing Spring
47311 Tube, Front Brake, NO.1
47311B Way, NO.1(FOR FRONT BRAKE TUBE)
47311G Hose, Flexible(FOR BRAKE TUBE)
47311H Grommet(FOR BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47312E Way, NO.2(FOR FRONT BRAKE TUBE)
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47314 Tube, Front Brake, NO.4
47315 Tube, Front Brake, NO.5
47315B Hose, Flexible(FOR BRAKE TUBE)
47316A Hose, Flexible(FOR REAR BRAKE TUBE)
47321 Tube, Rear Brake, NO.1
47321A Way(FOR REAR BRAKE TUBE)
47321B Hose, Flexible(FOR REAR BRAKE TUBE)
47322 Tube, Rear Brake, NO.2
47323 Tube, Rear Brake, NO.3
47324 Tube, Rear Brake, NO.4
47325 Tube, Rear Brake, NO.5
47341B Tube, Wheel Cylinder, Front RH NO.1
47343A Tube, Wheel Cylinder, Front LH NO.1
47351B Bracket, Flexible Hose, NO.1
47352B Bracket, Flexible Hose, NO.2
47353B Bracket, Flexible Hose, NO.3
47354B Bracket, Flexible Hose, NO.4
47355A Bracket, Flexible Hose, NO.5
47371A Clamp, Brake Tube, NO.1
47372 Clamp, Brake Tube, NO.2
47910 Valve Assy, Load Sensing Proportioning
47920 Spring Assy, Load Sensing
47920A Collar(FOR LOAD SENSING SPRING)
47920B Clip(FOR LOAD SENSING VALVE BOOT)
47920C Washer(FOR LOAD SENSING SPRING)
47931 Bracket, Load Sensing Valve
47932A Bracket, Load Sensing Valve Union
47933 Bracket, Load Sensing Shackle, NO.1
47935 Shackle, Load Sensing Spring, NO.1
47935A Collar(FOR LOAD SENSING SPRING SHACKLE)
47935B Bush(FOR LOAD SENSING SPRING SHACKLE)
47935C Retainer(FOR LOAD SENSING SPRING SHACKLE)
47936 Shackle, Load Sensing Spring, NO.2
47937 Plate, Load Sensing Valve Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
