Toyota Land Cruiser

1984-11 → 1990-01 · chassis RJ7#,LJ7#,BJ7# · catalogue 781520 · Europe

Discontinued model Data version 1990-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Spring & Shock Absorber

61 part groups · 7 illustrations

Illustrations

MCB867G 1984-11 → —

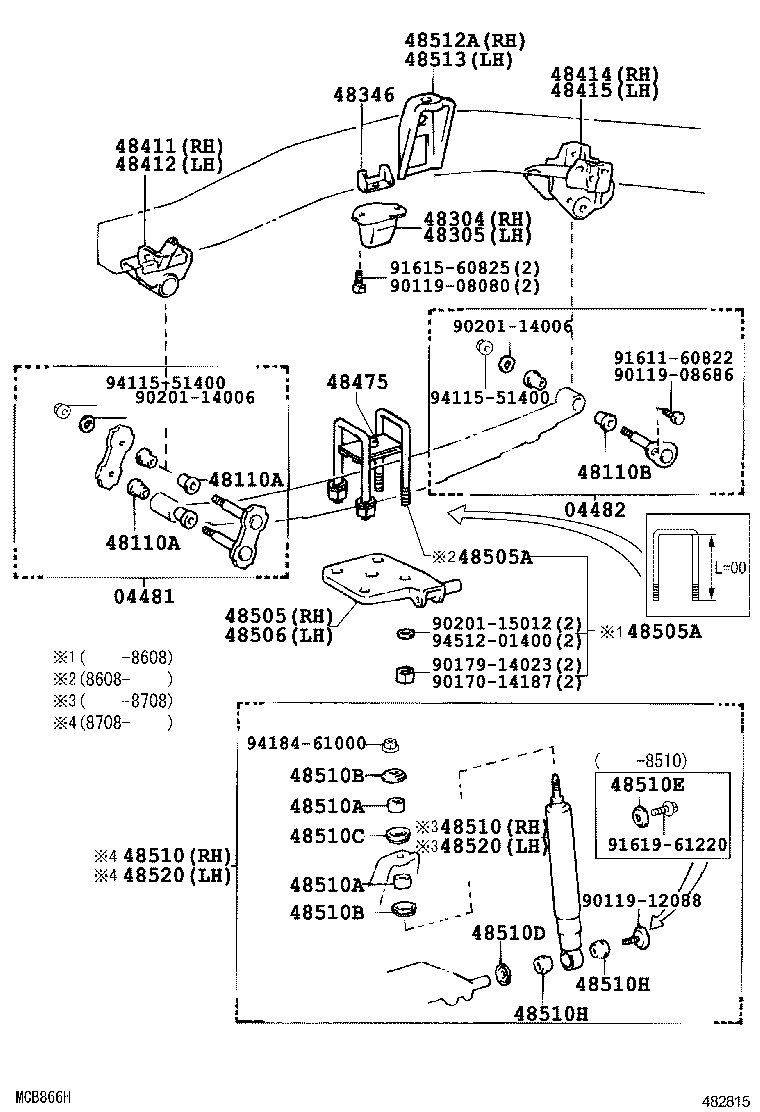

482815 1984-11 → —

MCB911B 1984-11 → —

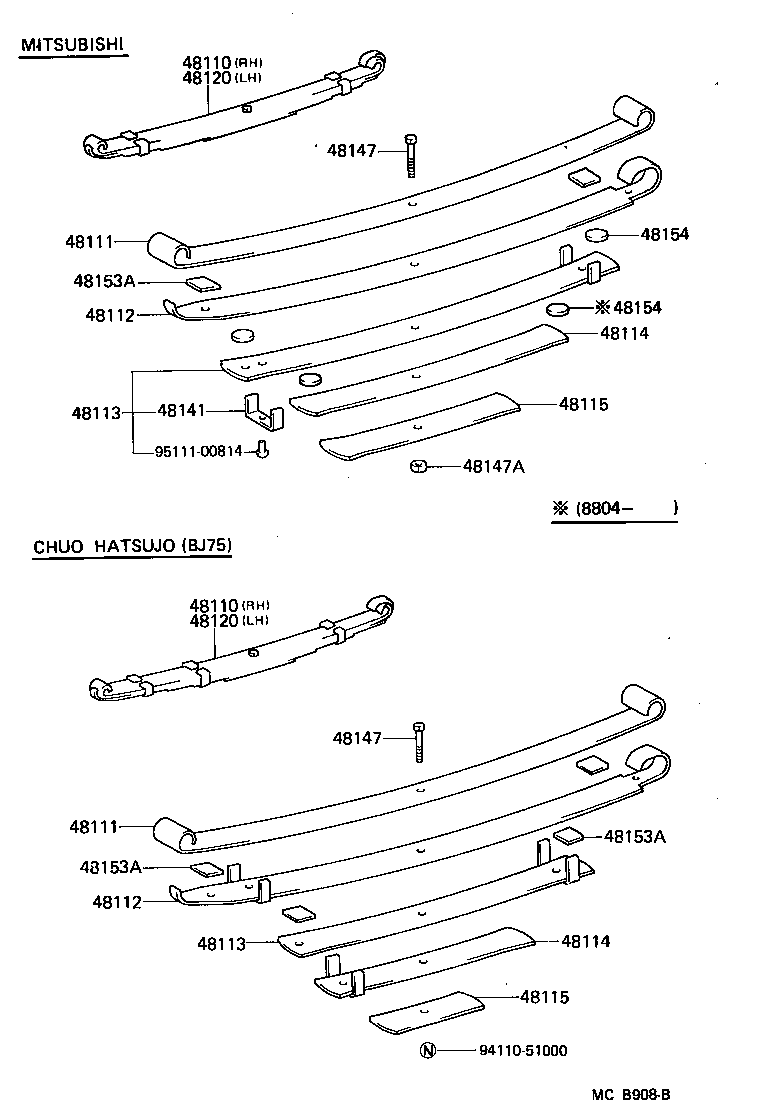

MCB908B 1984-11 → 1988-08

MCB908B 1984-11 → —

MCK795 1988-01 → 1988-08

MCK795 1988-08 → —

Part groups

PNC	Description
04481	Shackle Kit, Front Spring
04482	Pin Kit, Front Spring
48110	Spring Assy, Front, RH
48110A	Bush(FOR FRONT SPRING SHACKLE)
48110B	Bush(FOR FRONT SPRING PIN)
48111	Leaf, Front Spring, NO.1
48112	Leaf, Front Spring, NO.2
48113	Leaf, Front Spring, NO.3
48114	Leaf, Front Spring, NO.4
48115	Leaf, Front Spring, NO.5
48116	Leaf, Front Spring, NO.6
48120	Spring Assy, Front, LH
48131	Spring, Front Coil, RH
48132	Spring, Front Coil, LH
48141	Clip, Front Spring, NO.1
48147	Bolt, Front Spring, Center
48147A	Nut, Front Spring Center Bolt
48153A	Silencer, Front Spring, NO.1
48154	Silencer, Front Spring, NO.2
48304	Bumper Sub-assy, Front Spring, NO.1
48305	Bumper Sub-assy, Front Spring, NO.2
48346	Stopper, Bumper, Front
48411	Bracket, Front Spring(FOR FRONT RH)
48411A	Bracket, Leading Arm, RH
48412	Bracket, Front Spring(FOR FRONT LH)
48412A	Bracket, Leading Arm, LH
48414	Bracket, Front Spring(FOR REAR RH)
48415	Bracket, Front Spring(FOR REAR LH)
48471A	Seat, Front Spring Support
48475	Plate, Distance(FOR FRONT)
48505	Seat, Front Spring, RH
48505A	Bolt, U(FOR FRONT SPRING)
48506	Seat, Front Spring, LH
48510	Absorber Assy, Shock, Front RH
48510A	Cushion, Front Shock Absorber
48510B	Retainer, Cushion, NO.1(FOR FRONT SHOCK ABSORBER)
48510C	Retainer, Cushion, NO.2(FOR FRONT SHOCK ABSORBER)
48510D	Washer, Front Shock Absorber Cushion, NO.1
48510E	Washer, Front Shock Absorber Cushion, NO.2
48510H	Bush(FOR FRONT SHOCK ABSORBER)
48512A	Bracket, Front Shock Absorber, Upper RH
48513	Bracket, Front Shock Absorber, Upper LH
48520	Absorber Assy, Shock, Front LH
48706	Bush Sub-assy, Front Lateral Control Rod
48740A	Rod Assy, Front Lateral Control
48740B	Bolt(FOR FRONT LATERAL CONTROL ROD)
48740D	Bush(FOR FRONT LATERAL CONTROL ROD)
48811	Bar, Stabilizer, Front
48811A	Bush(FOR FRONT STABILIZER BAR)
48815	Bush, Front Stabilizer Bar, NO.1
48817	Cushion, Front Stabilizer
48817A	Retainer, Cushion, NO.1(FOR FRONT STABILIZER BAR)
48817B	Retainer, Cushion, NO.2(FOR FRONT STABILIZER BAR)
48817D	Bolt(FOR FRONT STABILIZER)
48817F	Nut(FOR FRONT STABILIZER BAR)
48817G	Retainer, Cushion, NO.3(FOR FRONT STABILIZER BAR)
48822	Rod, Stabilizer Link
48823B	Cover, Front Stabilizer Bracket
48824	Bracket, Stabilizer, Front
48836	Bracket, Front Stabilizer End, RH
48837	Bracket, Front Stabilizer End, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
