Toyota Land Cruiser

1984-11 → 1990-01 · chassis RJ7#,LJ7#,BJ7# · catalogue 781520 · Europe

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

54 part groups · 7 illustrations

Illustrations

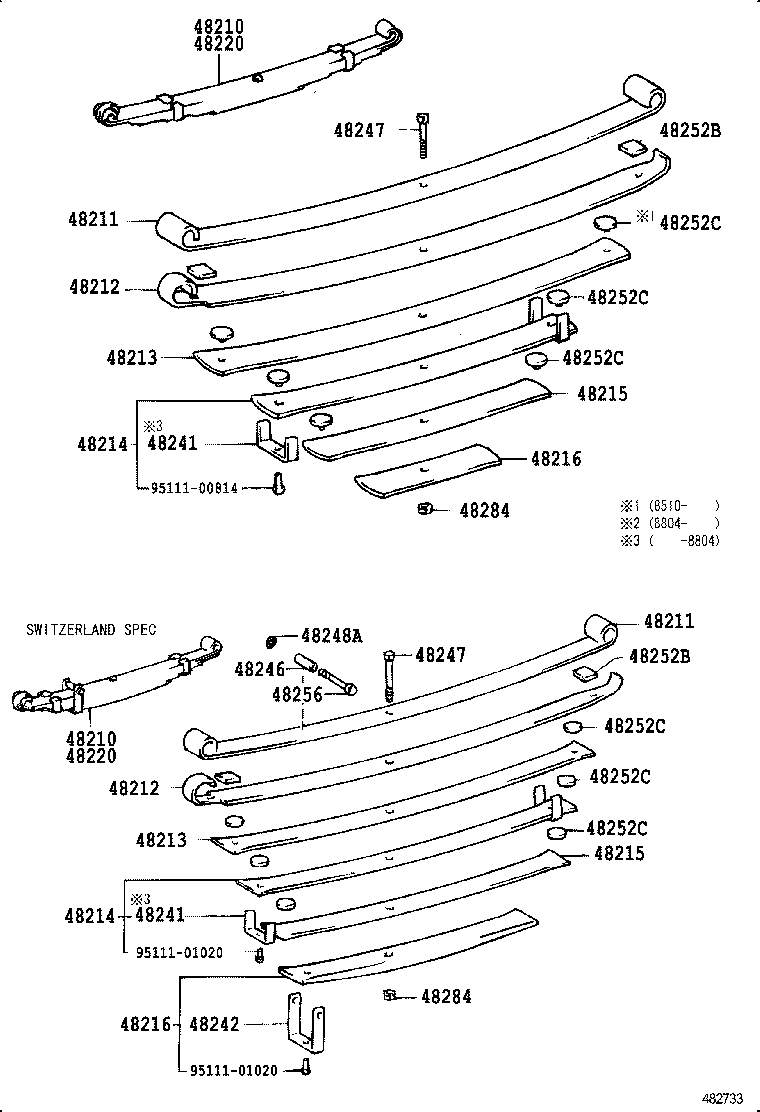

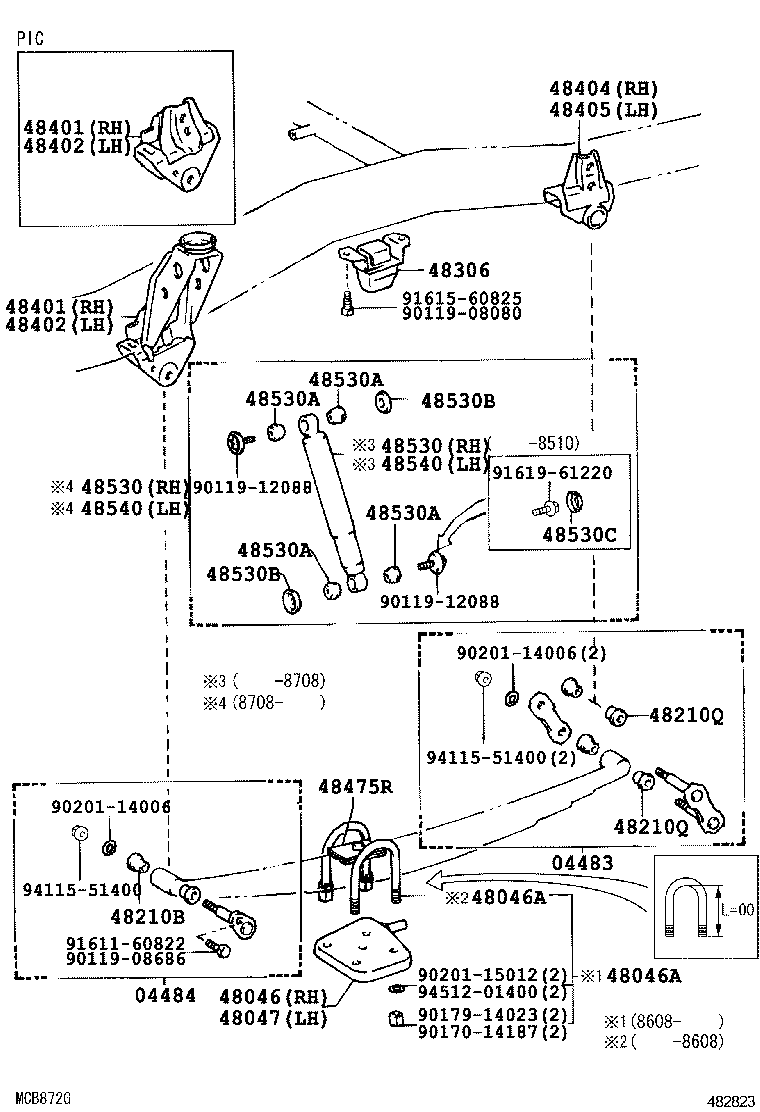

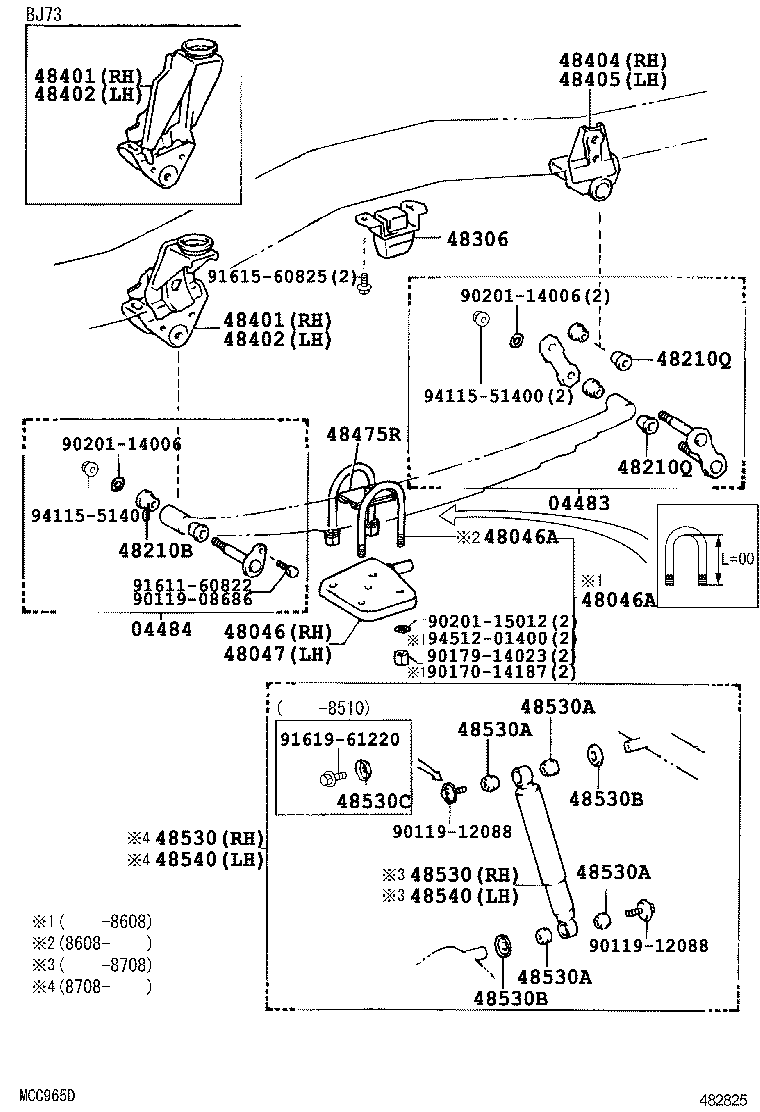

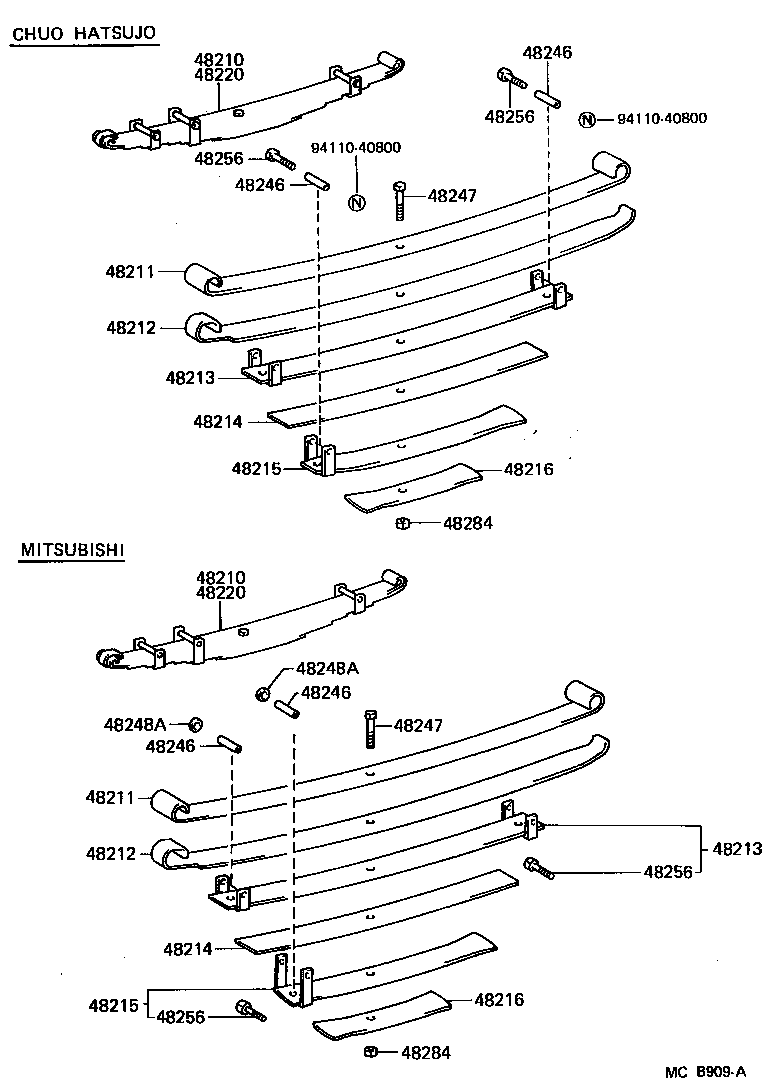

Figure MCB873J MCB873J 1984-11 → — Figure 482825 482825 1984-11 → — Figure 482823 482823 1984-11 → — Figure 482733 482733 1984-11 → — Figure MCB909A MCB909A 1984-11 → 1988-08 Figure MCF799B MCF799B 1988-01 → 1988-08 Figure MCF799B MCF799B 1988-08 → —

Part groups

PNCDescription
04483 Shackle Kit, Rear Spring
04484 Pin Kit, Rear Spring
48046 Seat Sub-assy, Spring U Bolt, RH
48046A Bolt, U(FOR REAR SPRING)
48047 Seat Sub-assy, Spring U Bolt, LH
48210 Spring Assy, Rear RH
48210B Bush(FOR REAR SPRING PIN)
48210Q Bush(FOR REAR SPRING SHACKLE)
48211 Leaf, Rear Spring, NO.1
48212 Leaf, Rear Spring, NO.2
48213 Leaf, Rear Spring, NO.3
48214 Leaf, Rear Spring, NO.4
48215 Leaf, Rear Spring, NO.5
48216 Leaf, Rear Spring, NO.6
48217 Leaf, Rear Spring, NO.7
48218 Leaf, Rear Spring, NO.8
48220 Spring Assy, Rear LH
48231 Spring, Coil, Rear
48241 Clip, Rear Spring, NO.1
48242 Clip, Rear Spring, NO.2
48246 Case, Rear Spring Clip Bolt
48247 Bolt, Rear Spring, Center
48248A Washer(FOR REAR SPRING CLIP BOLT)
48252B Silencer, Rear Spring, NO.1
48252C Silencer, Rear Spring, NO.2
48256 Bolt, Hexagon(FOR REAR SPRING CLIP SET)
48257A Insulator, Rear Coil Spring, Lower
48257B Insulator, Rear Coil Spring, Upper
48284 Nut, Rear Spring Center Bolt
48306 Bumper Sub-assy, Rear Spring
48401 Bracket Sub-assy, Rear Spring, Front RH
48402 Bracket Sub-assy, Rear Spring, Front LH
48404 Bracket Sub-assy, Rear Spring, Rear RH
48405 Bracket Sub-assy, Rear Spring, Rear LH
48475R Plate, Distance(FOR REAR)
48516A Bracket, Rear Shock Absorber, Upper
48530 Absorber Assy, Shock, Rear RH
48530A Bush(FOR REAR SHOCK ABSORBER)
48530B Washer, Rear Shock Absorber Cushion, NO.1
48530C Washer, Rear Shock Absorber Cushion, NO.2
48530G Cushion, Rear Shock Absorber, NO.1
48530J Retainer, Cushion, NO.1(FOR REAR SHOCK ABSORBER)
48530P Retainer, Cushion, NO.2(FOR REAR SHOCK ABSORBER)
48540 Absorber Assy, Shock, Rear LH
48702B Bush Sub-assy, Trailing Arm, NO.1
48710B Arm Assy, Trailing, Rear
48710C Cushion(FOR REAR TRAILING ARM)
48710D Retainer, Cushion, NO.1(FOR REAR TRAILING ARM)
48710E Retainer, Cushion, NO.2(FOR REAR TRAILING ARM)
48710F Bolt(FOR REAR TRAILING ARM)
48710G Bracket, Trailing Arm, RH
48710H Bracket, Trailing Arm, LH
48740 Rod Assy, Rear Lateral Control
48745 Bush, Lateral Control Rod
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
