Toyota Land Cruiser

1984-11 → 1990-01 · chassis RJ7#,LJ7#,BJ7# · catalogue 781520 · Europe

Discontinued model Data version 1990-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

9 part groups · 2 illustrations

Illustrations

Figure MBH573D

MBH573D 1984-11 → —

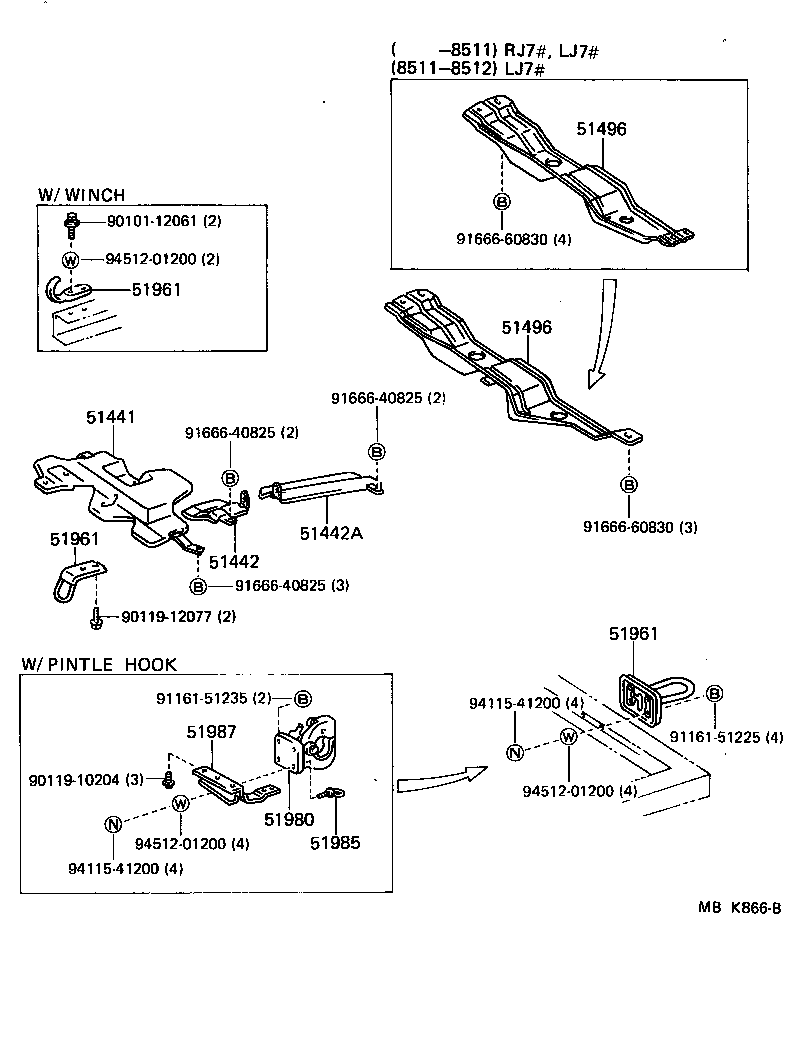

Figure MBK866B

MBK866B 1984-11 → —

Part groups

PNC	Description
51441	Cover, Engine Under, NO.1
51442	Cover, Engine Under, NO.2
51442A	Cover, Engine Under, Front NO.3
51495	Cover, Transmission Under
51496	Cover, Transmission Under, NO.2
51961	Hook, NO.1
51980	Hook Assy, Pintle
51985	Hook, Eyelet Pintle
51987	Bracket, Pintle Hook

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
