Toyota Land Cruiser

1984-11 → 1990-01 · chassis RJ7#,LJ7#,BJ7# · catalogue 781520 · Europe

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cab Mounting & Body Mounting

28 part groups · 2 illustrations

Illustrations

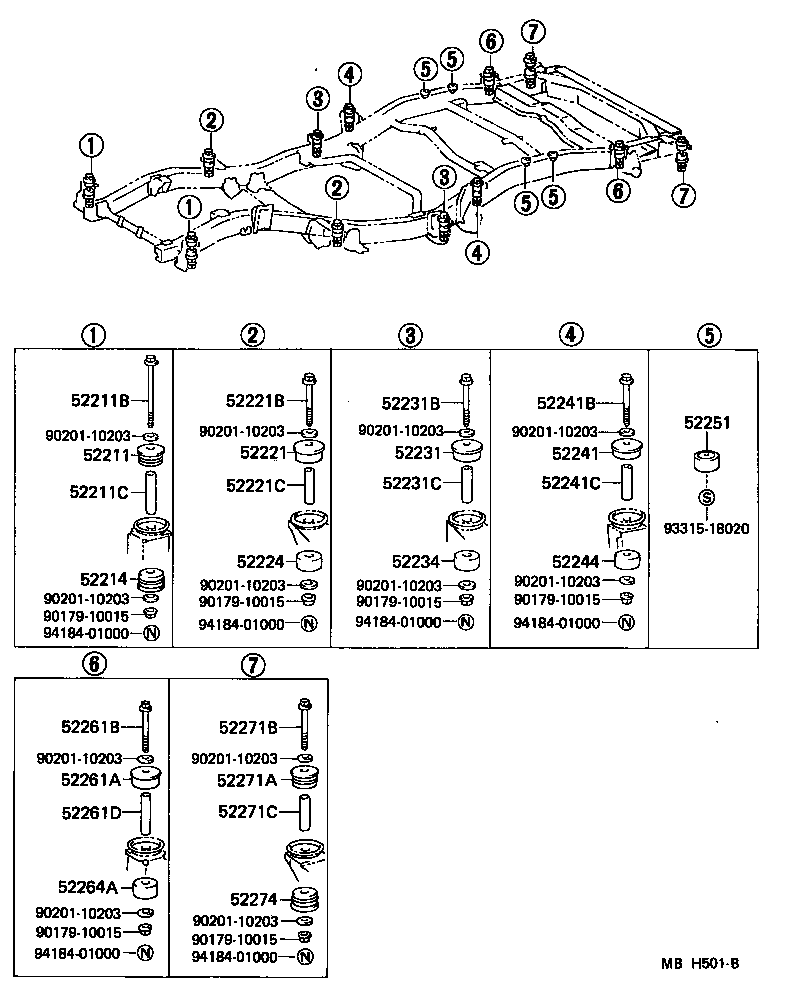

Figure MBK274 MBK274 1984-11 → — Figure MBH501B MBH501B 1984-11 → —

Part groups

PNCDescription
52211 Cushion, Body Mounting, NO.1 Upper
52211B Bolt(FOR BODY MOUNTING NO.1 CUSHION)
52211C Spacer(FOR BODY MOUNTING NO.1 CUSHION)
52214 Cushion, Body Mount, NO.1 Lower
52221 Cushion, Body Mount, NO.2 Upper
52221B Bolt(FOR BODY MOUNT NO.2 CUSHION)
52221C Spacer(FOR BODY MOUNT NO.2 CUSHION)
52224 Cushion, Body Mount, NO.2 Lower
52231 Cushion, Body Mount, NO.3 Upper
52231B Bolt(FOR BODY MOUNT NO.3 CUSHION)
52231C Spacer(FOR BODY MOUNT NO.3 CUSHION)
52234 Cushion, Body Mount, NO.3 Lower
52241 Cushion, Body Mount, NO.4 Upper
52241B Bolt(FOR BODY MOUNT NO.4 CUSHION)
52241C Spacer(FOR BODY MOUNT NO.4 CUSHION)
52244 Cushion, Body Mount, NO.4 Lower
52251 Cushion, Body Mount, NO.5 Upper
52251B Bolt(FOR BODY MOUNT NO.5 CUSHION)
52251C Spacer(FOR BODY MOUNT NO.5 CUSHION)
52254 Cushion, Body Mount, NO.5 Lower
52261A Cushion, Body Mount, NO.6 Upper
52261B Bolt(FOR BODY MOUNT NO.6 CUSHION)
52261D Spacer(FOR BODY MOUNT NO.6 CUSHION)
52264A Cushion, Body Mount, NO.6 Lower
52271A Cushion, Body Mount, NO.7 Upper
52271B Bolt(FOR BODY MOUNT NO.7 CUSHION)
52271C Spacer(FOR BODY MOUNT NO.7 CUSHION)
52274 Cushion, Body Mount, NO.7 Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
