Toyota Land Cruiser

1984-11 → 1990-01 · chassis RJ7#,LJ7#,BJ7# · catalogue 781520 · Europe

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

14 part groups · 2 illustrations

Illustrations

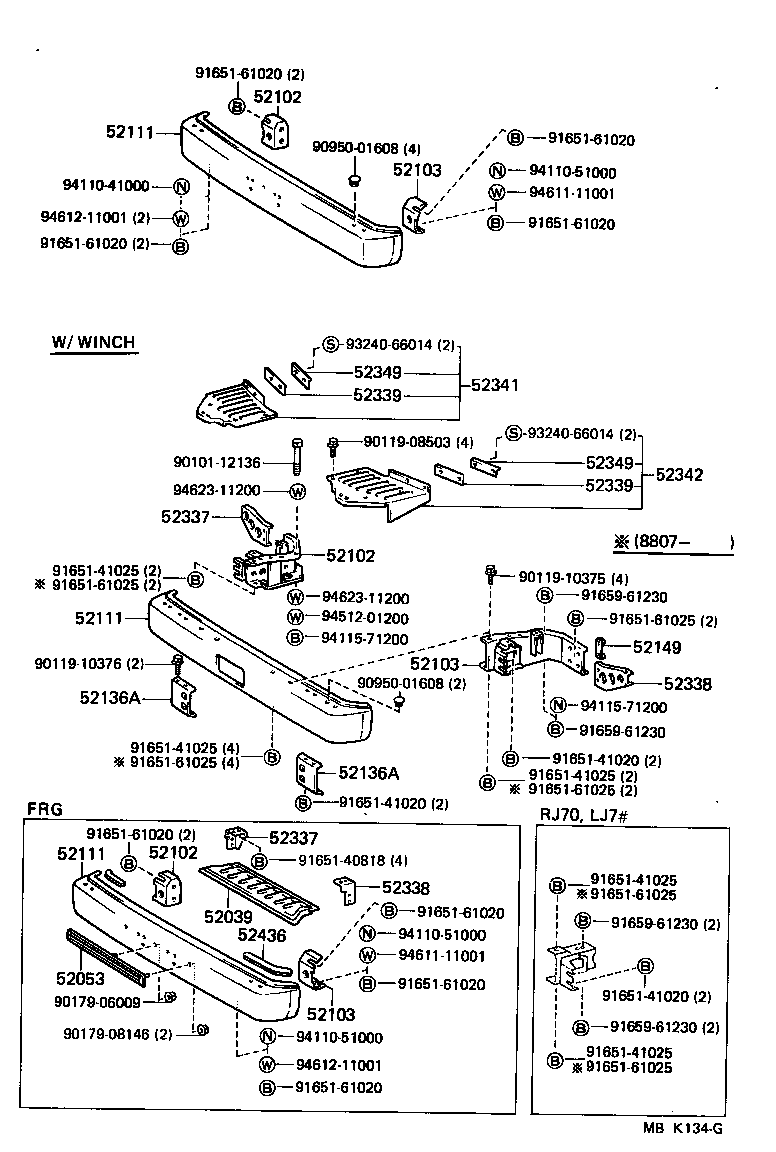

Figure MBH575E MBH575E 1984-11 → 1985-06 Figure MBK134G MBK134G 1985-06 → —

Part groups

PNCDescription
52039 Step Sub-assy, Front Bumper
52053 Pad Sub-assy, Front Bumper
52102 Bracket Sub-assy, Front Bumper, RH
52103 Bracket Sub-assy, Front Bumper, LH
52111 Bumper Assy, Front
52136A Reinforcement, Front Bumper
52149 Bracket, Front Bumper, Inner
52337 Stay, Front Bumper Step, RH
52338 Stay, Front Bumper Step, LH
52339 Seal, Front Bumper Step
52341 Step, Front Bumper, RH
52342 Step, Front Bumper, LH
52349 Retainer, Front Bumper Step Seal
52436 Protector, Front Bumper Guard
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
