Toyota Land Cruiser

1984-11 → 1990-01 · chassis RJ7#,LJ7#,BJ7# · catalogue 781520 · Europe

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

29 part groups · 2 illustrations

Illustrations

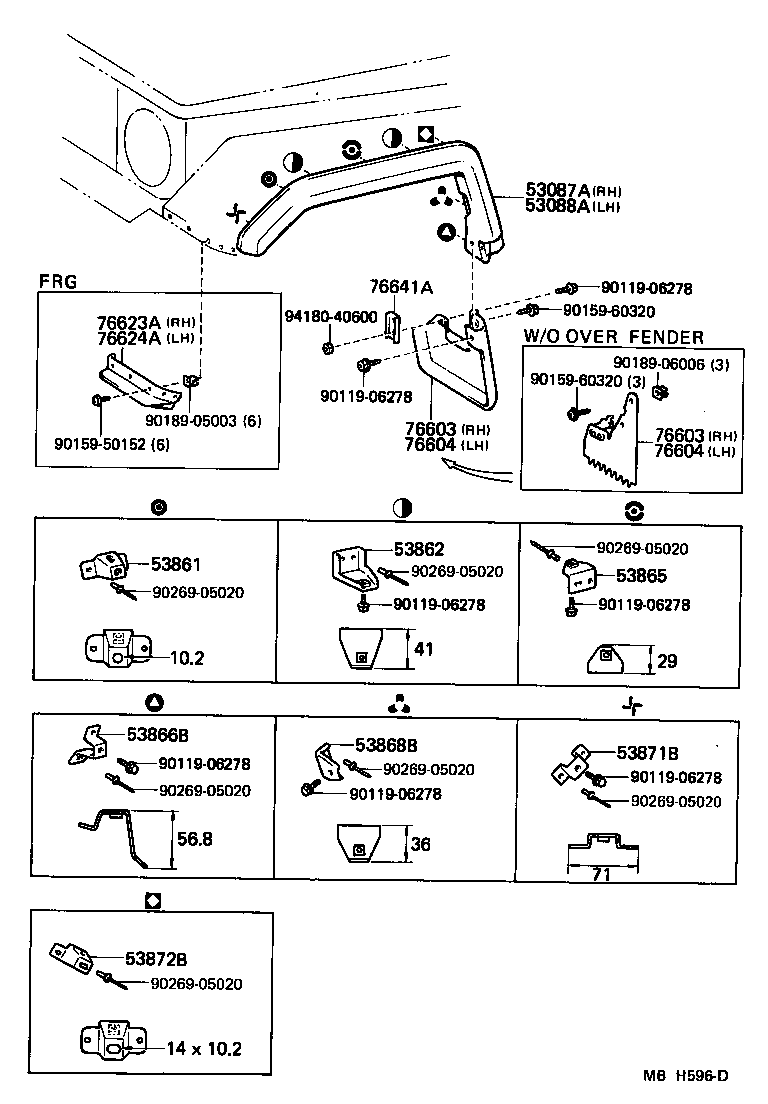

Figure MBH576D MBH576D 1984-11 → — Figure MBH596D MBH596D 1984-11 → —

Part groups

PNCDescription
53087A Extension Sub-assy, Front Wheel Opening, RH
53088A Extension Sub-assy, Front Wheel Opening, LH
53301 Hood Sub-assy
53303 Panel Sub-assy, Hood Side, RH
53304 Panel Sub-assy, Hood Side, LH
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53382 Bumper, Hood, Front
53386 Bumper, Hood, Rear
53390 Cradle Assy, Windshield Rest
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53833 Panel, Front Fender Side, Lower
53861 Bracket, Front Wheel Opening, NO.1
53862 Bracket, Front Wheel Opening, NO.2
53865 Bracket, Front Wheel Opening, NO.3
53866B Bracket, Front Wheel Opening, NO.4
53868B Bracket, Front Wheel Opening, NO.6
53871B Bracket, Front Wheel Opening, NO.7
53872B Bracket, Front Wheel Opening, NO.8
53878C Spacer, Front Fender
53911 Panel, Front Valance
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
76623A Mudguard, Front Fender, Front RH
76624A Mudguard, Front Fender, Front LH
76641A Bracket, Front Mudguard
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
