Toyota Land Cruiser
1984-11 → 1990-01 · chassis RJ7#,LJ7#,BJ7# · catalogue 781520 · Europe
Discontinued model
Data version 1990-06

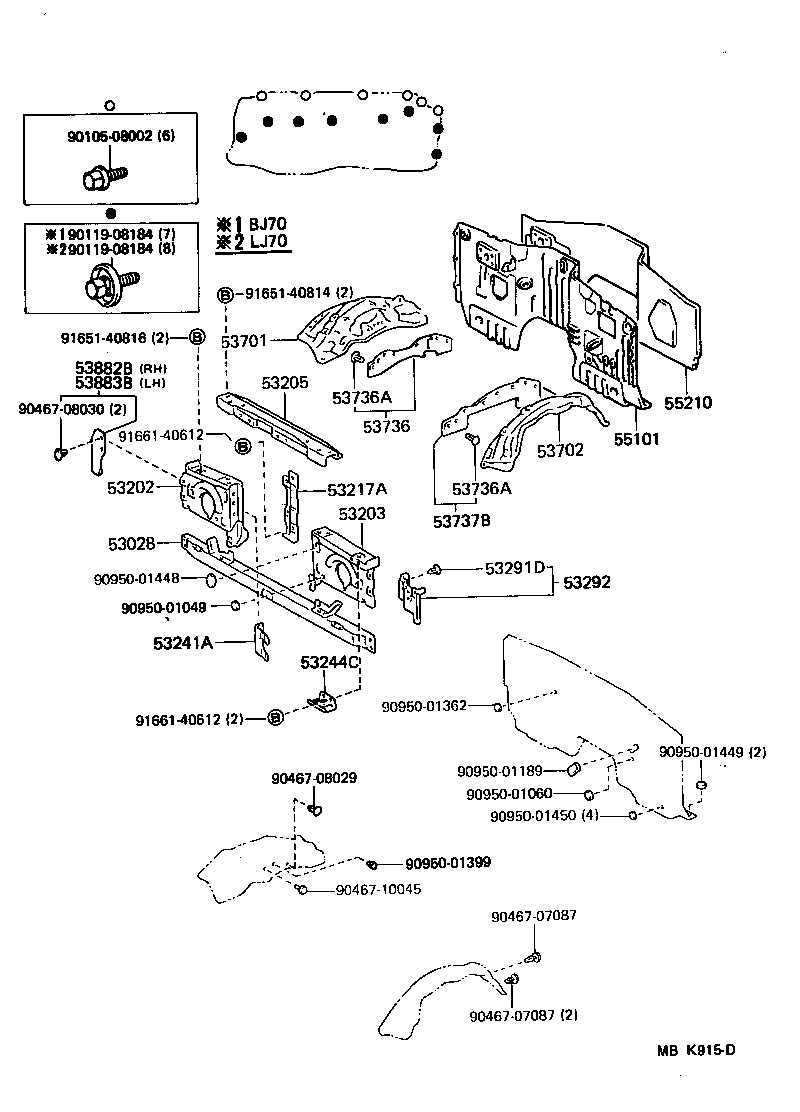

Front Fender Apron & Dash Panel
21 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53028 | Support Sub-assy, Radiator, Lower |
| 53202 | Support Sub-assy, Radiator, RH |
| 53203 | Support Sub-assy, Radiator, LH |
| 53205 | Support Sub-assy, Radiator, Upper |
| 53217A | Brace, Hood Lock Support |
| 53241A | Guide, Side Wind, RH |
| 53244C | Plate, Seal Set |
| 53291 | Seal, Radiator Support TO Frame, RH |
| 53291D | Clip, Radiator Support TO Frame |
| 53292 | Seal, Radiator Support TO Frame, LH |
| 53701 | Apron Sub-assy, Front Fender, RH |
| 53702 | Apron Sub-assy, Front Fender, LH |
| 53736 | Seal, Front Fender Apron, RH |
| 53736A | Clip(FOR FRONT FENDER APRON SEAL) |
| 53737B | Seal, Front Fender Apron, LH |
| 53738A | Seal, Front Fender Apron, Rear RH |
| 53882B | Seal, Front Fender, RH |
| 53883B | Seal, Front Fender, LH |
| 55101 | Panel Sub-assy, Dash |
| 55210 | Insulator Assy, Dash Panel |
| 55223A | Insulator, Dash Panel, Outer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
