Toyota Land Cruiser

1984-11 → 1990-01 · chassis RJ7#,LJ7#,BJ7# · catalogue 781520 · Europe

Discontinued model Data version 1990-06

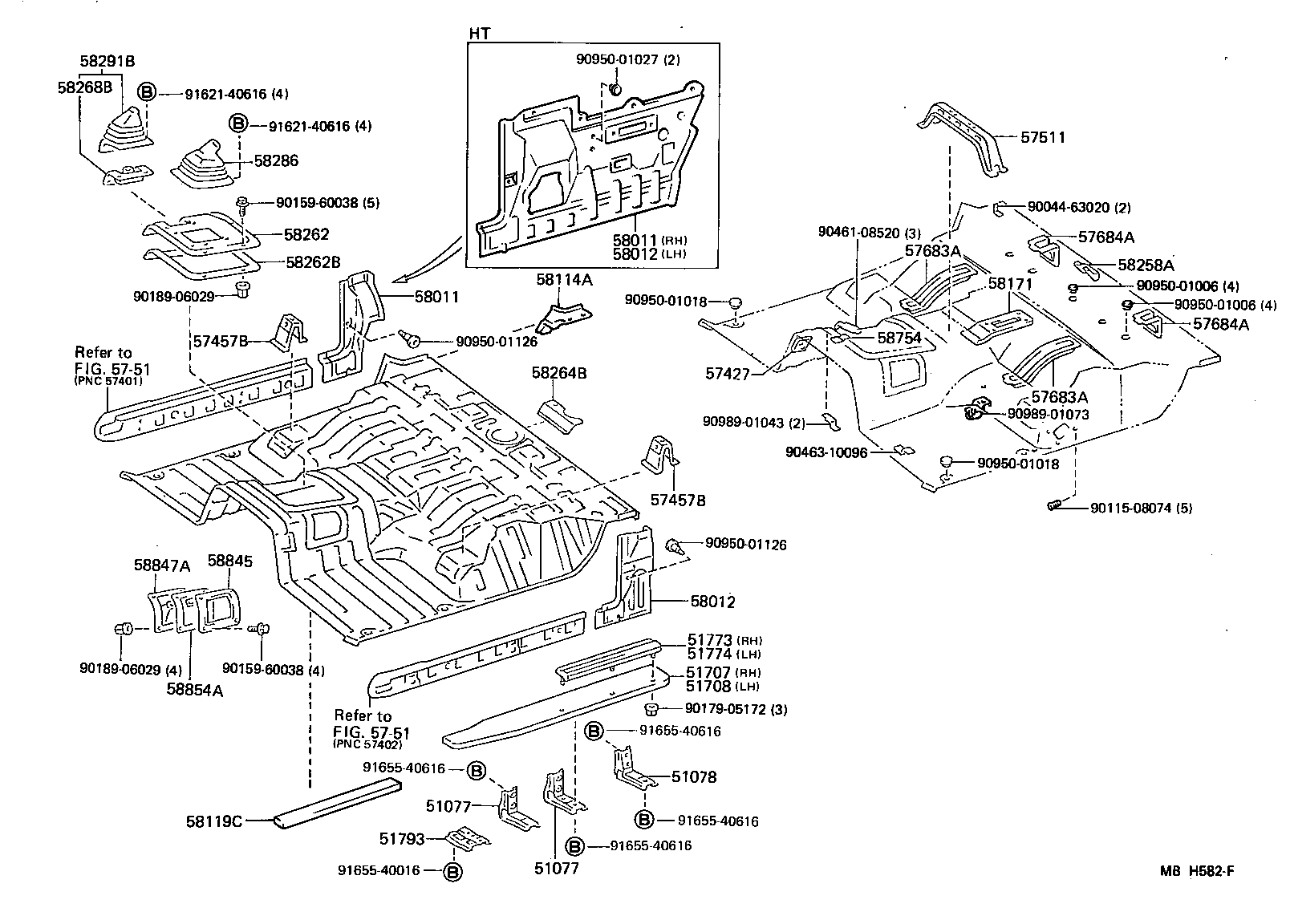

Front Floor Panel & Front Floor Member

32 part groups · 2 illustrations

PNC	Description
51077	Bracket Sub-assy, Side Step, NO.2
51078	Bracket Sub-assy, Side Step, NO.3
51707	Step Sub-assy, RH
51708	Step Sub-assy, LH
51773	Cover, Step Plate, Outer RH
51774	Cover, Step Plate, Outer LH
51793	Bracket, Side Step, NO.1
57427	Reinforcement, Front Floor TO Brace
57457B	Bracket, Front Seat, Front
57465B	Bracket, Front Seat, Inner
57469	Bracket, Front Seat, Outside
57511	Reinforcement, Front Floor, Center
57683A	Bracket, Fuel Tank Mounting, NO.1
57684A	Bracket, Fuel Tank Mounting, NO.2
58011	Panel Sub-assy, Front Floor Side, RH
58012	Panel Sub-assy, Front Floor Side, LH
58041A	Insulator Sub-assy, Front Floor Heat, NO.1
58114A	Reinforcement, Front Floor Panel
58119C	Cushion, Front Floor
58171	Reinforcement, Parking Brake Base
58183	Bracket, Front Seat Mounting, Inner
58258A	Reinforcement, Parking Brake Cable Clamp, RH
58262	Cover, Transmission
58262B	Packing, Transmission Cover
58264B	Bracket, Parking Brake Cable Guide
58268B	Seal, Transfer Lever Boot
58286	Boot, Shift & Select Lever, NO.1
58291B	Boot, Transfer Shift Lever
58754	Plate, Engine Service Cover Catch
58845	Retainer, Winch Lever Boot
58847A	Seal, Winch Lever
58854A	Boot, Winch Lever

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
