Toyota Land Cruiser
1984-11 → 1990-01 · chassis RJ7#,LJ7#,BJ7# · catalogue 781520 · Europe
Discontinued model
Data version 1990-06

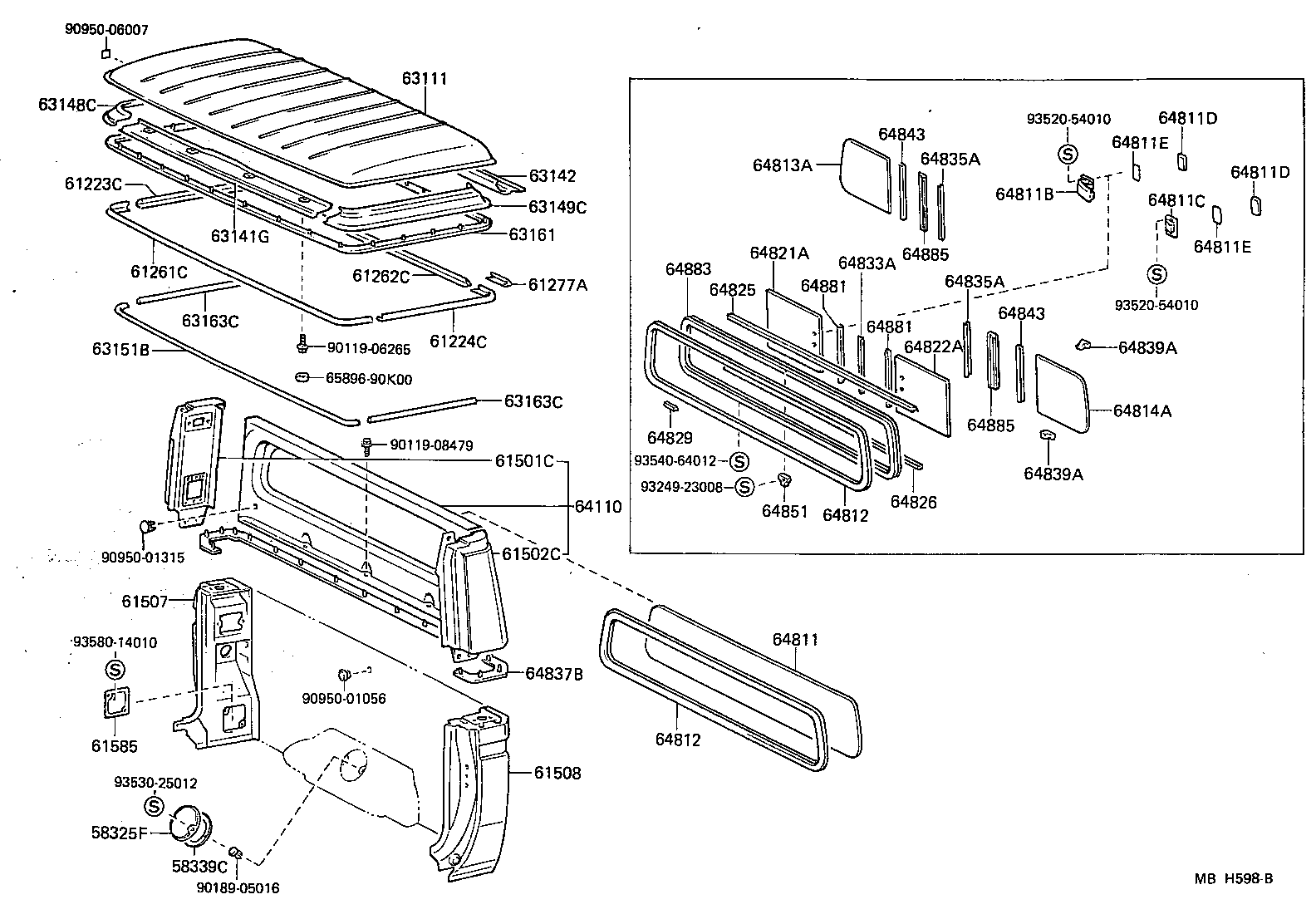

Roof Panel & Back Panel
65 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 61223C | Channel, Roof Drip Side, RH |
| 61224C | Channel, Roof Drip Side, LH |
| 61261C | Channel, Roof Drip, Front |
| 61262C | Channel, Roof Drip, Rear |
| 61277A | Joint, Roof Drip Channel |
| 61501C | Pillar Sub-assy, Cab Rear, Upper RH |
| 61502C | Pillar Sub-assy, Cab Rear, Upper LH |
| 61507 | Pillar Sub-assy, Cab Rear, Lower RH |
| 61508 | Pillar Sub-assy, Cab Rear, Lower LH |
| 61585 | Lid, Quarter Hole, NO.1 |
| 63102A | Panel Sub-assy, Windshield Header |
| 63105A | Frame Sub-assy, Back Door Opening |
| 63111 | Panel, Roof |
| 63141G | Reinforcement, Roof Panel, NO.1 |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63143A | Reinforcement, Roof Panel |
| 63143B | Reinforcement, Roof Panel, NO.3 |
| 63148C | Reinforcement, Roof Panel Side, RH |
| 63149C | Reinforcement, Roof Panel Side, LH |
| 63150 | Reinforcement Assy, Roof Panel |
| 63151B | Seal, Roof Panel Reinforcement |
| 63161 | Weatherstrip, Roof |
| 63163C | Seal, Roof Panel Reinforcement, Side |

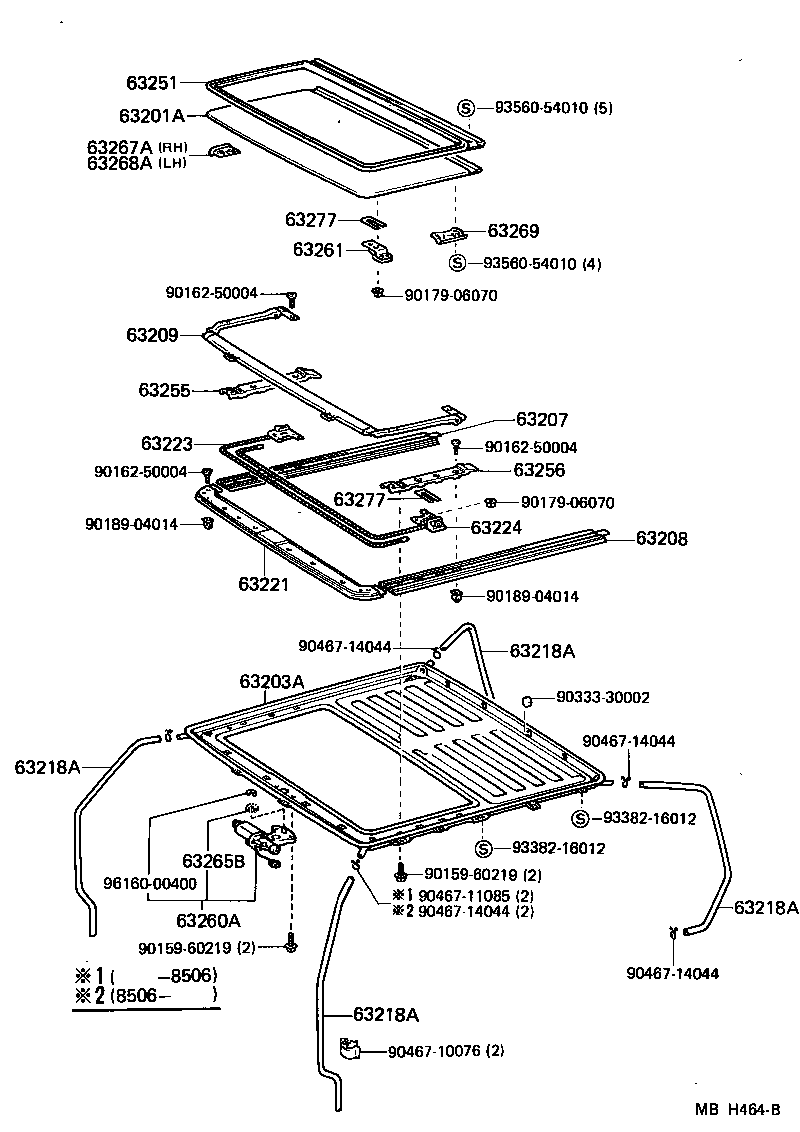

| 63201A | Panel Sub-assy, Sliding Roof OR Removable Roof |
| 63203A | Housing Sub-assy, Sliding Roof OR Removable Roof |
| 63207 | Rail Sub-assy, Sliding Roof Guide, RH |
| 63208 | Rail Sub-assy, Sliding Roof Guide, LH |
| 63209 | Panel Sub-assy, Roof Wind Deflector |
| 63218A | Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) |
| 63221 | Casing, Sliding Roof Cable Guide |
| 63223 | Cable, Sliding Roof Drive, RH |
| 63224 | Cable, Sliding Roof Drive, LH |
| 63251 | Weatherstrip, Sliding Roof Panel OR Removable Roof |
| 63255 | Cover, Sliding Roof Guide Rail, RH |
| 63256 | Cover, Sliding Roof Guide Rail, LH |
| 63260A | Gear Sub-assy, Sliding Roof Drive |
| 63261 | Shoe, Sliding Roof, Front |
| 63265B | Gear, Sliding Roof Drive |
| 63267A | Protector, Sliding Roof Weatherstrip, RH |
| 63268A | Protector, Sliding Roof Weatherstrip, LH |
| 63269 | Retainer, Sliding Roof Weatherstrip |
| 63277 | Shim, Sliding Roof Rail |
| 64110 | Panel Assy, Front Body Back |
| 64811 | Glass, Back Window |
| 64811B | Lock Assy, Back Window |
| 64811C | Catch, Back Window Lock |
| 64811D | Retainer, Back Window |
| 64811E | Packing, Back Window Lock |
| 64812 | Weatherstrip, Back Window Glass, NO.1 |
| 64813A | Glass, Back Window Corner, RH |
| 64814A | Glass, Back Window Corner, LH |
| 64821A | Glass, Back Window Slide, RH |
| 64822A | Glass, Back Window Slide, LH |
| 64825 | Run, Back Window Channel, Upper |
| 64826 | Run, Back Window Channel, Lower |
| 64829 | Film, Back Window Frame |
| 64833A | Weatherstrip, Back Window Center Channel |
| 64835A | Weatherstrip, Back Window Glass, Center |
| 64837B | Weatherstrip, Back Panel, Center |
| 64839A | Packing, Back Window |
| 64843 | Weatherstrip, Back Window Channel |
| 64851 | Stop, Back Window Slide Glass |
| 64881 | Channel, Back Window Glass |
| 64883 | Frame, Back Window |
| 64885 | Frame, Back Window Vertical |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
