Toyota Land Cruiser
1984-11 → 1990-01 · chassis RJ7#,LJ7#,BJ7# · catalogue 781520 · Europe
Discontinued model
Data version 1990-06

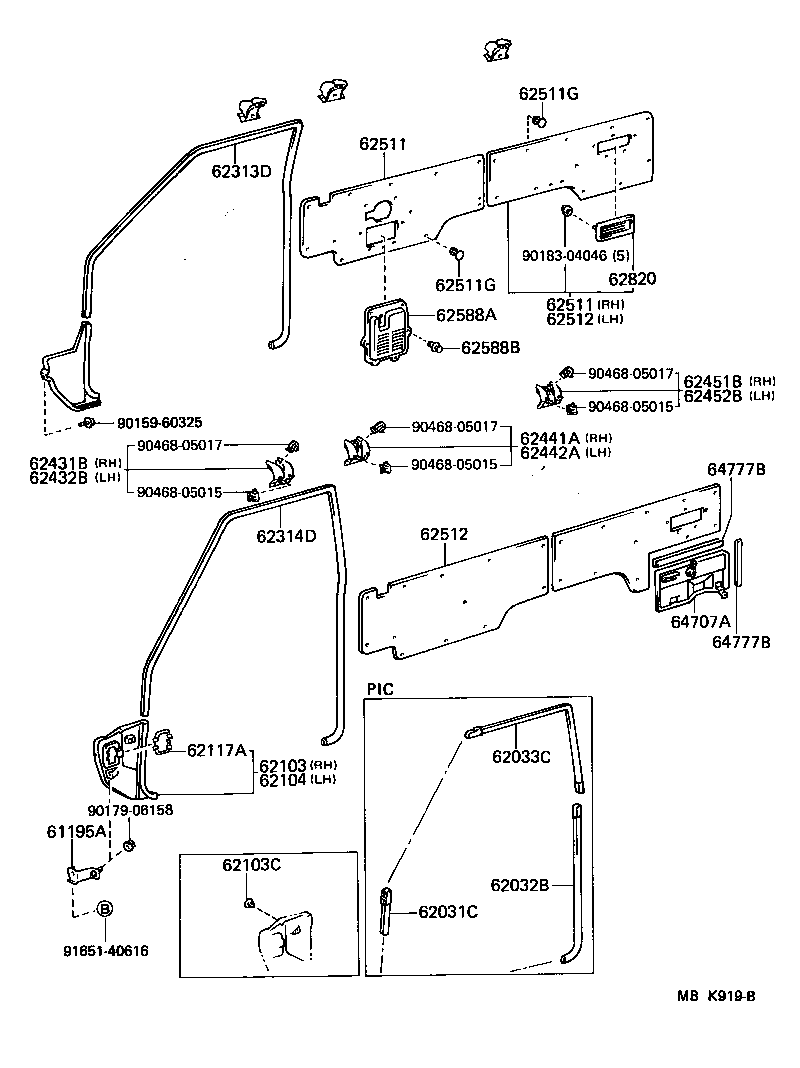

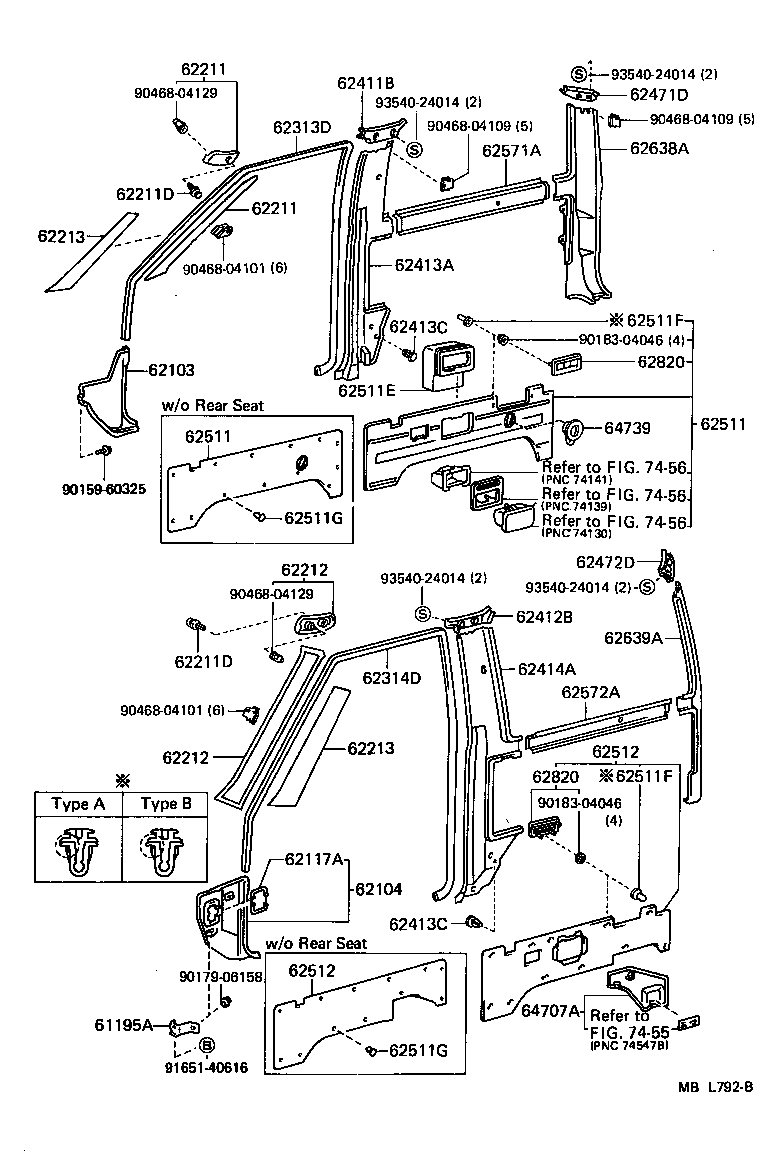

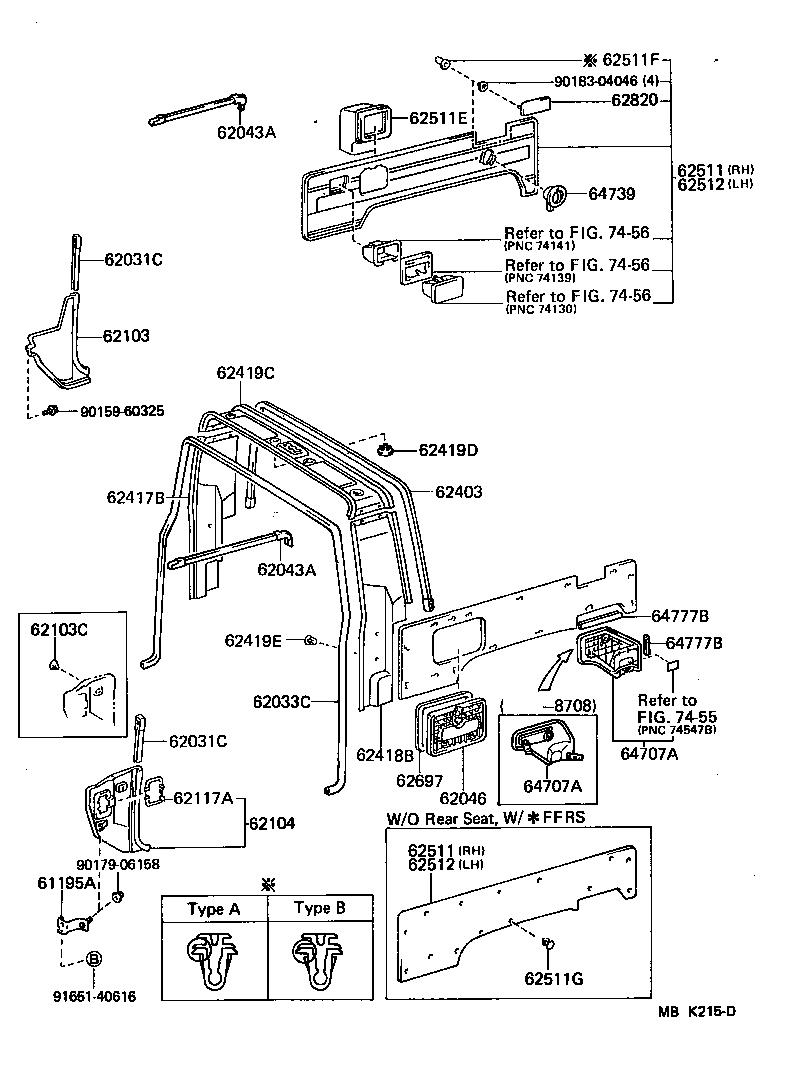

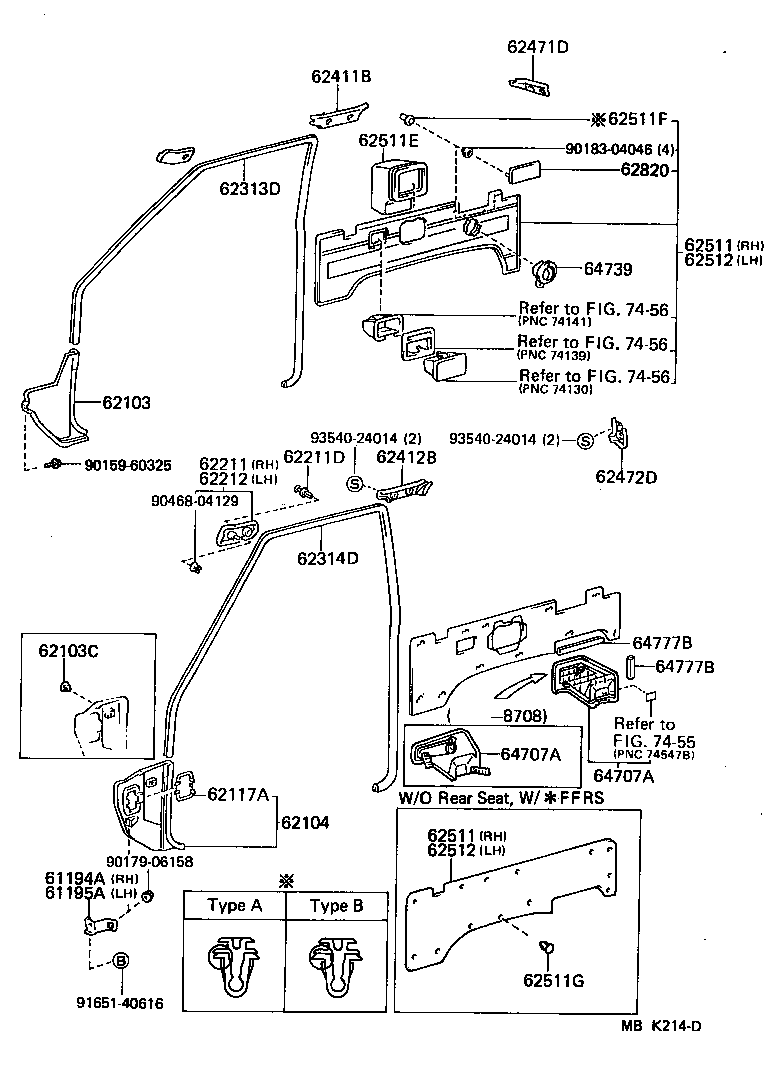

Inside Trim Board
52 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 61194A | Bracket, Cowl Side Trim, RH |
| 61195A | Bracket, Cowl Side Trim, LH |
| 62031C | Trim Sub-assy, Front Door Opening, NO.1 |
| 62032B | Trim Sub-assy, Front Door Opening, NO.2 |
| 62033C | Trim Sub-assy, Front Door Opening, NO.3 |
| 62043A | Trim Sub-assy, Front Door Opening, NO.4 |
| 62046 | Cover Sub-assy, Quarter Trim Lid |
| 62103 | Board Sub-assy, Cowl Side Trim, RH |
| 62103C | Clip, Cowl Side Trim Board Set |
| 62104 | Board Sub-assy, Cowl Side Trim, LH |
| 62117A | Cover, Cowl Side Trim Service Hole |
| 62211 | Garnish, Front Pillar, RH |
| 62211D | Clip(FOR FRONT BODY PILLAR GARNISH) |
| 62212 | Garnish, Front Pillar, LH |
| 62213 | Pad, Front Pillar Garnish |
| 62313D | Trim, Front Door Opening, RH |
| 62314D | Trim, Front Door Opening, LH |
| 62403 | Trim Sub-assy, Roll Over Panel |
| 62411B | Garnish, Center Pillar, Upper RH |
| 62412B | Garnish, Center Pillar, Upper LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62413C | Clip (FOR CENTER LOWER GARNISH) |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62417B | Garnish, Roll Over, Side, RH |
| 62418B | Garnish, Roll Over, Side, LH |
| 62419C | Garnish, Roll Over, Center |
| 62419D | Plug (FOR ROLL OVER GARNISH) |
| 62419E | Clip (FOR ROLL OVER GARNISH) |
| 62431B | Garnish, Roof Side Rail, NO.1 RH |
| 62432B | Garnish, Roof Side Rail, NO.1 LH |
| 62441A | Garnish, Roof Side Rail, NO.2 RH |
| 62442A | Garnish, Roof Side Rail, NO.2 LH |
| 62451B | Garnish, Roof Side Rail, NO.3 RH |
| 62452B | Garnish, Roof Side Rail, NO.3 LH |
| 62471D | Garnish, Rear Pillar, Upper RH |
| 62472D | Garnish, Rear Pillar, Upper LH |
| 62511 | Board, Quarter Inside Trim, RH |
| 62511E | Pocket, Quarter Trim |
| 62511F | Retainer (FOR QUARTER INSIDE TRIM BOARD) |
| 62511G | Clip (FOR QUARTER INSIDE TRIM BOARD) |
| 62512 | Board, Quarter Inside Trim, LH |
| 62571A | Garnish, Roof Side, Inner Lower RH |
| 62572A | Garnish, Roof Side Inner Lower LH |
| 62588A | Cover, Side Heater, Lower |
| 62588B | Clip (FOR SIDE HEATER COVER) |
| 62638A | Garnish, Quarter Pillar, RH |
| 62639A | Garnish, Quarter Pillar, LH |
| 62697 | Moulding, Quarter Trim Lid |
| 62820 | Grille, Room Ventilator |
| 64707A | Cover Sub-assy, Quarter Trim Tool |
| 64739 | Cover, Deck Trim Side Washer |
| 64777B | Protector, Quarter, Inner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
