Toyota Land Cruiser

1984-11 → 1990-01 · chassis RJ7#,LJ7#,BJ7# · catalogue 781520 · Europe

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

12 part groups · 2 illustrations

Illustrations

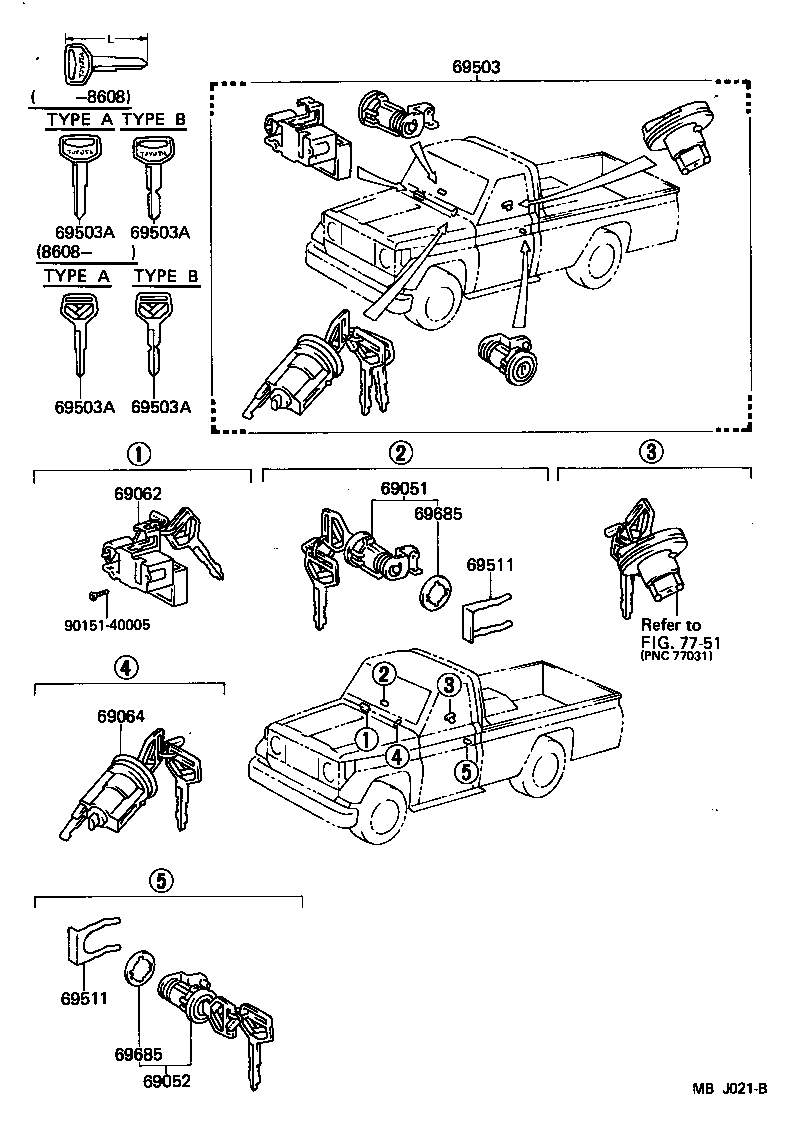

Figure MBH601D MBH601D 1984-11 → — Figure MBJ021B MBJ021B 1984-11 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69054 Cylinder & Key Set, Back Door Lock
69058 Cylinder & Key Set, Fuel Filler Lid
69062 Cylinder & Key Set, Glove Compartment Lock
69064 Cylinder & Key Set, Ignition Switch Lock
69503 Cylinder Set, Lock
69503A Key, Blank
69511 Retainer, Front Door Lock Cylinder
69551 Retainer, Back Door Lock Cylinder
69581 Retainer, Fuel Filler Lid Cylinder
69685 Pad, Lock Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
