Toyota Land Cruiser

1984-11 → 1990-01 · chassis RJ7#,LJ7#,BJ7# · catalogue 781520 · Europe

Discontinued model Data version 1990-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery Carrier

8 part groups · 4 illustrations

Illustrations

Figure MBH608B

MBH608B 1984-11 → 1987-04

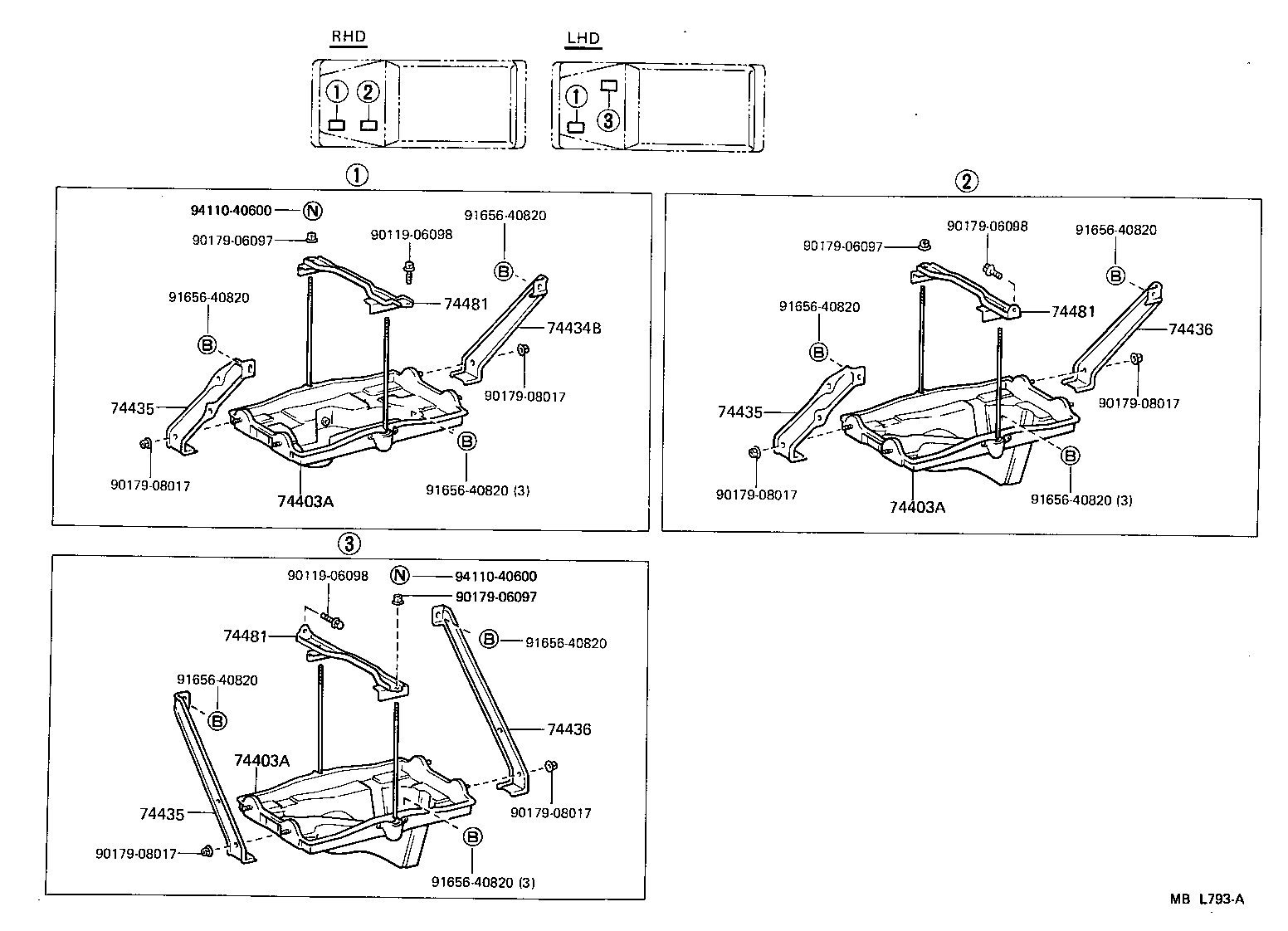

Figure MBL793A

MBL793A 1987-04 → —

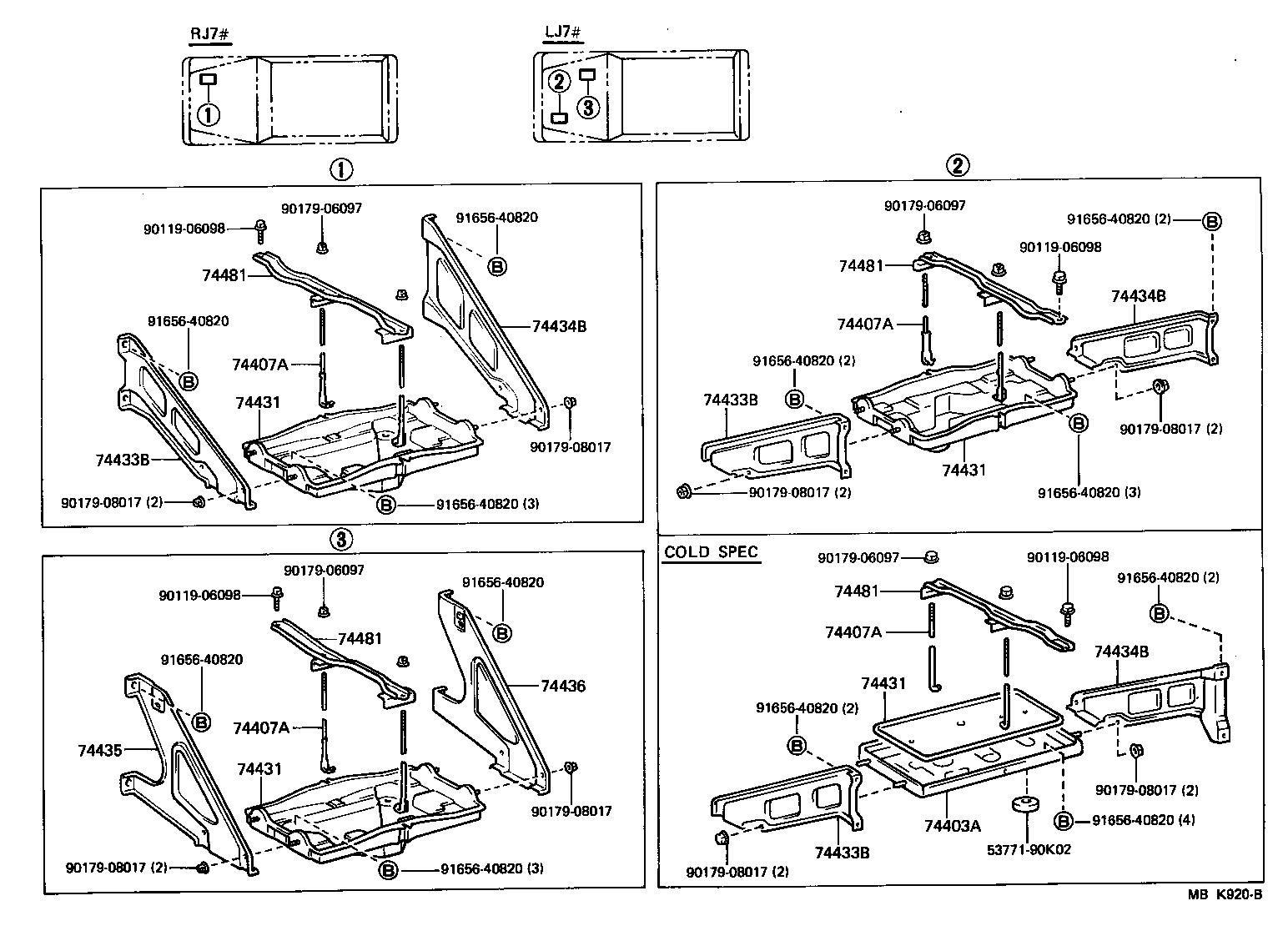

Figure MBK920B

MBK920B 1984-11 → 1987-04

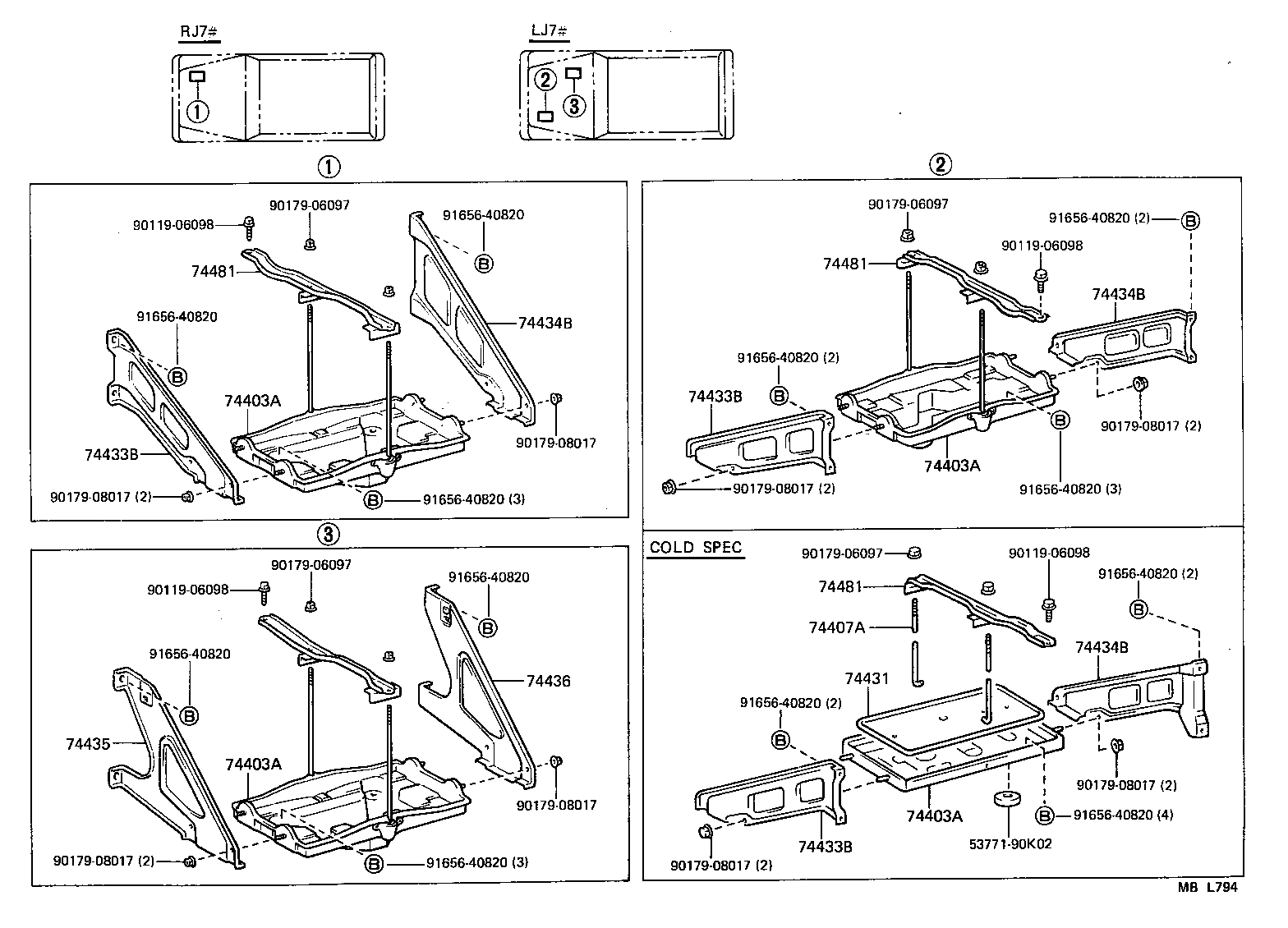

Figure MBL794

MBL794 1987-04 → —

Part groups

PNC	Description
74403A	Carrier Sub-assy, Battery
74407A	Bolt Sub-assy, Battery Clamp
74431	Tray, Battery
74433B	Support, Battery Tray, NO.1
74434B	Support, Battery Tray, NO.2
74435	Support, Battery Tray, NO.3
74436	Support, Battery Tray, NO.4
74481	Clamp, Battery Hold Down

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
