Toyota Land Cruiser

1984-11 → 1990-01 · chassis RJ7#,LJ7#,BJ7# · catalogue 781520 · Europe

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

63 part groups · 9 illustrations

Illustrations

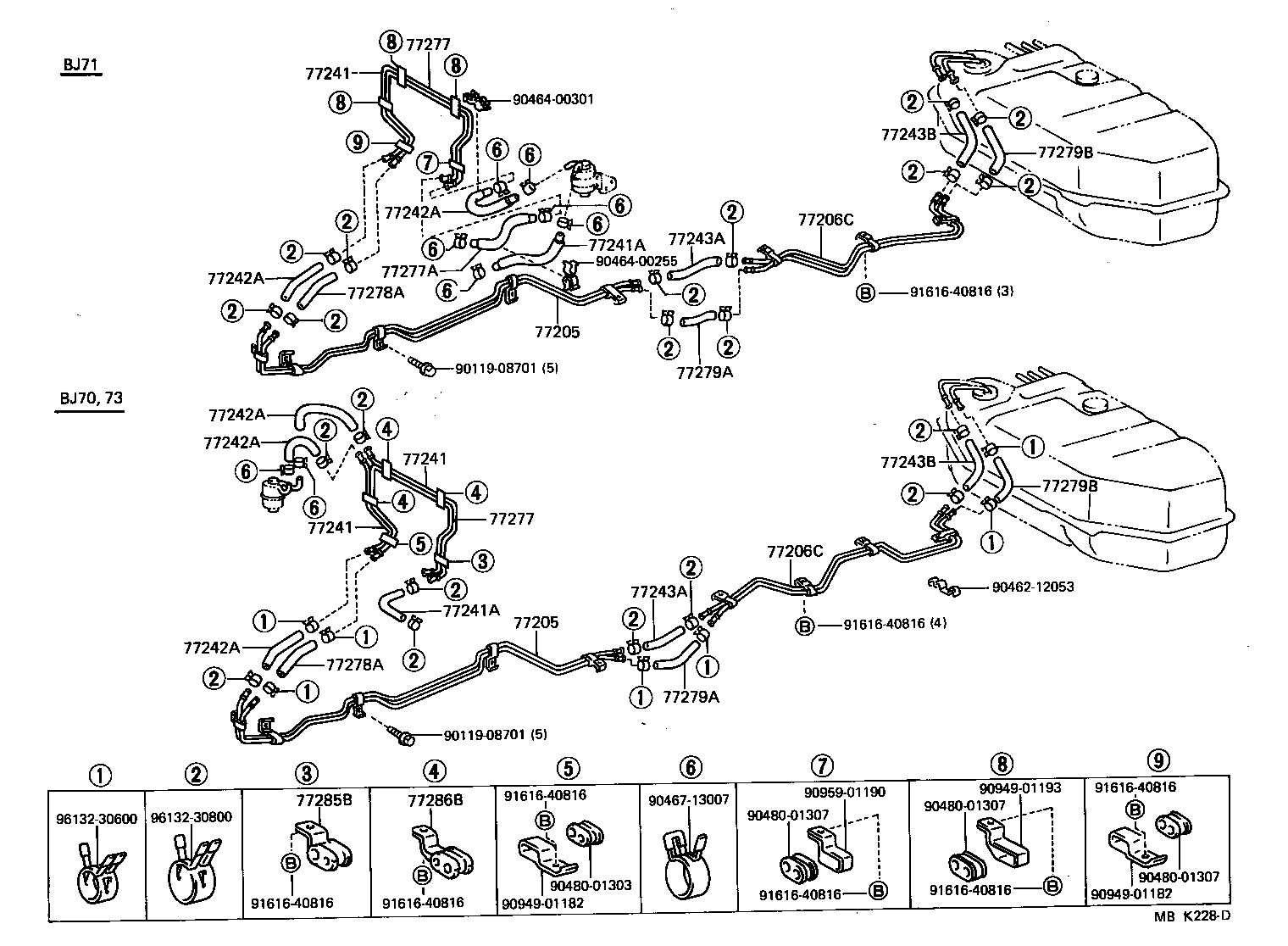

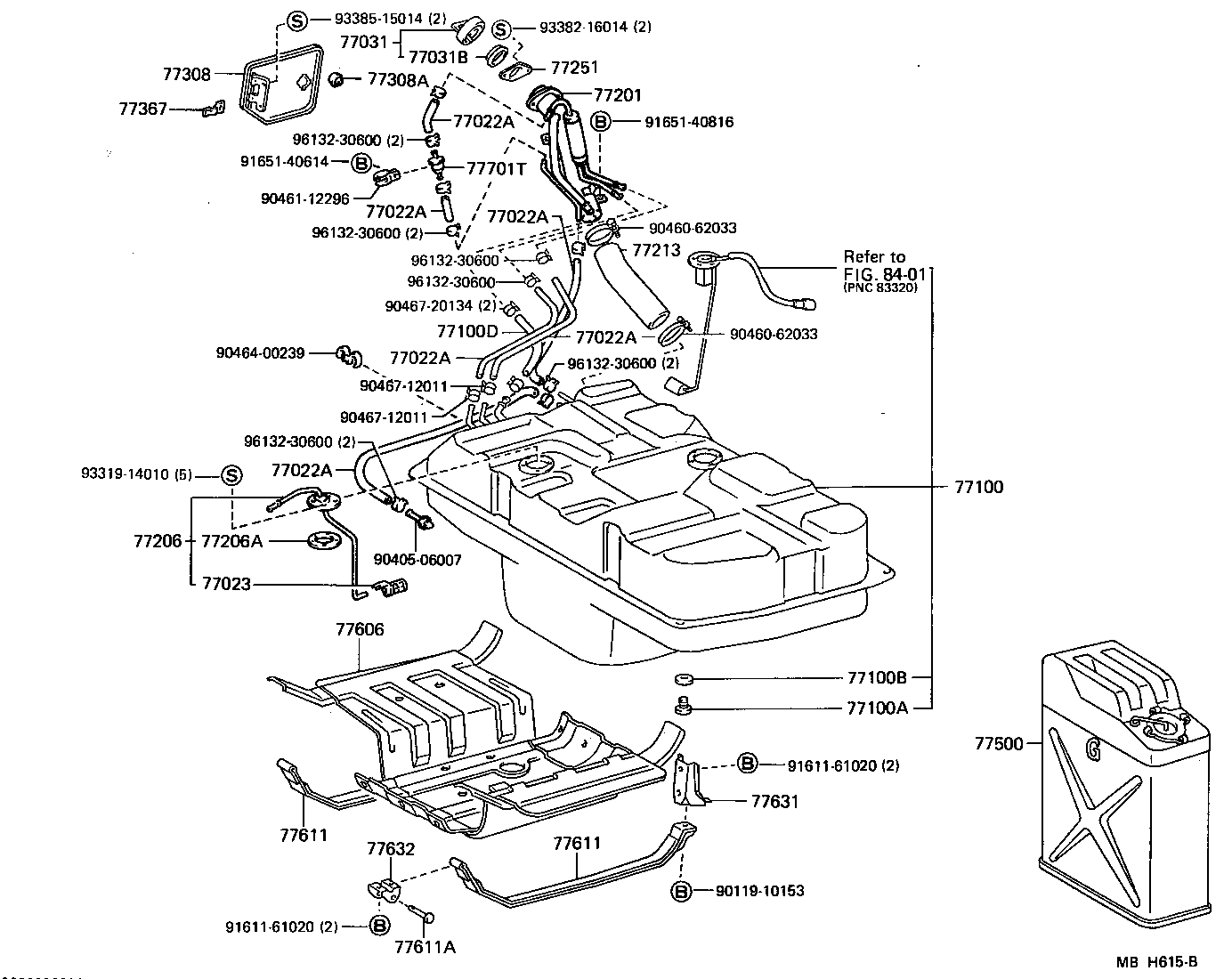

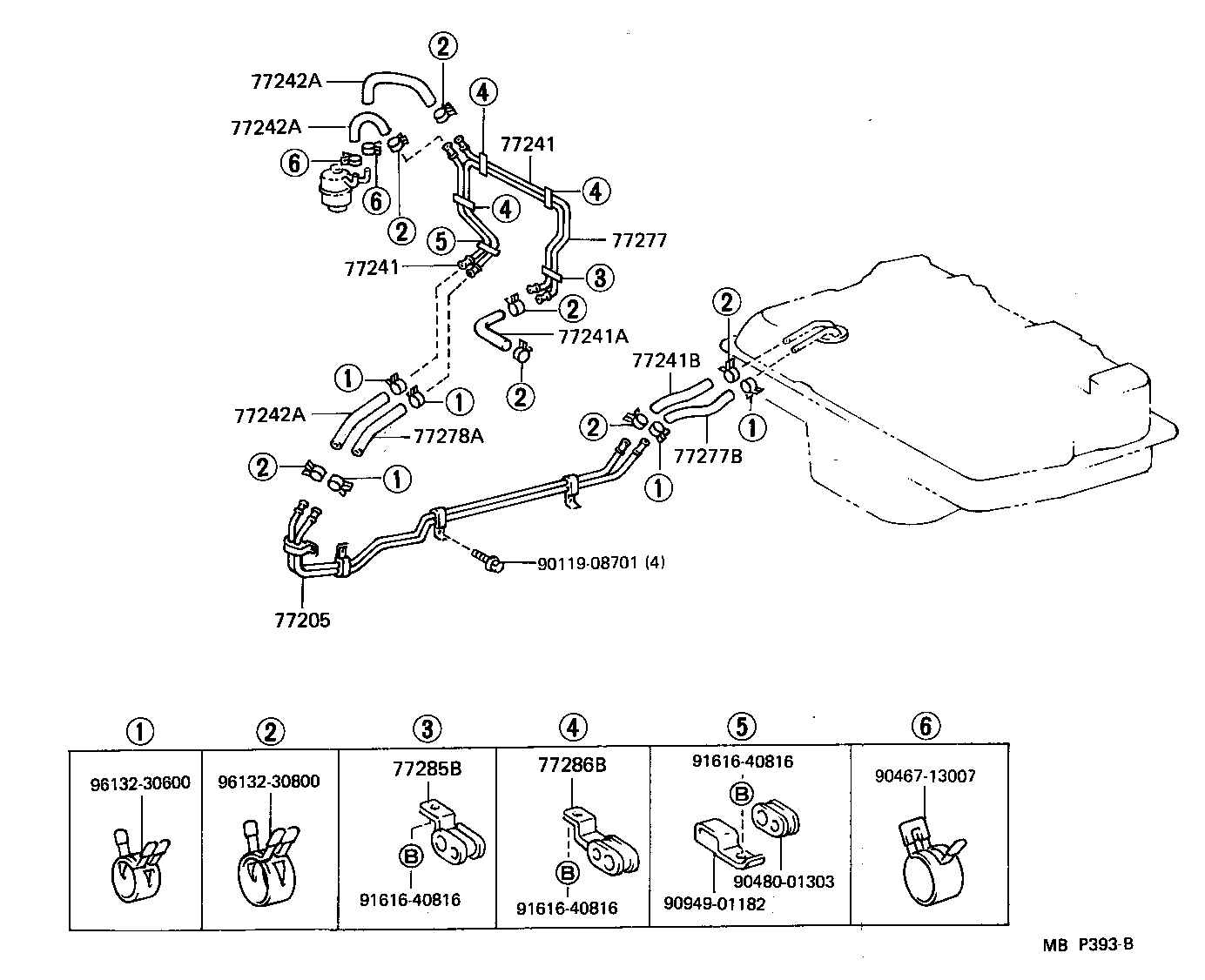

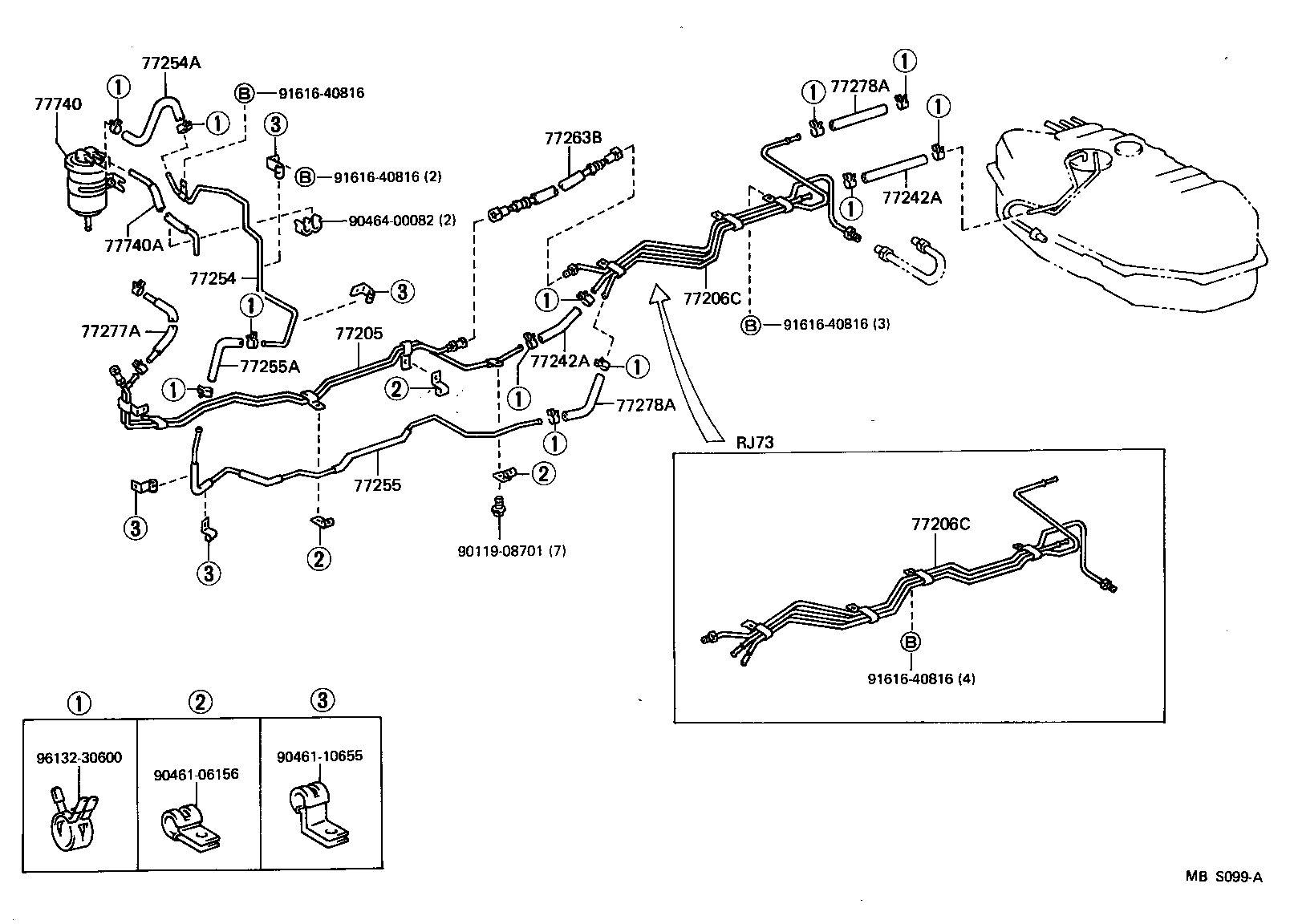

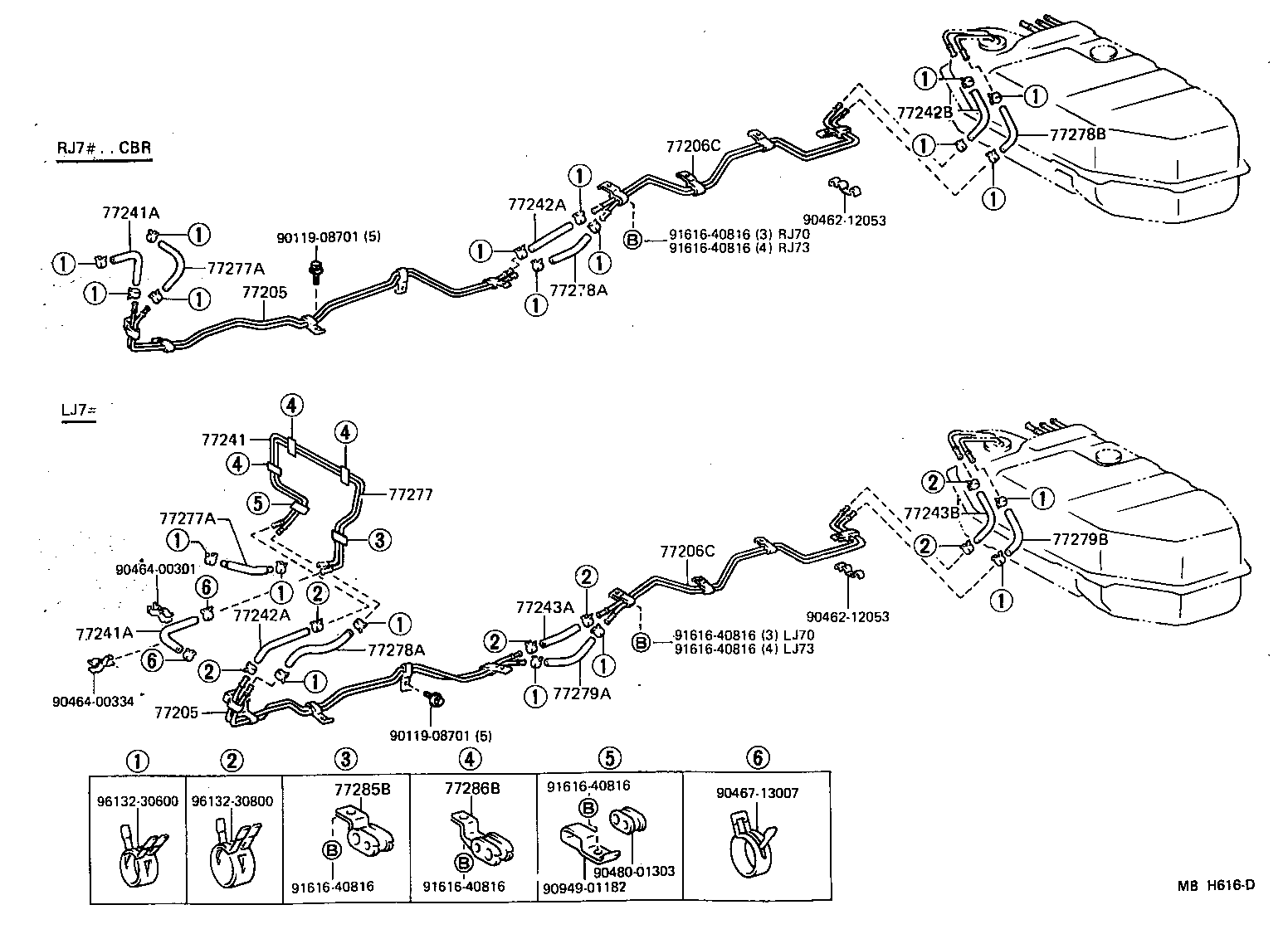

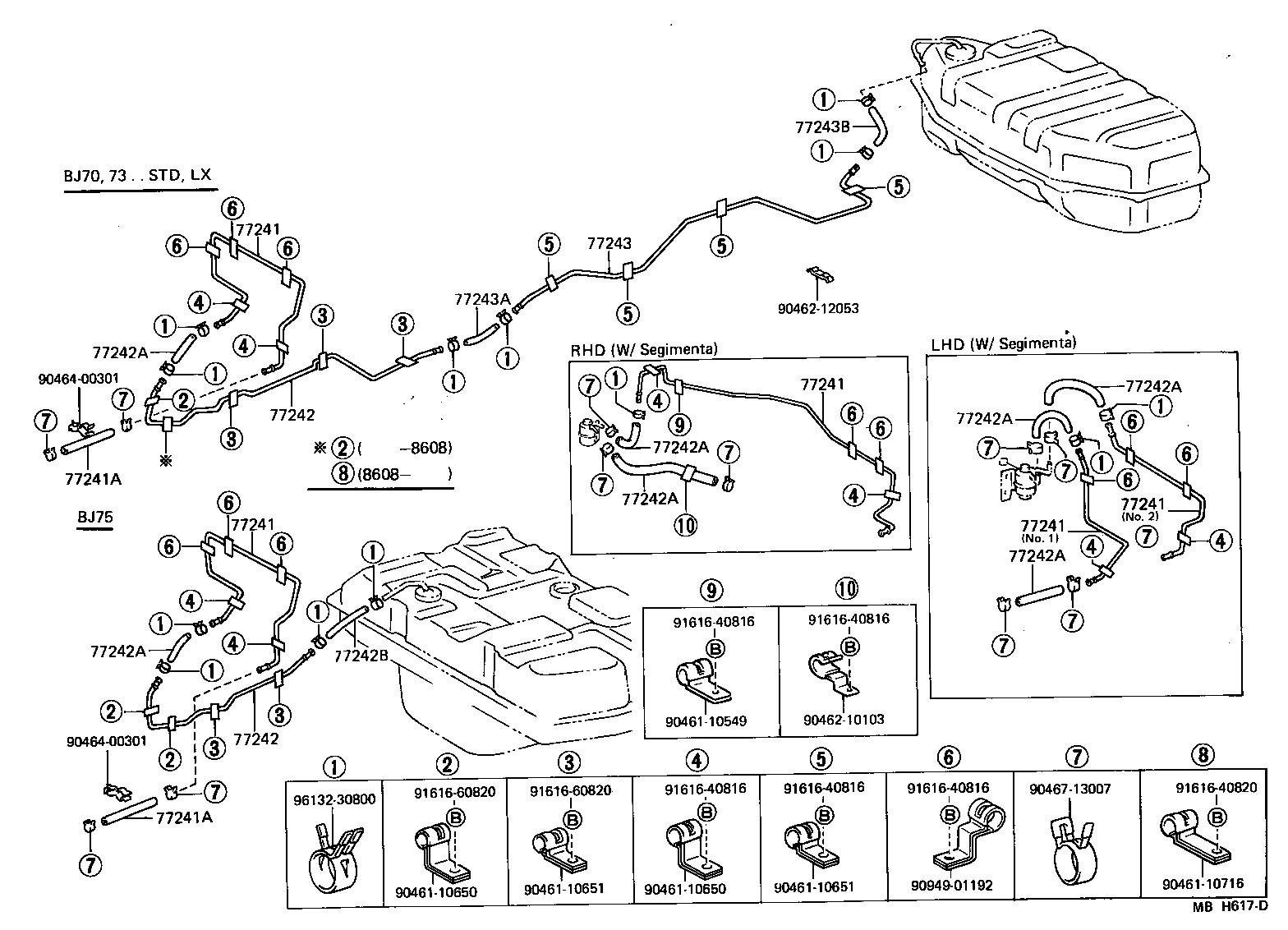

Figure MBH614D MBH614D 1984-11 → — Figure MBH615B MBH615B 1984-11 → — Figure MBH616D MBH616D 1984-11 → — Figure MBS099A MBS099A 1988-12 → — Figure MBH617D MBH617D 1984-11 → 1988-08 Figure MBK228D MBK228D 1985-10 → 1988-08 Figure MBK228D MBK228D 1985-10 → — Figure MBK228D MBK228D 1988-08 → — Figure MBP393B MBP393B 1988-08 → —

Part groups

PNCDescription
77022A Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR)
77023 Filter Sub-assy, Fuel Suction Tube
77031 Cap Assy, Fuel Tank
77031B Gasket (FOR FUEL TANK CAP)
77035 Cable Sub-assy, Fuel Lid Lock Control
77037 Lock Sub-assy, Fuel Filler Opening Lid
77100 Tank Assy, Fuel
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77100D Hose, Fuel, NO.1(FOR FUEL TANK)
77131 Bracket, Fuel Tank Filler Pipe Support
77201 Pipe Sub-assy, Fuel Tank Inlet
77205 Tube Sub-assy, Fuel Main
77206 Tube Sub-assy, Fuel Tank Suction
77206A Gasket (FOR FUEL TANK SUCTION TUBE)
77206C Tube Sub-assy, Fuel Main, NO.2
77213 Hose, Fuel Tank Sub Inlet
77241 Tube, Fuel Main, NO.1
77241A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
77241B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
77242 Tube, Fuel Main, NO.2
77242A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.2)
77242B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.2)
77243 Tube, Fuel Main, NO.3
77243A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.3)
77243B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.3)
77251 Shield, Fuel Tank, Inlet, NO.1
77254 Tube, Fuel Emission, NO.1
77254A Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1)
77255 Tube, Fuel Emission, NO.2
77255A Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.2)
77263B Hose, Fuel, NO.2 (FOR FUEL TANK TO CANISTER NO.3 TUBE)
77277 Tube, Fuel Return, NO.1
77277A Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
77277B Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
77278A Hose, Fuel, NO.1 (FOR RETURN TUBE, NO.2)
77278B Hose, Fuel, NO.2 (FOR RETURN TUBE, NO.2)
77279A Hose, Fuel, NO.1 (FOR RETURN TUBE, NO.3)
77279B Hose, Fuel, NO.2 (FOR RETURN TUBE, NO.3)
77285B Clamp, Fuel Tube W/Grommet, NO.1
77286 Protector, Fuel Tank Inlet Pipe
77286B Clamp, Fuel Tube W/Grommet, NO.2
77290 Shield Assy, Fuel Tank Filler Pipe
77293A Shield, Fuel Tank Filler Pipe, NO.3
77308 Cover Sub-assy, Fuel Inlet Box
77308A Cushion(FOR FUEL INLET BOX COVER)
77322 Knob, Fuel Tank Cap
77338A Bracket, Fuel Tank Cap Lock Control Rod
77366 Spring, Fuel Filler Opening Lid Hinge
77367 Stopper, Fuel Filler Opening Lid
77378A Cover, Fuel Filler Opening Lid Lock
77387 Ring, Fuel Inlet Box
77500 Tank Assy, Auxiliary Fuel
77606 Protector Sub-assy, Fuel Tank, NO.1
77611 Band, Fuel Tank
77611A Pin (FOR FUEL TANK BAND)
77631 Bracket, Fuel Tank, NO.1
77632 Bracket, Fuel Tank, NO.2
77675B Bracket, Fuel Tank Filler Pipe Protector, NO.1
77676B Bracket, Fuel Tank Filler Pipe Protector, NO.2
77701T Valve, Check (FOR MAIN FUEL TANK)
77740 Canister Assy, Charcoal
77740A Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
