Toyota Land Cruiser

1984-11 → 1990-01 · chassis RJ7#,LJ7#,BJ7# · catalogue 781520 · Europe

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

24 part groups · 7 illustrations

Illustrations

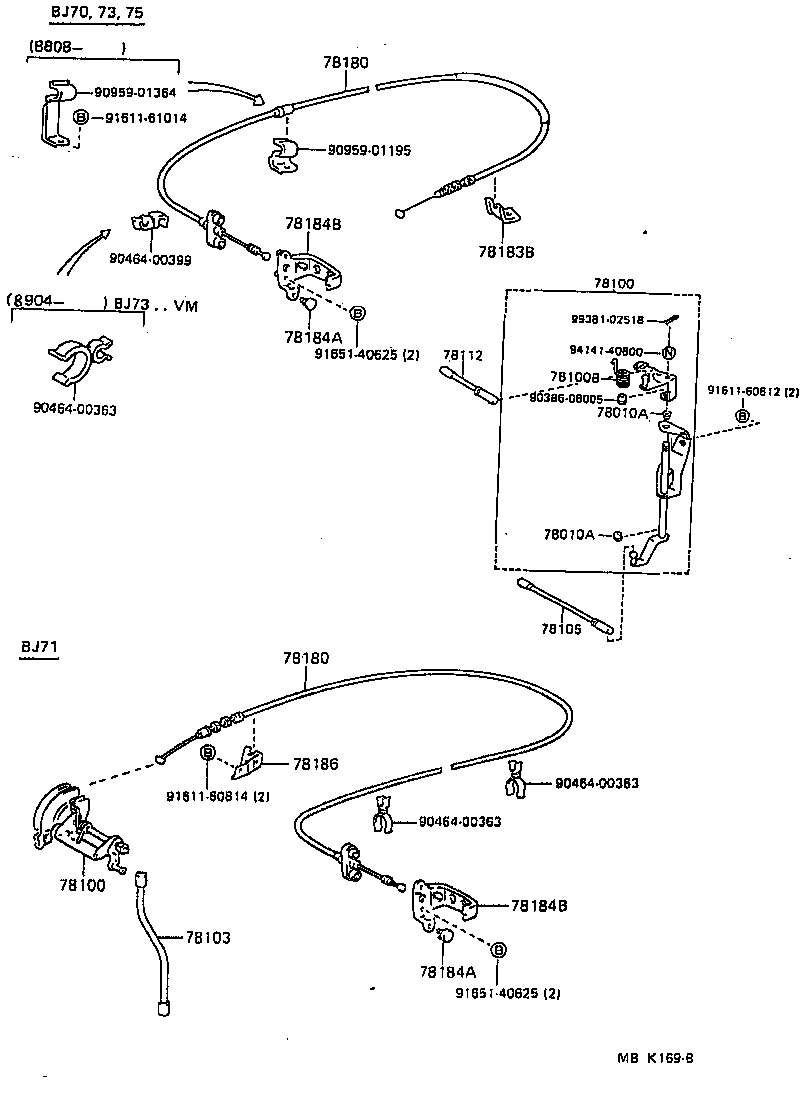

Figure MBH618D MBH618D 1984-11 → — Figure MBK922 MBK922 1986-08 → — Figure MBK169B MBK169B 1984-11 → — Figure MBK923A MBK923A 1986-08 → — Figure MBR985 MBR985 1988-12 → — Figure MBR986 MBR986 1988-10 → — Figure MBH571 MBH571 1984-11 → —

Part groups

PNCDescription
78010A Bush (FOR ACCELERATOR LINK)
78100 Link Assy, Accelerator
78100B Spring (FOR ACCELERATOR LINK)
78103 Rod Sub-assy, Accelerator Connecting, NO.1
78104 Rod Sub-assy, Accelerator Connecting, NO.2
78110 Rod Assy, Accelerator Pedal
78110A Spring (FOR ACCELERATOR PEDAL ROD)
78110C Bush (FOR ACCELERATOR PEDAL ROD)
78118 Pad, Accelerator Pedal
78118B Stopper, Accelerator Pedal
78130 Bellcrank Assy, Accelerator
78130A Spring (FOR ACCELERATOR ROD RETURN)
78130B Bush, Accelerator Bellcrank
78166 Bracket, Accel Control NO.2 Bellcrank
78180 Wire Assy, Accelerator
78183B Clamp, Accelerator Control Cable
78184A Cushion (FOR ACCELERATOR ADJUST STOPPER CHANNEL)
78184B Bracket, Accelerator Control Cable
78186 Support, Accelerator Control Cable, NO.1
78189 Bolt, Accelerator Pedal Stopper
78410 Cable Assy, Throttle Control
78410C Knob, Throttle Cable
78410D Nut, Throttle
78449 Guide, Throttle Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
