Toyota Land Cruiser

1984-11 → 1990-01 · chassis RJ7#,LJ7#,BJ7# · catalogue 781520 · Europe

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

31 part groups · 6 illustrations

Illustrations

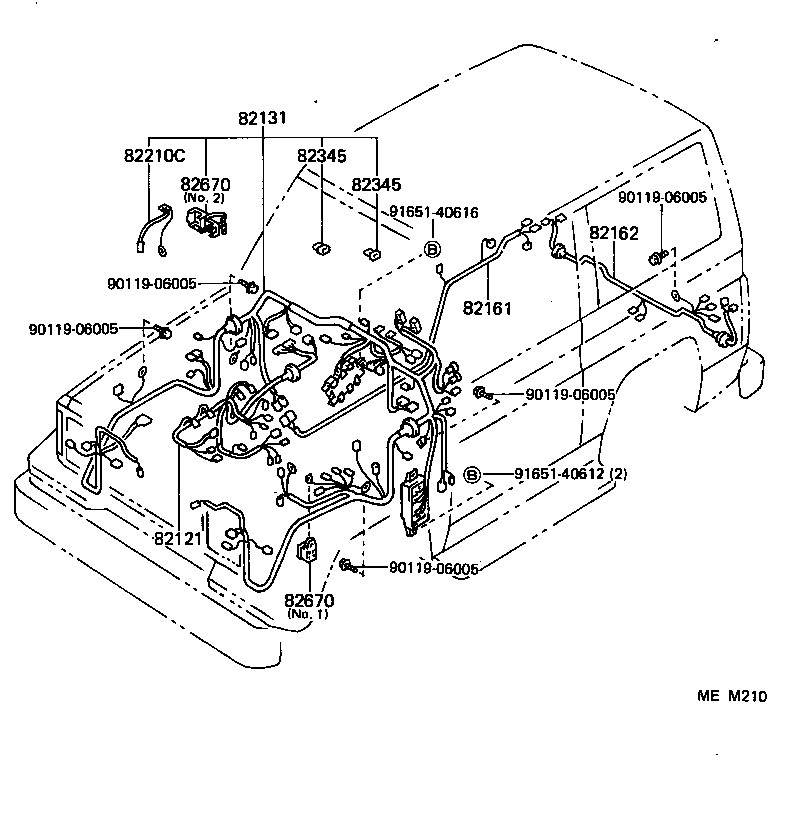

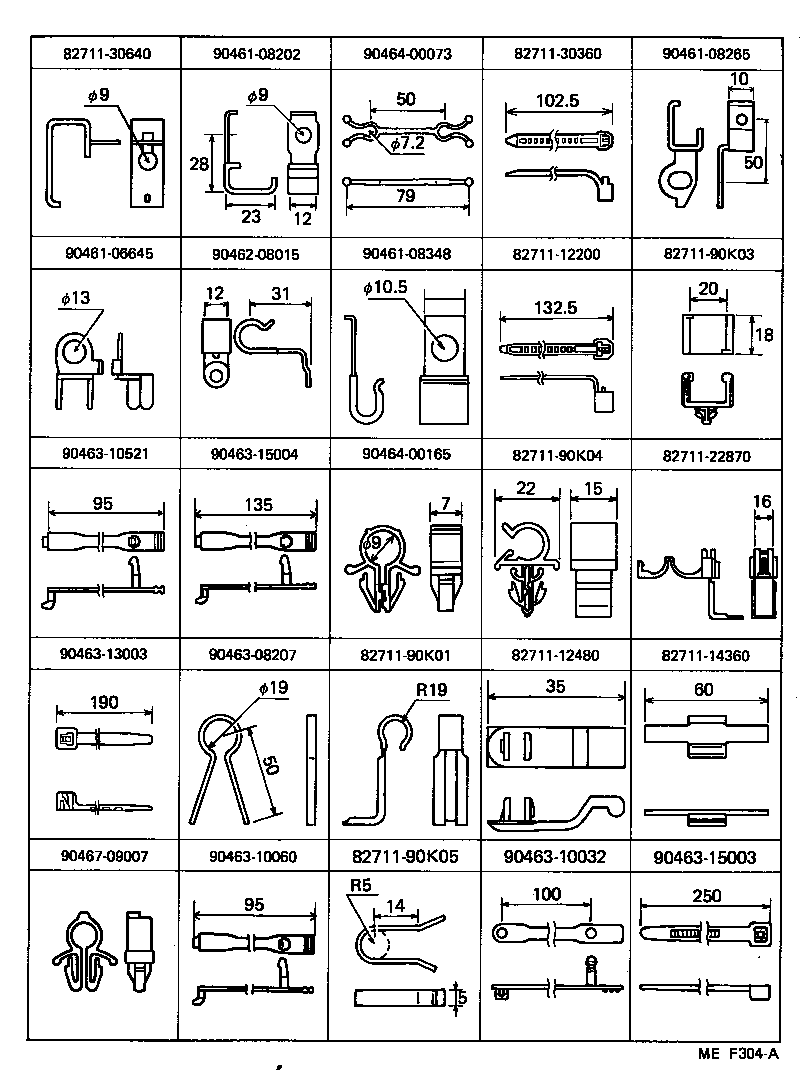

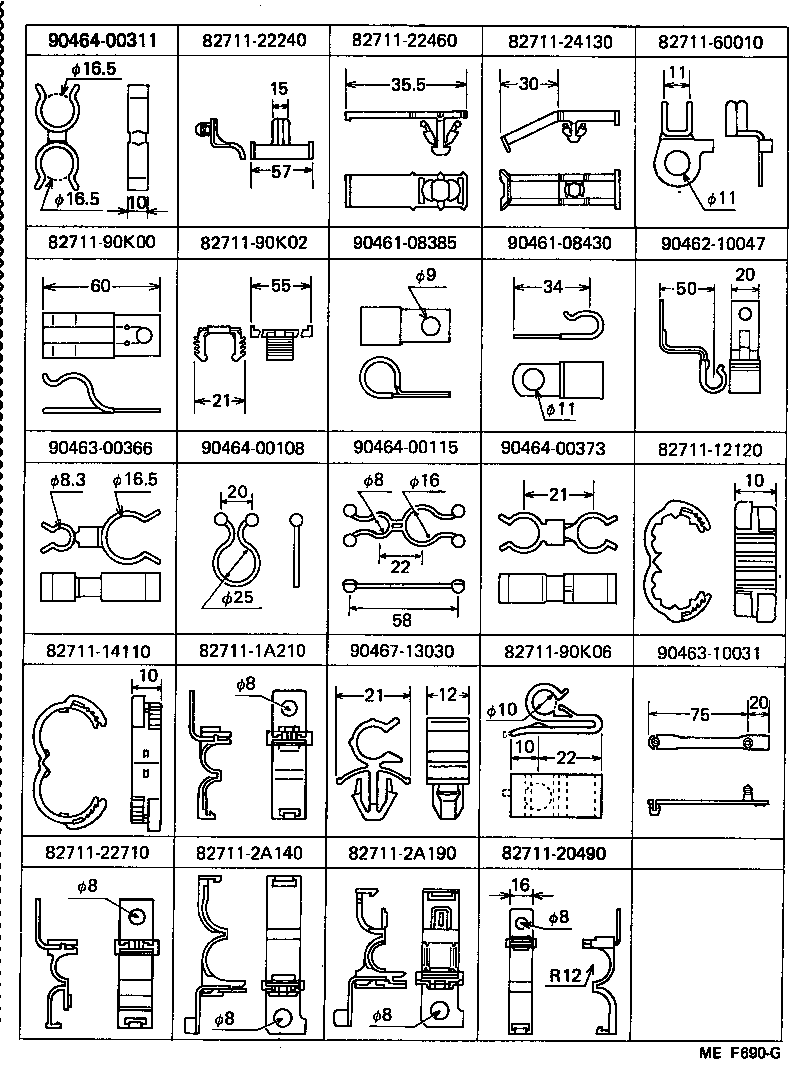

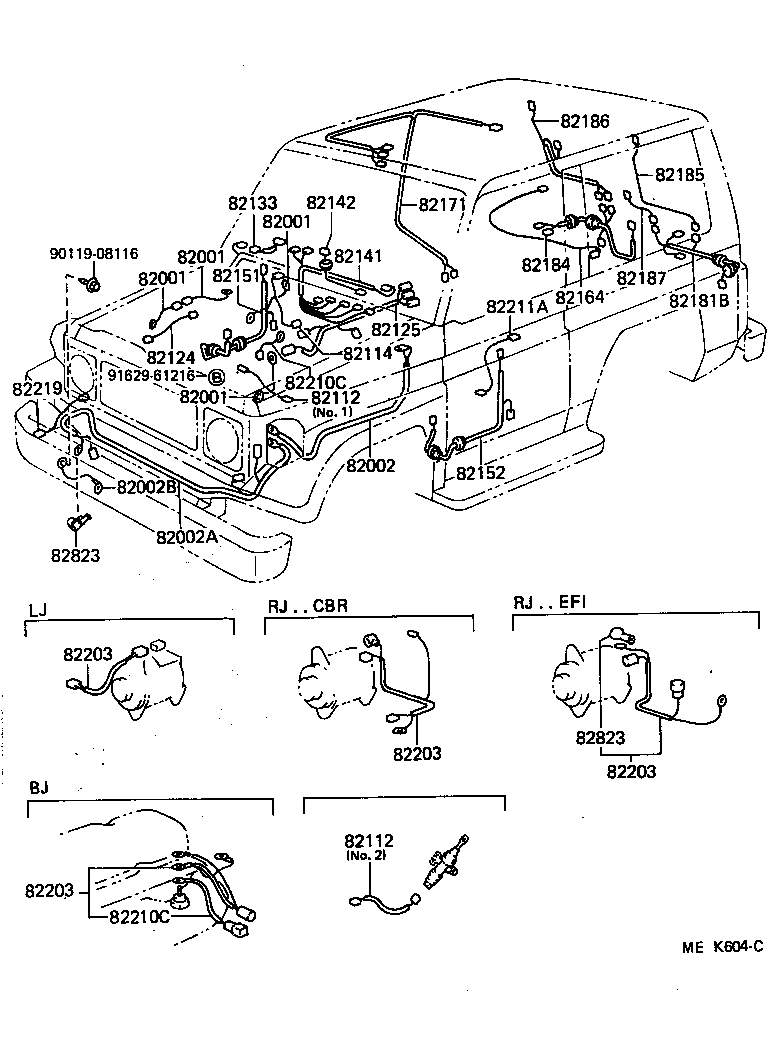

Figure MEF403G MEF403G 1984-11 → — Figure MEM210 MEM210 1988-12 → — Figure MEK604C MEK604C 1984-11 → — Figure MEF304A MEF304A 1984-11 → — Figure MEF690G MEF690G 1984-11 → — Figure MEF305B MEF305B 1984-11 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82002 Cable, Battery TO Magnet Switch
82002A Cable, Magnet Switch TO Winch
82002B Cable, Winch TO Ground
82112 Wire, Engine Room, NO.2
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82124 Wire, Engine, NO.4
82125 Wire, Transmission
82131 Wire, Cowl
82133 Wire, Cowl, NO.3
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82164 Wire, Frame
82171 Wire, Roof, NO.1
82181B Wire, Luggage Room, NO.3
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82203 Wire Sub-assy, Alternator
82210C Fusible Link
82211A Wire, Rear Heater
82219 Wire, Thermo Sensor
82345 Diode
82670 Block Assy, Junction, NO.1
82823 Cap, Terminal, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
